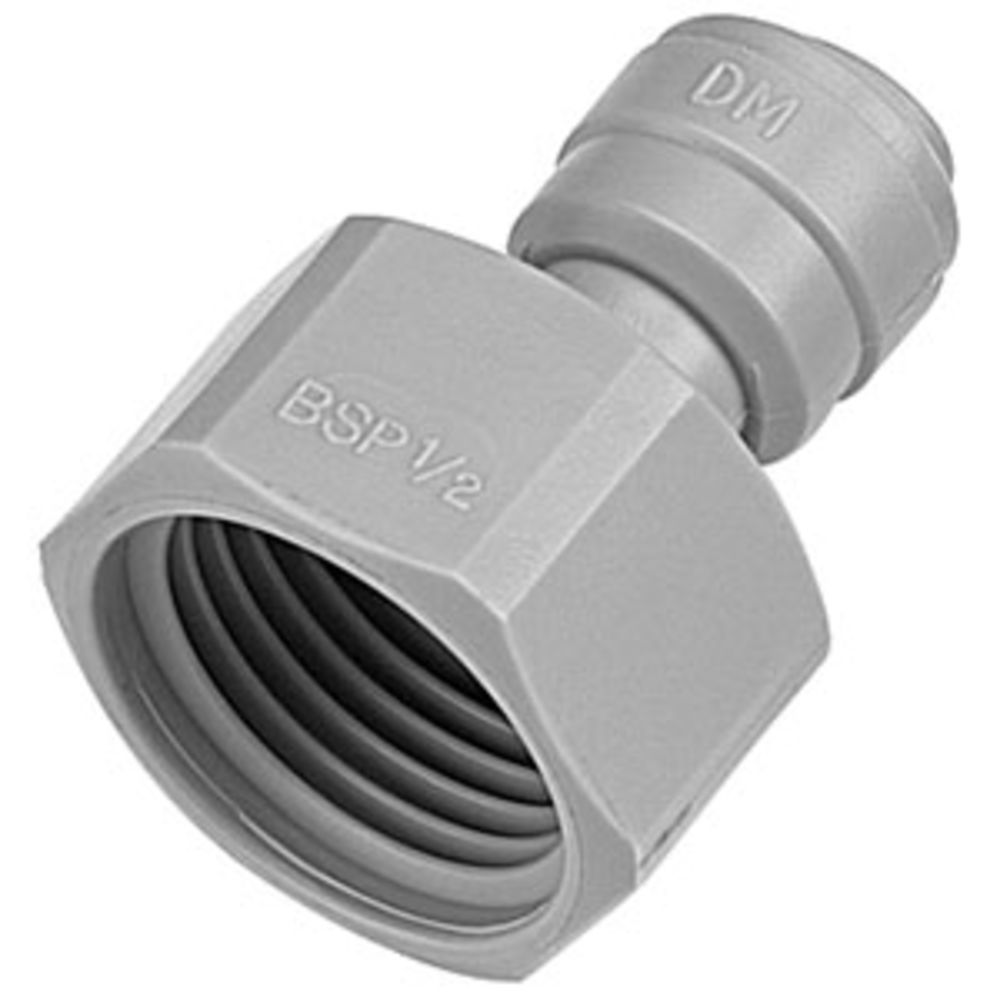

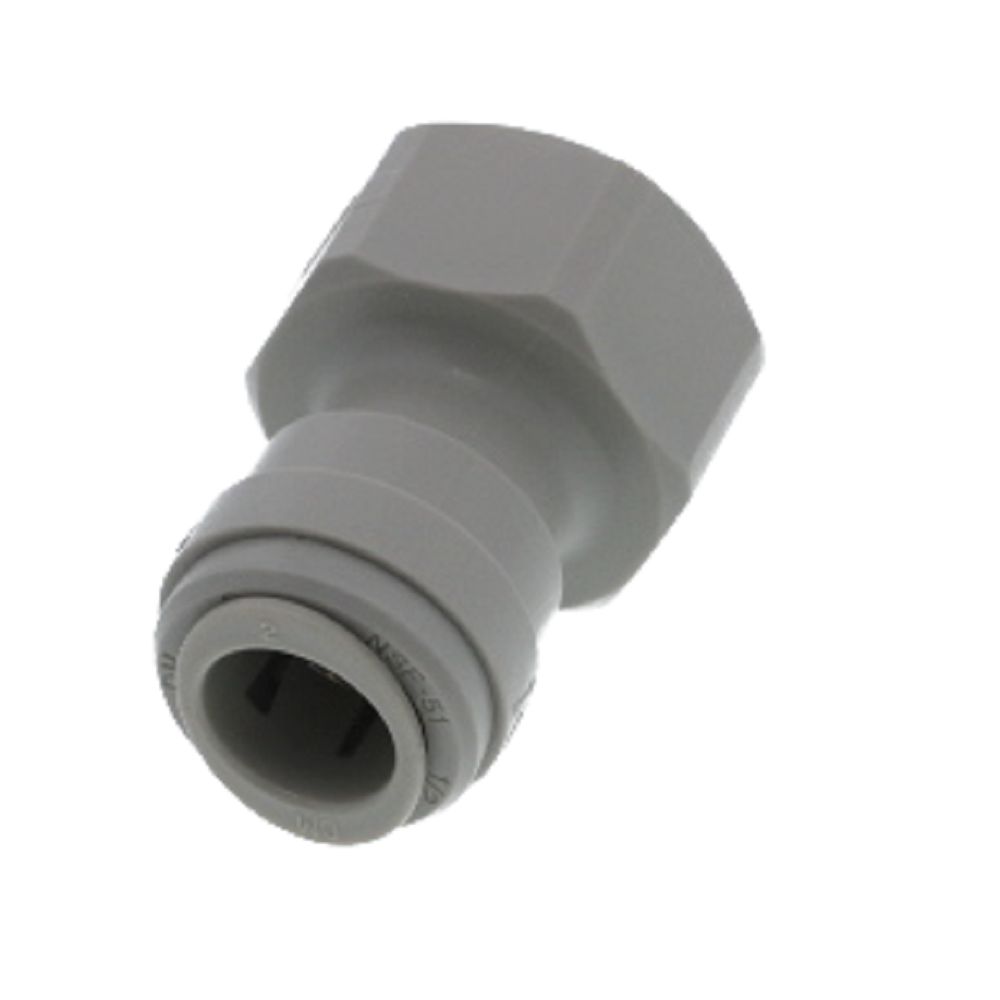

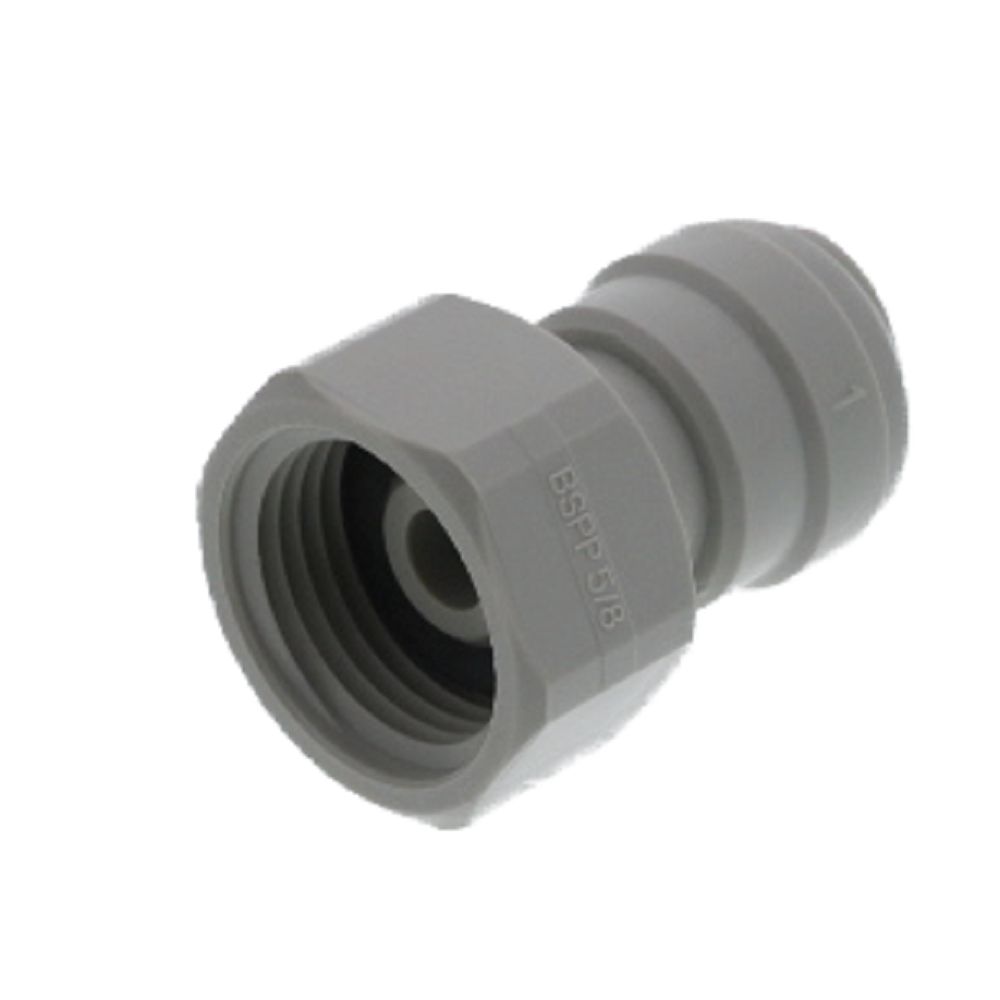

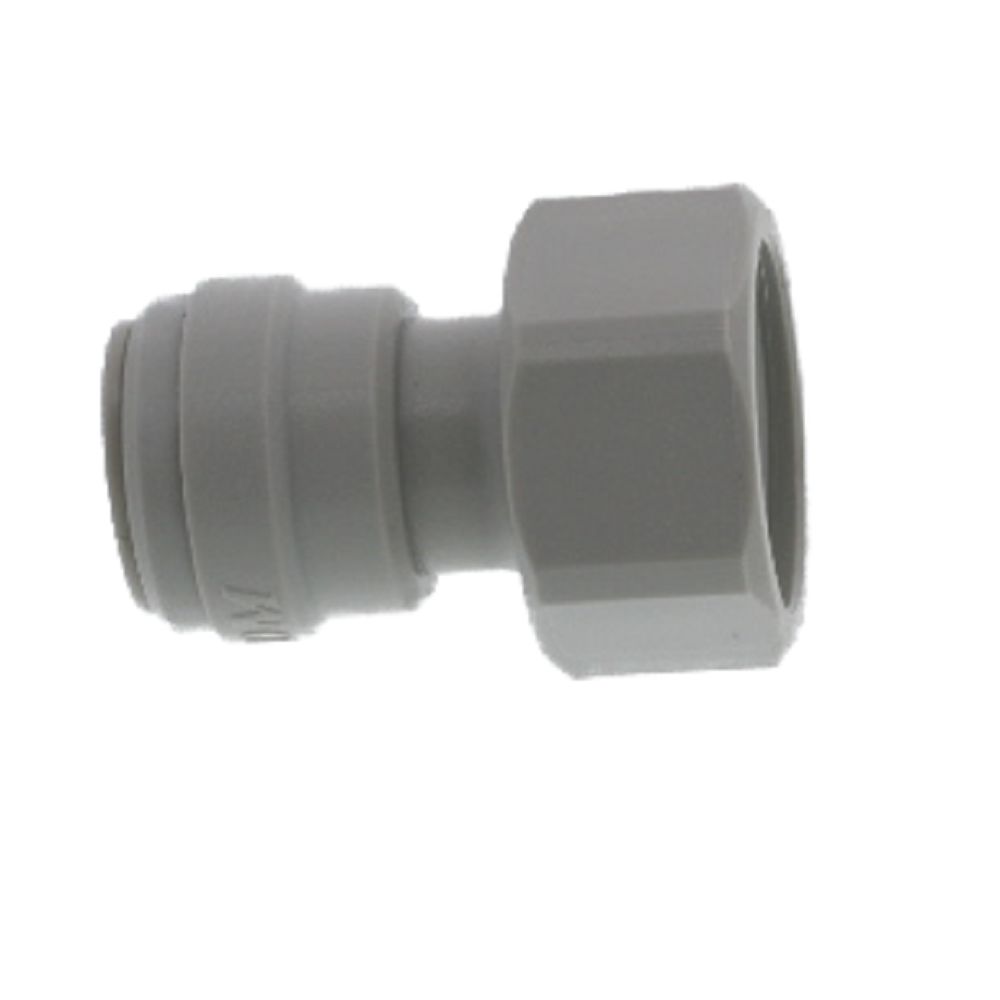

DMfit Female BSPP Connector Cone Type - 1/2" Push-in x 5/8 BSP(P)

Part Number: AFAB0708C

In Stock

out of stock

In Stock

$2.90

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Weight (lbs)

0.04

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

5/8" BSP

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

1/2" OD

Seal Material

Buna-N

Series

Acetal

Size

5/8"

Color / Finish

Gray, White

Connection Type

BSP

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
