DMFit

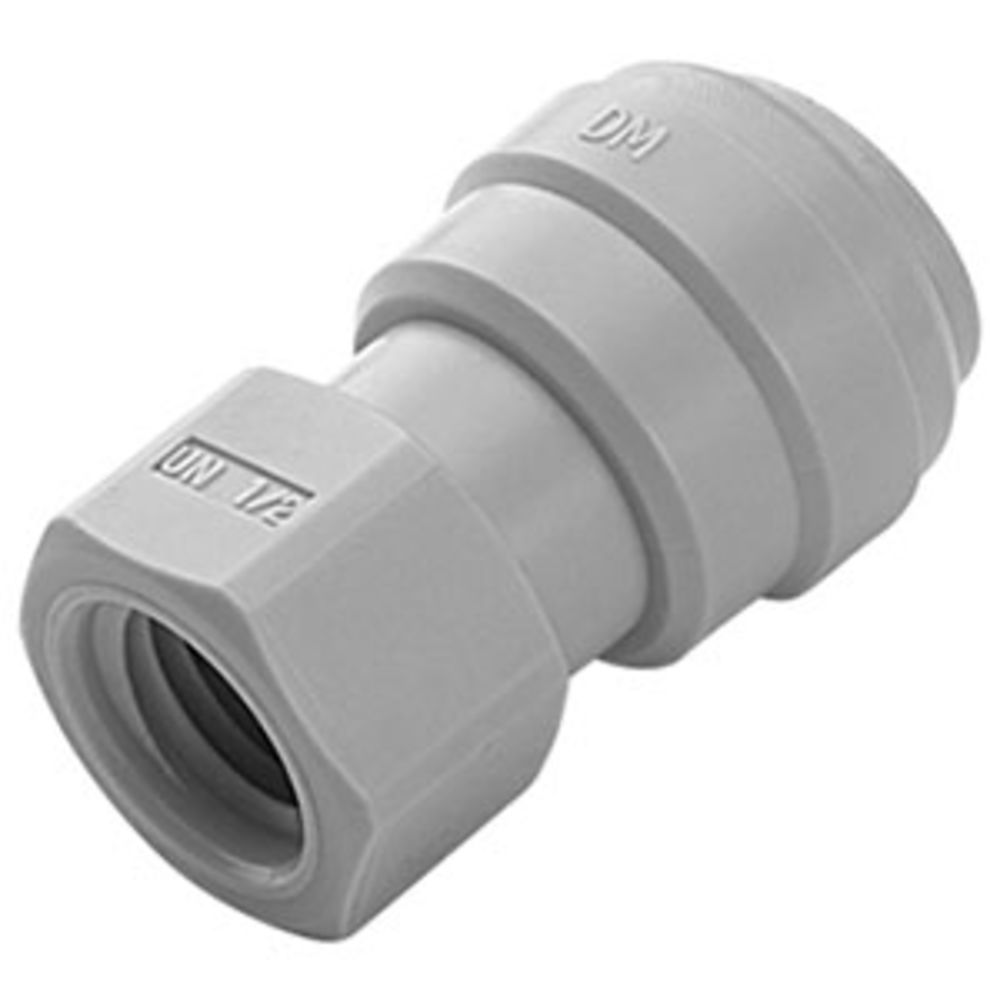

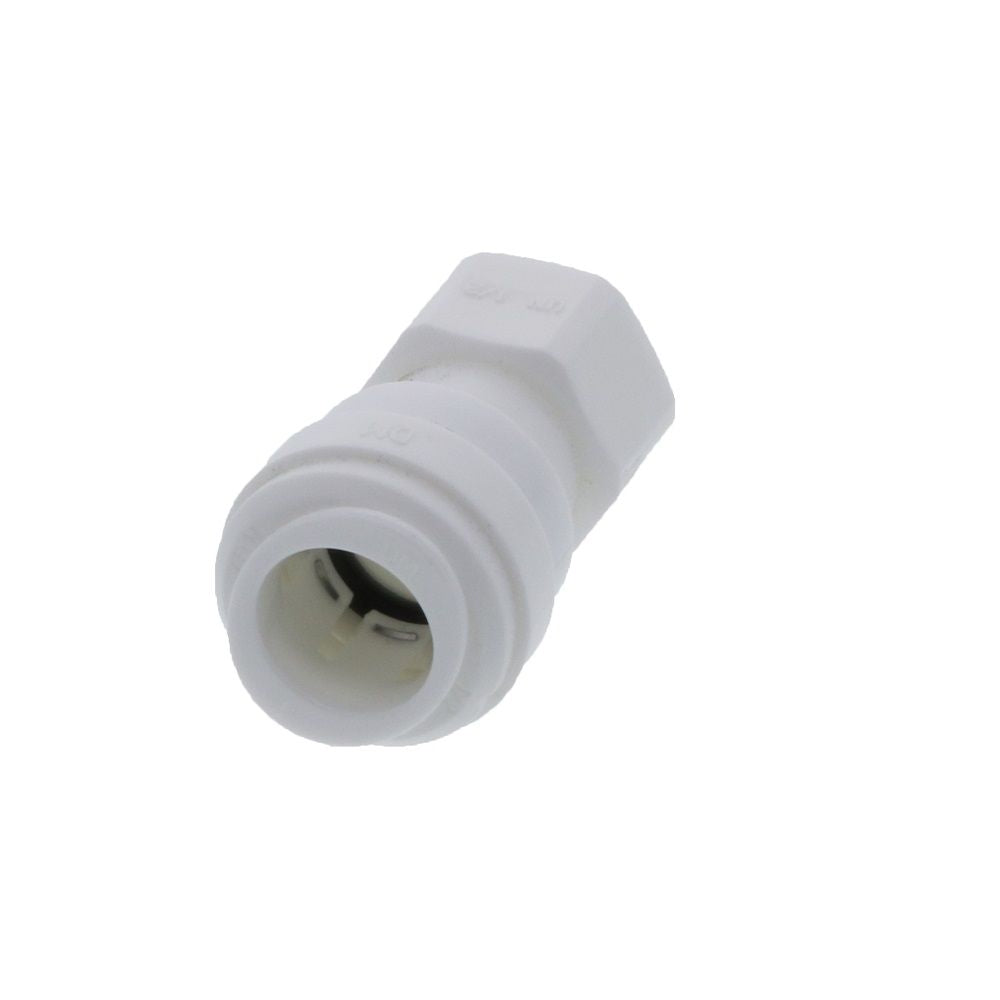

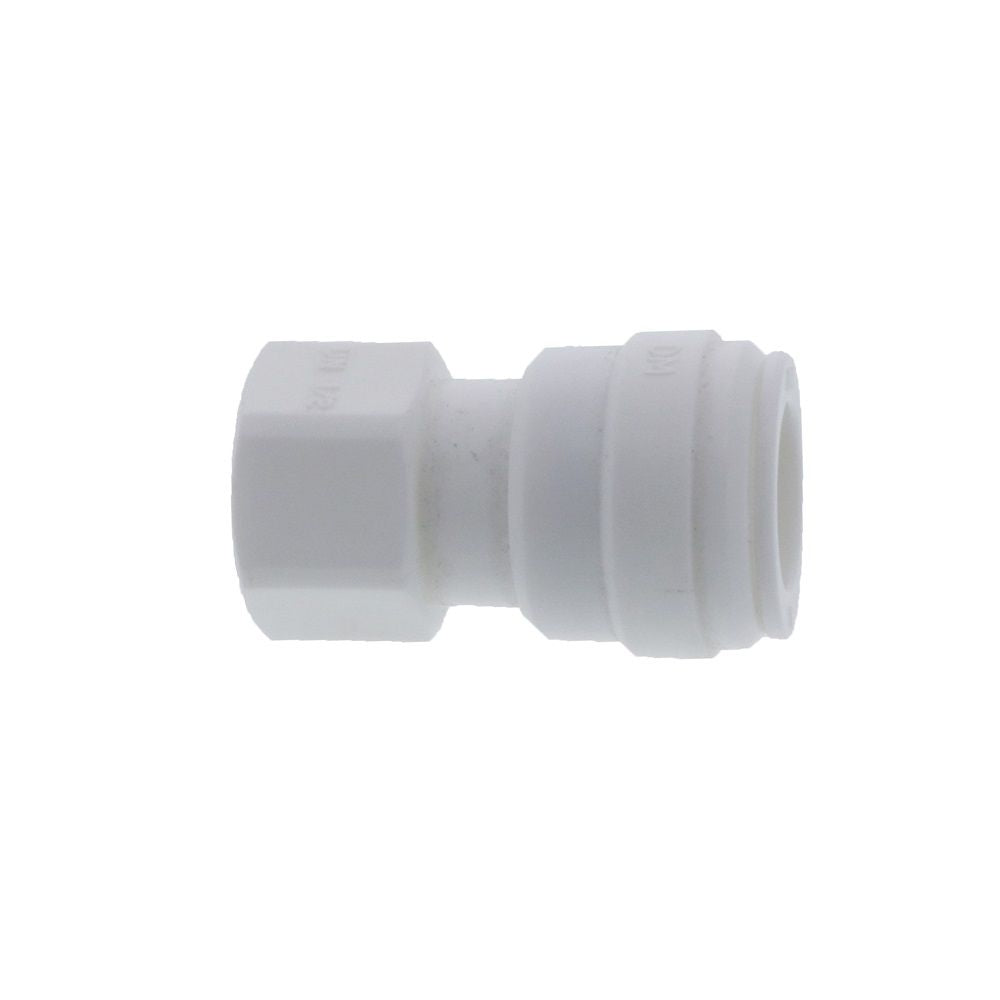

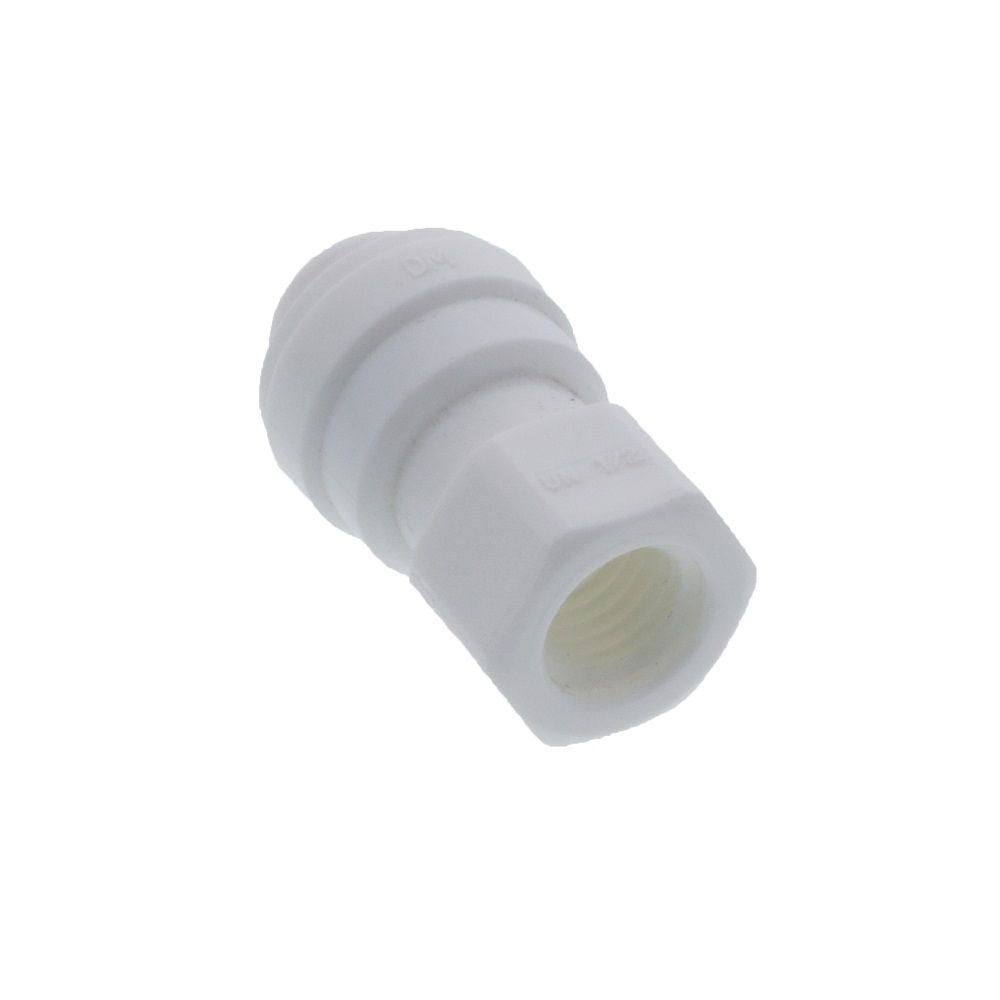

DMfit Female Adapter - 1/2" Push-in x 1/2-16 UN

Part Number: AFAUN071/2V

In Stock

out of stock

In Stock

$2.28

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/2-16 UNF

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

1/2" OD

Seal Material

Buna-N

Series

Acetal

Size

1/2-16

Color / Finish

Gray, White

Connection Type

UNS

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability



Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/2-16 UNF

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

1/2" OD

Seal Material

Buna-N

Series

Acetal

Size

1/2-16

Color / Finish

Gray, White

Connection Type

UNS

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
