DMFit

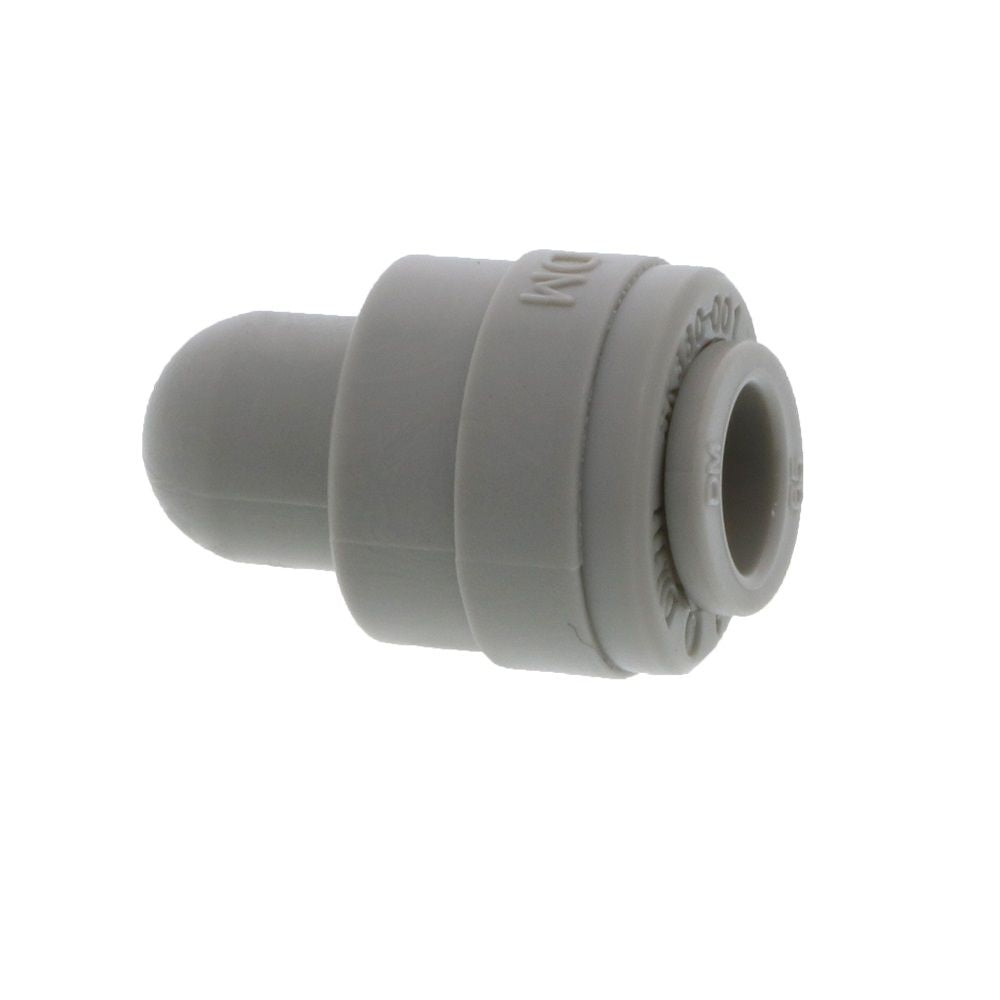

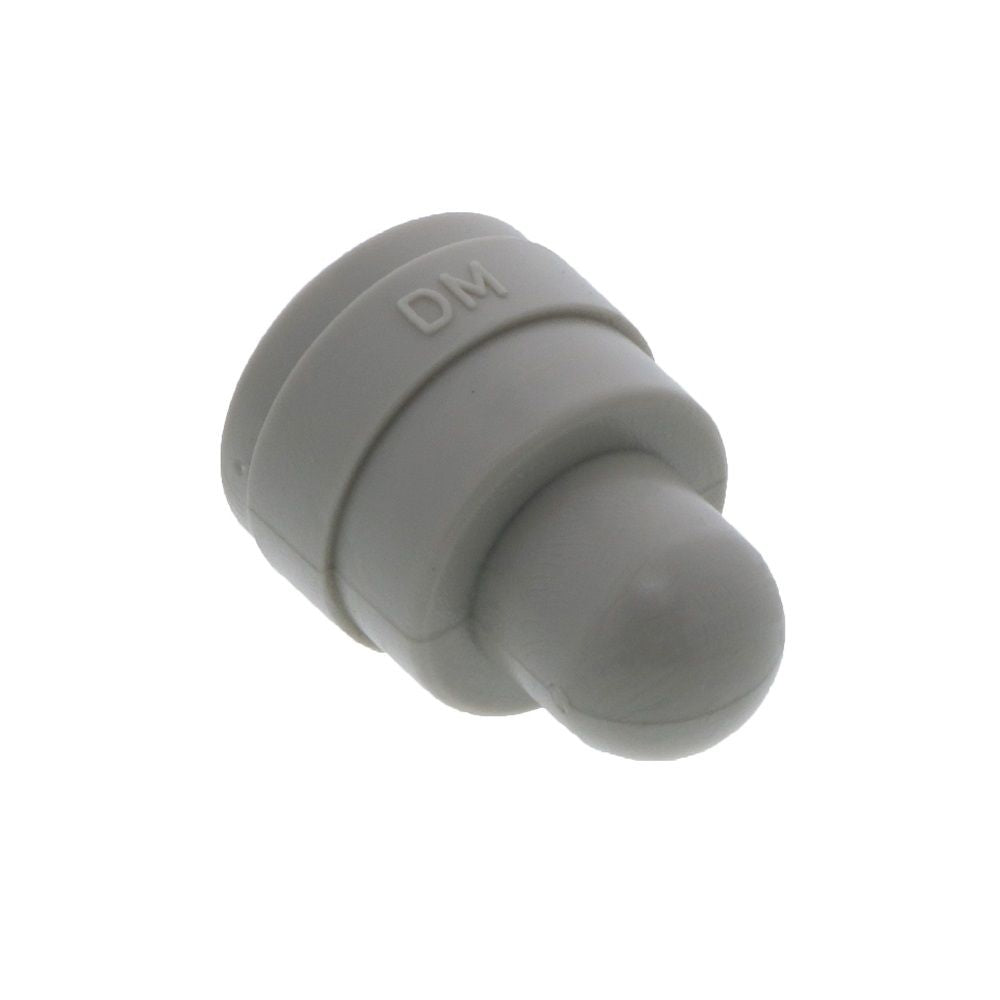

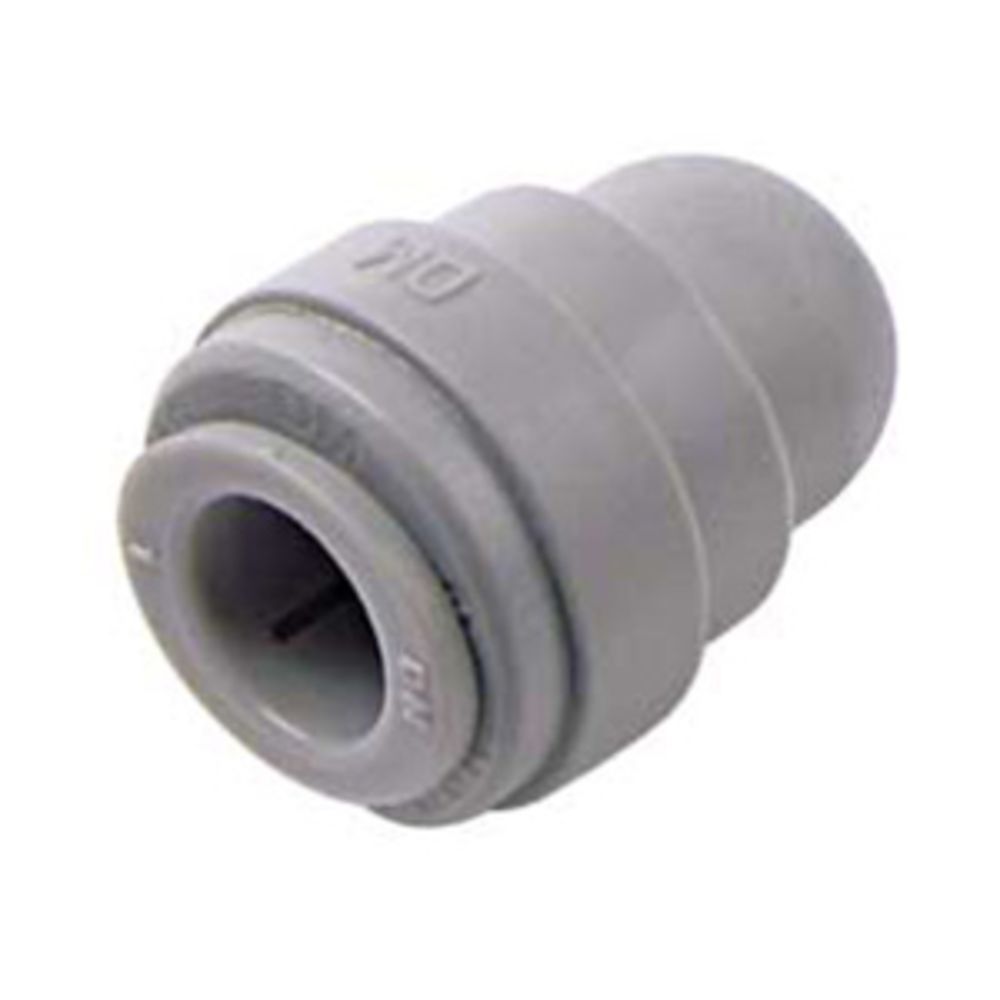

DMfit End Stop - 1/4" Push-in

Part Number: ATES04

In Stock

out of stock

In Stock

$1.02 Regular price

The DMFit ATES07 is a 1/4" Push-in End Stop. The ATES04 is designed to plug the end of tubing to prevent leaking.

Instructions:
  1. Push-in squared-off tubing into the fitting
  2. Pull back to confirm lock
  3. To unlock push in the collet and pull the tubing out




Weight & Dimensions

Length (inches)

0.88

Height (inches)

0.63

Width (inches)

0.63

Weight (lbs)

0.000625

Details

Series

Acetal

Max Temp (°F)

150

Max Pressure (Psi)

230

Min Temp (°F)

34

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Box Quantity

700

Color / Finish

Gray, White

Mounting Options

Free Floating

Seal Material

Buna-N

Warranty & Certifications

Certifications

NSF 61, NSF 51, FDA Approved



The DMFit ATES07 is a 1/4" Push-in End Stop. The ATES04 is designed to plug the end of tubing to prevent leaking.

Instructions:
  1. Push-in squared-off tubing into the fitting
  2. Pull back to confirm lock
  3. To unlock push in the collet and pull the tubing out



Weight & Dimensions

Length (inches)

0.88

Height (inches)

0.63

Width (inches)

0.63

Weight (lbs)

0.000625

Details

Series

Acetal

Max Temp (°F)

150

Max Pressure (Psi)

230

Min Temp (°F)

34

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Box Quantity

700

Color / Finish

Gray, White

Mounting Options

Free Floating

Seal Material

Buna-N

Warranty & Certifications

Certifications

NSF 61, NSF 51, FDA Approved
