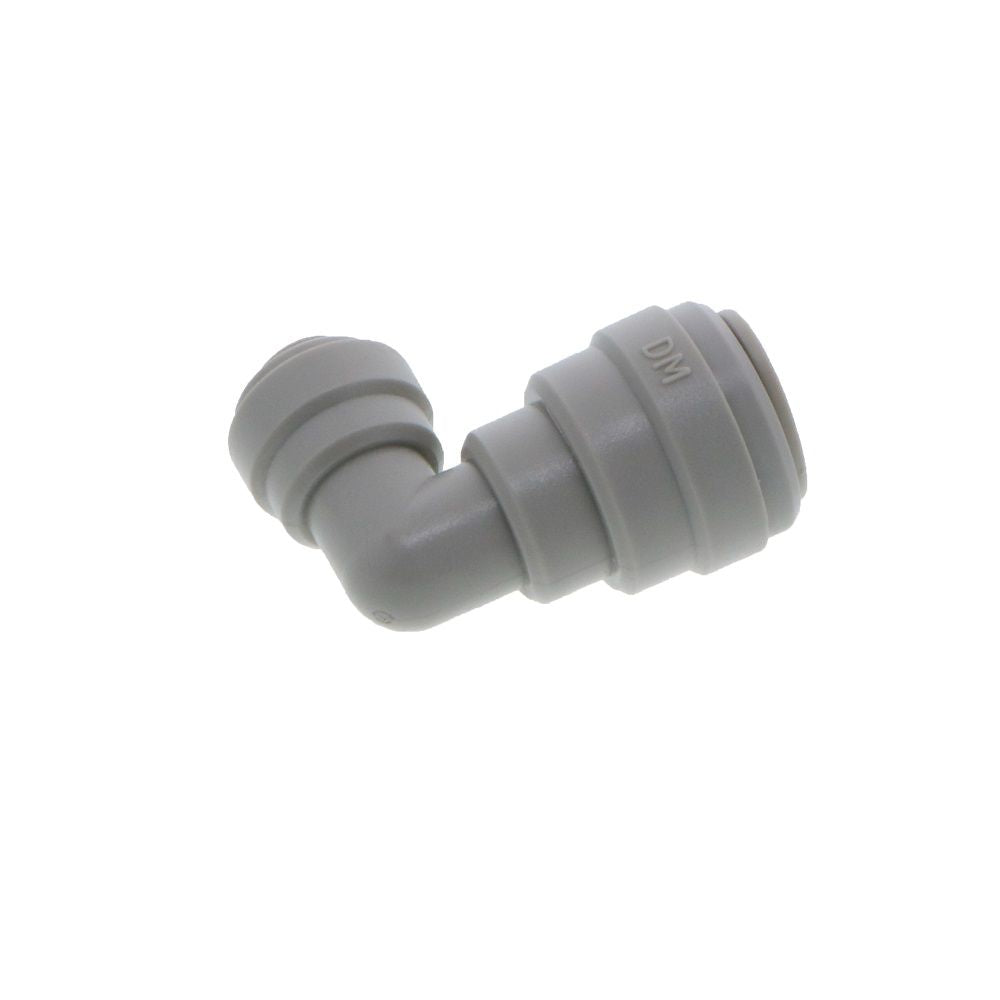

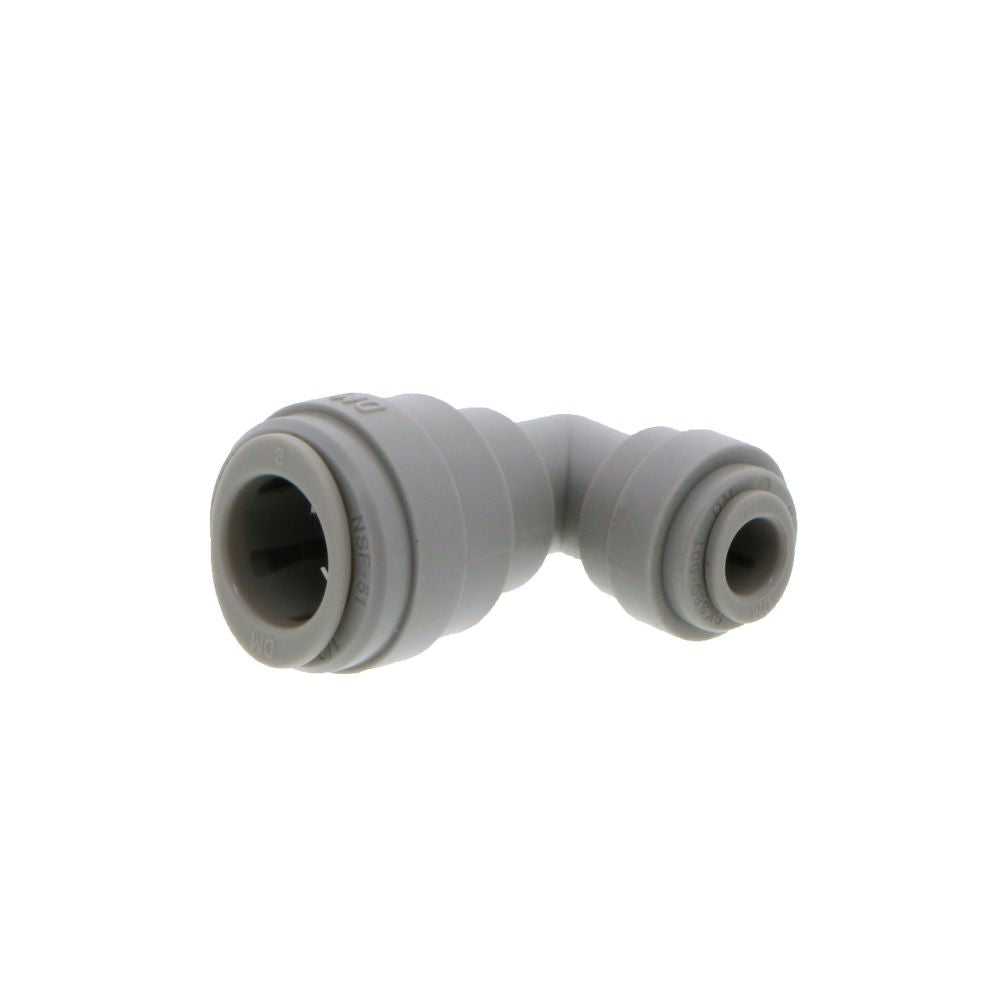

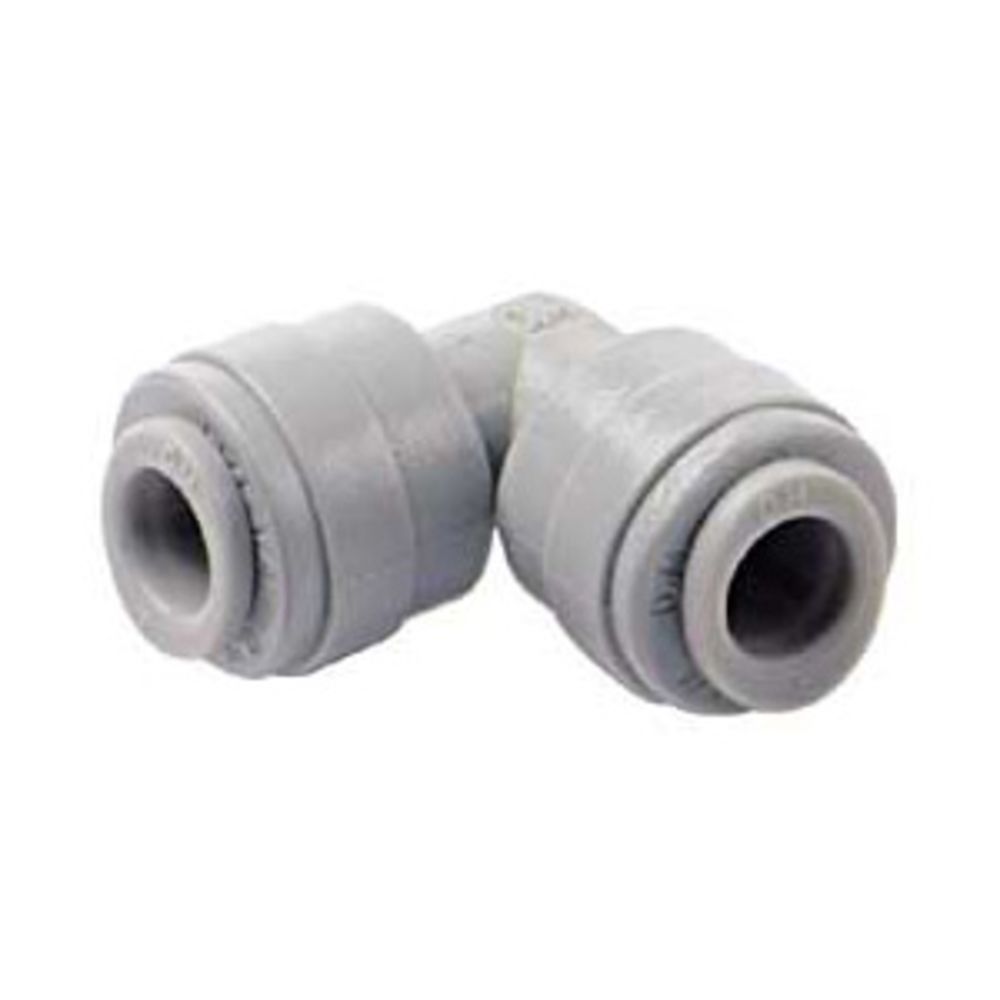

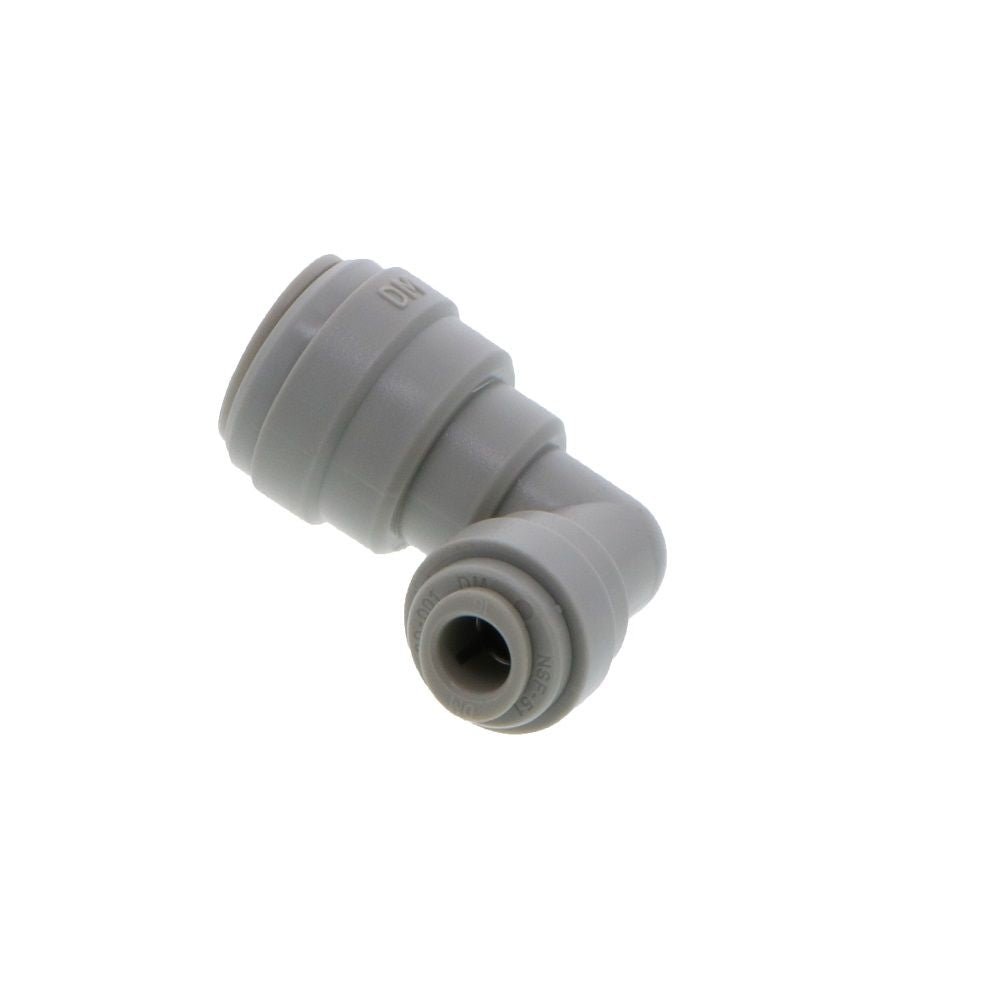

DMfit Elbow Union - 1/2 x 1/4 Push-in

Part Number: AEU0704

In Stock

out of stock

In Stock

$2.26

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability




Weight & Dimensions

Weight (lbs)

0.04

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

1/2" OD, 1/4" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

Gray, White

Sub-Type

Reducer Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability



Weight & Dimensions

Weight (lbs)

0.04

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Max Pressure (Psi)

170

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

1/2" OD, 1/4" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

Gray, White

Sub-Type

Reducer Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
