Home / Fittings / Quick-Connect Fittings / Elbow / DMfit Elbow Male Connector - 1/2 Push-in x 1/2 NPTF

DMFit

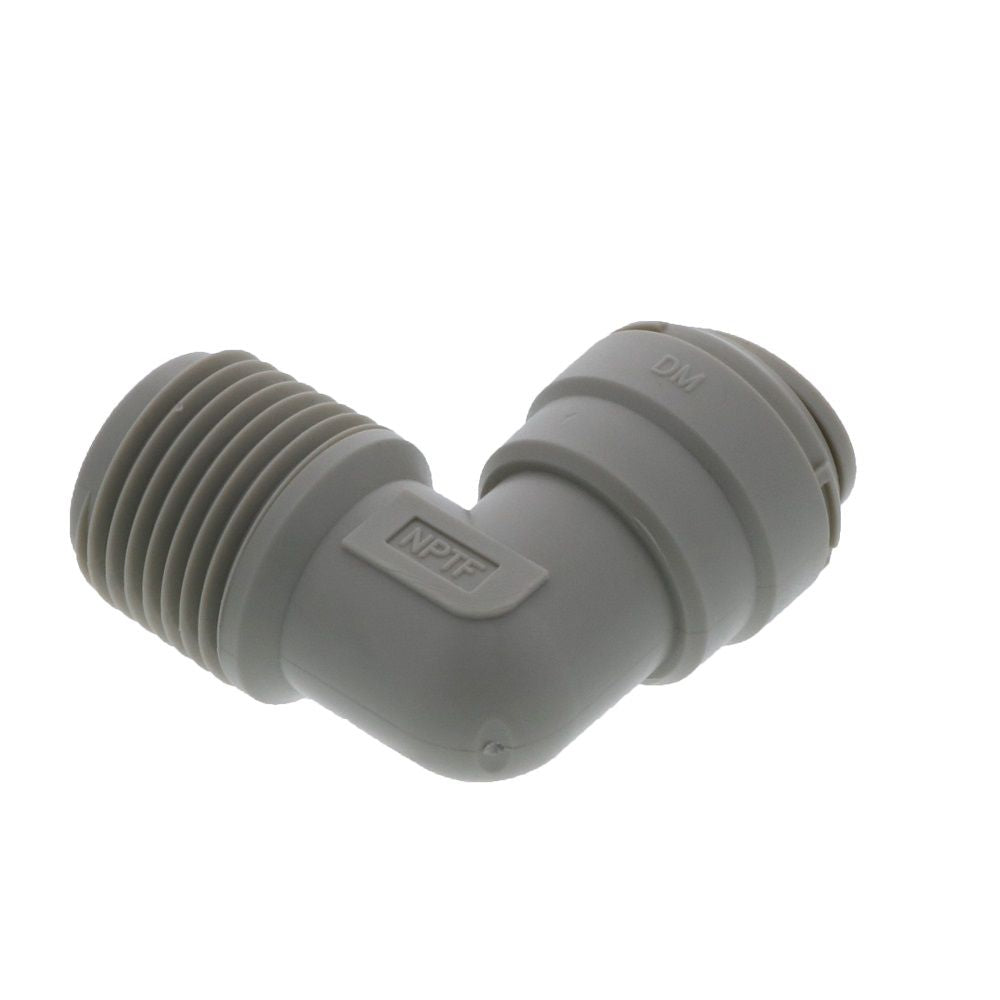

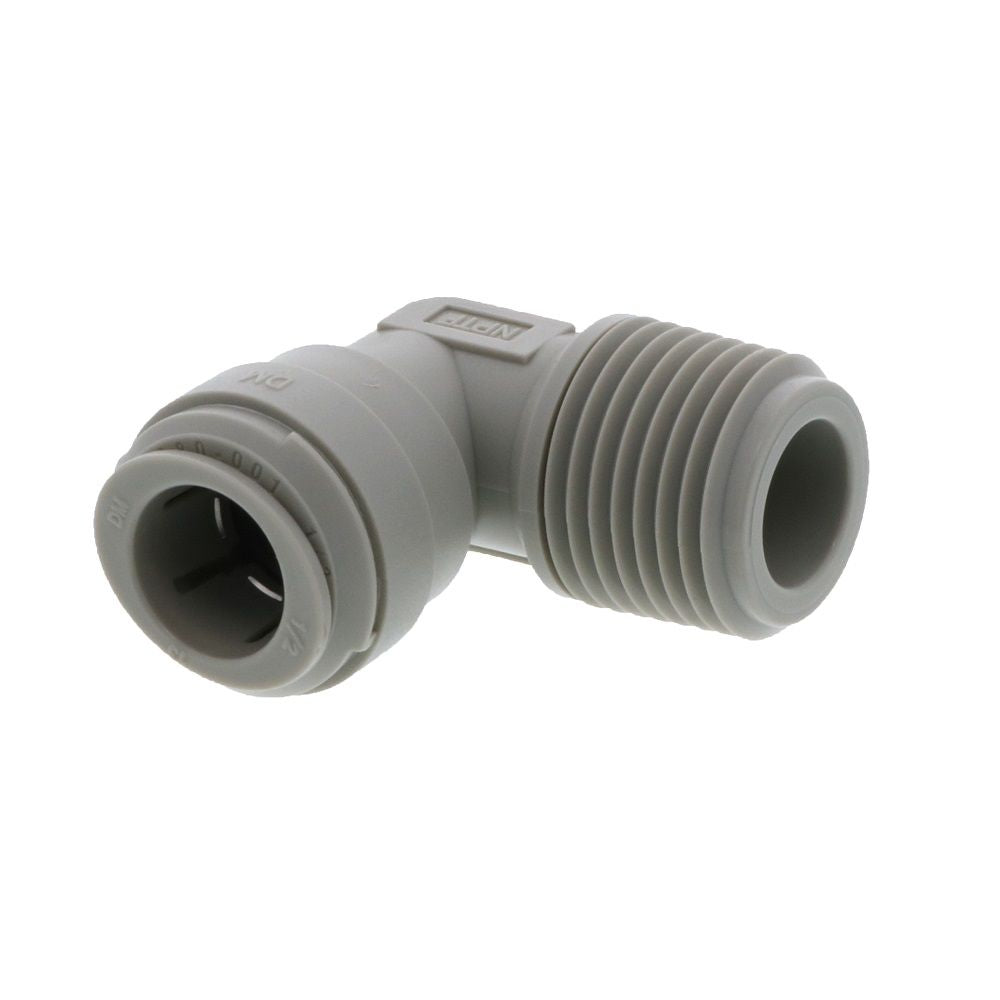

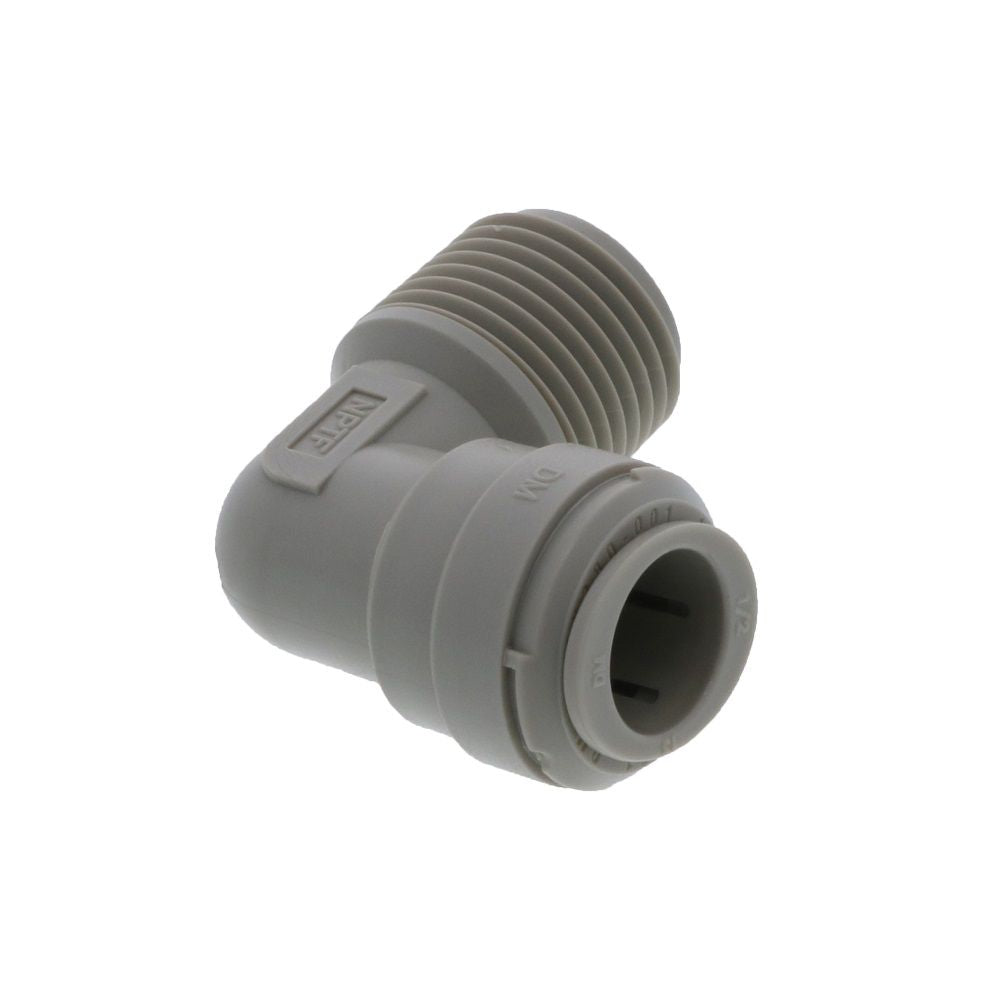

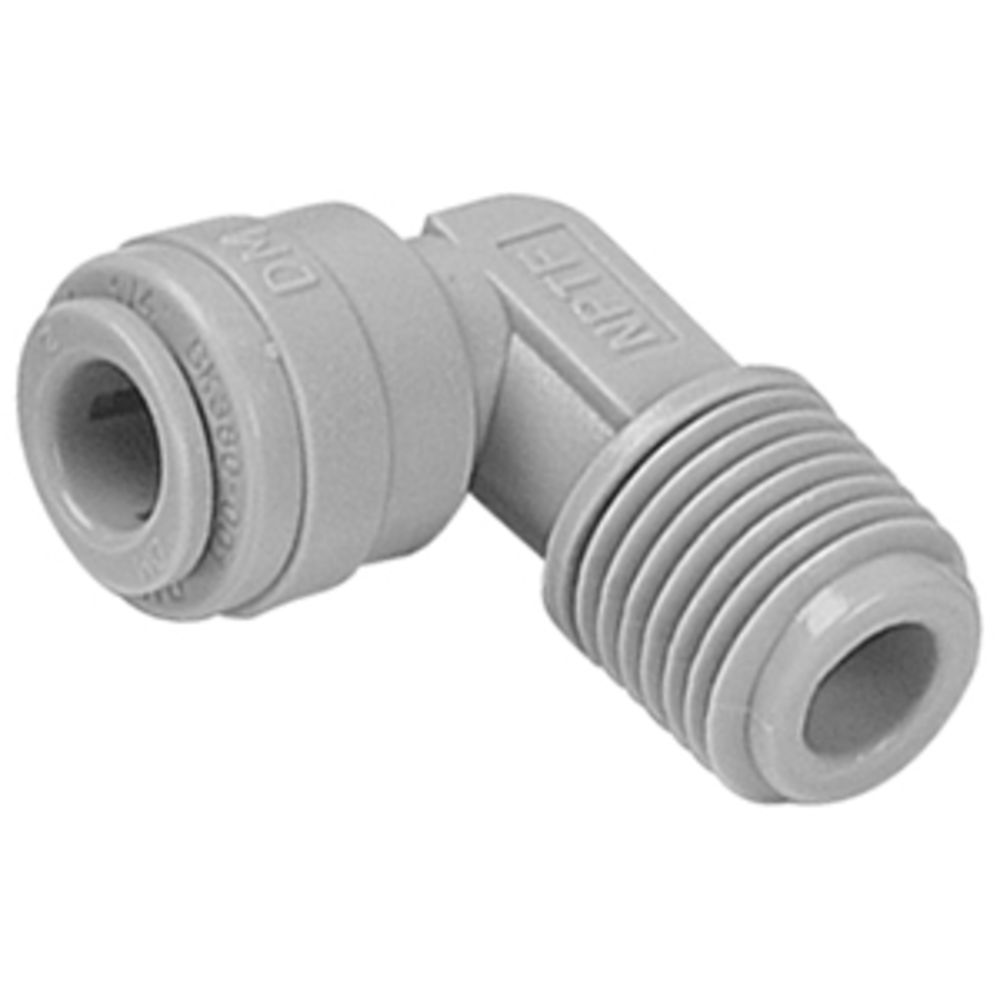

DMfit Elbow Male Connector - 1/2 Push-in x 1/2 NPTF

Part Number: AME0707

Main Product Image

Product image 1

Product image 2

Product image 3

Product image 4

DMFit

DMfit Elbow Male Connector - 1/2 Push-in x 1/2 NPTF

Part Number: AME0707

Choose

Single BAG of 10 5 BAGS BOX of 150

Quantity

similar items

Features:

Acetal copolymer construction
O-rings are NBR (Buna-N)
Unique oval collet design
FDA approved materials
For water, air, gases, vacuum, & liquids
NSF Certified 51 & 62
Fittings may be gray or white based on availability

Features:

Acetal copolymer construction
O-rings are NBR (Buna-N)
Unique oval collet design
FDA approved materials
For water, air, gases, vacuum, & liquids
NSF Certified 51 & 62
Fittings may be gray or white based on availability

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	1/2" MPT
Max Pressure (Psi)	170
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	34
Mounting Options	Thread
Outlet Connection	1/2" MPT
Push-In Size	1/2" OD
Seal Material	Buna-N
Series	Acetal
Shape	90
Size	1/2"
Color / Finish	Gray White
Connection Type	Male (MPT)
Origin	Korea
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Certifications	NSF 61, NSF 51, FDA Approved
