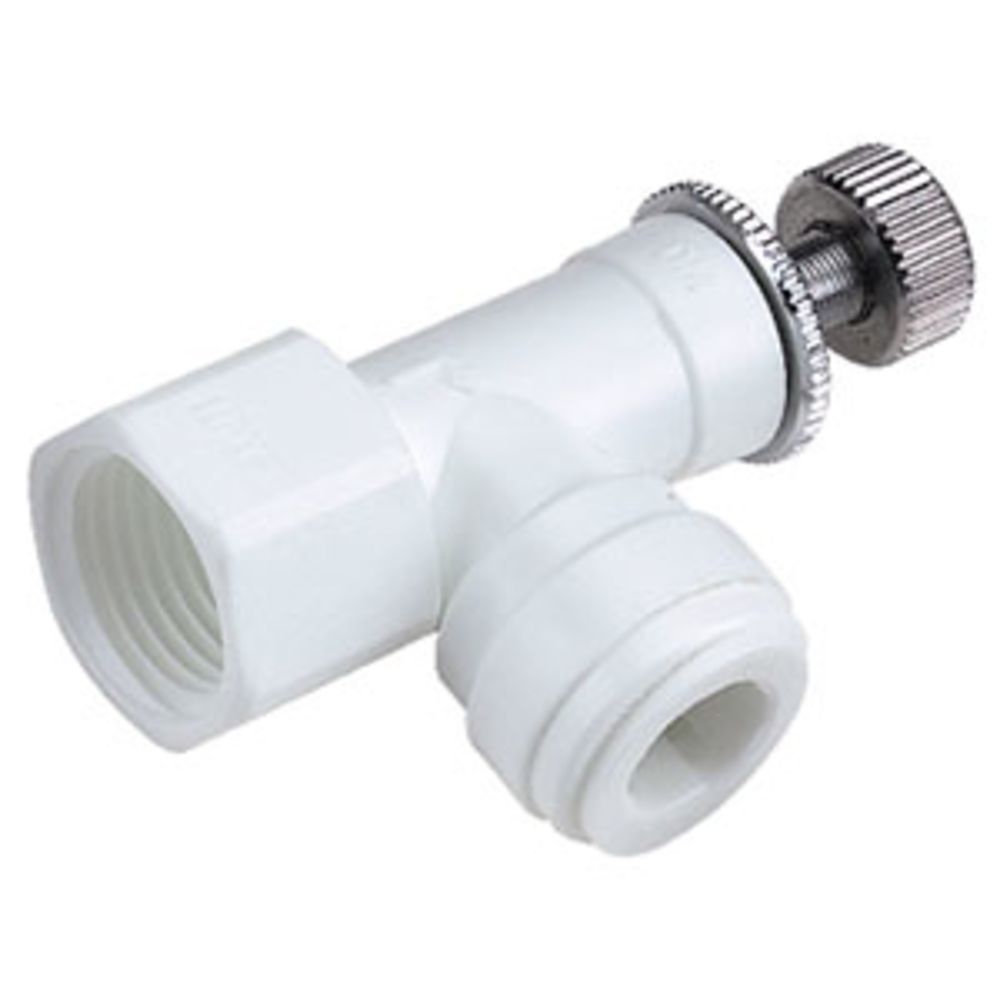

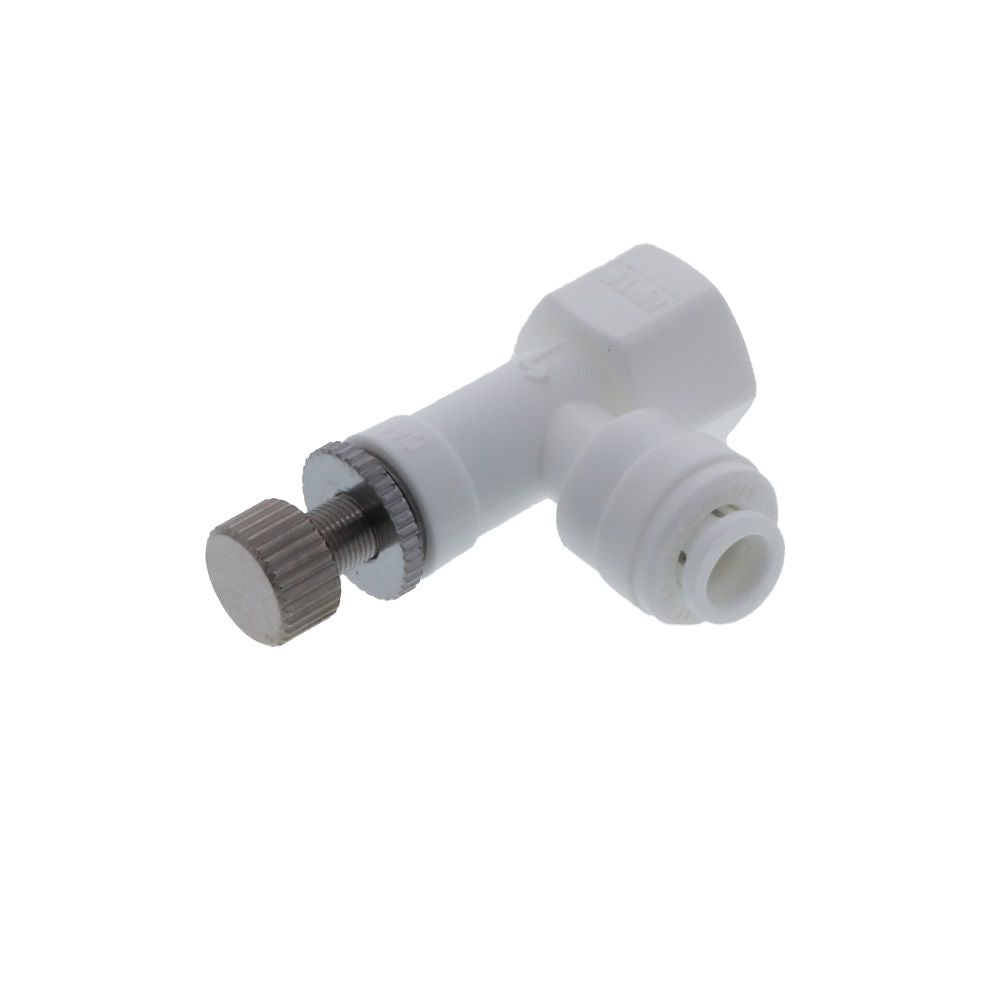

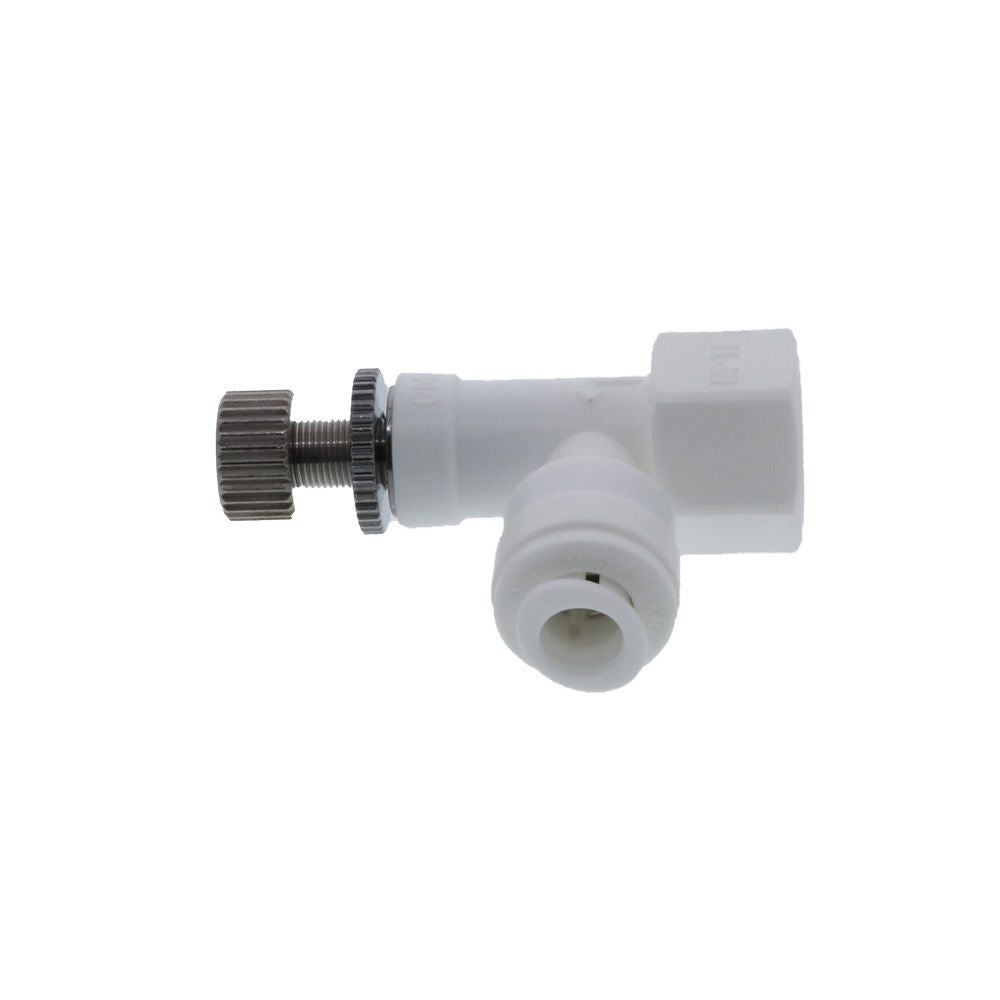

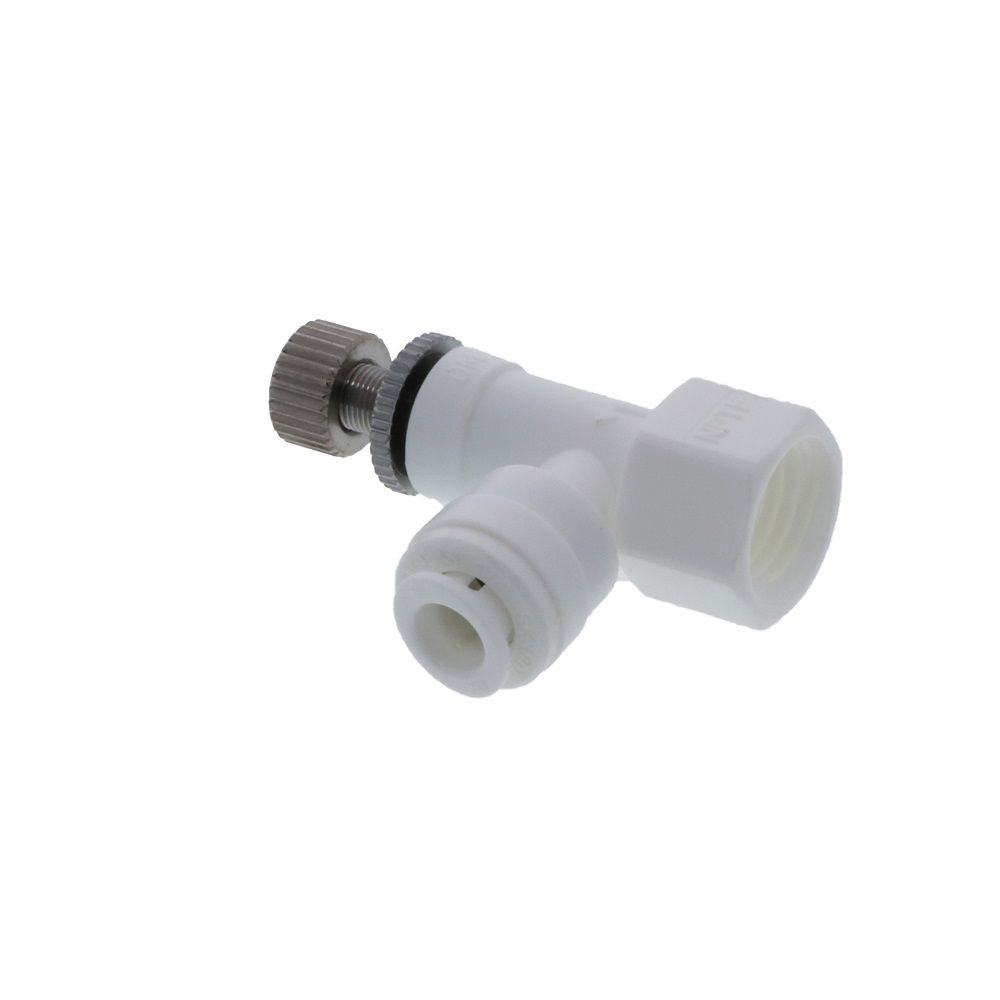

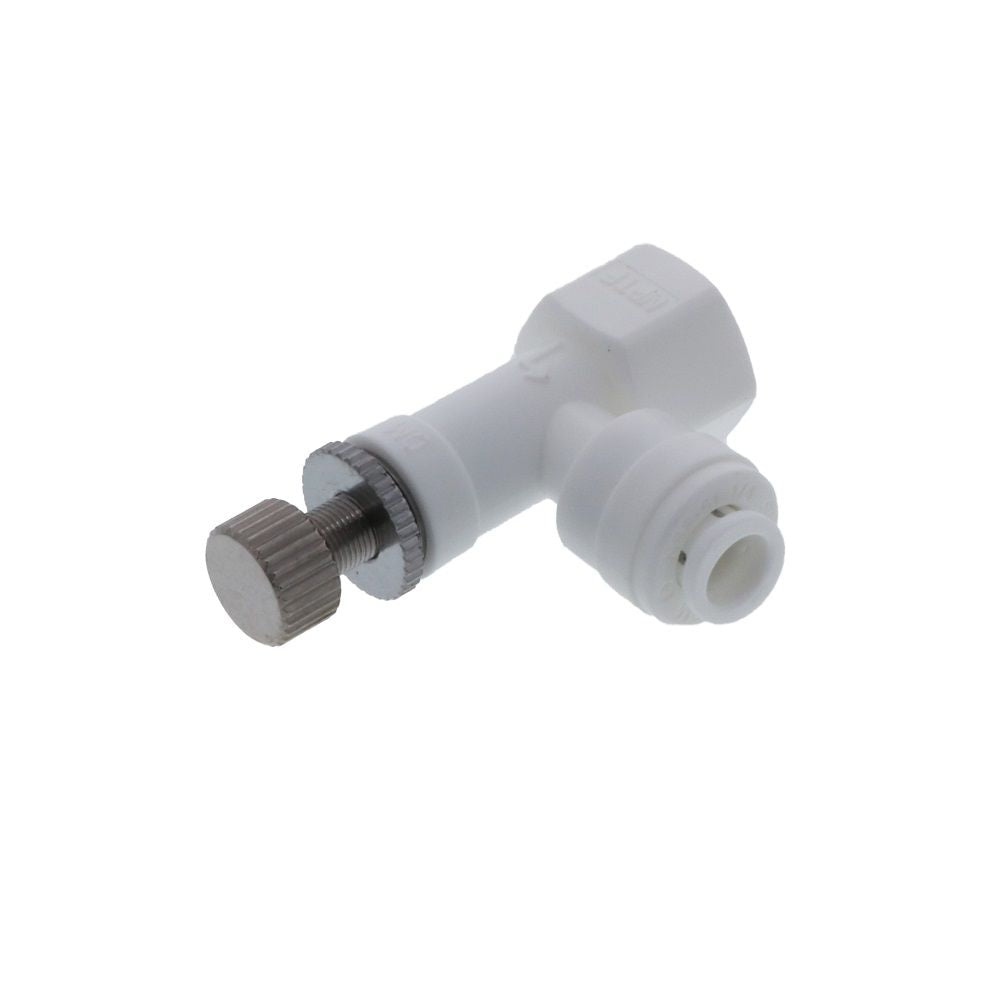

DMfit Control Valve Female Adapter - 1/4" Push-in x 1/4" NPTF

Part Number: ACFA0404

In Stock

out of stock

In Stock

$8.26

Features:
  • Adjustable locking needle valve
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.63

Length (inches)

1.88

Weight (lbs)

0.003125

Width (inches)

1.25

Details

Application

Water, Air

Body Material

Acetal

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

145

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

Acetal

Size

1/4"

Color / Finish

White

Connection Type

Female (FPT)

Warranty & Certifications

Certifications

NSF 61; NSF 51; NSF 372



Features:
  • Adjustable locking needle valve
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability



Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.63

Length (inches)

1.88

Weight (lbs)

0.003125

Width (inches)

1.25

Details

Application

Water, Air

Body Material

Acetal

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

145

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

Acetal

Size

1/4"

Color / Finish

White

Connection Type

Female (FPT)

Warranty & Certifications

Certifications

NSF 61; NSF 51; NSF 372
