DMFit

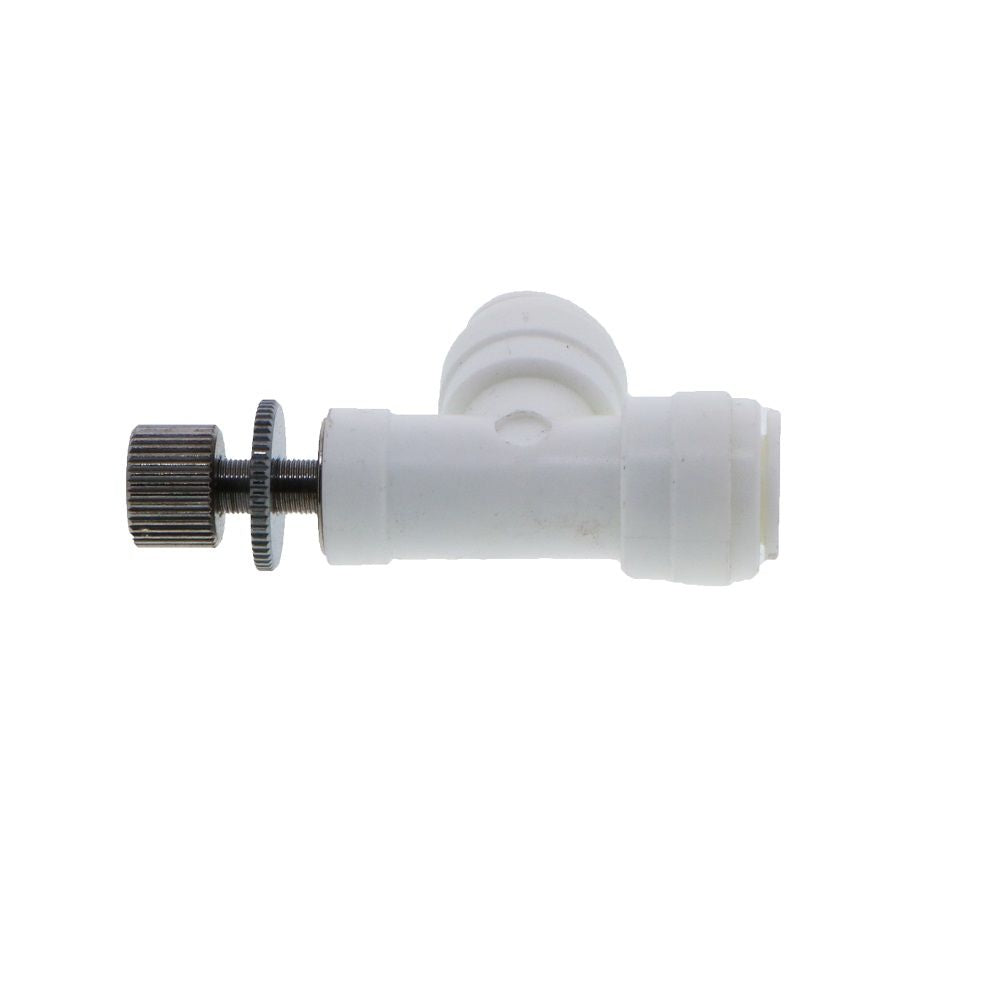

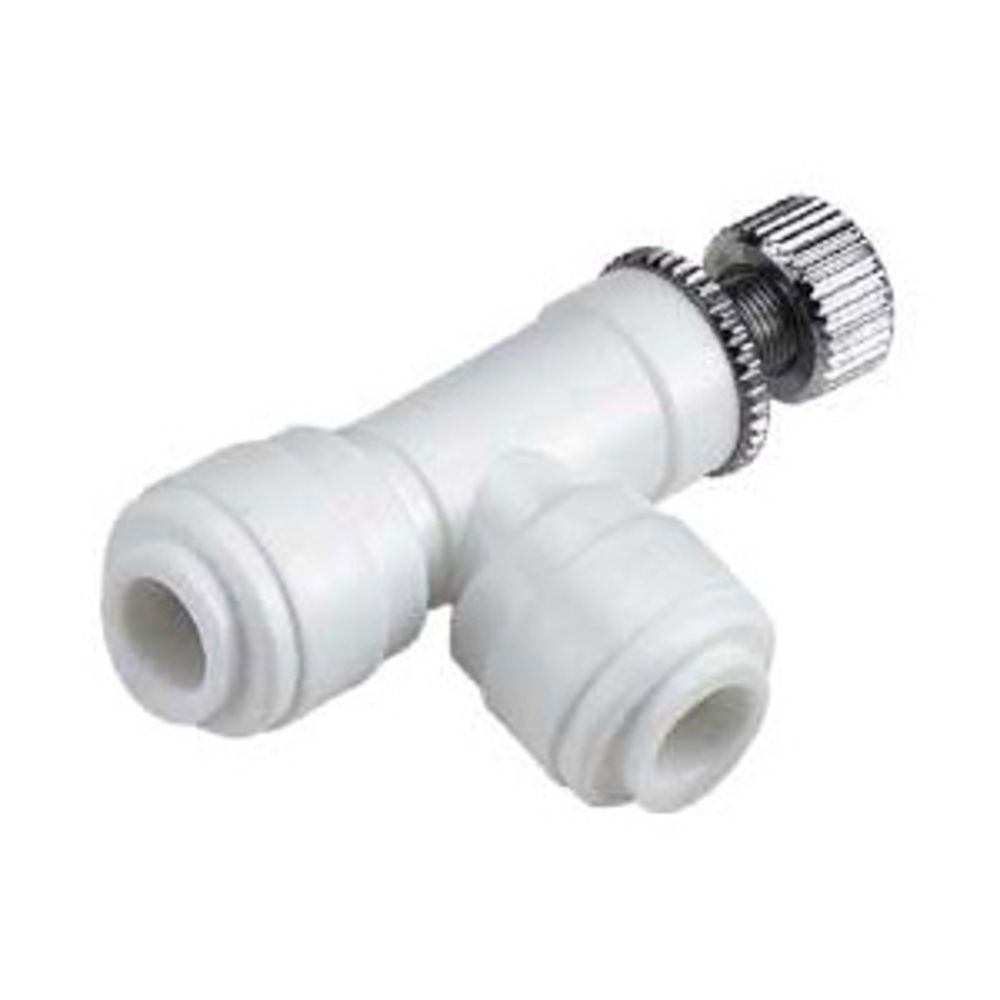

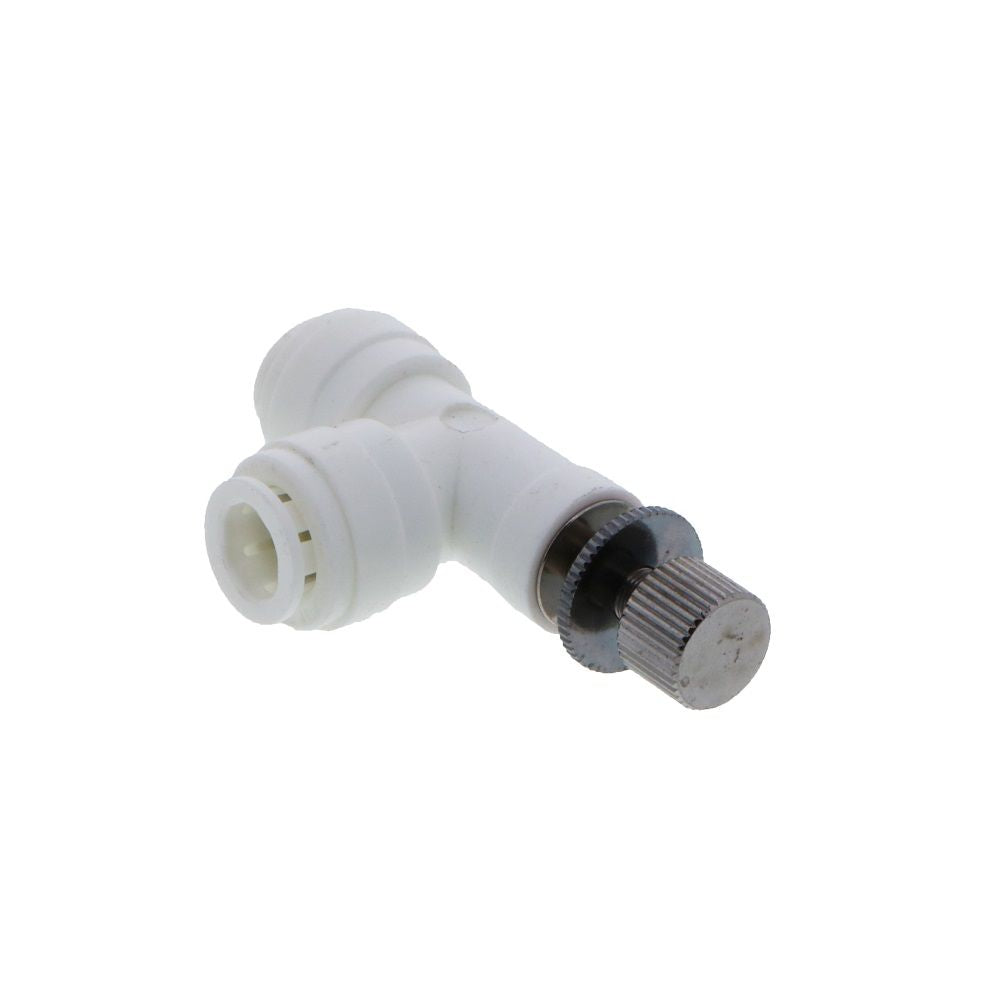

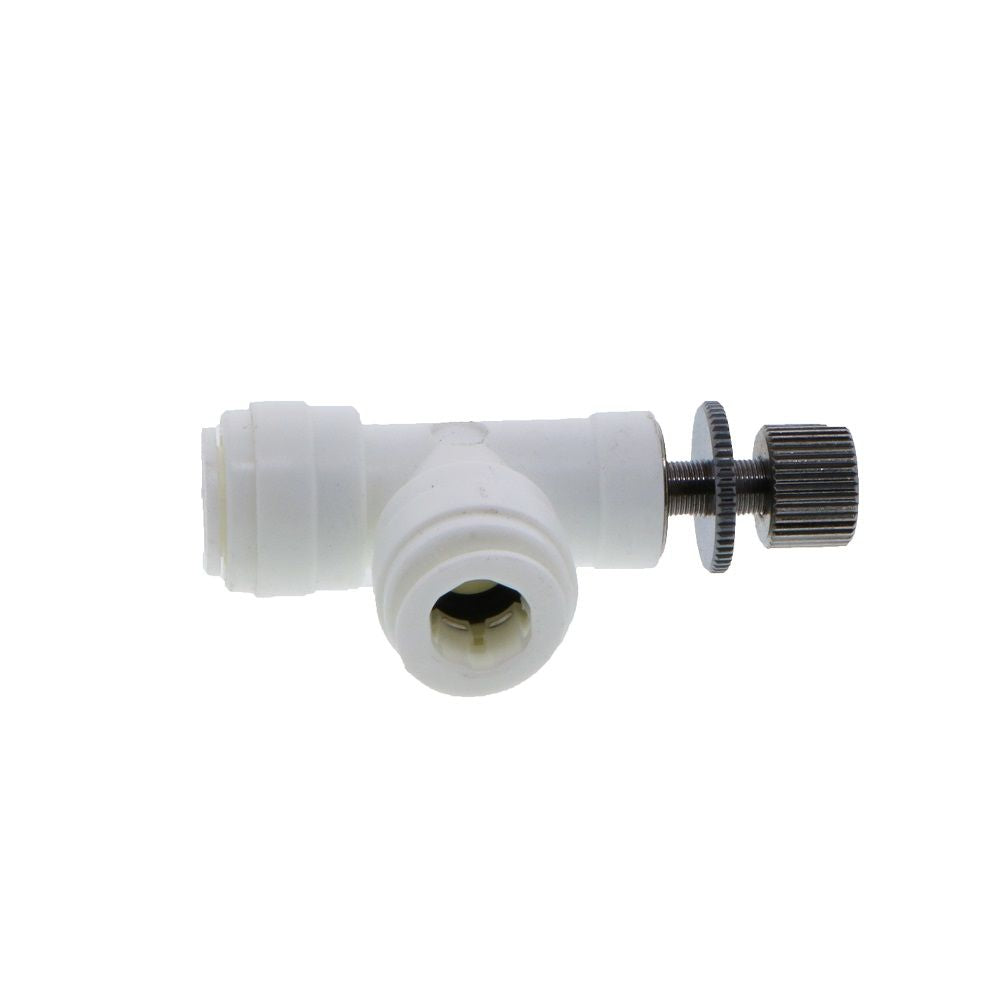

DMfit Control Valve Elbow Connector - 3/8" Push-in

Part Number: ACEU0606

In Stock

out of stock

In Stock

$7.54

Features:
  • Adjustable locking needle valve
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.5

Length (inches)

2.63

Weight (lbs)

0.00625

Width (inches)

1.5

Details

Application

Water, Air

Body Material

Acetal

Max Pressure (Psi)

145

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

White

Warranty & Certifications

Certifications

NSF 61; NSF 51; NSF 372



Features:
  • Adjustable locking needle valve
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability



Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.5

Length (inches)

2.63

Weight (lbs)

0.00625

Width (inches)

1.5

Details

Application

Water, Air

Body Material

Acetal

Max Pressure (Psi)

145

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

35

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

White

Warranty & Certifications

Certifications

NSF 61; NSF 51; NSF 372
