Davey

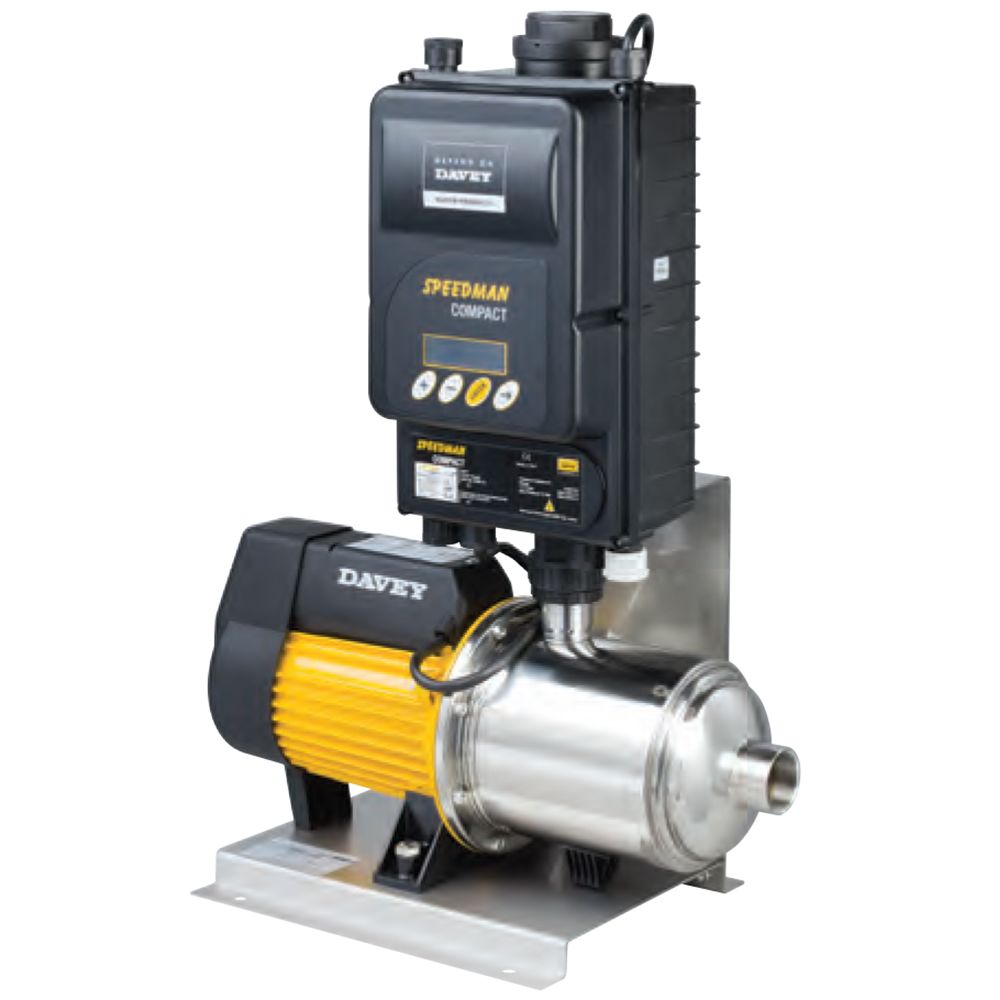

Davey Speedman SMCHM90-11 Variable Speed Pump 36 gpm 220V

Part Number: SMCHM90-11

In Stock

out of stock

In Stock

$1,696.00

The Davey Speedman SMCHM90-11 Variable Speed Pump provides constant pressure and variable speed to help lower running costs as well as reduce motor noise. Available in two models capable of flows up to 34 gpm and heads to 94 psi. Maximum constant pressure when boosting incoming supply is 110 psi.

Applications:
  • Residential, Commercial and Light Industrial Water Supply
  • Farming & Agriculture
  • Irrigation & Turf
  • Automatic General Water Transfer
  • Main-Line Water Pressure Boosting
Features:
  • 304 and 316L Stainless Steel Components
  • EDPM O-Rings
  • Variable Speed Drive Controller
  • Horizontal Multistage Centrifugal Pump
Specifications:
  • Inlet/Outlet: 1-1/4" FNPT
  • Max Flow Rate: 36 gpm
  • Max Head Pressure: 80 psi
  • Voltage: 220-240V
  • Dimensions: 18.1"L x 24.4" H x 10" W




Weight & Dimensions

Weight (lbs)

54

Details

Ambient Temperature Range

Max 104 °F

Amps

9.1 Amps

Flow Rate

36 GPM

Frequency

50/60 Hz

Housing Material

304 Stainless Steel

Inlet/Outlet Connection

1-1/4" FPT

Insulation Class - Temp.

Class F

Liquid Temperature

Max 104 °F

Nominal Speed - Rpm

2900

O-Rings

EPDM

Phase Type

Single

Power

1.8 hp; 1.4 kW

Series

SMCHM

Size

1-1/4"

Voltage

220VAC
