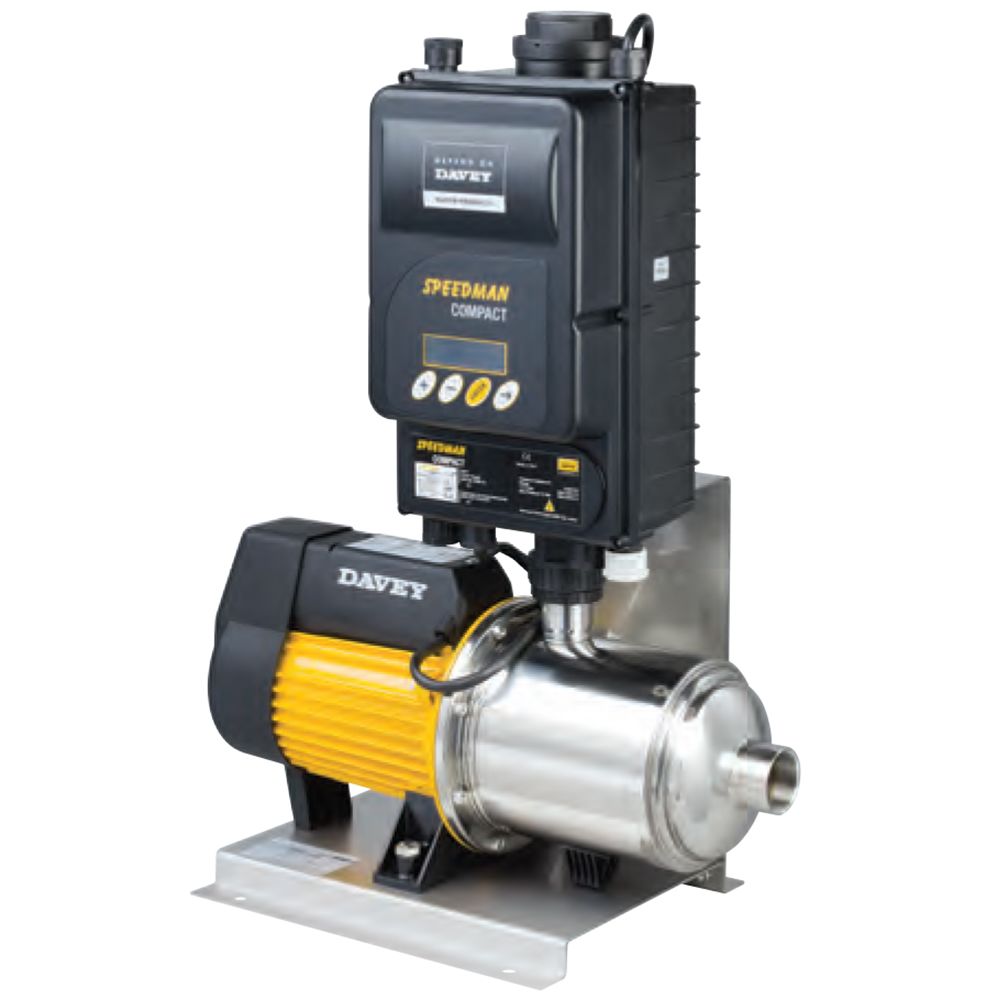

The Davey Speedman SMCHM60-10 Variable Speed Pump provides constant pressure and variable speed to help lower running costs as well as reduce motor noise. Available in two models capable of flows up to 34 gpm and heads to 94 psi. Maximum constant pressure when boosting incoming supply is 110 psi.
Applications:
Applications:
- Residential, Commercial and Light Industrial Water Supply
- Farming & Agriculture
- Irrigation & Turf
- Automatic General Water Transfer
- Main-Line Water Pressure Boosting
- Australian 3 Pin Plug Included
- 304 and 316L Stainless Steel Components
- EDPM O-Rings
- Variable Speed Drive Controller
- Horizontal Multistage Centrifugal Pump
- Inlet/Outlet: 1-1/4" FNPT
- Max Flow Rate: 25 gpm
- Max Head Pressure: 94 psi
- Voltage: 220-240V
- Dimensions: 18.1"L x 24.4" H x 10" W
Weight & Dimensions
Weight (lbs) | 54 |
Details
Ambient Temperature Range | Max 104 °F |
Amps | 8 Amps |
Frequency | 50/60 Hz |
Housing Material | 304 Stainless Steel |
Inlet/Outlet Connection | 1-1/4" FPT |
Insulation Class - Temp. | Class F |
Liquid Temperature | Max 104 °F |
Nominal Speed - Rpm | 2900 |
O-Rings | EPDM |
Phase Type | Single |
Power | 1.6 hp, 1.2 kW |
Series | SMCHM |
Size | 1-1/4" |
Connection Type | Female (FPT) |
Flow Rate | 25 GPM |
Voltage | 220VAC |
The Davey Speedman SMCHM60-10 Variable Speed Pump provides constant pressure and variable speed to help lower running costs as well as reduce motor noise. Available in two models capable of flows up to 34 gpm and heads to 94 psi. Maximum constant pressure when boosting incoming supply is 110 psi.
Applications:
- Residential, Commercial and Light Industrial Water Supply
- Farming & Agriculture
- Irrigation & Turf
- Automatic General Water Transfer
- Main-Line Water Pressure Boosting
- Australian 3 Pin Plug Included
- 304 and 316L Stainless Steel Components
- EDPM O-Rings
- Variable Speed Drive Controller
- Horizontal Multistage Centrifugal Pump
- Inlet/Outlet: 1-1/4" FNPT
- Max Flow Rate: 25 gpm
- Max Head Pressure: 94 psi
- Voltage: 220-240V
- Dimensions: 18.1"L x 24.4" H x 10" W
Weight & Dimensions
Weight (lbs) | 54 |
Details
Ambient Temperature Range | Max 104 °F |
Amps | 8 Amps |
Frequency | 50/60 Hz |
Housing Material | 304 Stainless Steel |
Inlet/Outlet Connection | 1-1/4" FPT |
Insulation Class - Temp. | Class F |
Liquid Temperature | Max 104 °F |
Nominal Speed - Rpm | 2900 |
O-Rings | EPDM |
Phase Type | Single |
Power | 1.6 hp, 1.2 kW |
Series | SMCHM |
Size | 1-1/4" |
Connection Type | Female (FPT) |
Flow Rate | 25 GPM |
Voltage | 220VAC |
