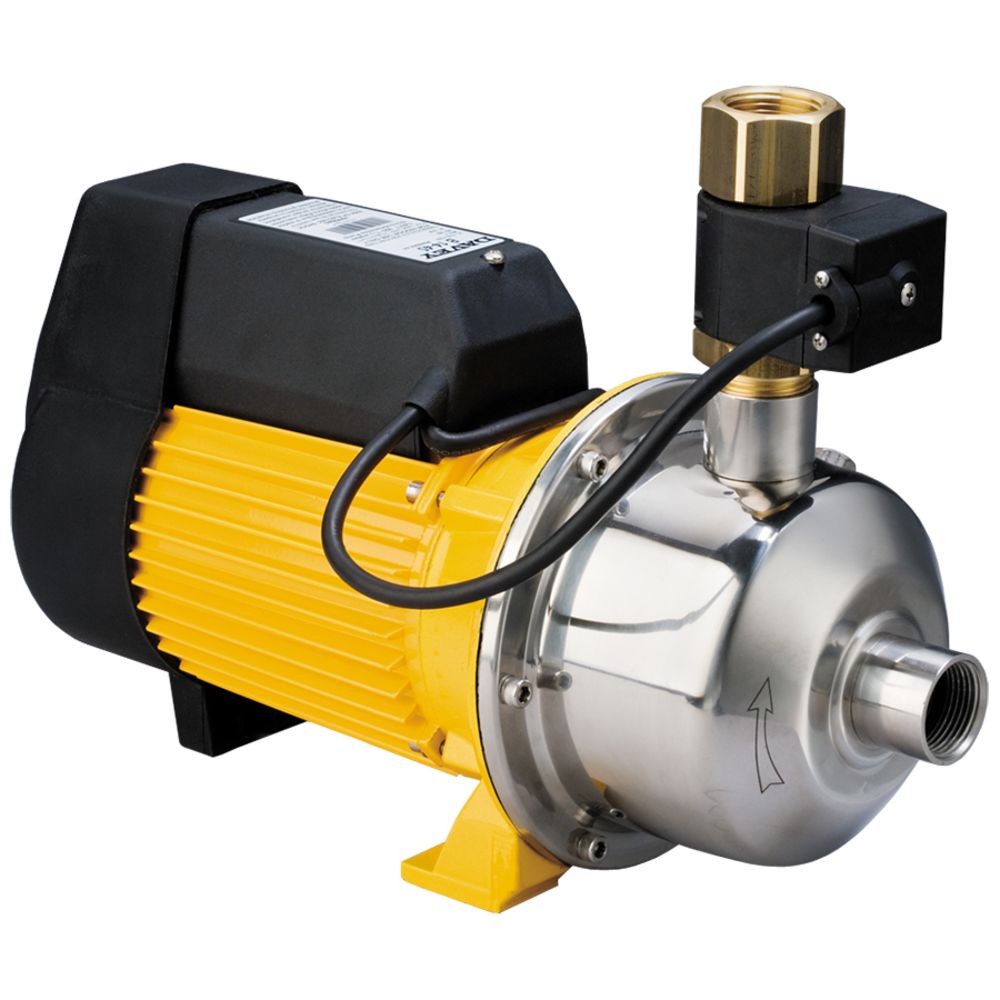

Davey BF14-45 Booster System with Flow Switch- +45 psi 14 gpm
Part Number: BF14-45
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The BF14-45 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.
Features:
- Flow Switch offers even flow without cycling
- TEFC motor is corrosion resistant and excludes dist and dirt
- Constructed from corrosion resistant materials
- High quality, purpose designed electric motor
- Motor and Pump designed for frequent starts
- Pump protected from damage caused by dry running - shuts off when water supply is inadequate
- Quick and Easy Installation
- Low Maintenance
- This system was formely known as the HS12-40HT1
- Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
- Domestic & light industrial irrigation
- CONSTANT FLOW
- LOSS OF PRIME PROTECTION
- ADAPTIVE PRESSURE SWITCH
- SIMPLIFIED FAULT FINDING
- AUTO RETRY
Product Details | |
---|---|
Ambient Temperature Range | Max 120 °F |
Cut In Flow Rate | 1.2 GPM |
Cut Out Flow Rate | 0.7 GPM |
Inlet Connection | 1" MPT |
Liquid Temperature | Max 150 °F |
Min Pressure (Psi) | 100 |
Outlet Connection | 1" MPT |
Pump Max Flow Rate (Gpm) | 14 |
Pump Max Pressure (Psi) | 116 |
Series | BF |
Size | 1" |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 220VAC |
Warranty & Certifications | |
Certifications | NSF 61 |
Warranty | Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture. |
Shipping Dimensions | |
Shipping Length | 21.5 in. |
Shipping Width | 12 in. |
Shipping Height | 10 in. |
Product Weight & Dimensions | |
Product Height | 10.90" |
Product Length | 15.35" |
Product Width | 6.7" |
Product Weight (lbs) | 34 |
The BF14-45 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.
Features:
- Flow Switch offers even flow without cycling
- TEFC motor is corrosion resistant and excludes dist and dirt
- Constructed from corrosion resistant materials
- High quality, purpose designed electric motor
- Motor and Pump designed for frequent starts
- Pump protected from damage caused by dry running - shuts off when water supply is inadequate
- Quick and Easy Installation
- Low Maintenance
- This system was formely known as the HS12-40HT1
- Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
- Domestic & light industrial irrigation
- CONSTANT FLOW
- LOSS OF PRIME PROTECTION
- ADAPTIVE PRESSURE SWITCH
- SIMPLIFIED FAULT FINDING
- AUTO RETRY
Product Details | |
---|---|
Ambient Temperature Range | Max 120 °F |
Cut In Flow Rate | 1.2 GPM |
Cut Out Flow Rate | 0.7 GPM |
Inlet Connection | 1" MPT |
Liquid Temperature | Max 150 °F |
Min Pressure (Psi) | 100 |
Outlet Connection | 1" MPT |
Pump Max Flow Rate (Gpm) | 14 |
Pump Max Pressure (Psi) | 116 |
Series | BF |
Size | 1" |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 220VAC |
Warranty & Certifications | |
Certifications | NSF 61 |
Warranty | Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture. |
Shipping Dimensions | |
Shipping Length | 21.5 in. |
Shipping Width | 12 in. |
Shipping Height | 10 in. |
Product Weight & Dimensions | |
Product Height | 10.90" |
Product Length | 15.35" |
Product Width | 6.7" |
Product Weight (lbs) | 34 |
