CFA

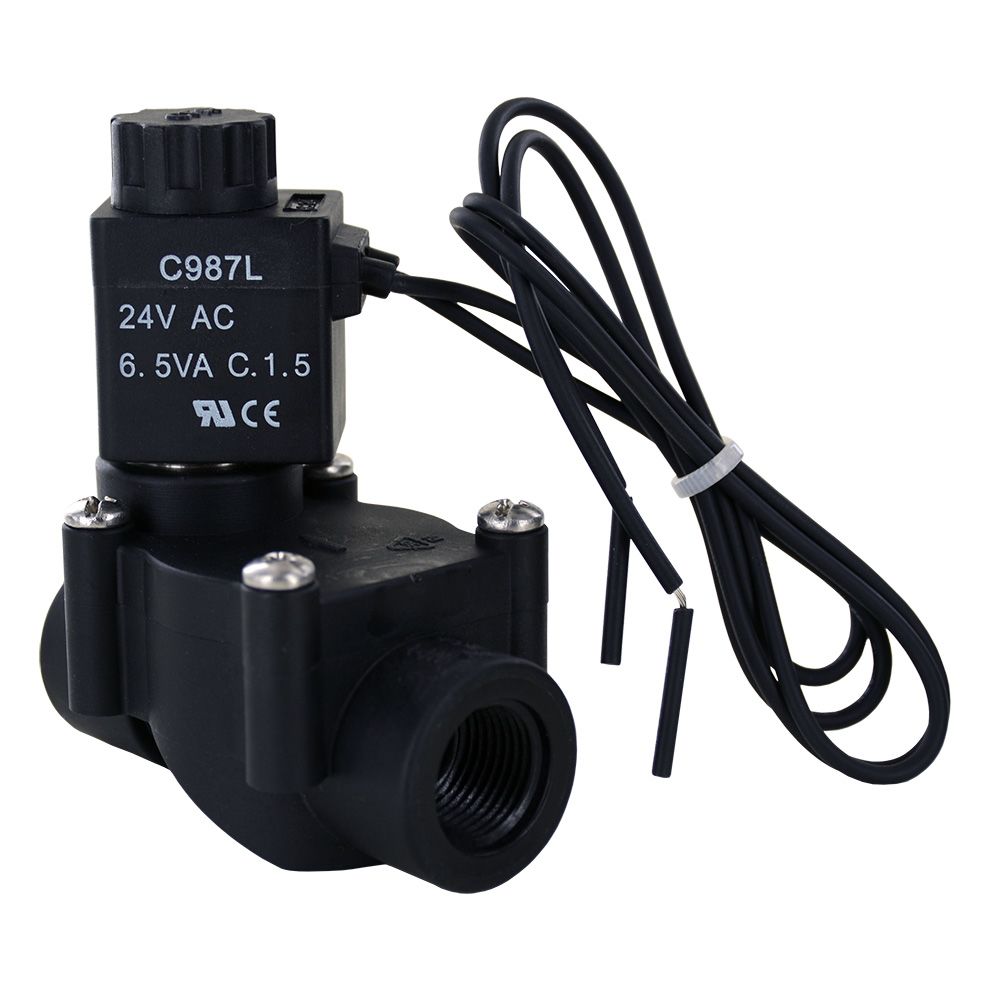

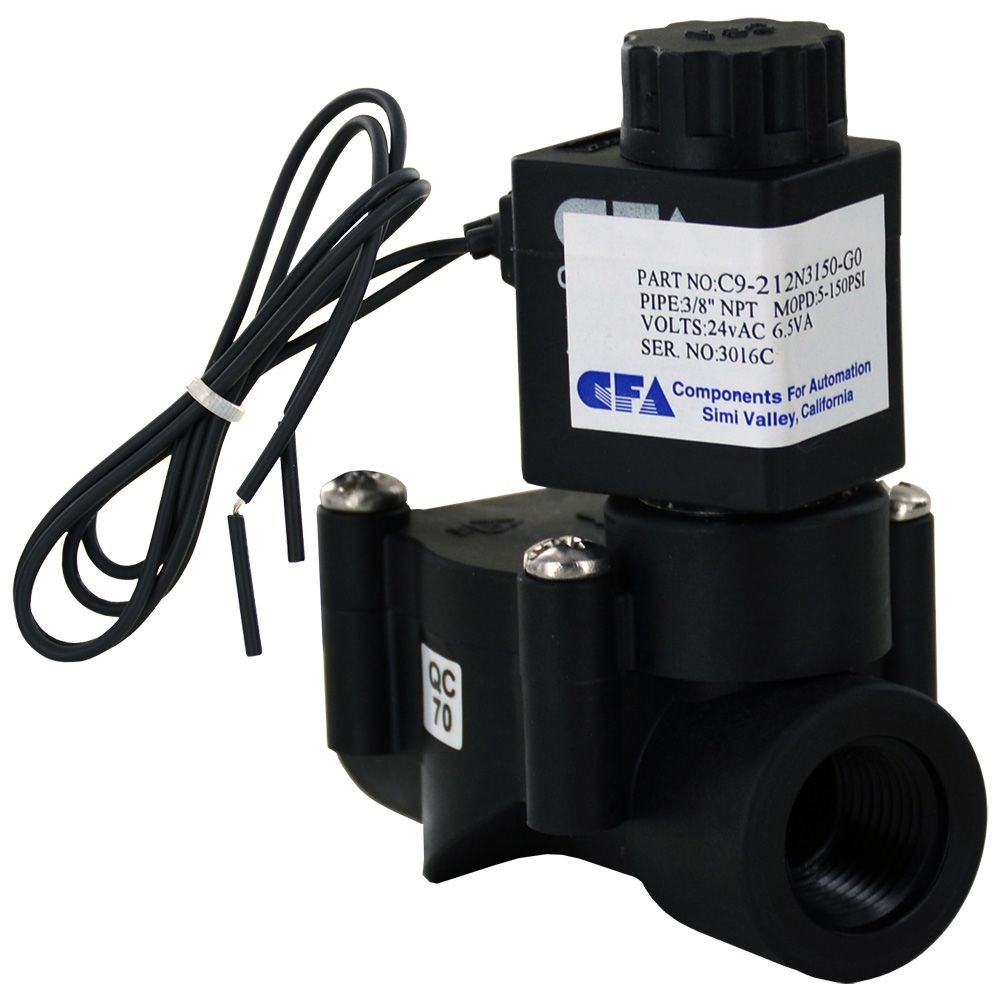

CFA C9 Series Solenoid Valve Normally Closed 3/8" FPT 24VAC

Part Number: C9-212N3150-G0-24VAC

Alt. Part Number: SP311GN24MGCF5

In Stock

out of stock

In Stock

$64.87


The CFA C9-212N3150-G0-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/8" FPT
  • Power Connection: Lead Wires
  • Voltage: 24v AC
  • Body: Nylon
  • Diaphragm: Buna-N
  • Seal Material: Viton
  • Orifice Size: 1/2"
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 8 - 150 PSI
  • Normally Closed

Compatible with: Ice House America® | IHA- H01109


Details

Body Material

Glass filled nylon

Diameter

1/2"

Operating Pressure Range

10 - 150 psi; Max 150 PSI

Operating Temperature Range

32°F - 120°F

Seal Material

Viton/FKM

Valve Type

Closed

Voltage

24VAC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/8" NPT Inches




The CFA C9-212N3150-G0-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/8" FPT
  • Power Connection: Lead Wires
  • Voltage: 24v AC
  • Body: Nylon
  • Diaphragm: Buna-N
  • Seal Material: Viton
  • Orifice Size: 1/2"
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 8 - 150 PSI
  • Normally Closed

Compatible with: Ice House America® | IHA- H01109

Details

Body Material

Glass filled nylon

Diameter

1/2"

Operating Pressure Range

10 - 150 psi; Max 150 PSI

Operating Temperature Range

32°F - 120°F

Seal Material

Viton/FKM

Valve Type

Closed

Voltage

24VAC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/8" NPT Inches
