CFA

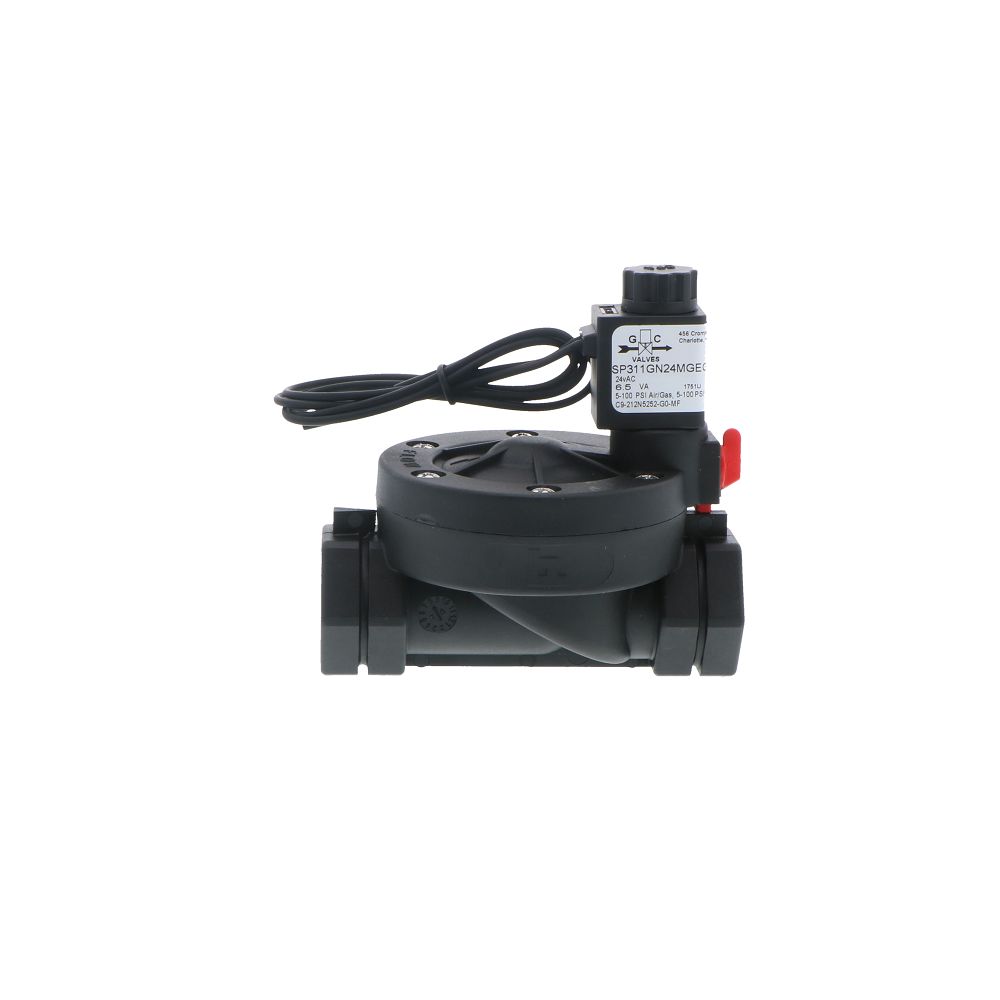

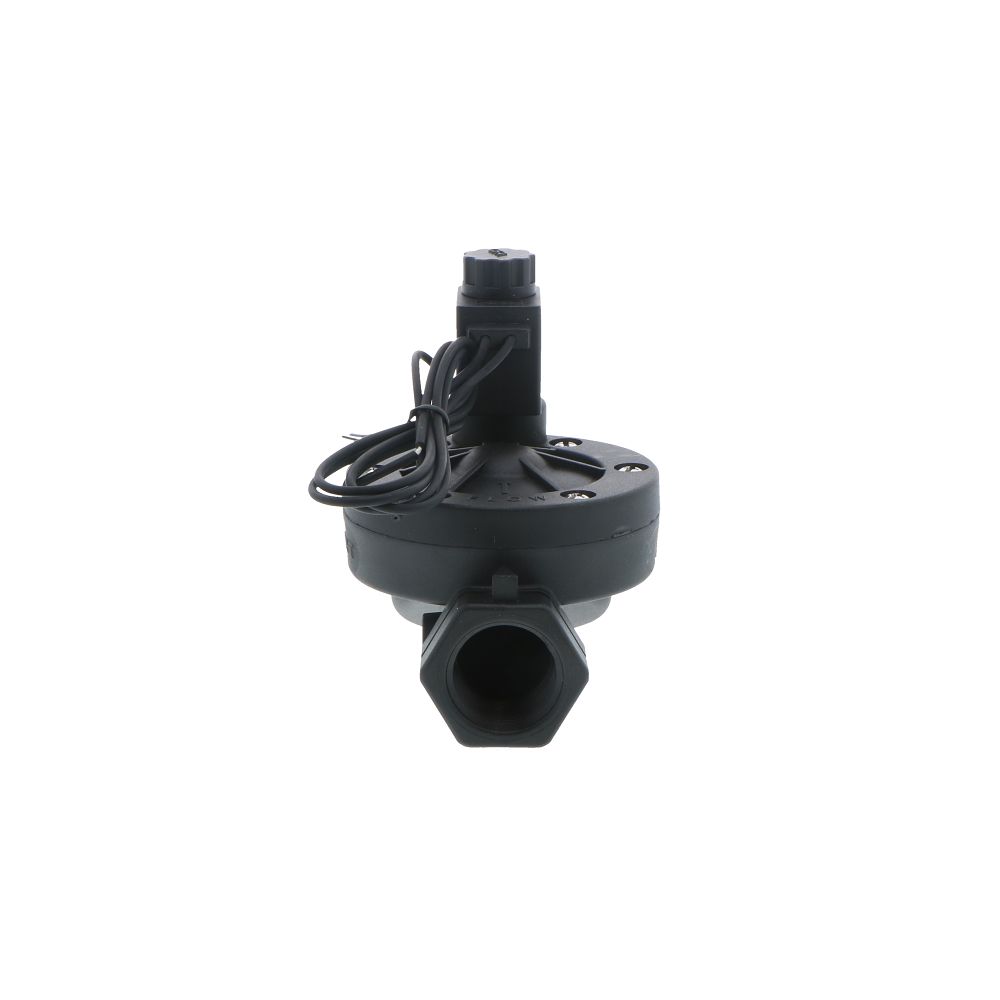

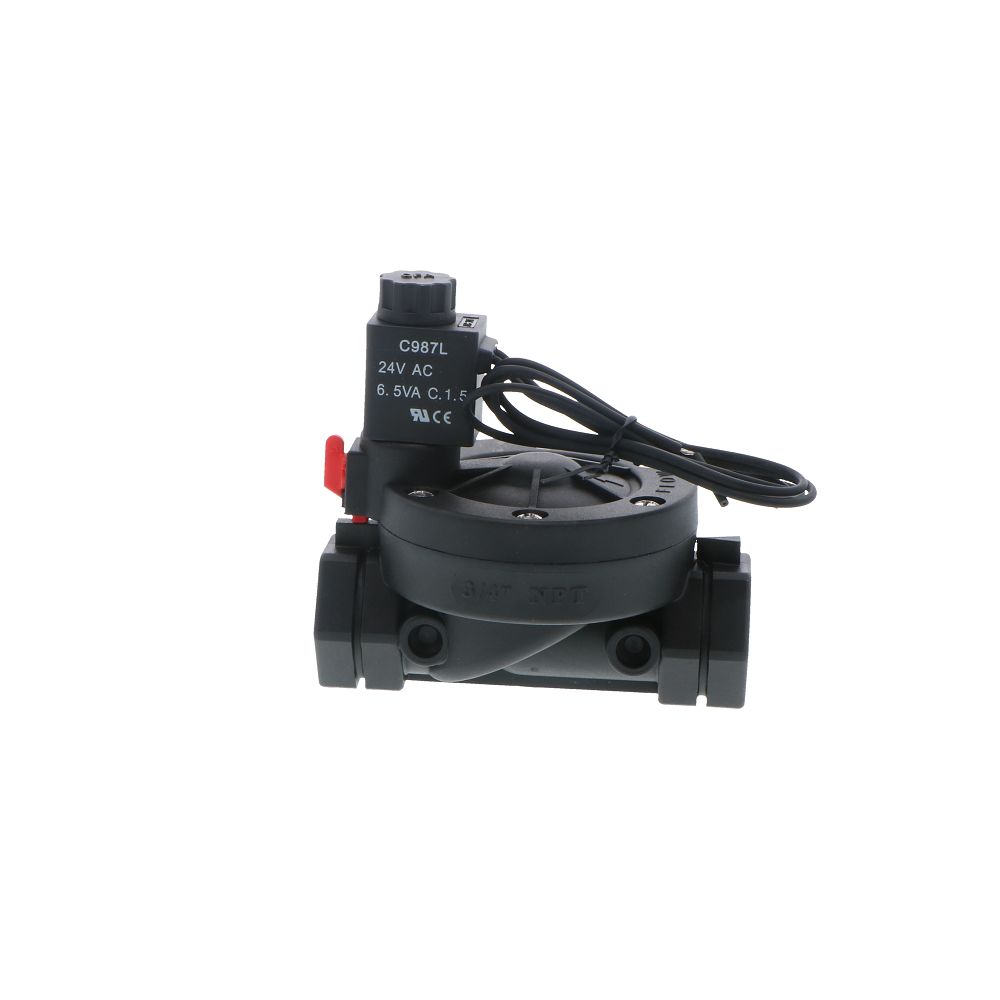

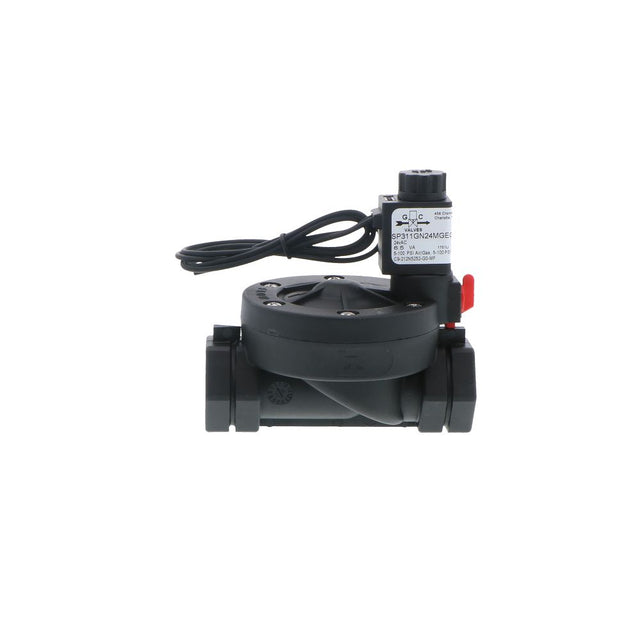

CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC

Part Number: C9-212N5252-G0-MF-24VAC

Alt. Part Number: 3108N-662CN-B20953A-1249, 953A-308, SP311GN24MGEG5, 2108X-482CN-B205DC

In Stock

out of stock

In Stock

$63.95

The CFA C9-212N5252-G0-MF-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of EDPM, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: Lead Wires
  • Voltage: 24v AC
  • Body: Nylon
  • Diaphragm: EPDM
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 145 PSI
  • Normally Closed
  • Overide: Manual
  • Includes Flow Control




Weight & Dimensions

Height (inches)

5.25

Length (inches)

5.88

Weight (lbs)

0.059375

Width (inches)

4.25

Details

Diameter

1"

Frequency

50/60 Hz

Port Size

3/4" FPT"

Voltage

24V AC

Wetted Materials

Glass Filled Nylon



The CFA C9-212N5252-G0-MF-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of EDPM, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: Lead Wires
  • Voltage: 24v AC
  • Body: Nylon
  • Diaphragm: EPDM
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 145 PSI
  • Normally Closed
  • Overide: Manual
  • Includes Flow Control



Weight & Dimensions

Height (inches)

5.25

Length (inches)

5.88

Weight (lbs)

0.059375

Width (inches)

4.25

Details

Diameter

1"

Frequency

50/60 Hz

Port Size

3/4" FPT"

Voltage

24V AC

Wetted Materials

Glass Filled Nylon
