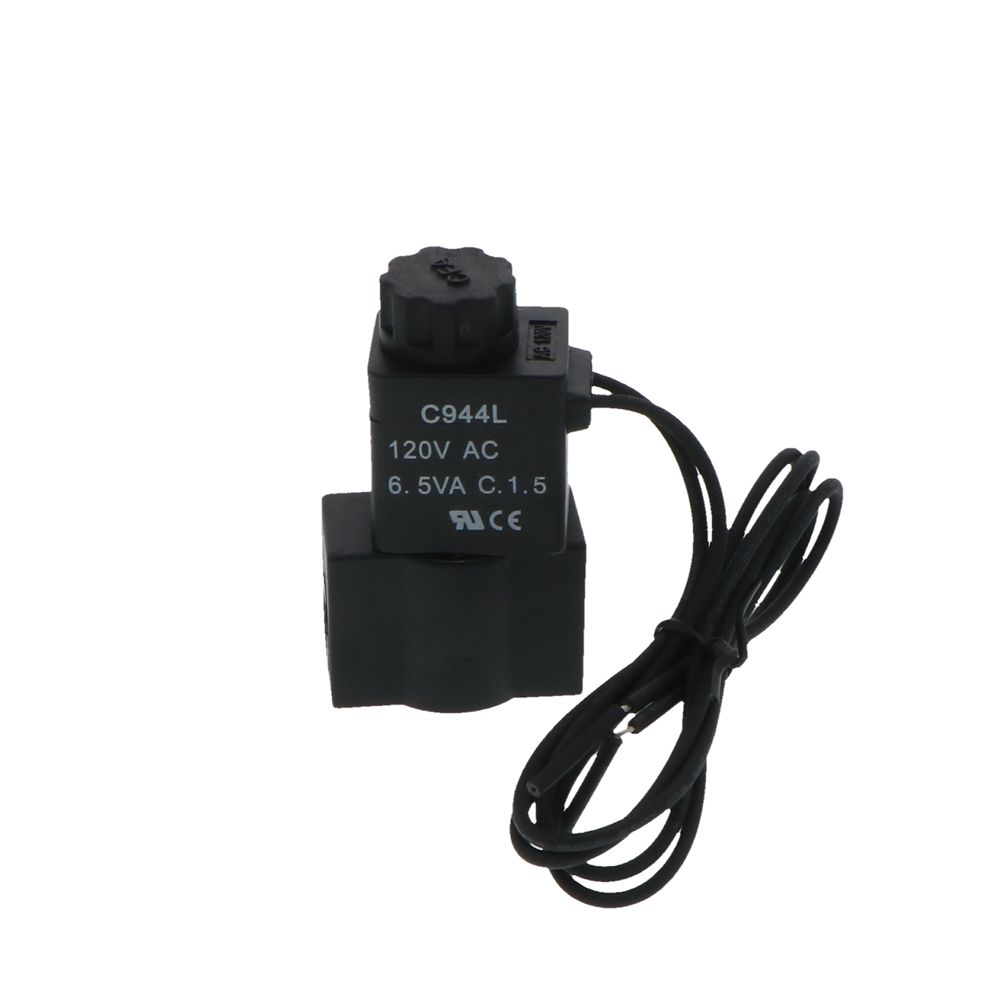

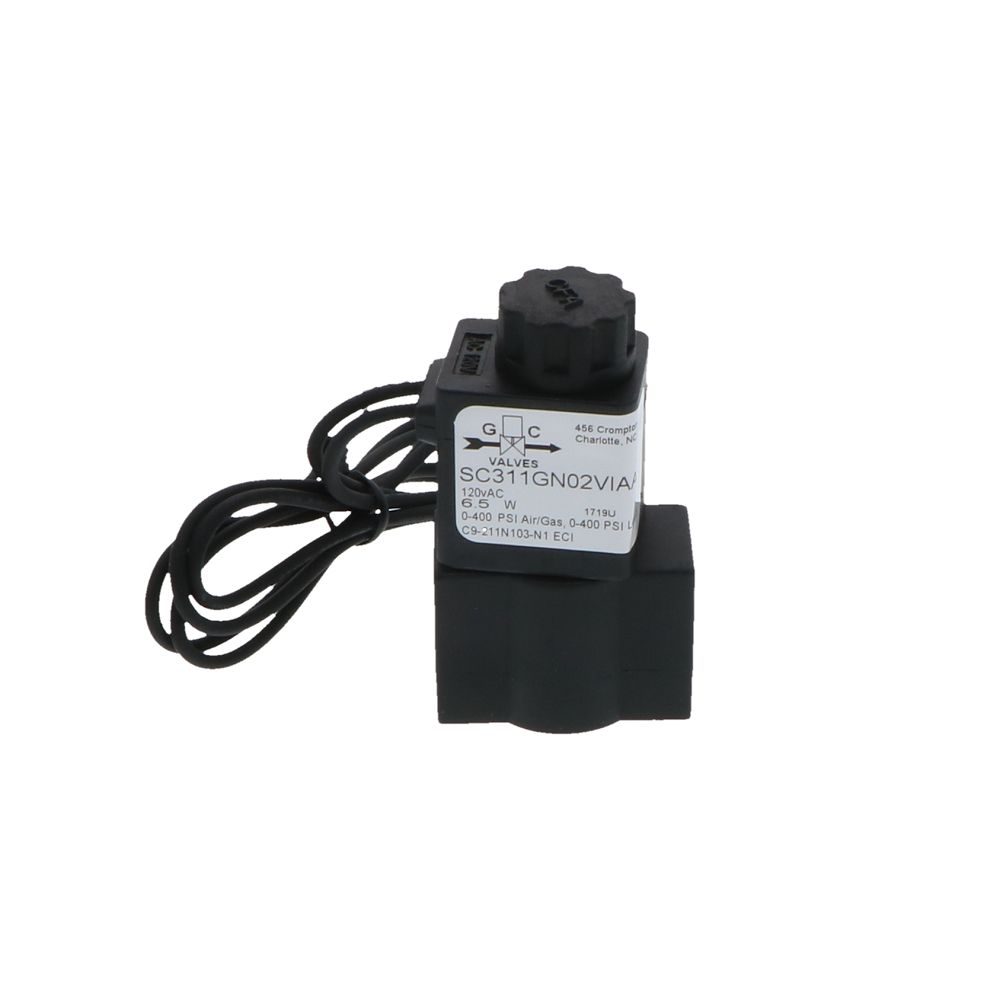

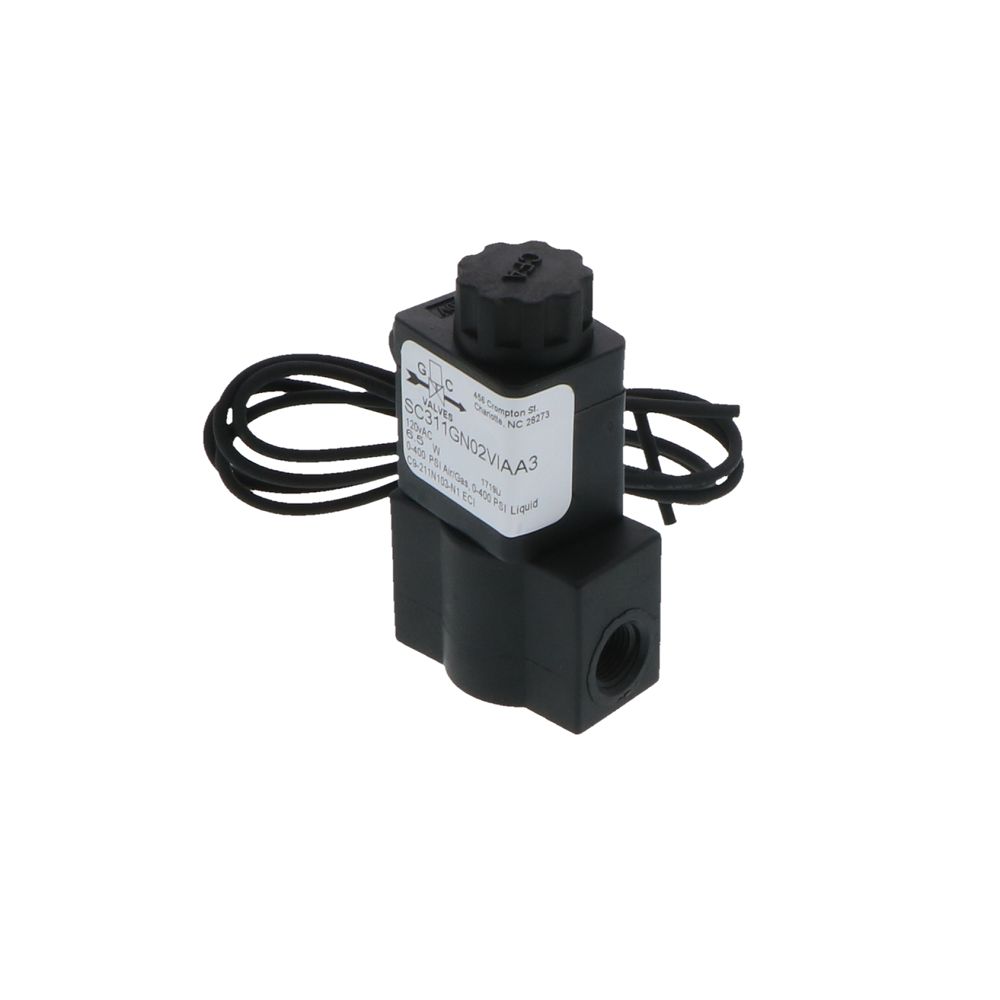

CFA C9 Series Solenoid Valve Normally Closed 1/8" FPT 120V

Part Number: C9-211N103-N1-120VAC

Alt. Part Number: SC311GN02VIAA6

Your price:

Quantity

similar items

The CFA C9-211N103-N1-120VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve is constructed of nylon and the seals are viton.

Specifications:

Connection Size: 1/8" FPT
Power Connection: Lead Wires
Voltage: 120v AC
Body: Nylon
Seal Material: Viton
Internal Components: Stainless Steel
Media Temperature: 41 - 122 °F
Response Time: 5 - 15ms
Operating Pressure: 0 - 400 PSI
Normally Closed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Glass filled nylon
Max Pressure (Psi)	400
Max Temp (°F)	120
Min Pressure (Psi)	0
Min Temp (°F)	32
Power	Leads 18"
Seal Material	Viton/FKM
Valve Type	Solenoid
Diameter	1.6mm
Port Size	1/8"
Voltage	120V
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.665
