CFA

CFA C9 Series Solenoid Valve w/ Flow Control Normally Closed 3/4" FPT 220VAC

Part Number: C9-212N5250-L0-220VAC

Alt. Part Number: 3108N-662CN-B20953A-1249, 953A-308, SP311YN04MHEG5

In Stock

out of stock

In Stock

$58.95

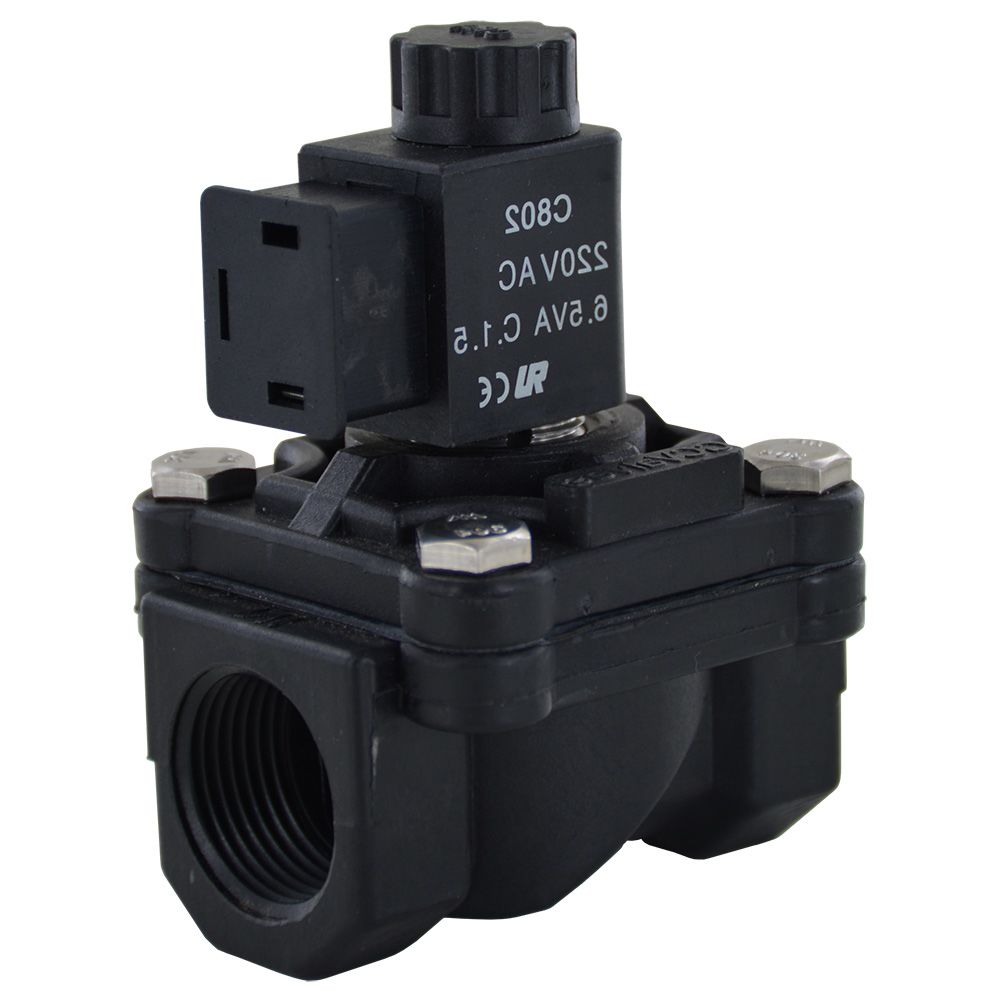

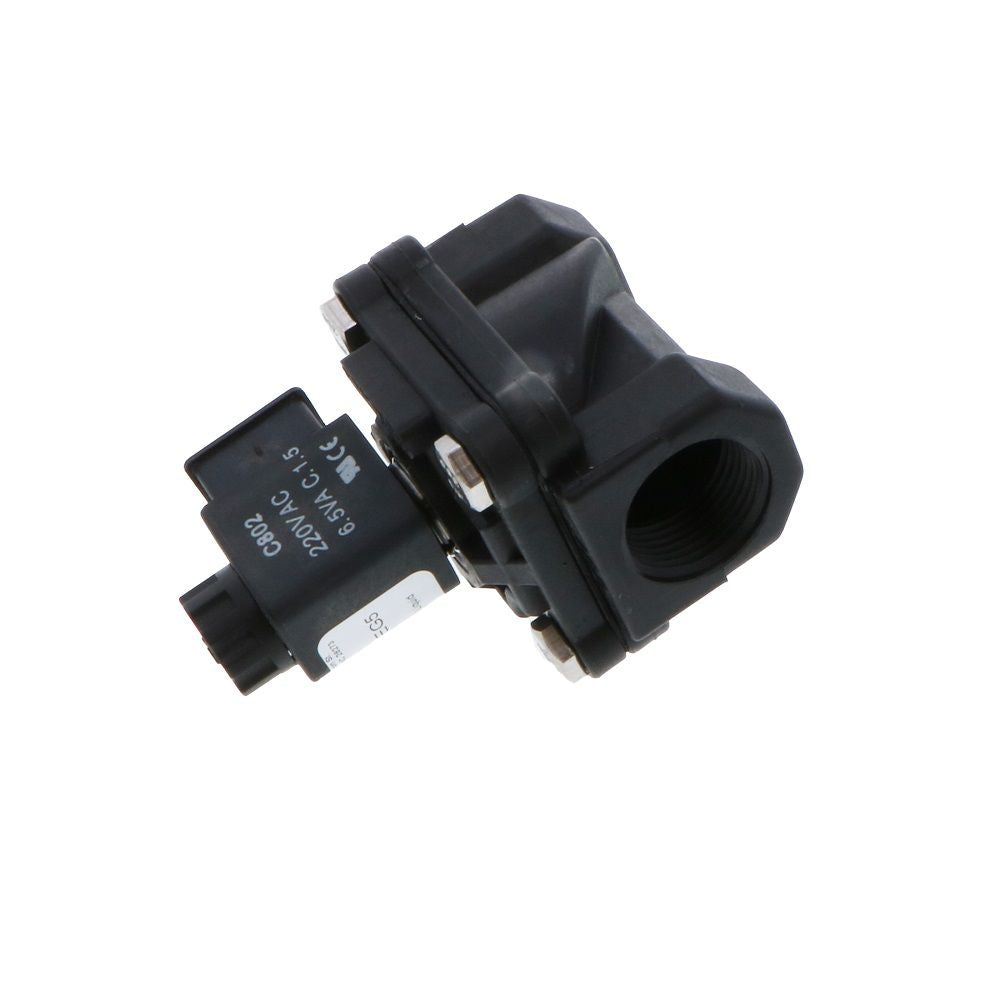

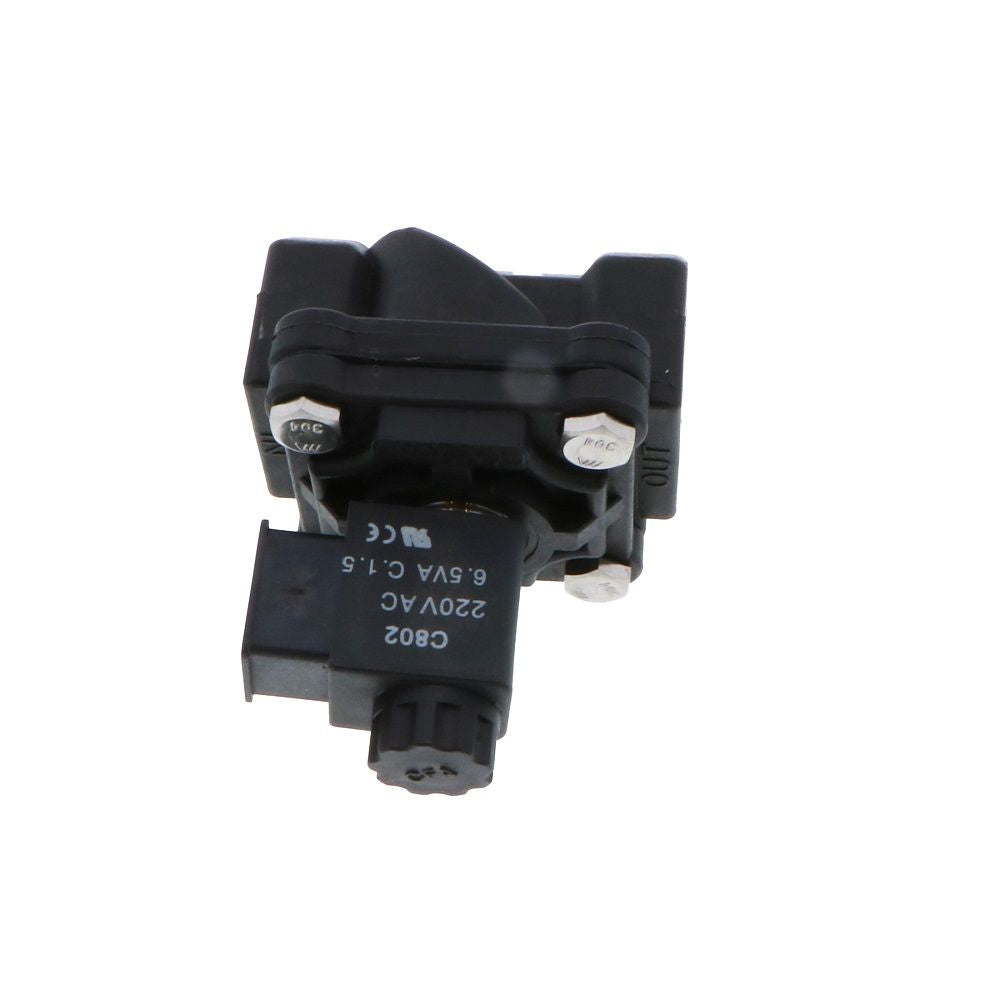

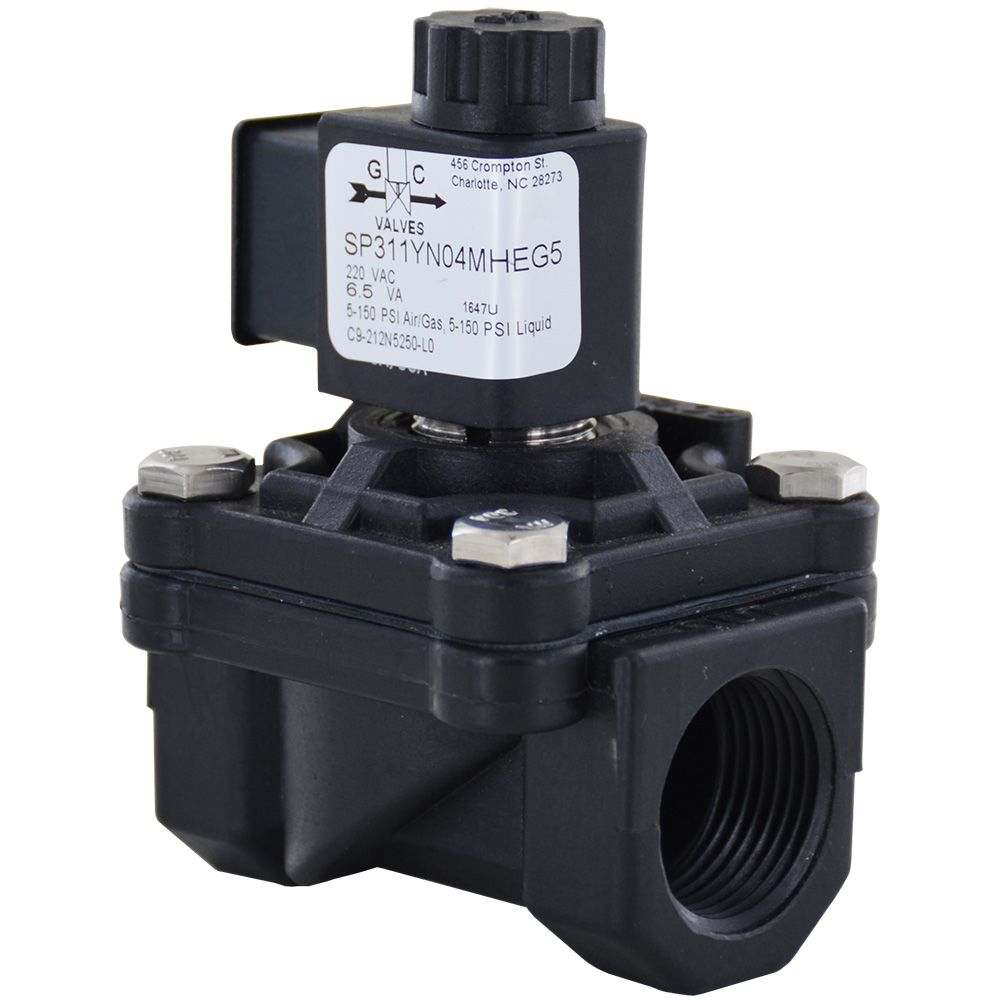

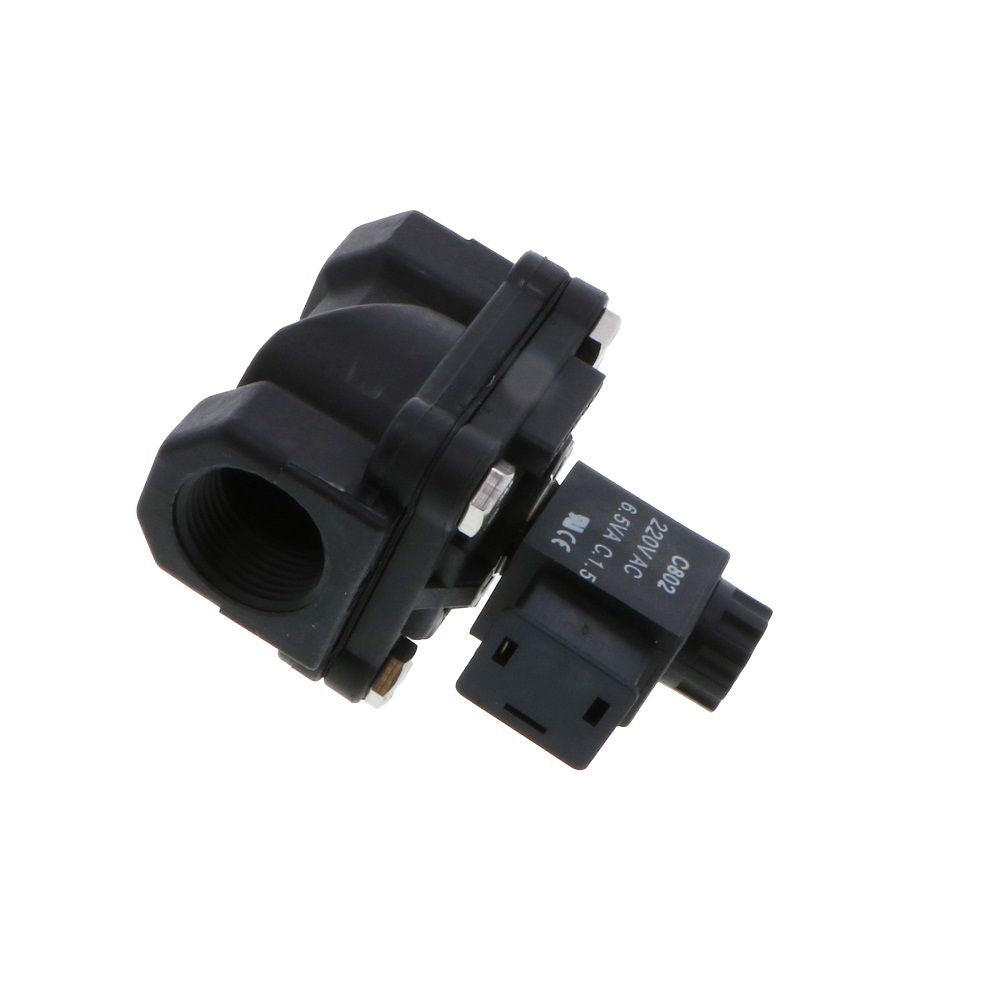

The CFA C9-212N5250-L0-220VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of noryl, the diaphragm is made of Buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: DIN
  • Voltage: 220VAC
  • Body: Noryl
  • Diaphragm: Buna-N
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 150 PSI
  • Normally Closed


Details

Diameter

3/4"

Operating Pressure Range

5 - 150 PSI

Operating Temperature Range

max. 120°F (49°C)

Voltage

220VAC

Wetted Materials

Glass Reinforced Nylon, EPDM

Port Size

3/4" NPT Inches




The CFA C9-212N5250-L0-220VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of noryl, the diaphragm is made of Buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/4" FPT
  • Power Connection: DIN
  • Voltage: 220VAC
  • Body: Noryl
  • Diaphragm: Buna-N
  • Seal Material: Viton
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 5 - 150 PSI
  • Normally Closed

Details

Diameter

3/4"

Operating Pressure Range

5 - 150 PSI

Operating Temperature Range

max. 120°F (49°C)

Voltage

220VAC

Wetted Materials

Glass Reinforced Nylon, EPDM

Port Size

3/4" NPT Inches
