Blue-White F-300 SADDLE Rotameter

4.7

(3 reviews)

Part Number: F-30100P Alt. Part Number: F-300

Blue-White

Blue-White F-300 SADDLE Rotameter

4.7

(3 reviews)

Part Number: F-30100P Alt. Part Number: F-300

$150.33

Choose:

5 - 35 GPM - 1" 9 - 50 GPM - 1-1/4" 10 - 70 GPM - 1-1/2" 20 - 120 GPM - 2" 29 - 150 GPM - 2-1/2" 45 - 240 GPM - 3" 75 - 240 GPM - 4" 170 - 1100 GPM - 6" 300 - 2200 GPM - 8"

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

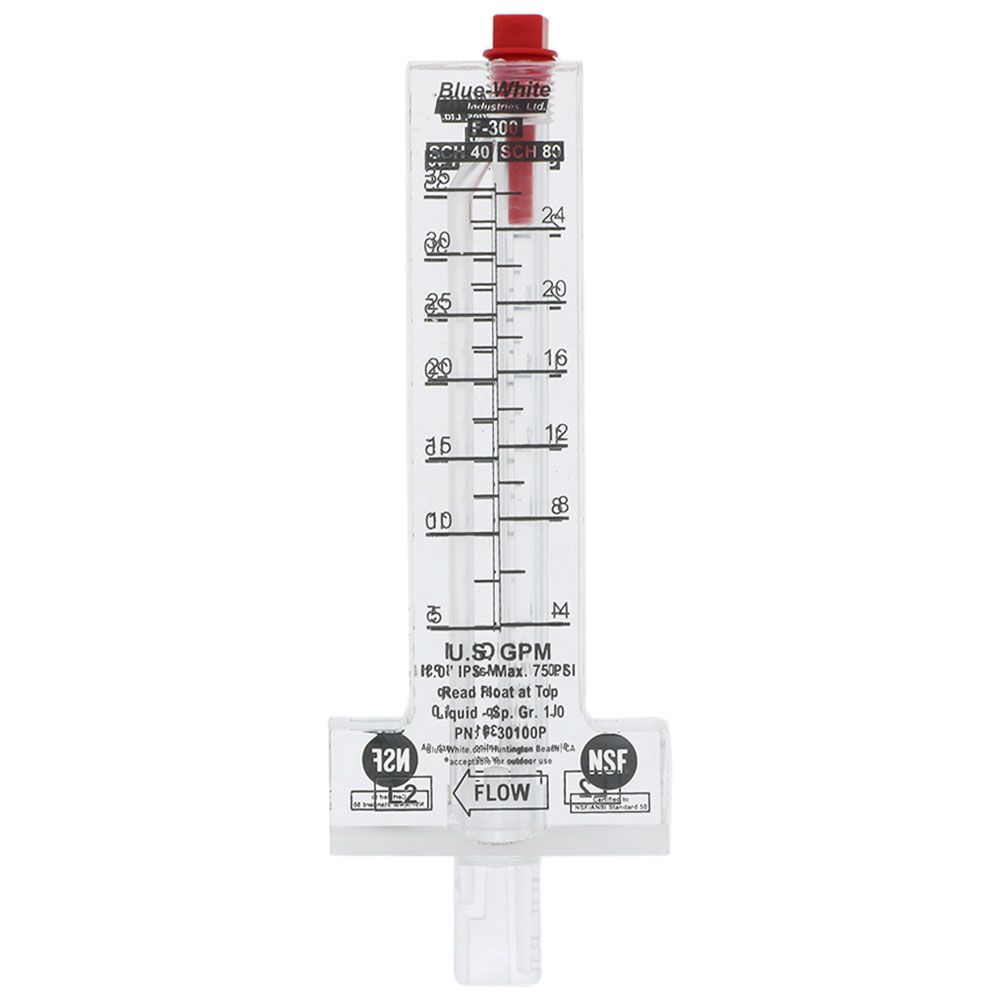

The Blue-White F-300 Flowmeters are made of one piece machined acrylic bodies and corrosion resistant 316SS or Teflon internal float materials. Dual GPM/LPM scales are printed on both sides of the meter. The F-300 mounts easily to existing horizontal pipe; no unions or adapters required!

Specifications:

Maximum Temperature = 190°F at 0 PSI
Maximum Pressure = 150 PSI at 70°F
Accuracy = +/- 10% (of the full scale reading)
Mounts onto horizontal pipe
Mounting SS clamps and gasket included
Acceptable for outdoor installations (direct sunlight)
Pitot (impact) tube design makes it easy to install on existing pipe

NOTE: The F-300 series flowmeters should only be used on the size and type of pipe for which they were intended. Incorrect use will result in inaccurate readings and leakage problems.

Part #	Flow Rate	Size
F-30100P	5 - 35 gpm	1" Saddle
F-30125P	9 - 50 gpm	1-1/4" Saddle
F-30150P	10 - 70 gpm	1-1/2" Saddle
F-30200P	20 - 120 gpm	2" Saddle
F-30250P	29 - 150 gpm	2-1/2" Saddle
F-30300P	45 - 240 gpm	3" Saddle
F-30400P	75 - 240 gpm	4" Saddle
F-306P	170 - 1100 gpm	6" Saddle
F-30800P	300 - 2200 gpm	8" Saddle

Specifications

Product Details
Accuracy	±10 %
Body Material	Acrylic
Float	Teflon 316 Stainless Steel
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110
Min Temp (°F)	14
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.05

Product Details
Accuracy	±10 %
Body Material	Acrylic
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110°F
Min Temp (°F)	14°F
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.25

Product Details
Accuracy	±10 %
Body Material	Acrylic
Float	Teflon 316 Stainless Steel
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110
Min Temp (°F)	14
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.15

Product Details
Accuracy	±10 %
Body Material	Acrylic
Float	Teflon 316 Stainless Steel
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110
Min Temp (°F)	14
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Product Details
Accuracy	±10 %
Body Material	Acrylic
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110°F
Min Temp (°F)	14°F
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.15

Product Details
Accuracy	±10 %
Body Material	Acrylic
Float	Teflon 316 Stainless Steel
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110
Min Temp (°F)	14
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.3

Product Details
Accuracy	±10 %
Body Material	Acrylic
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110°F
Min Temp (°F)	14°F
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Product Details
Accuracy	±10 %
Body Material	Acrylic
Float	Teflon 316 Stainless Steel
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110
Min Temp (°F)	14
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	1.6

Product Details
Accuracy	±10 %
Body Material	Acrylic
Gaskets	Neoprene
Max Pressure (Psi)	150
Max Temp (°F)	110°F
Min Temp (°F)	14°F
Flow Rate	5-2200 GPM
Port Size	1" Saddle 1-1/4" Saddle 1-1/2" Saddle 2" Saddle 2-1/2" Saddle 3" Saddle 4" Saddle 6" Saddle 8" Saddle
Type	Saddle Rotameter
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Downloads

Blue-White F-300 SADDLE Rotameter Manual
