Blue-White

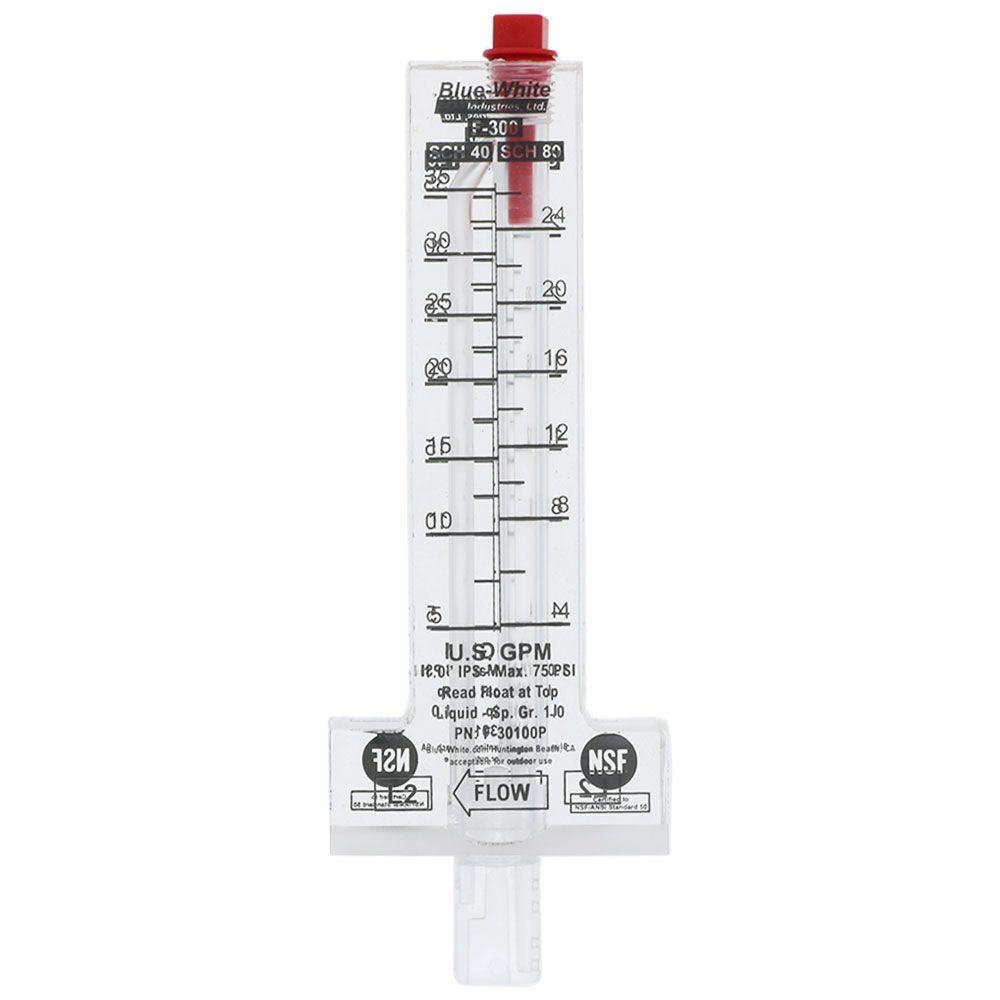

Blue White F-300 SADDLE Rotameter

Part Number: F-30100P

Alt. Part Number: F-300

In Stock

out of stock

In Stock

$77.75


The Blue-White F-300 Flowmeters are made of one piece machined acrylic bodies and corrosion resistant 316SS or Teflon internal float materials. Dual GPM/LPM scales are printed on both sides of the meter. The F-300 mounts easily to existing horizontal pipe; no unions or adapters required!

Specifications:
  • Maximum Temperature = 190°F at 0 PSI
  • Maximum Pressure = 150 PSI at 70°F
  • Accuracy = +/- 10% (of the full scale reading)
  • Mounts onto horizontal pipe
  • Mounting SS clamps and gasket included
  • Acceptable for outdoor installations (direct sunlight)
  • Pitot (impact) tube design makes it easy to install on existing pipe

NOTE: The F-300 series flowmeters should only be used on the size and type of pipe for which they were intended. Incorrect use will result in inaccurate readings and leakage problems.
Part # Flow Rate Size
F-30100P 5 - 40 gpm
1" Saddle
F-30150P 20 -100 gpm
1.5" Saddle
F-30200P 40 - 150 gpm
2" Saddle
F-30600P 250 - 1050 gpm"
6" Saddle


Details

Float

Teflon, 316 Stainless Steel

Body Material

Acrylic

Flow Rate

5-1050 Gallons Per Minute

Gaskets

Neoprene

Max Operating Pressure

150 PSI

Operating Temperature Range

14 to 110 Degrees Fahrenheit

Accuracy

+/- 10 Percent

Port Size

1" Saddle, 1-1/2" Saddle, 2" Saddle, 6" Saddle

Pipe Clamp

300 Series Stainless Steel


Blue

Blue





The Blue-White F-300 Flowmeters are made of one piece machined acrylic bodies and corrosion resistant 316SS or Teflon internal float materials. Dual GPM/LPM scales are printed on both sides of the meter. The F-300 mounts easily to existing horizontal pipe; no unions or adapters required!

Specifications:
  • Maximum Temperature = 190°F at 0 PSI
  • Maximum Pressure = 150 PSI at 70°F
  • Accuracy = +/- 10% (of the full scale reading)
  • Mounts onto horizontal pipe
  • Mounting SS clamps and gasket included
  • Acceptable for outdoor installations (direct sunlight)
  • Pitot (impact) tube design makes it easy to install on existing pipe

NOTE: The F-300 series flowmeters should only be used on the size and type of pipe for which they were intended. Incorrect use will result in inaccurate readings and leakage problems.
Part # Flow Rate Size
F-30100P 5 - 40 gpm
1" Saddle
F-30150P 20 -100 gpm
1.5" Saddle
F-30200P 40 - 150 gpm
2" Saddle
F-30600P 250 - 1050 gpm"
6" Saddle

Details

Float

Teflon, 316 Stainless Steel

Body Material

Acrylic

Flow Rate

5-1050 Gallons Per Minute

Gaskets

Neoprene

Max Operating Pressure

150 PSI

Operating Temperature Range

14 to 110 Degrees Fahrenheit

Accuracy

+/- 10 Percent

Port Size

1" Saddle, 1-1/2" Saddle, 2" Saddle, 6" Saddle

Pipe Clamp

300 Series Stainless Steel
