Parker

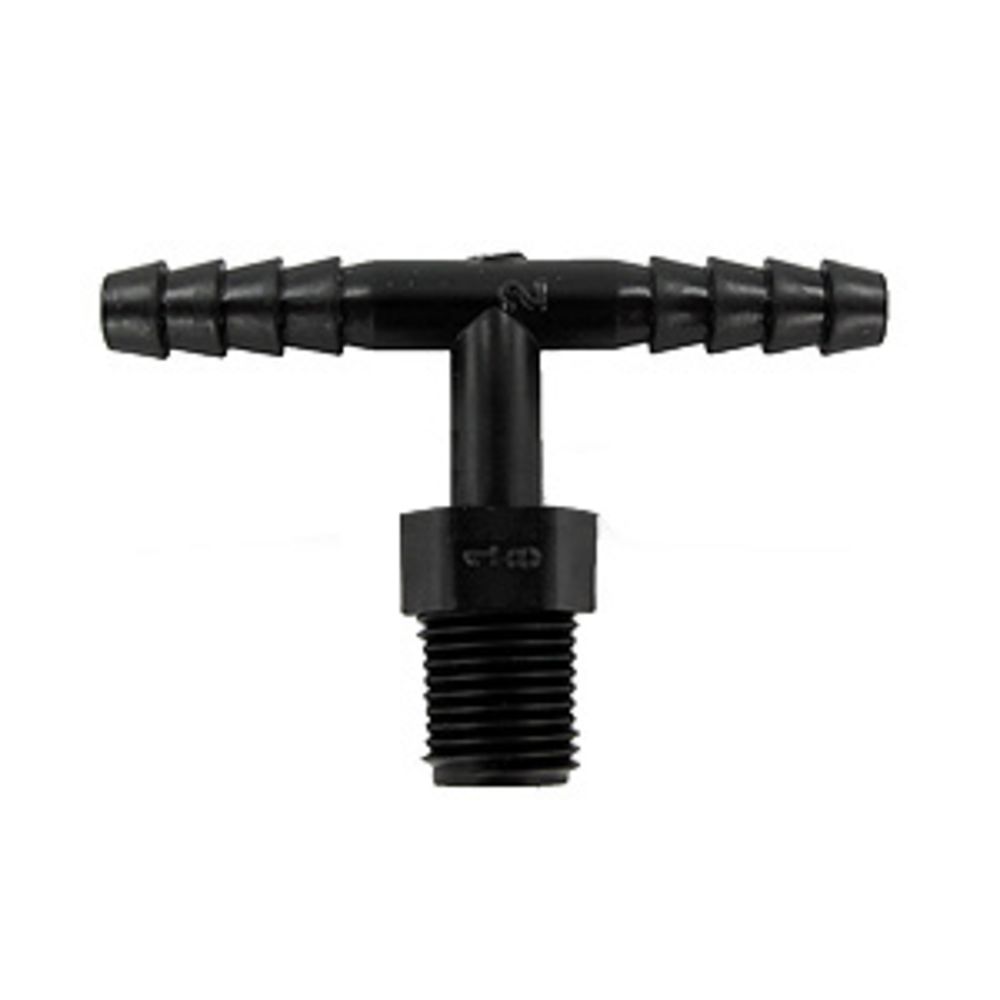

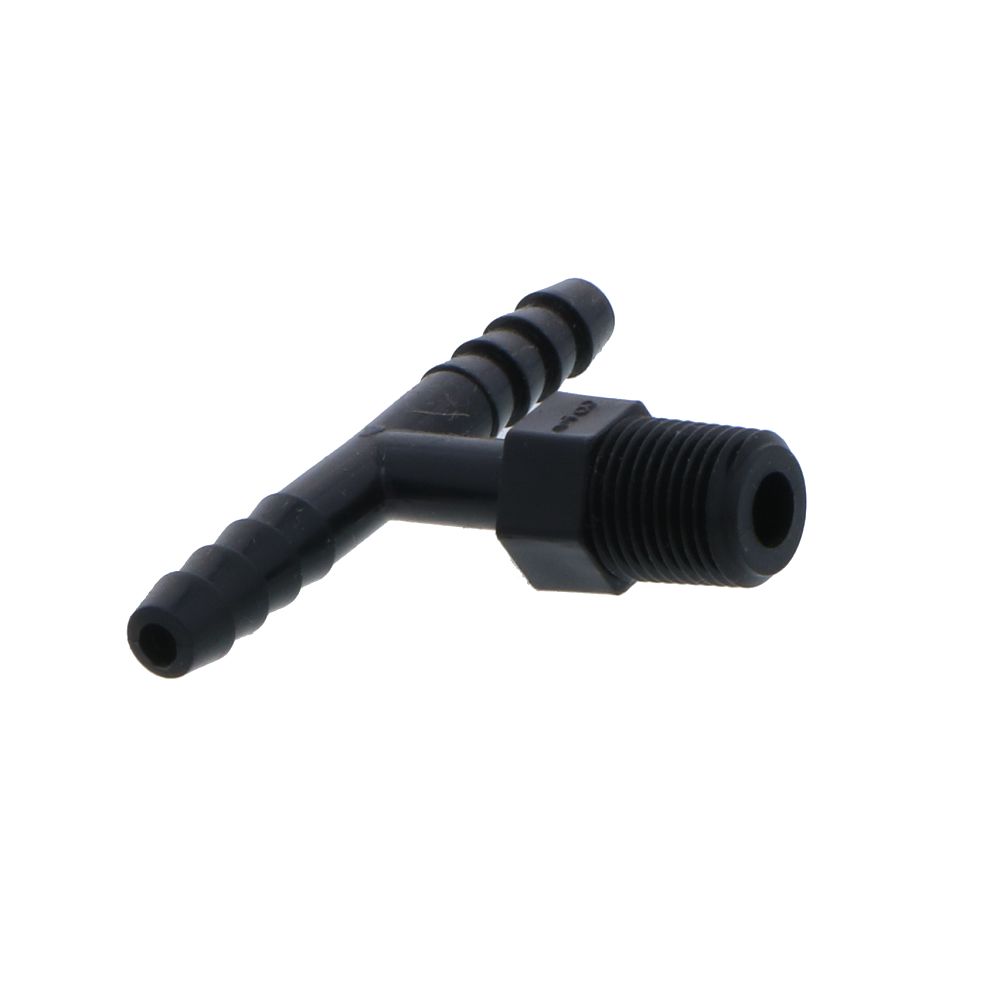

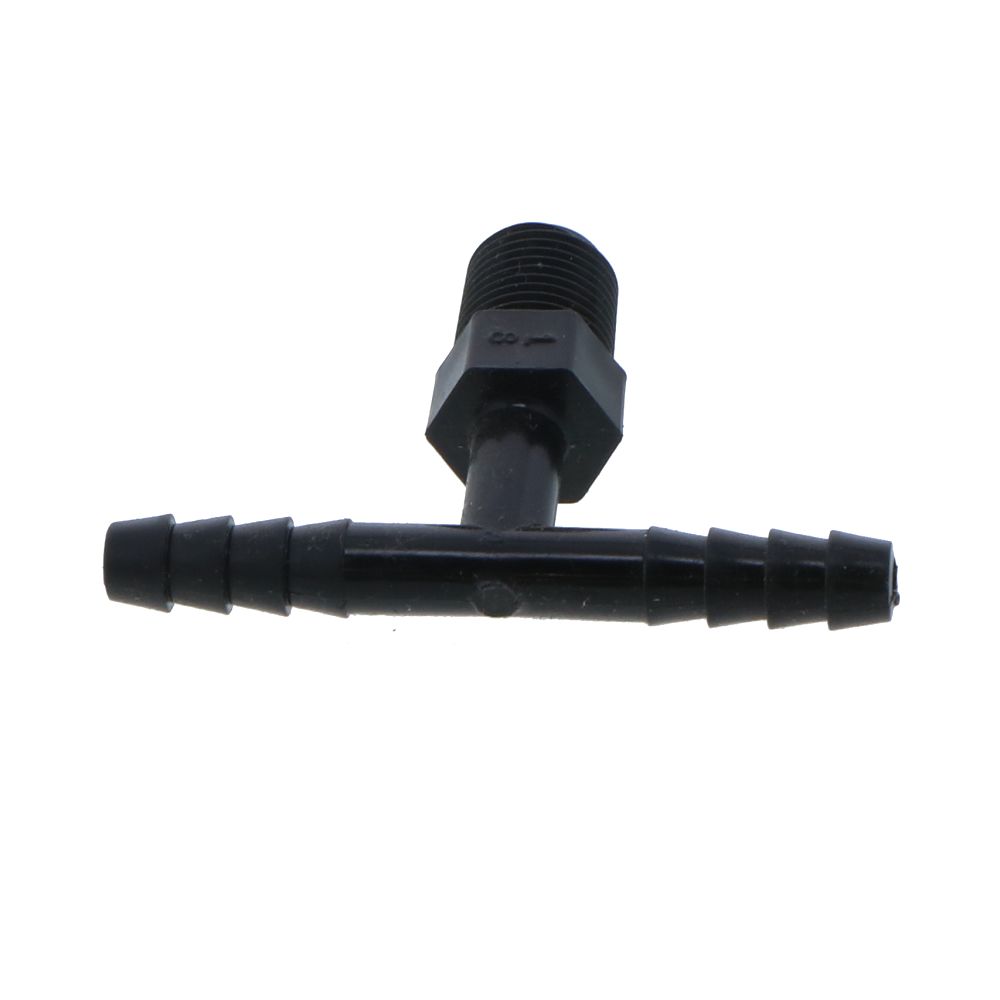

Barb Tee x Male Branch - 3/16 ID x 1/8 MNPT

Part Number: MTB-0302PE

Alt. Part Number: P3MTB2

In Stock

out of stock

In Stock

$1.09 Regular price


Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.

Specifications:
  • Temperature Range: 65º F to 190º
  • Max Working Pressure: 125 psi

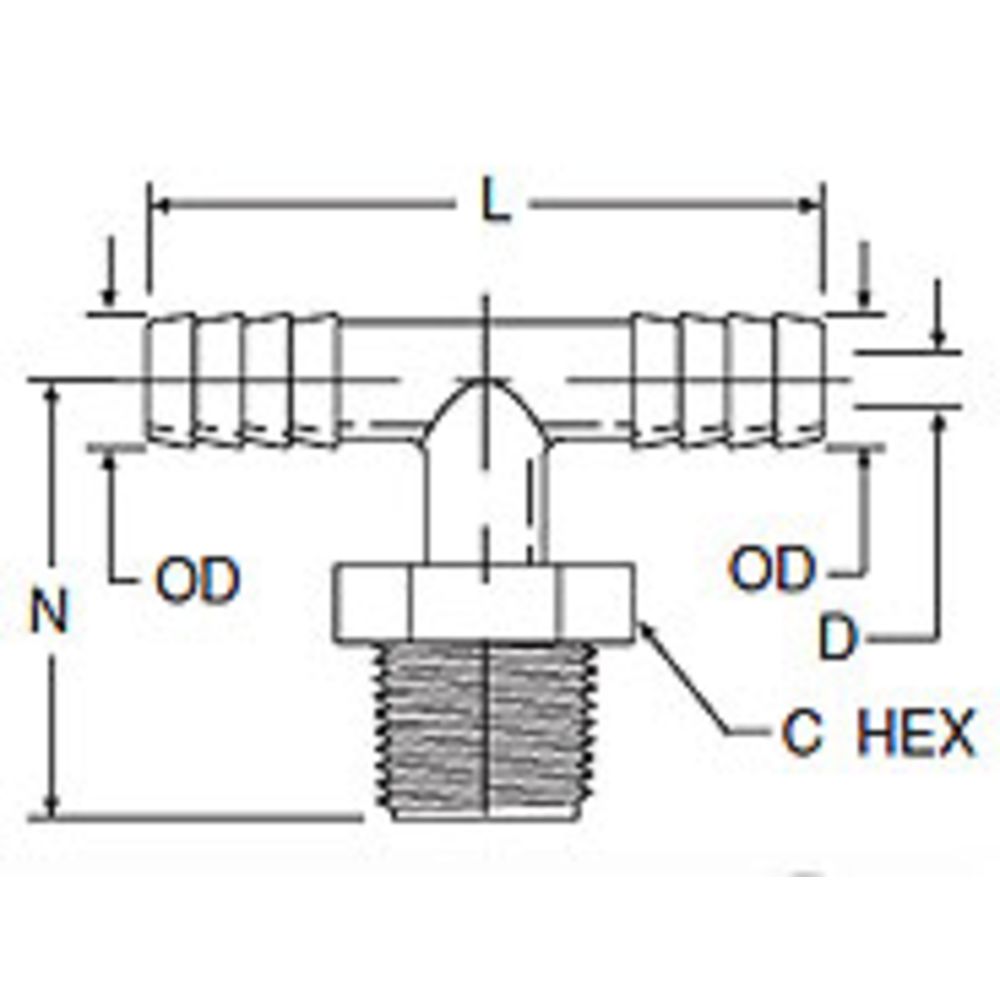

Par-Barb

Tube I.D.

NPTF
Thread

C
Hex
L N D
 P3MTB2 3/16

1/8

7/16 1.941

1.187

.106


Details

Body Material

Polyethylene

Color / Finish

Black

Inlet Size

3/16 Inches

Operating Pressure Range

125 PSI

Operating Temperature Range

65 to 190 Degrees Fahrenheit

Outlet Size

1/8 Inches

Type

Male Branch Tee


Barb





Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.

Specifications:
  • Temperature Range: 65º F to 190º
  • Max Working Pressure: 125 psi
Par-Barb

Tube I.D.

NPTF
Thread

C
Hex
L N D
 P3MTB2 3/16

1/8

7/16 1.941

1.187

.106

Details

Body Material

Polyethylene

Color / Finish

Black

Inlet Size

3/16 Inches

Operating Pressure Range

125 PSI

Operating Temperature Range

65 to 190 Degrees Fahrenheit

Outlet Size

1/8 Inches

Type

Male Branch Tee

Documentation
Barb
