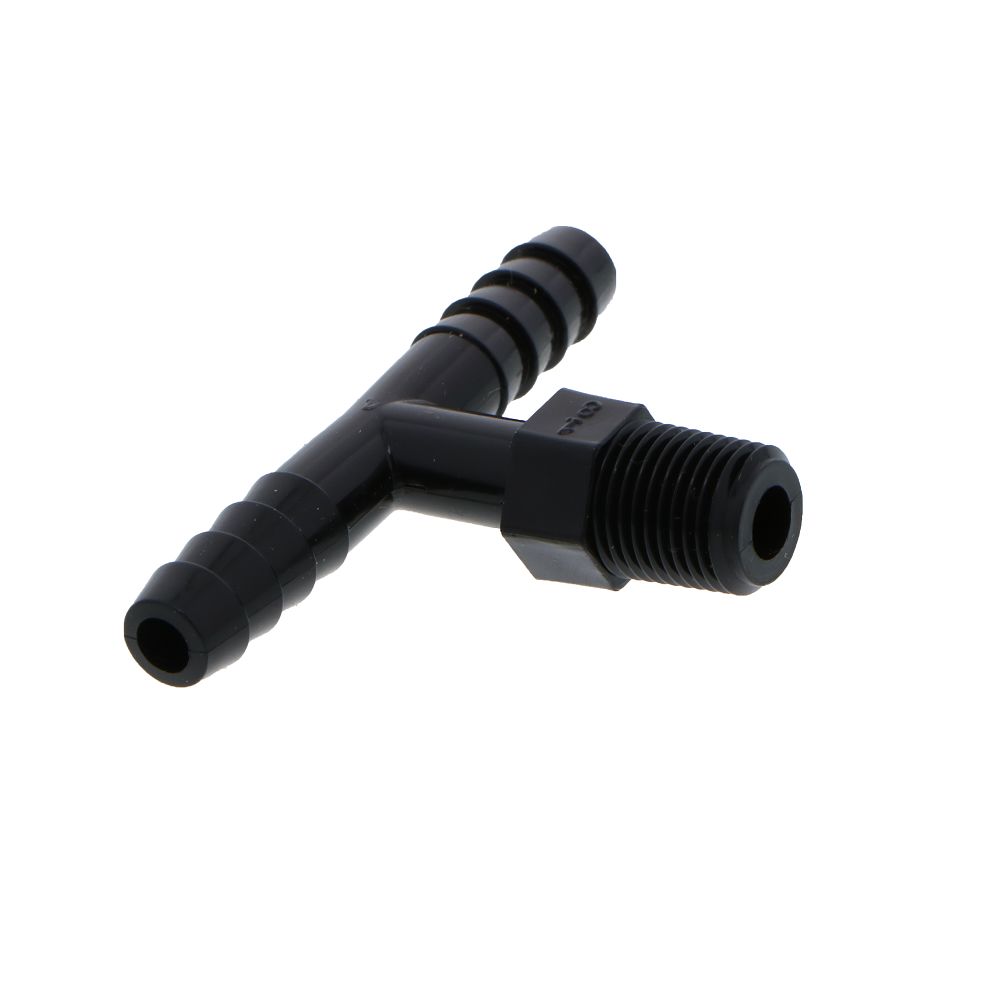

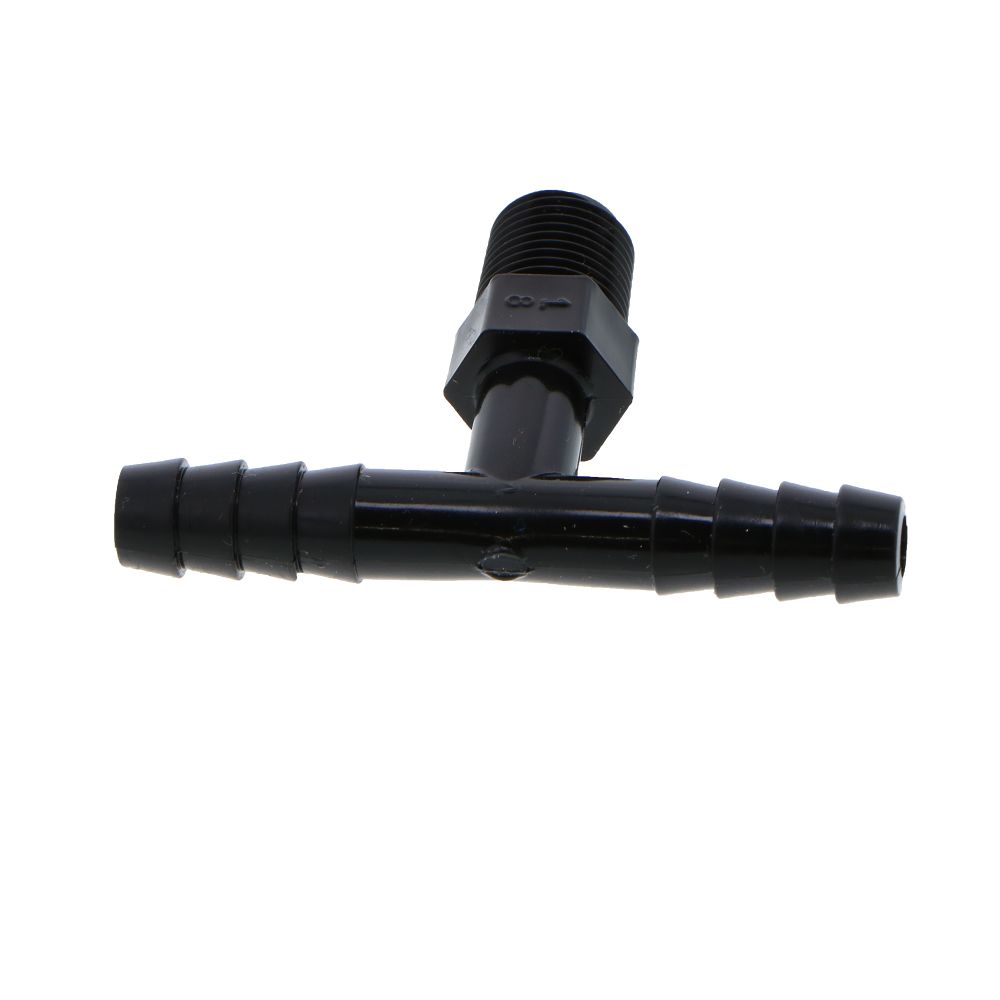

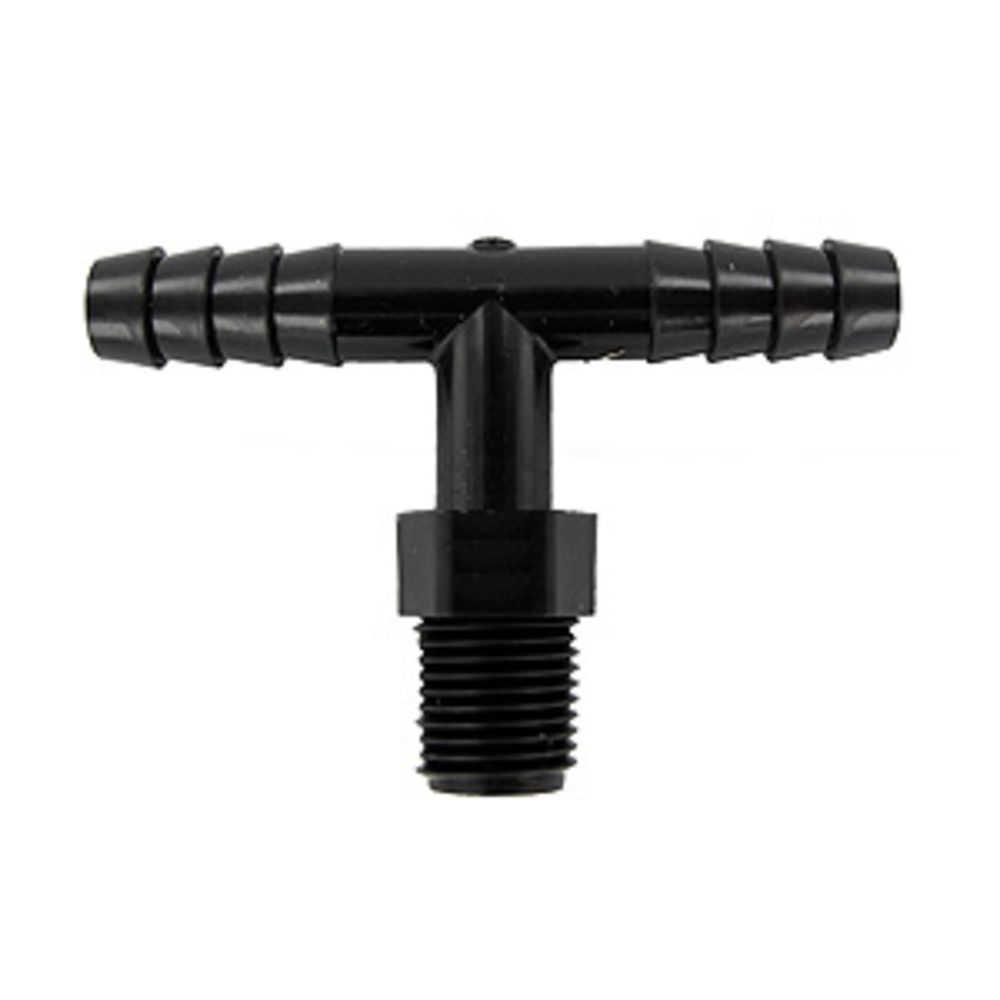

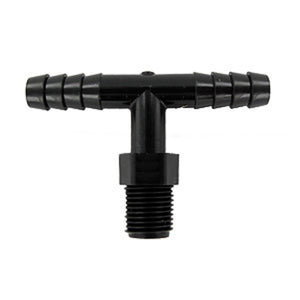

Barb Tee x Male Branch - 1/4 ID x 1/8 MNPT

Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.

Specifications:

Temperature Range: 65º F to 190º
Max Working Pressure: 125 psi

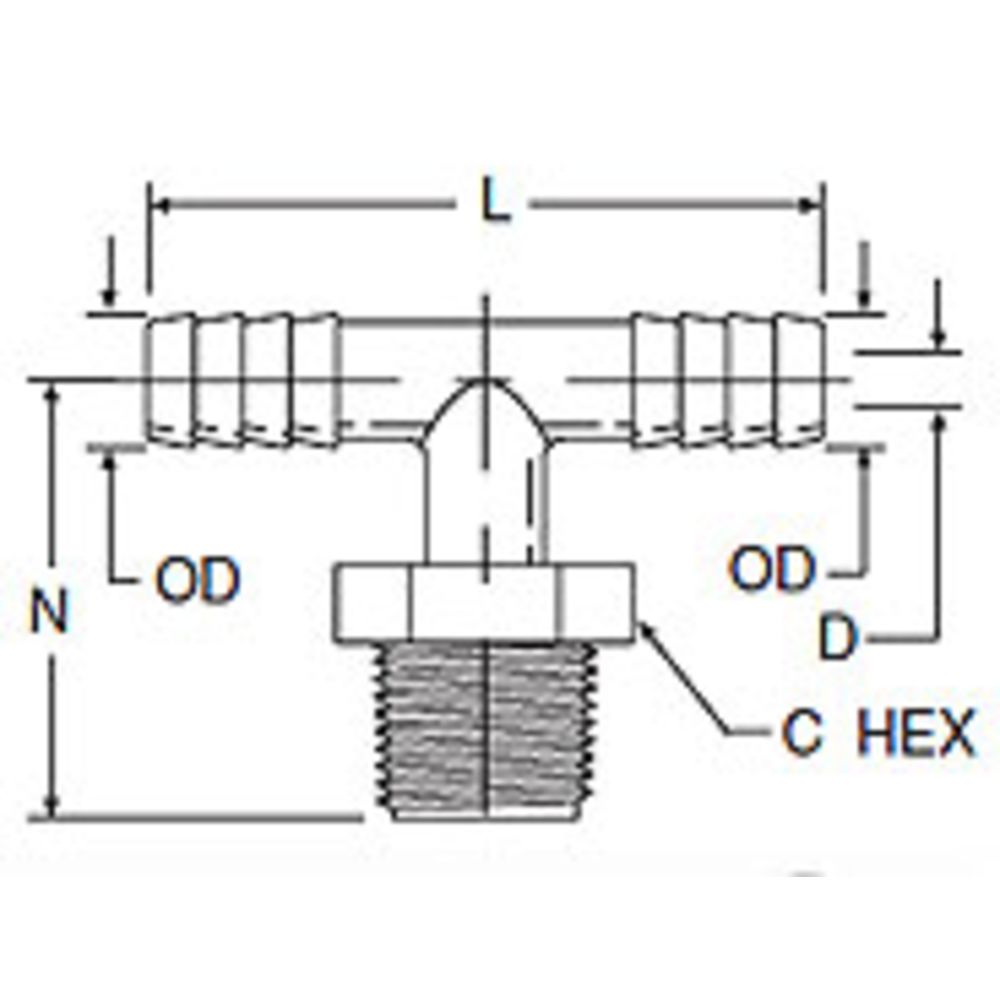

Par-Barb Part Number	Tube I.D.	NPTF Thread	C Hex	L	N	D
P4MTB2	1/4	1/8	7/16	2.004	1.187	.153

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Barb Size	1/4" ID
Inlet Connection	1/8" MPT
Max Pressure (Psi)	125
Max Temp (°F)	212
Min Temp (°F)	0
Outlet Connection	1/8" MPT
Series	Par-Barb
Shape	Tee
Size	1/8"
Color / Finish	Black
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	6 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Barb Size	1/4" ID
Inlet Connection	1/8" MPT
Max Pressure (Psi)	125
Max Temp (°F)	212
Min Temp (°F)	0
Outlet Connection	1/8" MPT
Series	Par-Barb
Shape	Tee
Size	1/8"
Color / Finish	Black
Connection Type	Male (MPT)
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	7 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.1

Barb Tee x Male Branch - 1/4 ID x 1/8 MNPT Manual
