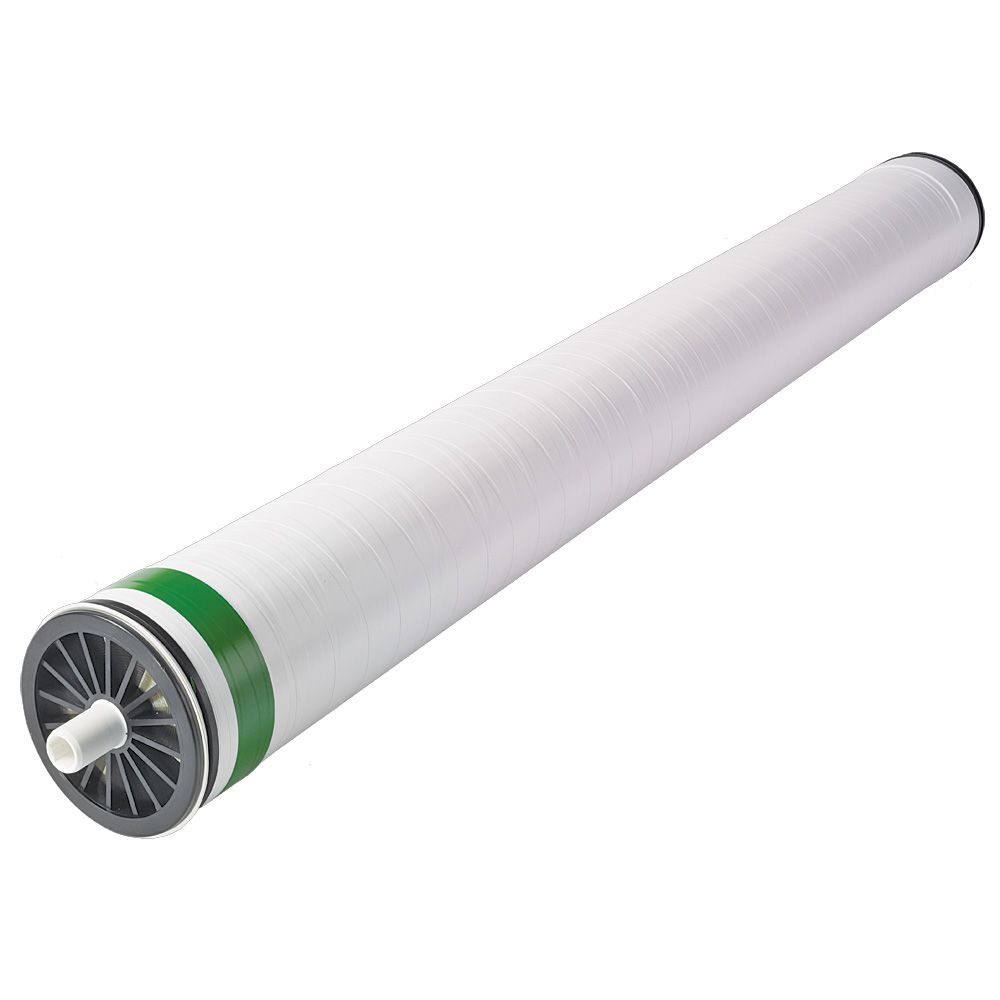

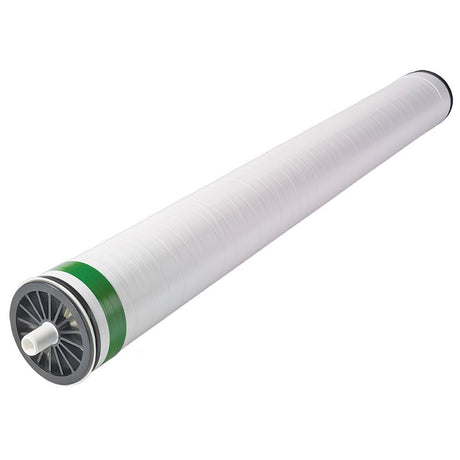

AXEON HF5-4014 600 GPD RO Membrane Element

The AXEON HF5-4014 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5-4014 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 600 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 80 psi
Dimensions: 4" x 14"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Extra Low Energy, Brackish Water
Formerly known as RO UltraTec HF5-4014

AXEON RO membranes are dry packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.98
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	80 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	600 gpd / (2.27 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	3.95"
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Length	14 in.
Product Weight (lbs)	4

AXEON HF5-4014 600 GPD RO Membrane Element Manual
