AXEON Water

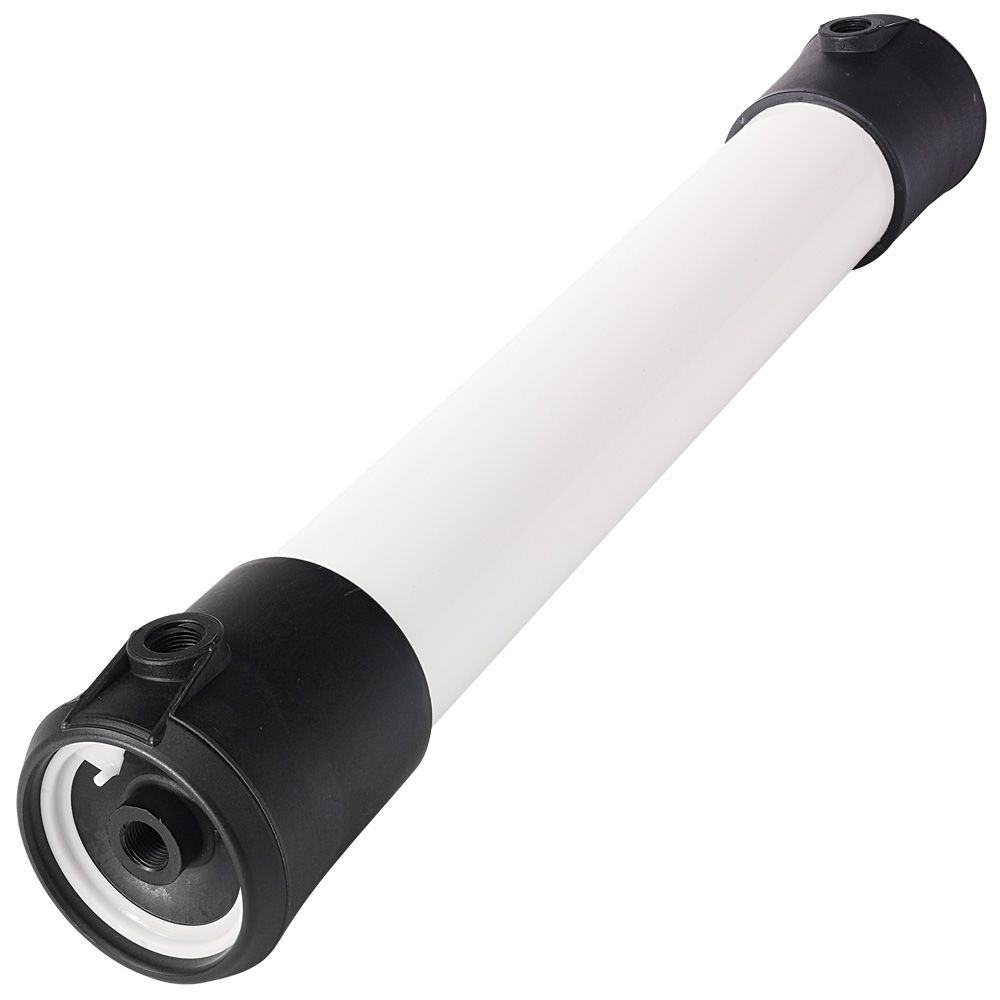

AXEON 200520 2.5 x 40 PVC Membrane Housing

Part Number: MHPVC-2540-38

Alt. Part Number: 200520

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The AXEON/Champ 200520 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.
Features:
  • Fits All Standard 2.5" x 40" Sized Membranes
  • 3/8" Side Port
  • 3/8" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA

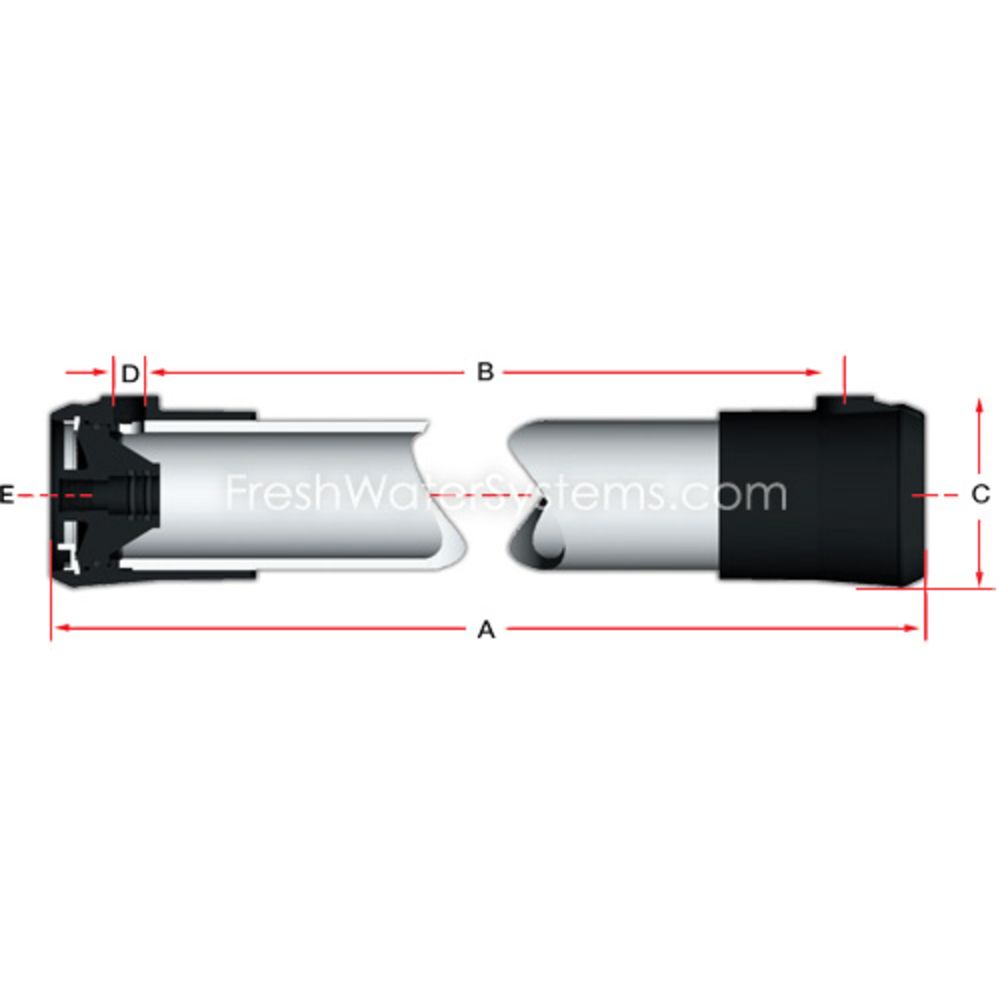

A B C D E
24" (609.6) 21" (533.4) 3.75" (95.25) 3/8" FNPT 3/8" FNPT

Compatible with:
Flexeon200520

Weight & Dimensions

Weight (lbs)

12

Approx Length (Inches)

40 (1016)"

Details

Max Temp (°F)

110

Max Pressure (Psi)

225

Min Temp (°F)

35

Closure Type

Snap Ring

Diameter

3-3/4"

End Cap Type

GTX

Housing Material

PVC

O-Rings

Ethylene Propylene

Membrane Size

2-1/2" x 40"

Port Size

3/8"


AXEON





The AXEON/Champ 200520 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.
Features:
  • Fits All Standard 2.5" x 40" Sized Membranes
  • 3/8" Side Port
  • 3/8" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA

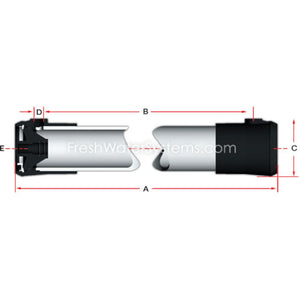

A B C D E
24" (609.6) 21" (533.4) 3.75" (95.25) 3/8" FNPT 3/8" FNPT

Compatible with:
Flexeon200520

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

12

Approx Length (Inches)

40 (1016)"

Details

Max Temp (°F)

110

Max Pressure (Psi)

225

Min Temp (°F)

35

Closure Type

Snap Ring

Diameter

3-3/4"

End Cap Type

GTX

Housing Material

PVC

O-Rings

Ethylene Propylene

Membrane Size

2-1/2" x 40"

Port Size

3/8"

Documentation
