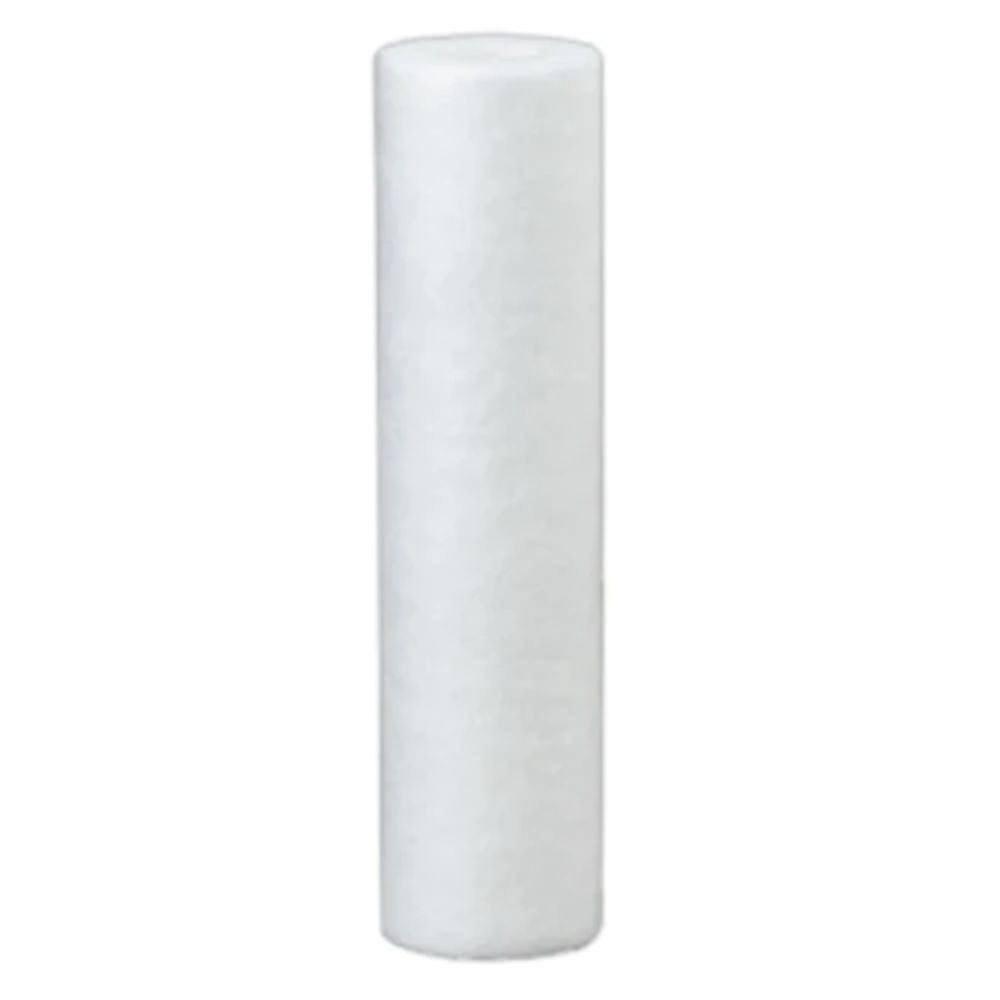

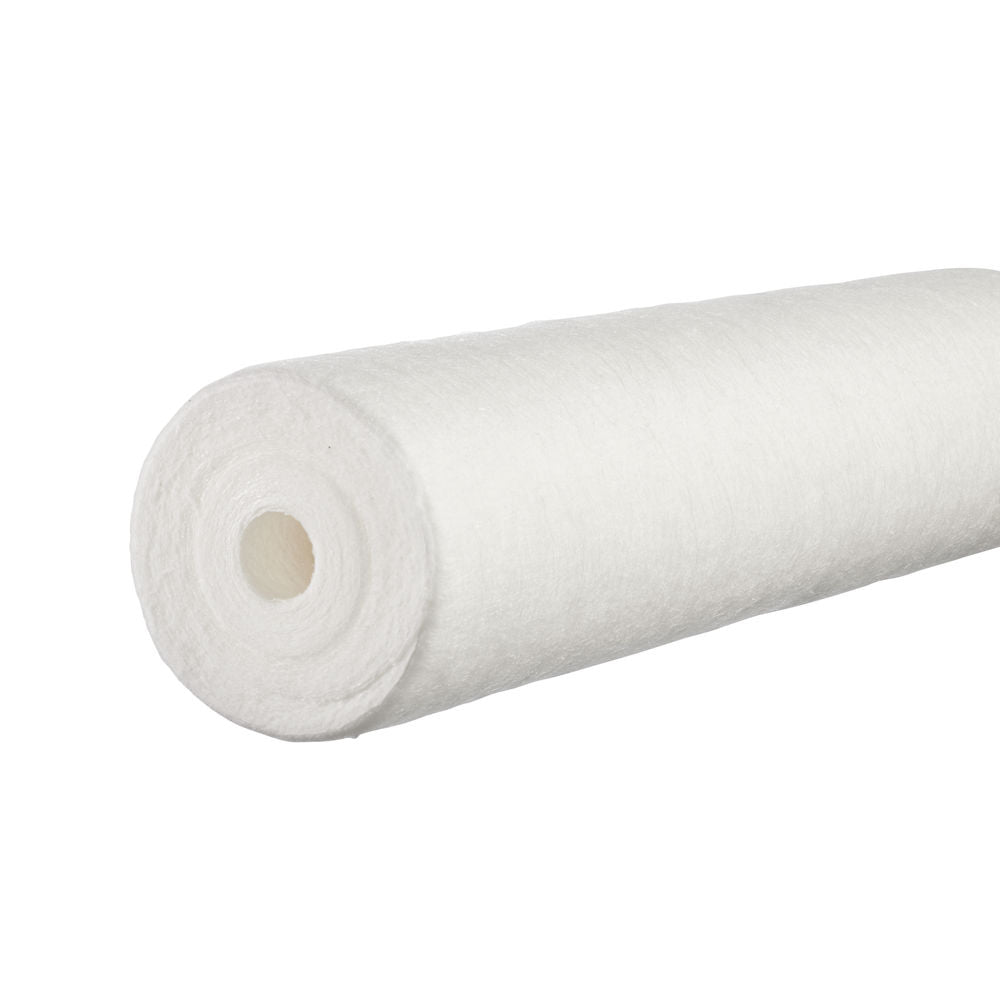

Aquatrex LD05-10 (1201451) Cartridge Filter 10" 5mic

Part Number: 1201451
Your price:
similar items
This Aquatrex LD05-10 (1201451) Cartridge Filter 10" 5mic is ideally suited to be used in AMETEK's Big Blue and Keystone's Blue Giant housing units. The LD05-10 filter has pure FDA compliant polypropylene construction, and is manufactured using ISO 9001 certified process. This filter combines innovative depth filter technology, quality, and cost effectiveness to provide excellent filtration value in residential and light commercial applications.

  • Unique Dual-graded Density. The design of the extended media captures particles throughout entire filter depth.
  • High Dirt-holding Capacity. The LD05-10 has three-to-eight times greater dirt holding capacity and life, will reduce change-out frequency. This means longer life and fewer change-outs, which translates into money saved.
  • Precision Final Filter. This results in consistent high performance filtration.
  • Large Media Area. This allows for high flow rates (Maximum recommended flow rate is 10 gpm for 10, 20, 30, and 50 microns, 5 gpm for 1, and 5 microns per 10-inch length. Change-outs recommended at 25 psid).
  • Thermally Bonded Microfibers. Made from thermally welded microfibers of 100% polypropylene for high dirt retention.
  • High-purity Polypropylene Media. This has no wetting agents, solvents, antistatic agents, or binders.

Additional Specifications:
  • Length: 9.875"
  • Diameter: 4.5"
  • Micron Rating: 5 μm
  • NSF 61 criteri
  • Wide Chemical Compatibility
  • Temperatures to 150ºF (65°C)
  • Made in the USA
  • Case Quantity: 10 per case.
