Aquatec

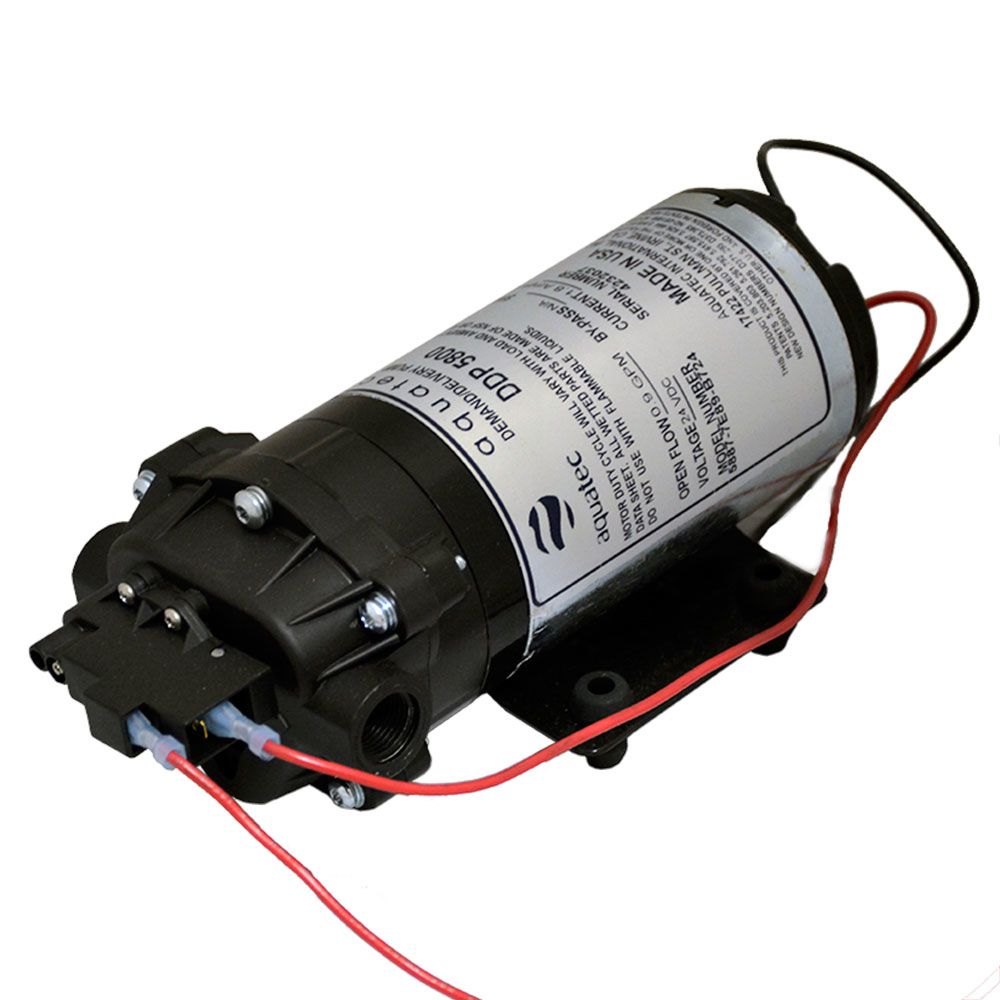

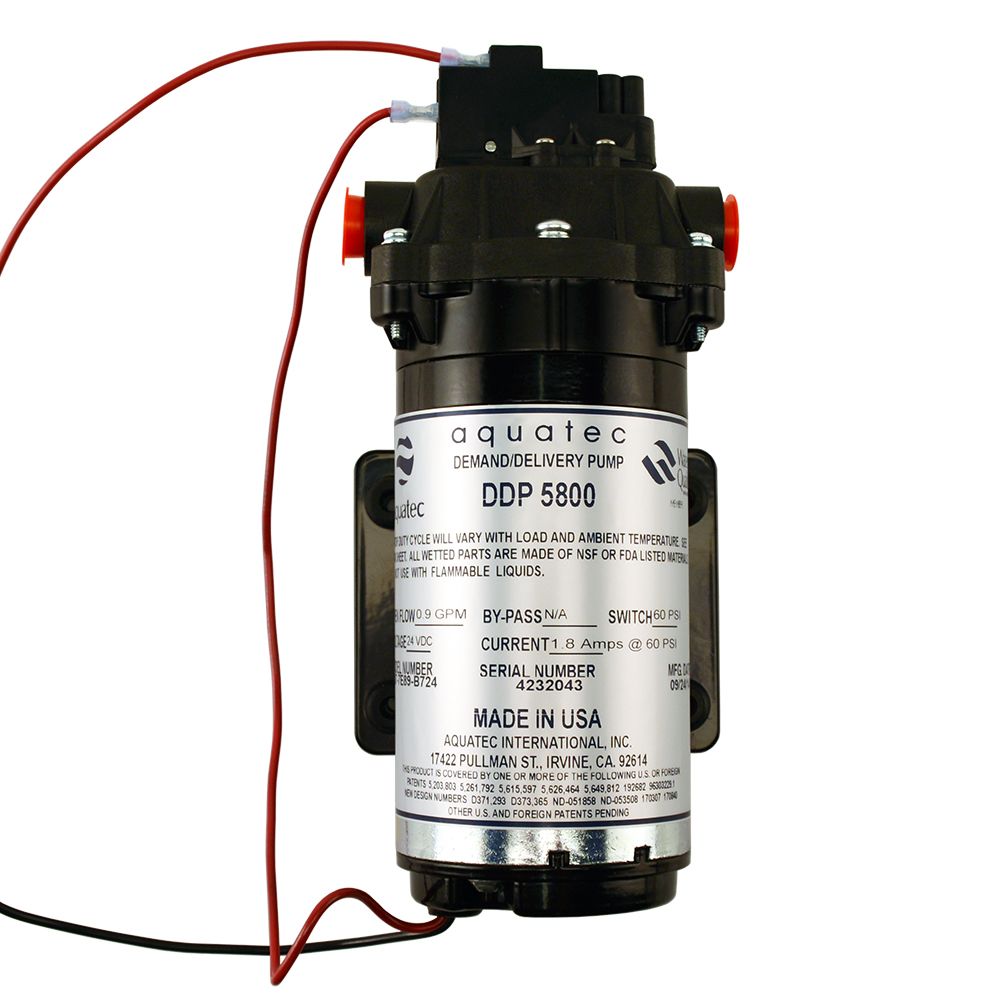

Aquatec 5887-7E89-B724 Pump 1.10 gpm, 3/8" FNPT, 24VDC

Part Number: 5887-7E89-B724

In Stock

out of stock

In Stock

$166.50


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). Pump comes with a solid Geolast diaphragm for maximum life and has a 3/8" FNPT inlet/outlet.

Specifications:
  • Inlet/Outlet: 3/8" FNPT
  • Voltage: 24 VDC
  • Geolast diaphragm
  • Viton valves and O-rings
  • Flow rate: 1.10 gpm open flow, 0.98 gpm @ 30 psi
  • Comes with 60 psi demand switch
  • Made in the USA


Details

Amps

1.8 Amps @ 60 psi Amps

Diaphragm Materials

Geolast

Flow Rate

1.10 gpm open flow

Inlet Size

3/8" FNPT

Liquid Temperature

Max 140 Degrees Fahrenheit

Outlet Size

3/8" FNPT

Pressure Switch

60 psi

Voltage

24VDC

Warranty & Certifications

Certifications

All wetted parts are made of NSF or FDA listed materials.

Warranty

1 year




The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). Pump comes with a solid Geolast diaphragm for maximum life and has a 3/8" FNPT inlet/outlet.

Specifications:
  • Inlet/Outlet: 3/8" FNPT
  • Voltage: 24 VDC
  • Geolast diaphragm
  • Viton valves and O-rings
  • Flow rate: 1.10 gpm open flow, 0.98 gpm @ 30 psi
  • Comes with 60 psi demand switch
  • Made in the USA

Details

Amps

1.8 Amps @ 60 psi Amps

Diaphragm Materials

Geolast

Flow Rate

1.10 gpm open flow

Inlet Size

3/8" FNPT

Liquid Temperature

Max 140 Degrees Fahrenheit

Outlet Size

3/8" FNPT

Pressure Switch

60 psi

Voltage

24VDC

Warranty & Certifications

Certifications

All wetted parts are made of NSF or FDA listed materials.

Warranty

1 year
