Features:
- 3-chamber construction
- Closed impervious diaphragm
- Asymmetrical manifold
- Integral switch or bypass
- Highest structural integrity
- Seven point clamping
- Engineered composite plastics
- Corrosion resistant metal
- Multiple porting options
- Adjustable switch and bypass settings
- Self-priming, auto-purging
- Near silent operation at lower flows
- Highly efficient
- Minimal pulsations
- 7 year design life
- Runs dry without damage
Weight & Dimensions
Box Quantity | 12 |
Height (inches) | 5.25 |
Length (inches) | 11 |
Weight (lbs) | 5.661 |
Width (inches) | 5 |
Details
Amps | 0.9 Amps @ 60 PSI |
Diaphragm Materials | Santoprene |
Housing Material | Polypropylene |
Liquid Temperature | Max 140 °F |
Motor Rpm | 2100 RPM |
Power Source | Cord/Pressure Switch Wires |
Pressure Switch | 60 PSI |
Push-In Size | 3/8" OD |
Series | 5800 |
Suction Lift | Self prime up to 9.5 ft |
Wire Option | Wall Plug |
Flow Rate | 1.7 GPM |
Type | Diaphragm Pump |
Voltage | 115VAC |
Warranty & Certifications
Certifications | NSF 58 |
Warranty | 1 Year |

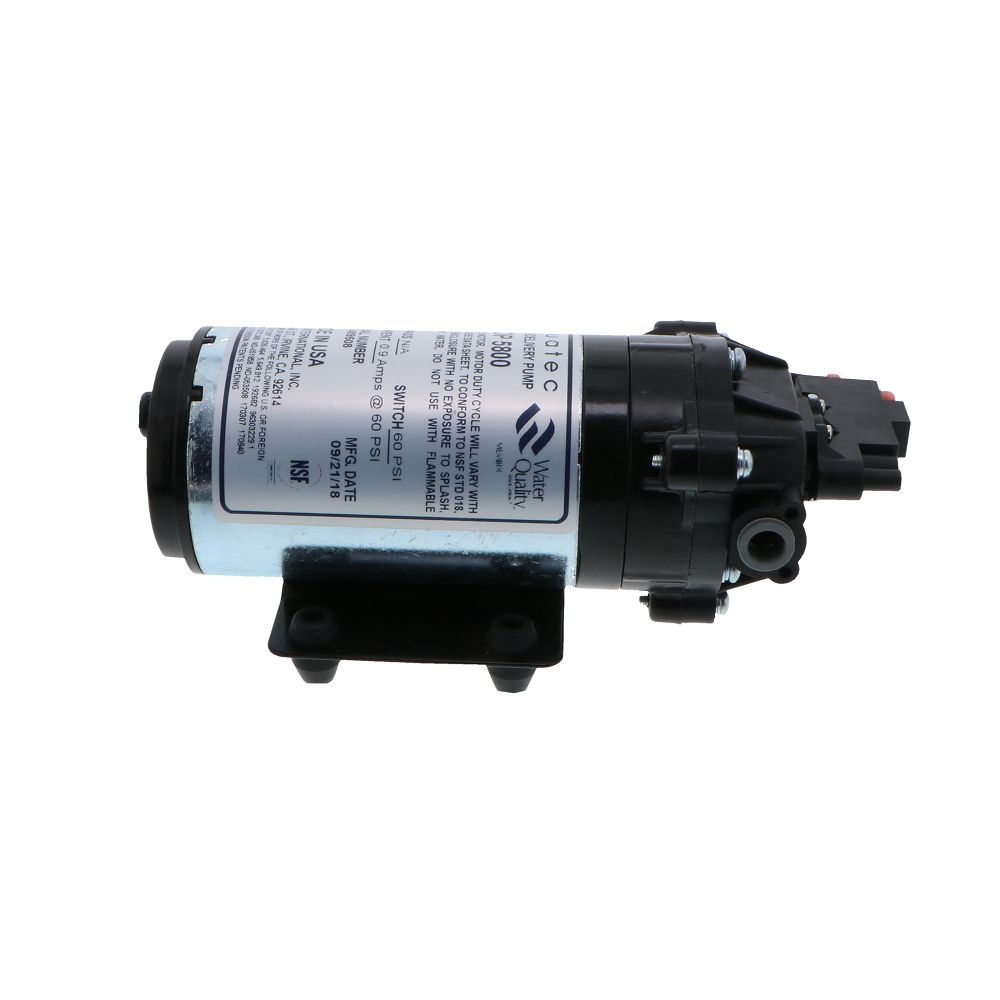

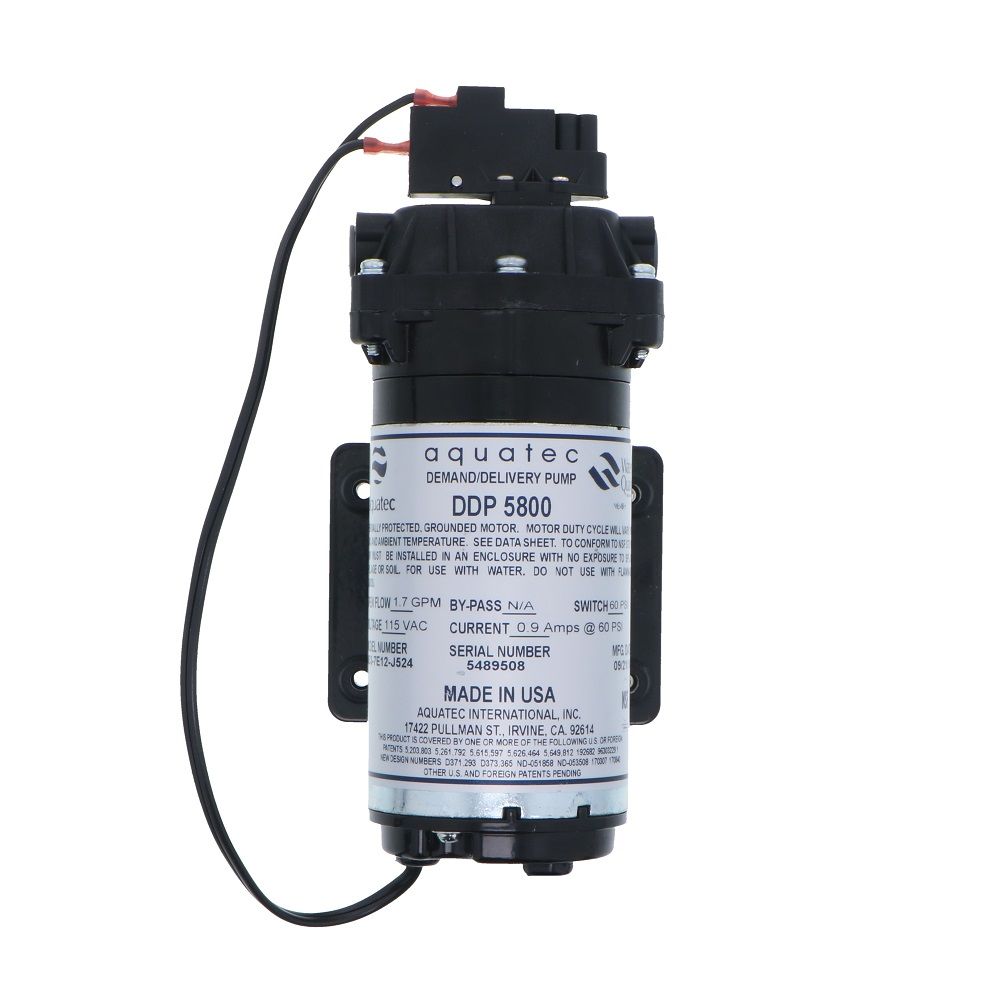

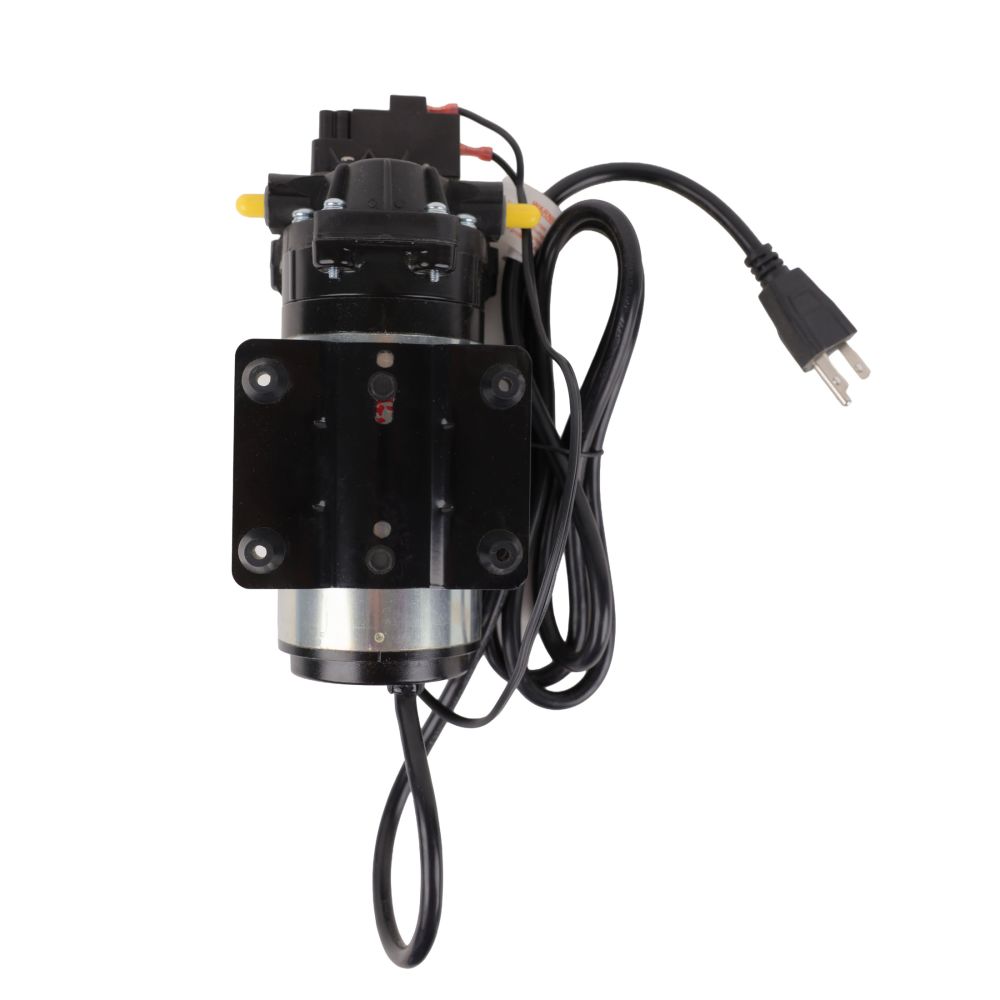

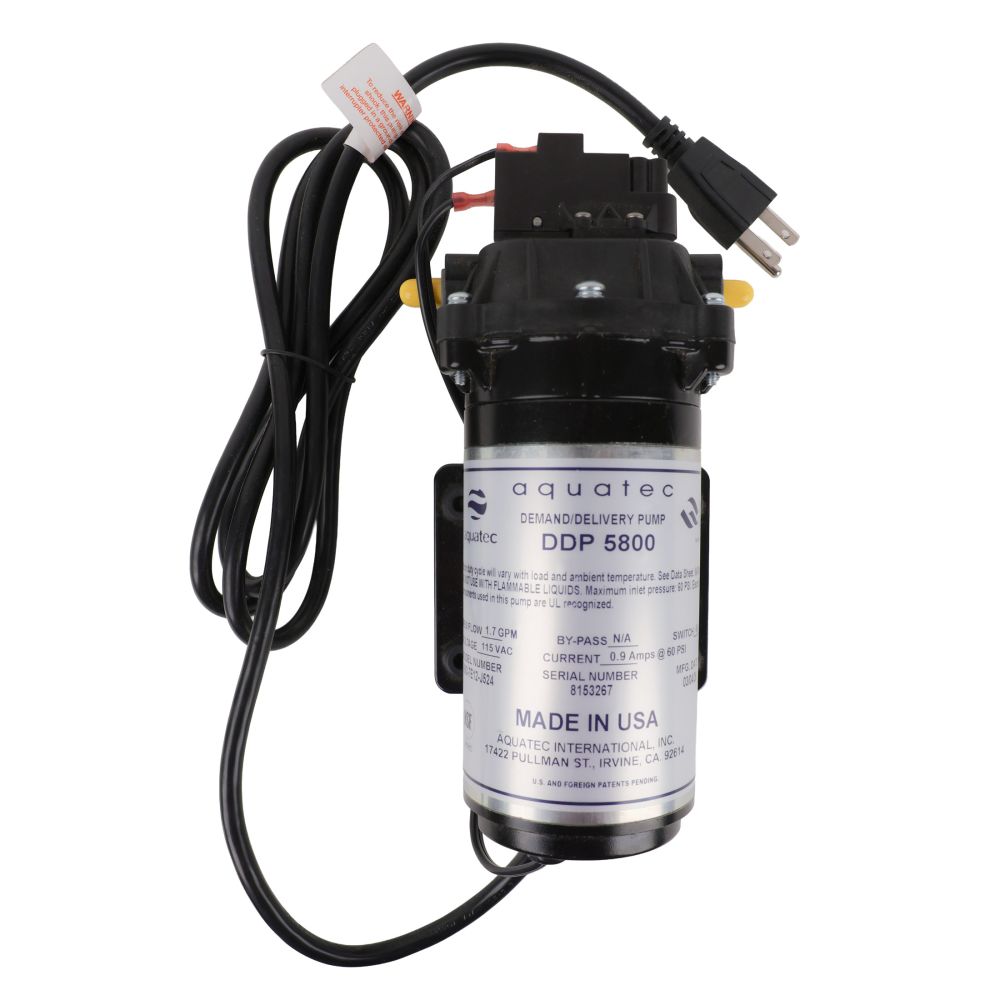

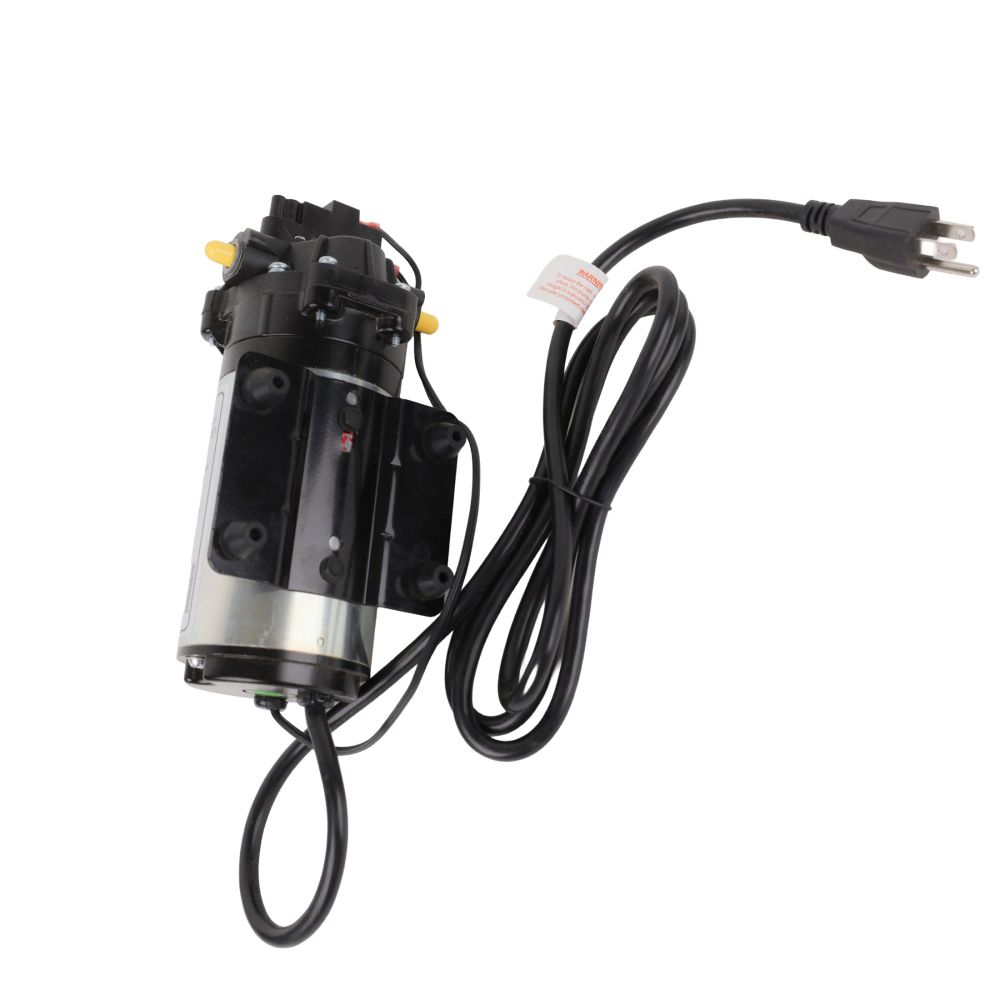

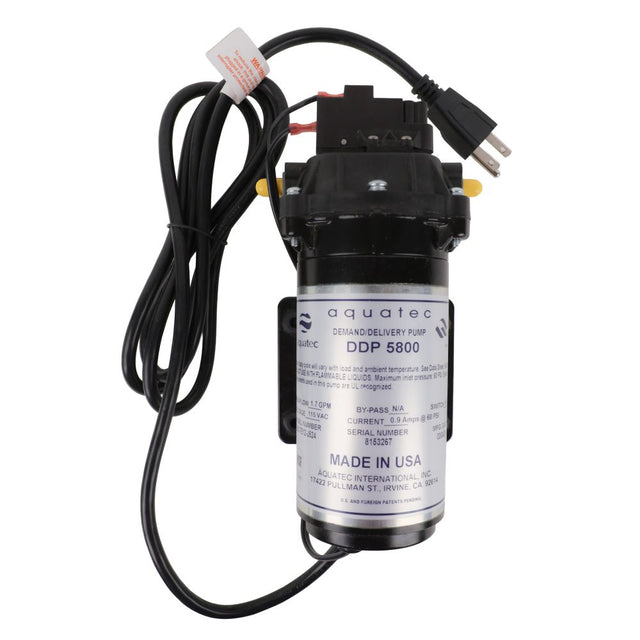

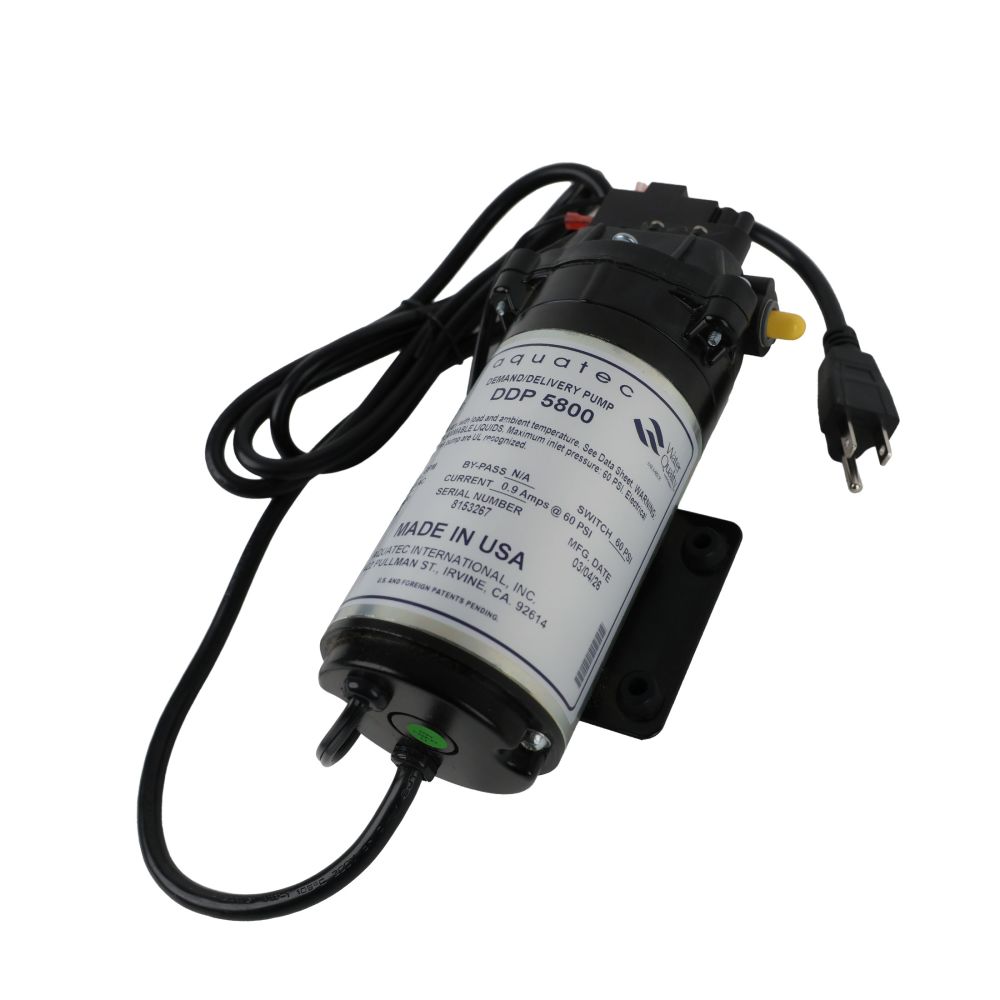

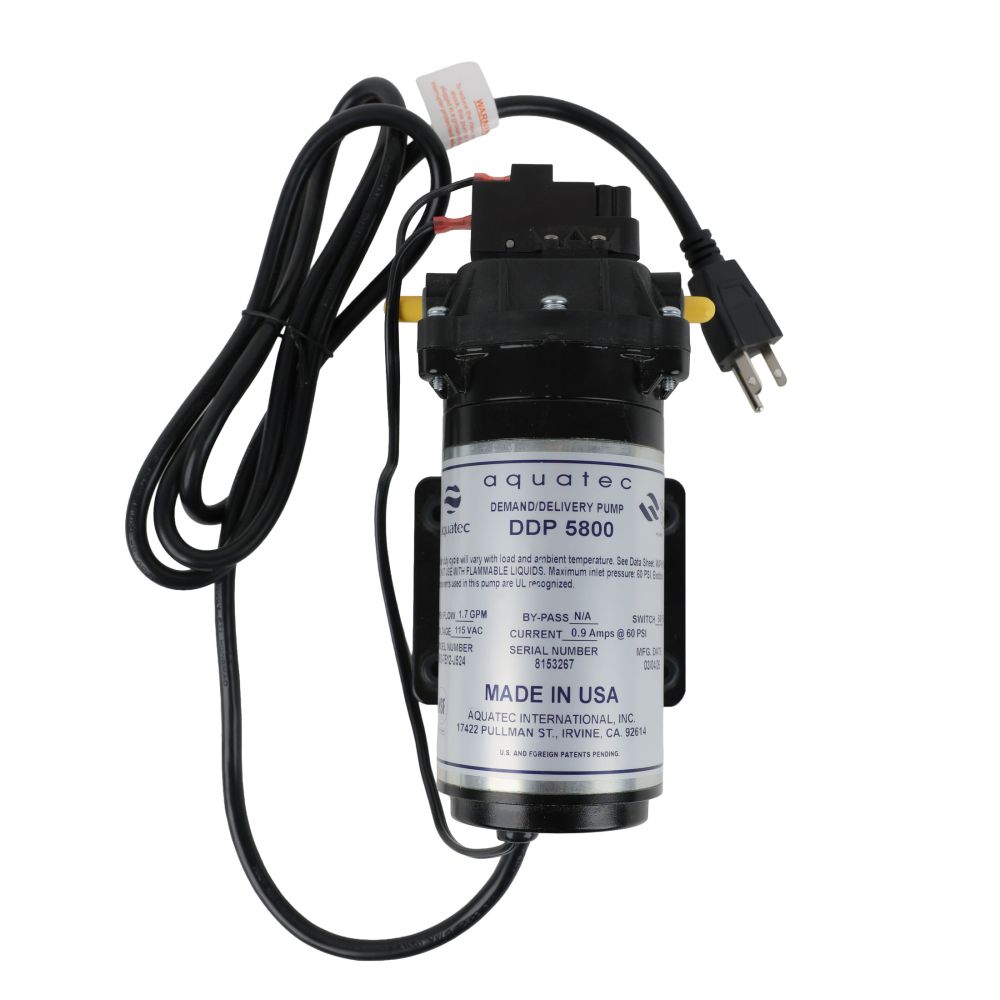

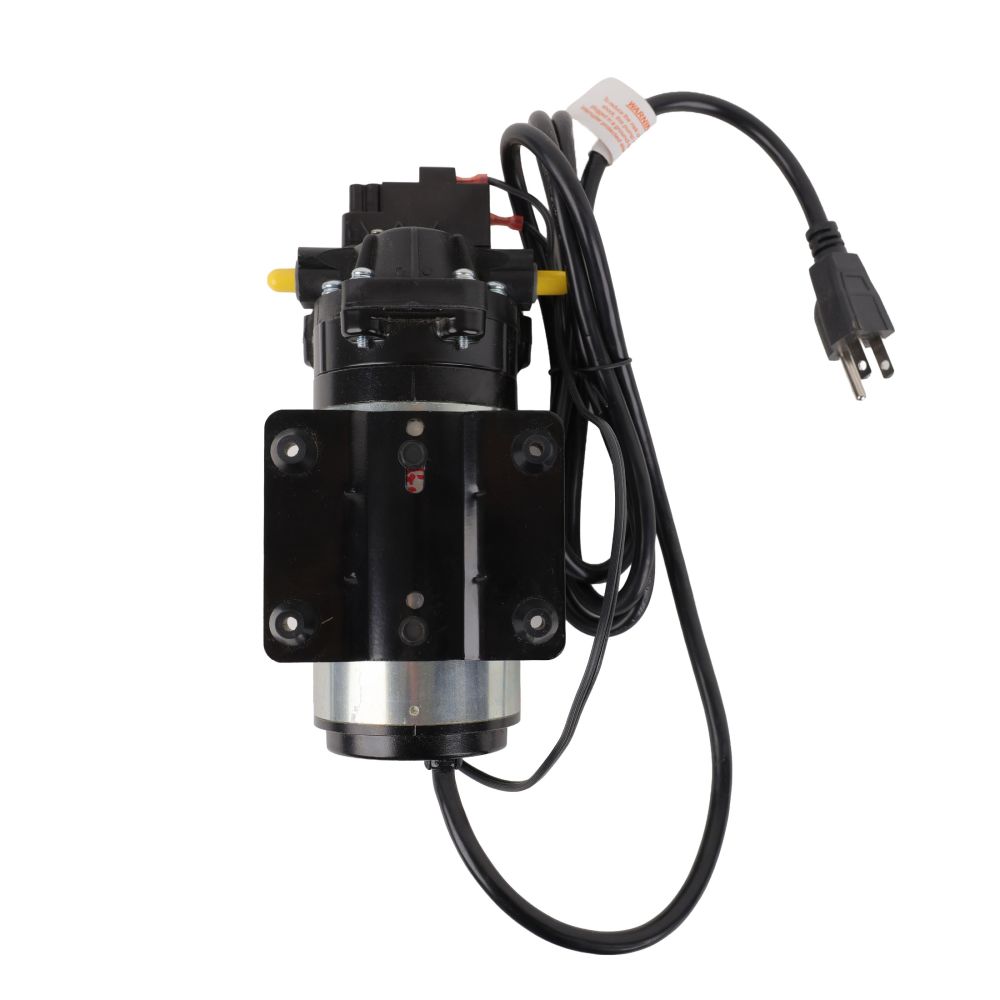

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Features:
- 3-chamber construction
- Closed impervious diaphragm
- Asymmetrical manifold
- Integral switch or bypass
- Highest structural integrity
- Seven point clamping
- Engineered composite plastics
- Corrosion resistant metal
- Multiple porting options
- Adjustable switch and bypass settings
- Self-priming, auto-purging
- Near silent operation at lower flows
- Highly efficient
- Minimal pulsations
- 7 year design life
- Runs dry without damage
Weight & Dimensions
Box Quantity | 12 |
Height (inches) | 5.25 |
Length (inches) | 11 |
Weight (lbs) | 5.661 |
Width (inches) | 5 |
Details
Amps | 0.9 Amps @ 60 PSI |
Diaphragm Materials | Santoprene |
Housing Material | Polypropylene |
Liquid Temperature | Max 140 °F |
Motor Rpm | 2100 RPM |
Power Source | Cord/Pressure Switch Wires |
Pressure Switch | 60 PSI |
Push-In Size | 3/8" OD |
Series | 5800 |
Suction Lift | Self prime up to 9.5 ft |
Wire Option | Wall Plug |
Flow Rate | 1.7 GPM |
Type | Diaphragm Pump |
Voltage | 115VAC |
Warranty & Certifications
Certifications | NSF 58 |
Warranty | 1 Year |
Documentation
