Aquatec

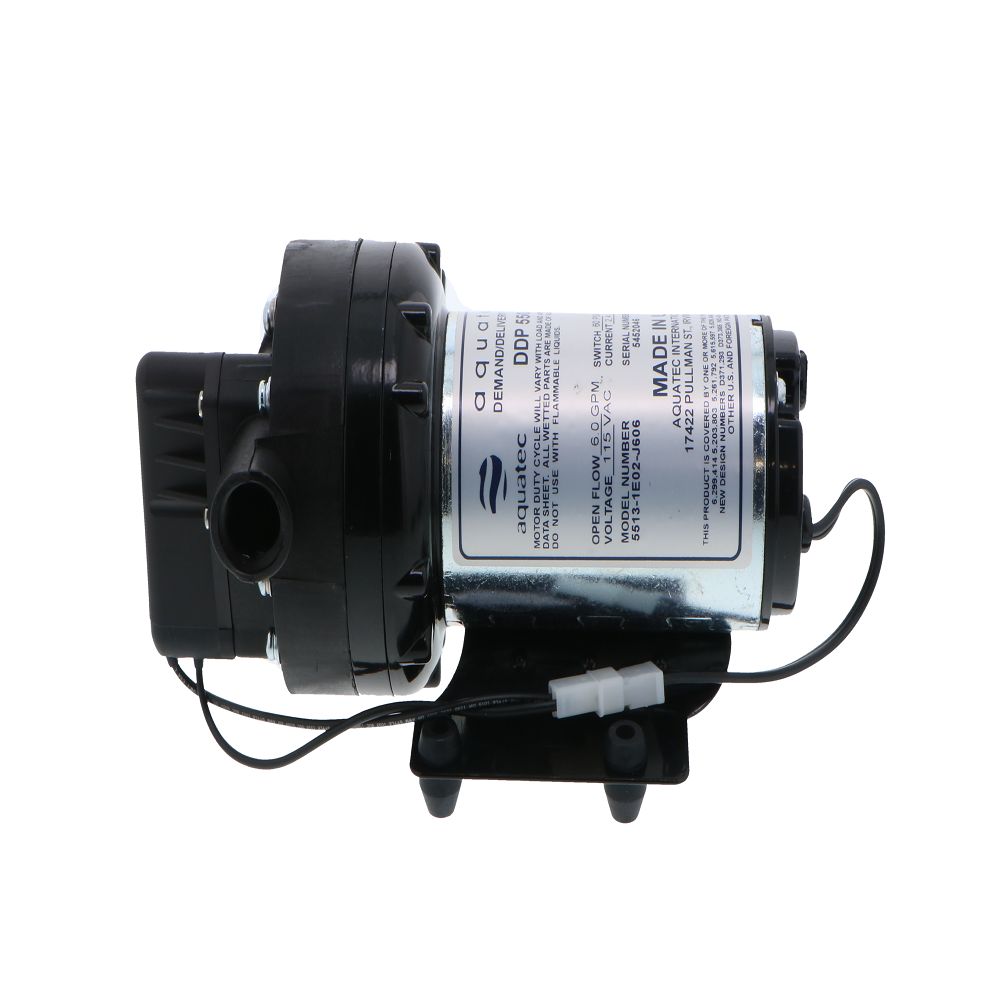

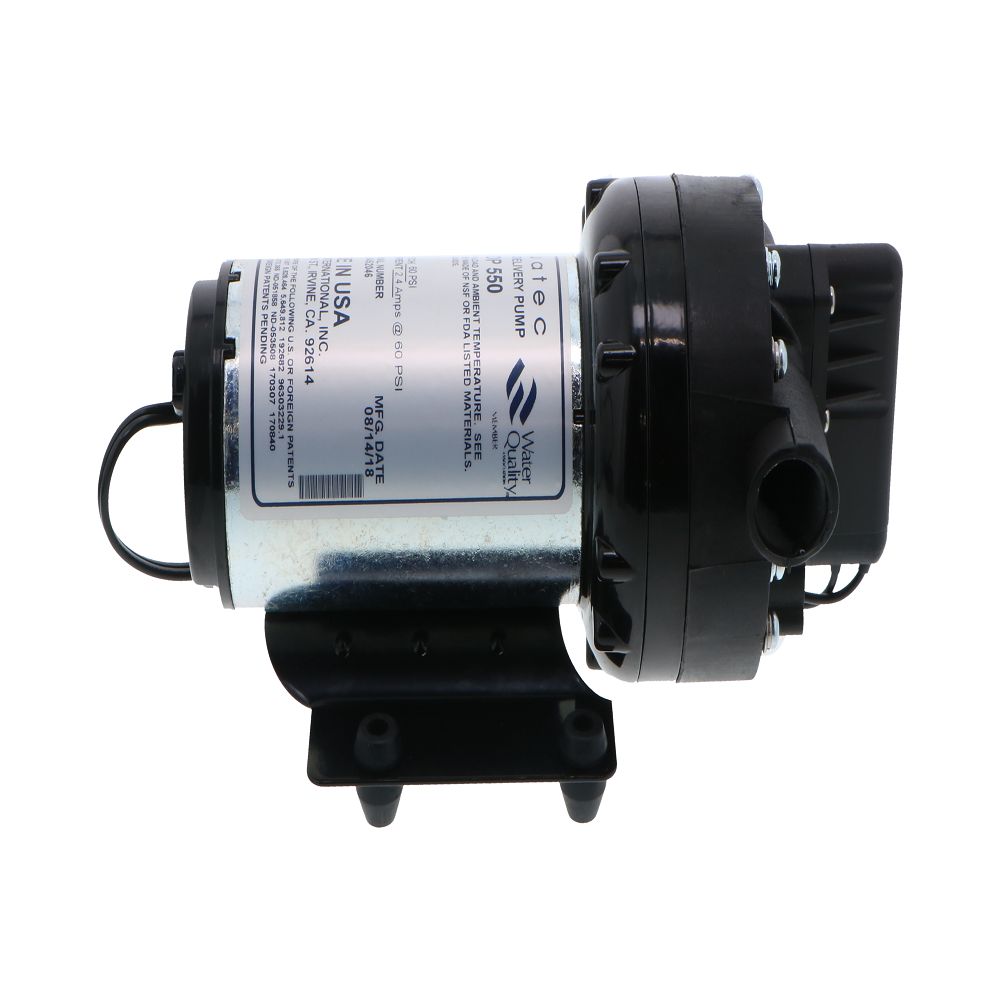

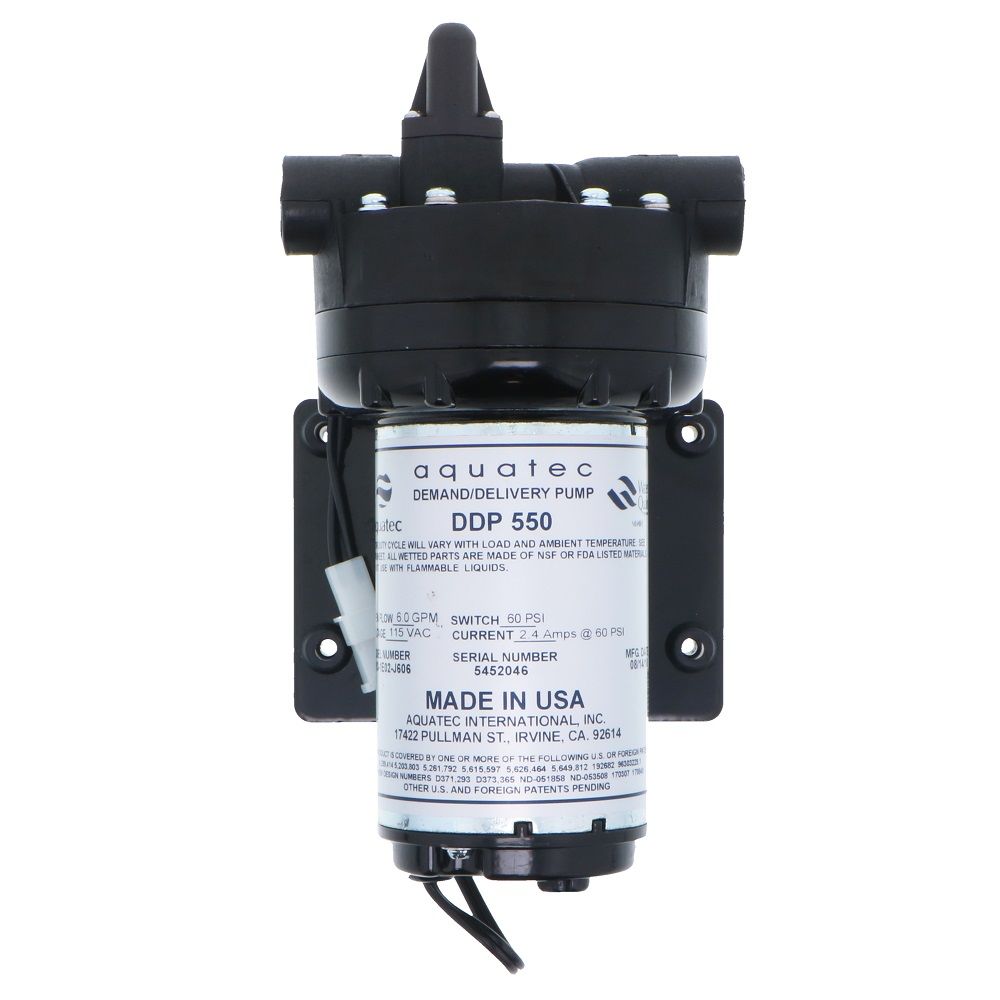

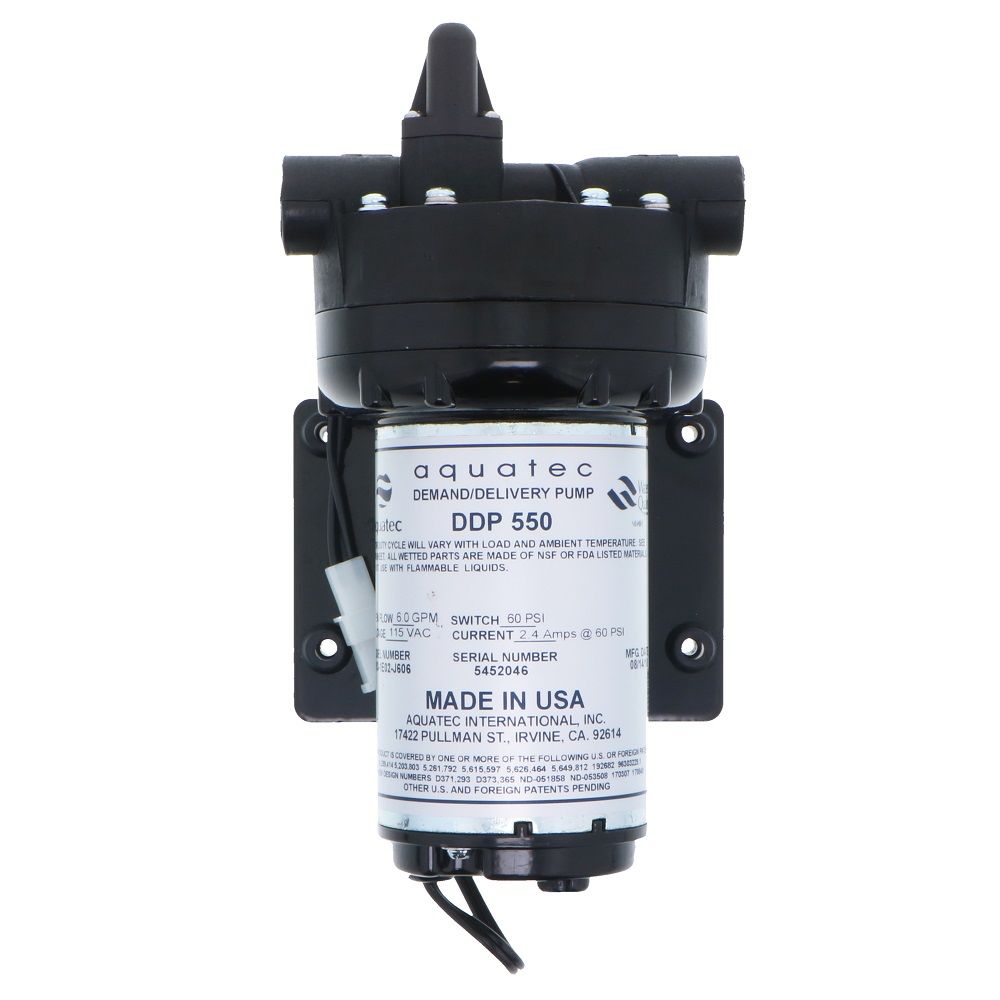

Aquatec 5513-1E01-J606 Pump 6.0 gpm, 1/2 FPT, 115VAC

Part Number: 5513-1E01-J606

Alt. Part Number: 5513-1E12-J606

In Stock

out of stock

In Stock

$168.75

The Aquatec 5513-1E01-J606 Pump is used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time.

These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. This pump features a 5-chamber construction.
NSF Certified. This pump has been independently tested and certified against NSF/ANSI Standard 58.
Made in the USA. The Aquatec 5513-1E01-J606 has been proudly manufactured in the USA.
Features:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
  • Ten point clamping


Weight & Dimensions

Approx Height (Inches)

4.58 Inches

Approx Length (Inches)

9.05 Inches

Approx Width (Inches)

4.84 Inches

Details

Amps

0.75 (0 psi) - 1.75 ( Amps

Diaphragm Materials

Santoprene

Flow Rate

6.0 Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

1/2" FPT

Liquid Temperature

Max 140 Degrees Fahrenheit

Origin

Made in USA

Outlet Size

1/2" FPT

Pressure Switch

60 PSI

Type

Demand

Valve Type

EPDM

Voltage

115VAC

Motor Rpm

2400 Rotations Per Minute

Suction Lift

Self prime up to 11 ft

Warranty & Certifications

Certifications

NSF 58

Warranty

13 Months from Date of Manufacture


Aquatec

Aquatec




The Aquatec 5513-1E01-J606 Pump is used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time.

These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. This pump features a 5-chamber construction.
NSF Certified. This pump has been independently tested and certified against NSF/ANSI Standard 58.
Made in the USA. The Aquatec 5513-1E01-J606 has been proudly manufactured in the USA.
Features:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
  • Ten point clamping

Weight & Dimensions

Approx Height (Inches)

4.58 Inches

Approx Length (Inches)

9.05 Inches

Approx Width (Inches)

4.84 Inches

Details

Amps

0.75 (0 psi) - 1.75 ( Amps

Diaphragm Materials

Santoprene

Flow Rate

6.0 Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

1/2" FPT

Liquid Temperature

Max 140 Degrees Fahrenheit

Origin

Made in USA

Outlet Size

1/2" FPT

Pressure Switch

60 PSI

Type

Demand

Valve Type

EPDM

Voltage

115VAC

Motor Rpm

2400 Rotations Per Minute

Suction Lift

Self prime up to 11 ft

Warranty & Certifications

Certifications

NSF 58

Warranty

13 Months from Date of Manufacture
