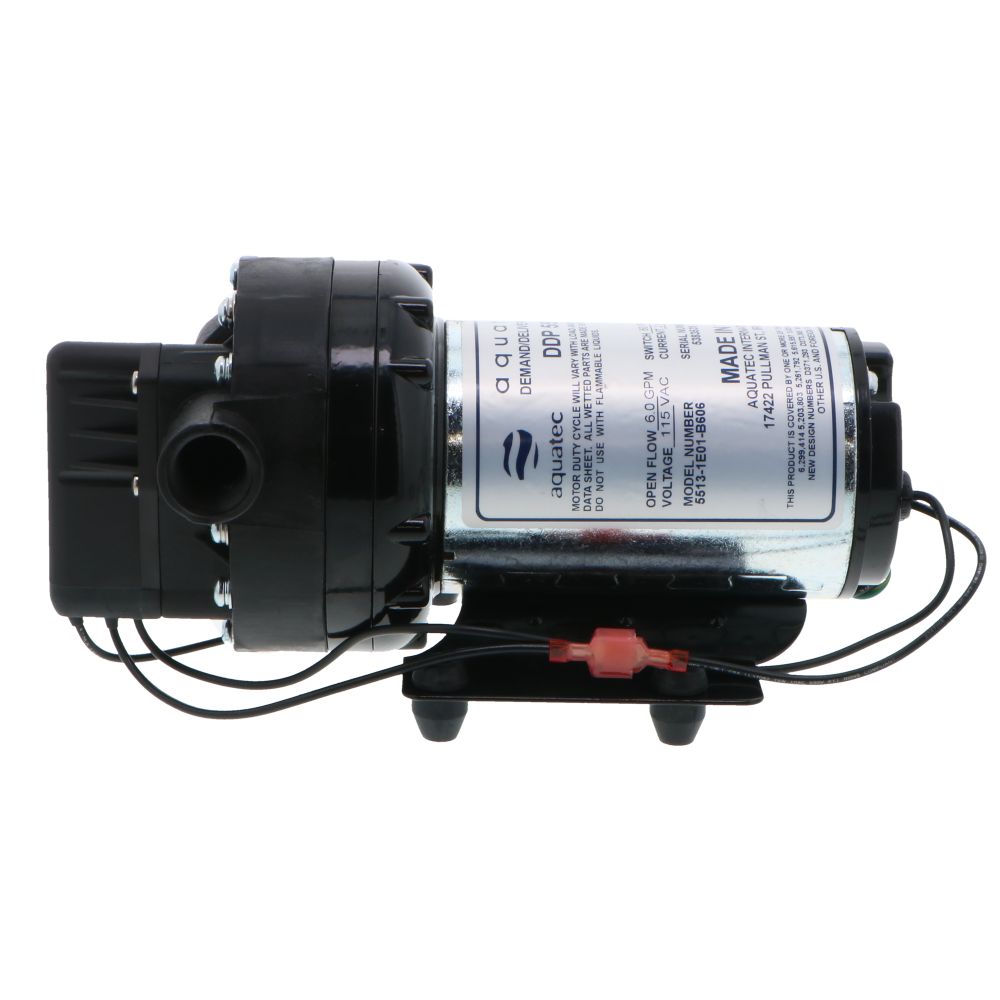

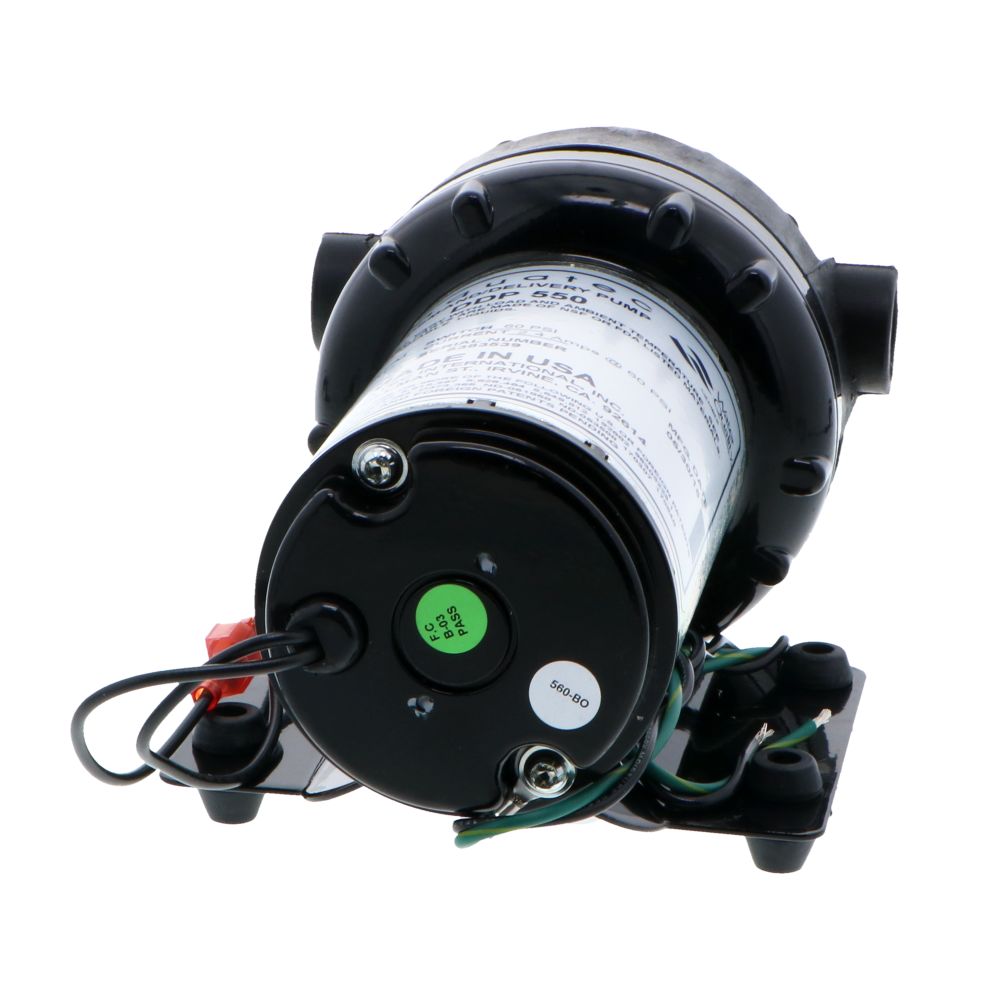

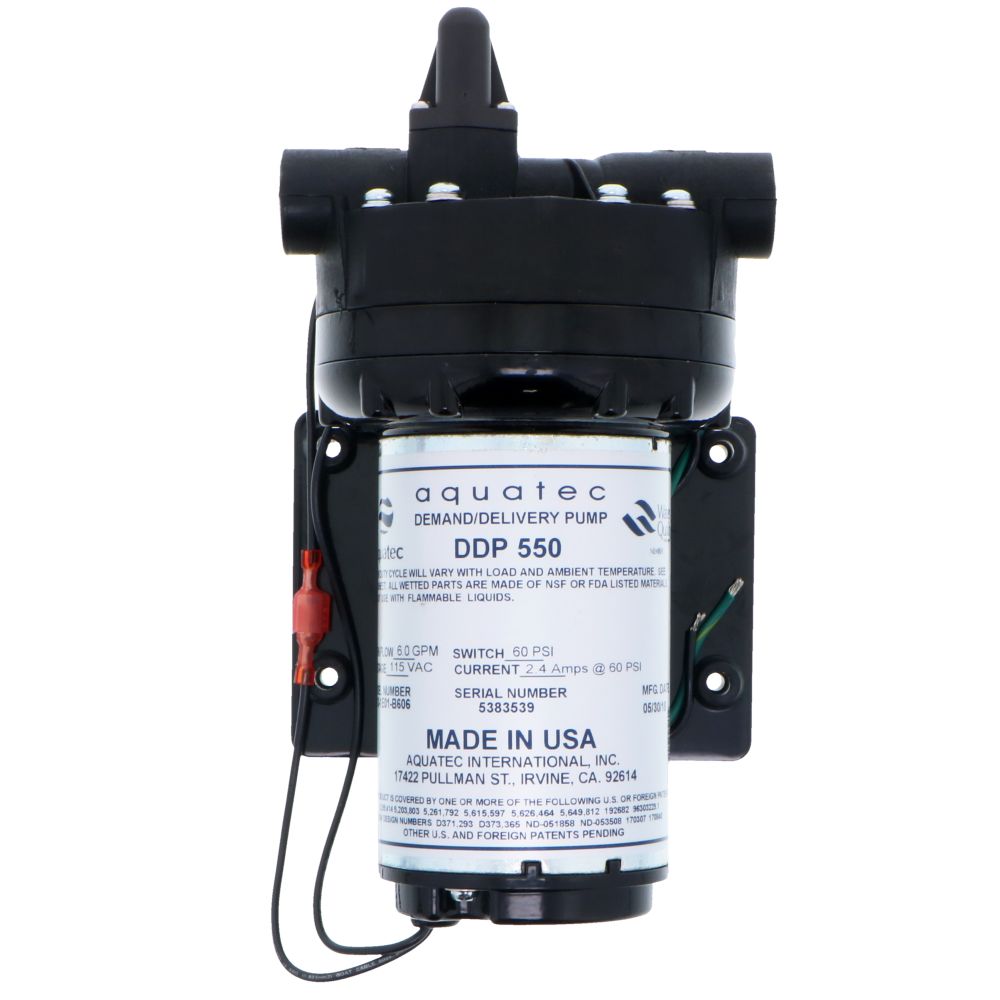

Aquatec 5513-1E01-B606 Pump 6.0 gpm, 1/2 FPT, 115V AC NO Cord

Part Number: 5513-1E01-B606

Alt. Part Number: 5513-1E02-B606

In Stock

out of stock

In Stock

$151.49

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions


Details

Amps

1.26 (0 psi) - 2.6 (70 psi) Amps

Voltage

115VAC

Suction Lift

Self prime up to 11 ft


Aquatec




The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions

Details

Amps

1.26 (0 psi) - 2.6 (70 psi) Amps

Voltage

115VAC

Suction Lift

Self prime up to 11 ft
