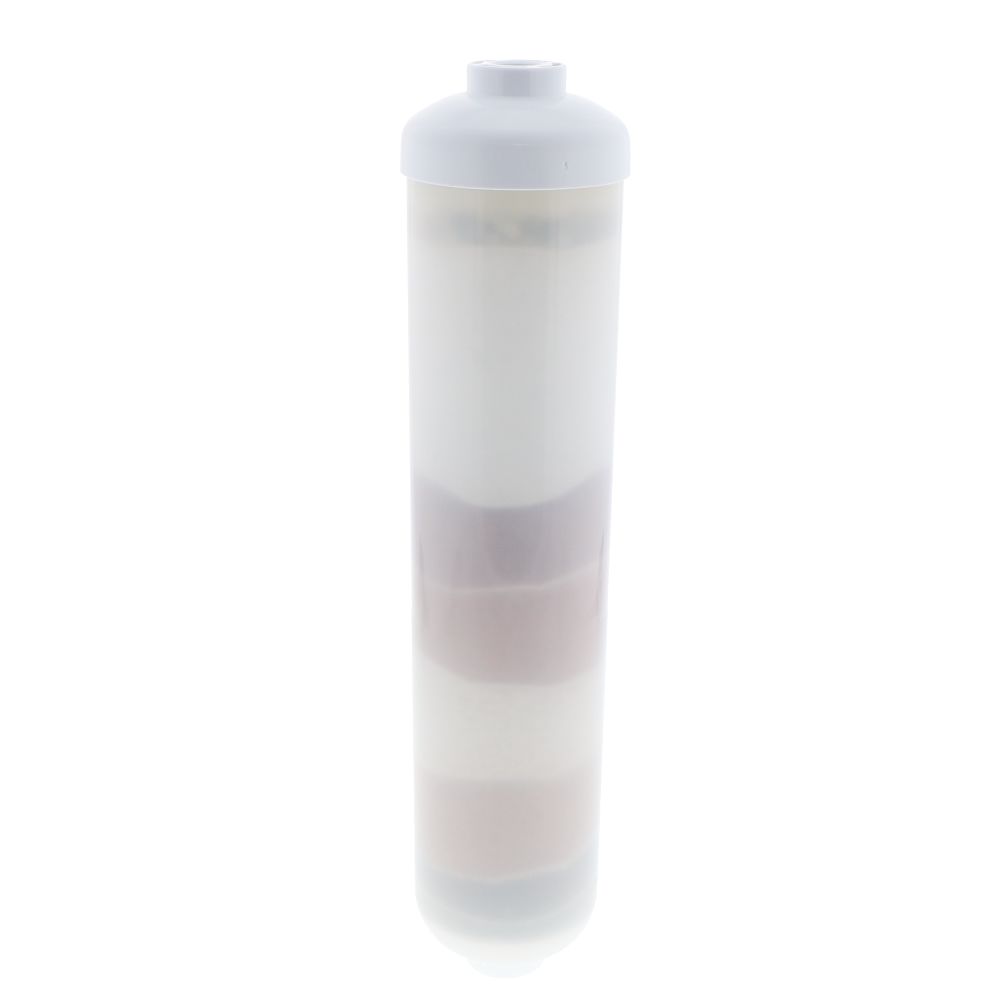

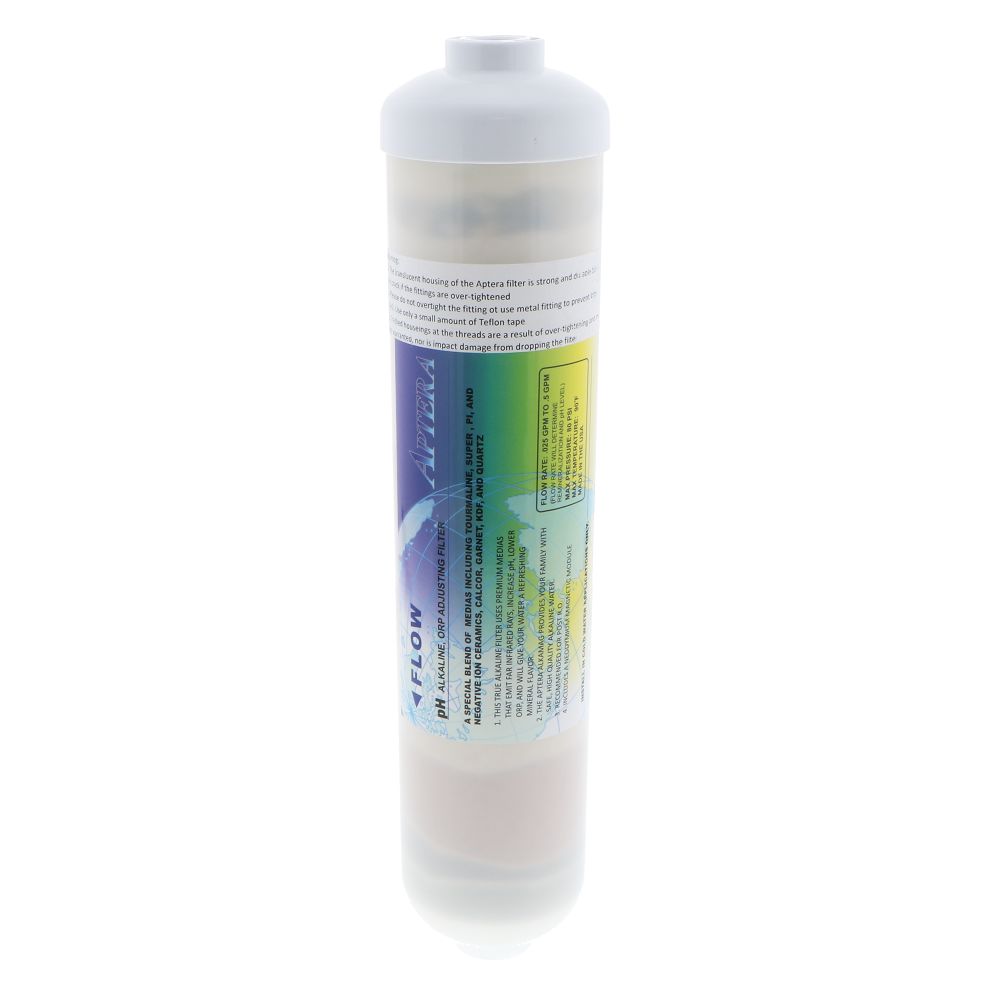

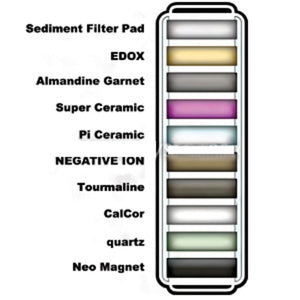

The APTERA-INLINE is a true alkaline ionized filter that uses premium medias that emit Far Infrared Rays, increases pH, lowers ORP, and gives your water a refreshing mineral flavor.

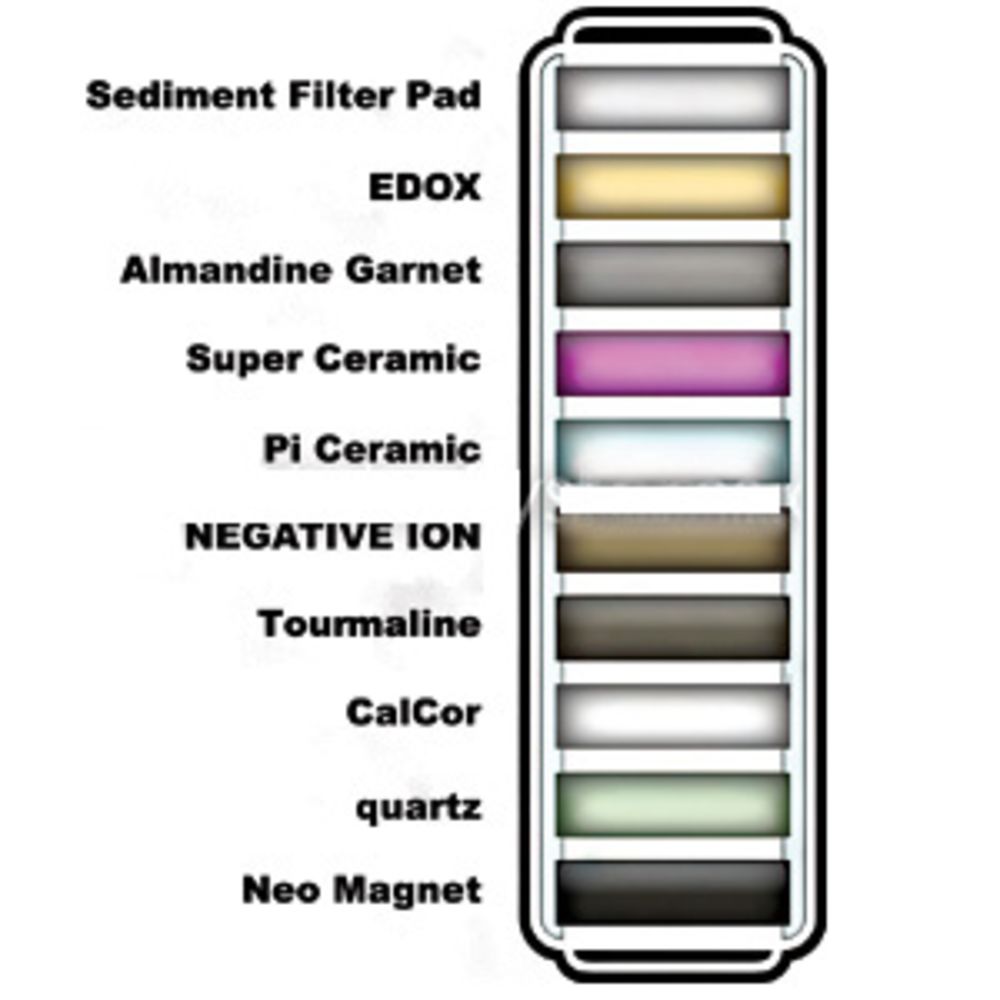

The Aperta-INLINE is recommended for post RO (Reverse Osmosis) and includes a neodymium magnetic module. It should be placed between the permeate side of the membrane and the RO holding tank (See Diagram). The Aptera alkaline ionized water filter requires a very slow flow rate of 0.025 gpm in order for the water to have sufficient contact time with each of the medias of the ionized water filter.
Specifications:
The Aperta-INLINE is recommended for post RO (Reverse Osmosis) and includes a neodymium magnetic module. It should be placed between the permeate side of the membrane and the RO holding tank (See Diagram). The Aptera alkaline ionized water filter requires a very slow flow rate of 0.025 gpm in order for the water to have sufficient contact time with each of the medias of the ionized water filter.
Specifications:
- Increases pH
- Lowers ORP
- .025 GPM to .035 GPM Flow Rate
- Flow Rate will determine Remineralization and pH level
- Maximum Pressure: 80 PSI
- Maxumum Temperature: 90ºF
- For use as a Reverse Osmosis Postfilter
- 1/4" FPT connections
- Suitable for use on RO systems up to 50 gpd
- What is Oxidation Reduction Potential? (also known as ORP or Redox Potential) is a measure of h2O's (water's) ability to gain or lose electrons in chemical reactions. Just as the transfer of hydrogen ions in water determines the pH level, the transfer of electrons in water determines the ORP value.
- Why should I be concerned with the ORP of my water? The ORP value of a water supply is directly related to the effect it has on plumbing and bacteria growth. The life expectancy of bacteria in water is more dependent on the ORP value than the chlorine concentration or pH value. For swimming pools with a pH value around 7.5, the ORP value must be kept above 700mV to kill harmful bacteria.
Weight & Dimensions
Box Dimensions | 7.5x11x6.125 |
Case Dimensions | 12x15.5x13.5 |
Height (inches) | 2.5 |
Length (inches) | 12 |
Weight (lbs) | 2.178 |
Width (inches) | 2.5 |
Details
Capacity | 6-12 Months; 500-1000 Gallons |
Cartridge Style | Inline |
Filter Application | Alkaline Water Filter |
Flow Rate | .025-.035 GPM |
Max Pressure (Psi) | 80 |
Max Temp (°F) | 90 |
Origin | Made in the USA with US and Foreign Components |
Outer Diameter | 2-1/2" |
The APTERA-INLINE is a true alkaline ionized filter that uses premium medias that emit Far Infrared Rays, increases pH, lowers ORP, and gives your water a refreshing mineral flavor.
The Aperta-INLINE is recommended for post RO (Reverse Osmosis) and includes a neodymium magnetic module. It should be placed between the permeate side of the membrane and the RO holding tank (See Diagram). The Aptera alkaline ionized water filter requires a very slow flow rate of 0.025 gpm in order for the water to have sufficient contact time with each of the medias of the ionized water filter.
Specifications:
- Increases pH
- Lowers ORP
- .025 GPM to .035 GPM Flow Rate
- Flow Rate will determine Remineralization and pH level
- Maximum Pressure: 80 PSI
- Maxumum Temperature: 90ºF
- For use as a Reverse Osmosis Postfilter
- 1/4" FPT connections
- Suitable for use on RO systems up to 50 gpd
- What is Oxidation Reduction Potential? (also known as ORP or Redox Potential) is a measure of h2O's (water's) ability to gain or lose electrons in chemical reactions. Just as the transfer of hydrogen ions in water determines the pH level, the transfer of electrons in water determines the ORP value.
- Why should I be concerned with the ORP of my water? The ORP value of a water supply is directly related to the effect it has on plumbing and bacteria growth. The life expectancy of bacteria in water is more dependent on the ORP value than the chlorine concentration or pH value. For swimming pools with a pH value around 7.5, the ORP value must be kept above 700mV to kill harmful bacteria.
Weight & Dimensions
Box Dimensions | 7.5x11x6.125 |
Case Dimensions | 12x15.5x13.5 |
Height (inches) | 2.5 |
Length (inches) | 12 |
Weight (lbs) | 2.178 |
Width (inches) | 2.5 |
Details
Capacity | 6-12 Months; 500-1000 Gallons |
Cartridge Style | Inline |
Filter Application | Alkaline Water Filter |
Flow Rate | .025-.035 GPM |
Max Pressure (Psi) | 80 |
Max Temp (°F) | 90 |
Origin | Made in the USA with US and Foreign Components |
Outer Diameter | 2-1/2" |
