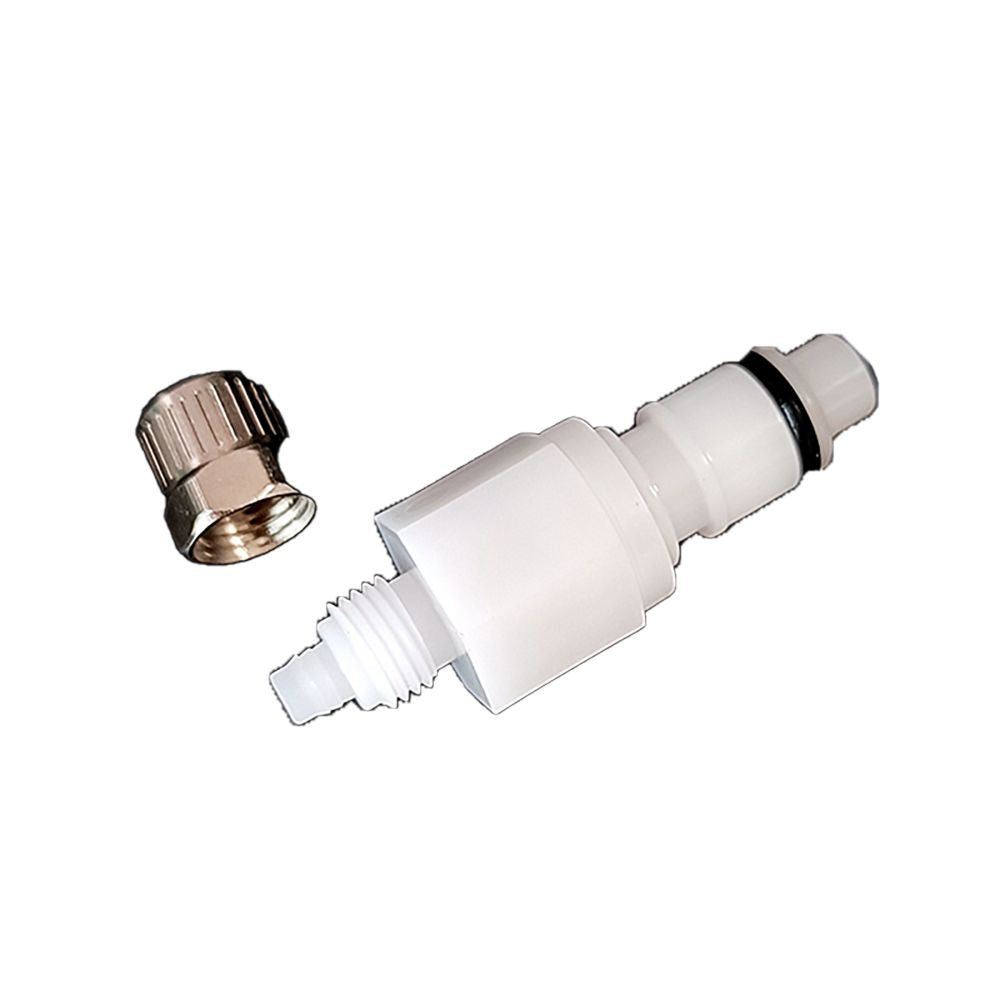

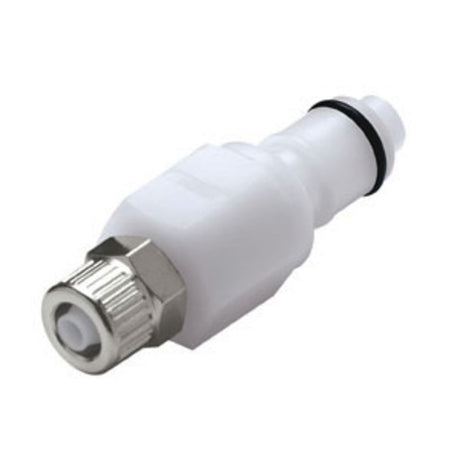

APMD20004 In-Line Coupling Body Insert Valved with 1/4" PTF

APMD20004 features a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.
Specifications:

Material: Acetal
Color: White
Mounting Option: Free Floating
Seal Option: Buna-N
Valve Option: Valved
Valve Spring: 316 Stainless Steel
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
Tubing Size: 0.17 ID, 0.25 OD

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal
External Springs And Pin	Stainless Steel
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Seal Material	Buna-N
Series	APC
Shape	Straight
Size	1/4"
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
Product Weight & Dimensions
Product Weight (lbs)	0.01

Product Details
Application	Water Food Beverage
Body Material	Acetal
External Springs And Pin	Stainless Steel
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Seal Material	Buna-N
Series	APC
Shape	Straight
Size	1/4"
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
Product Weight & Dimensions
Product Weight (lbs)	1
