Colder Products

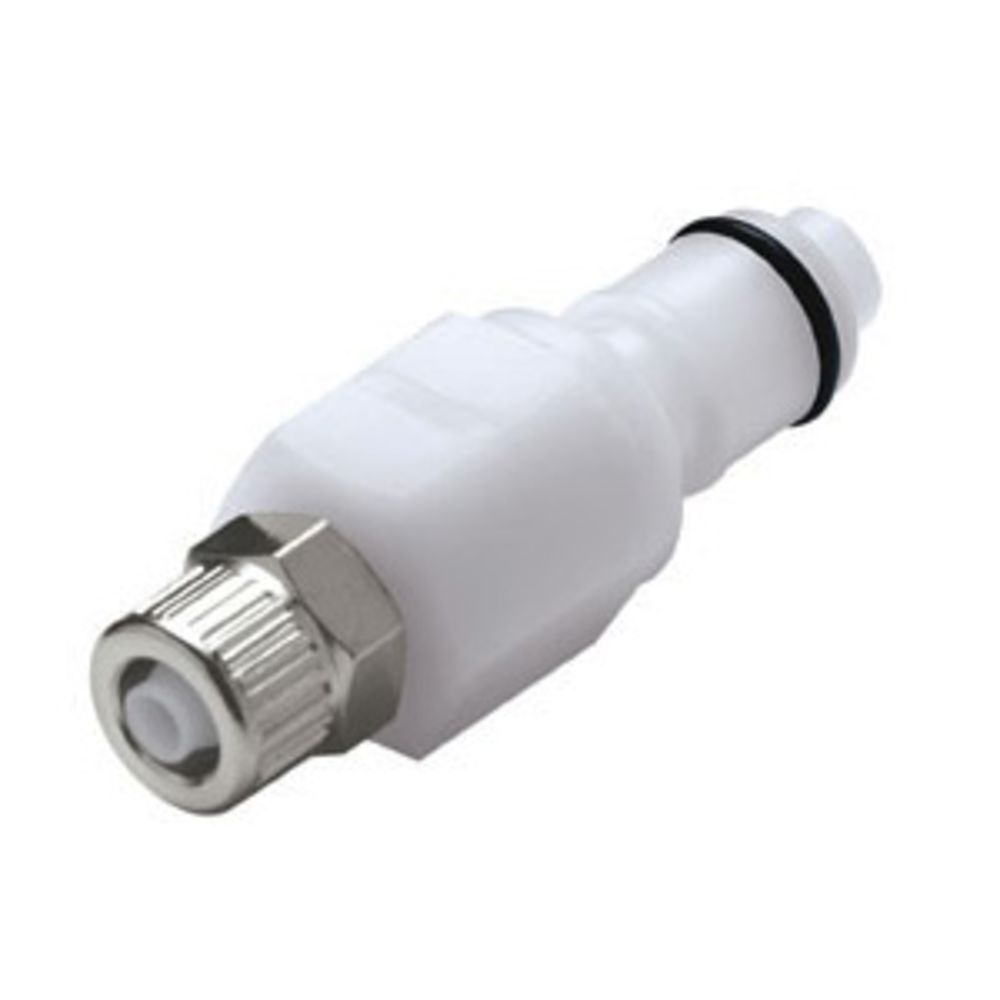

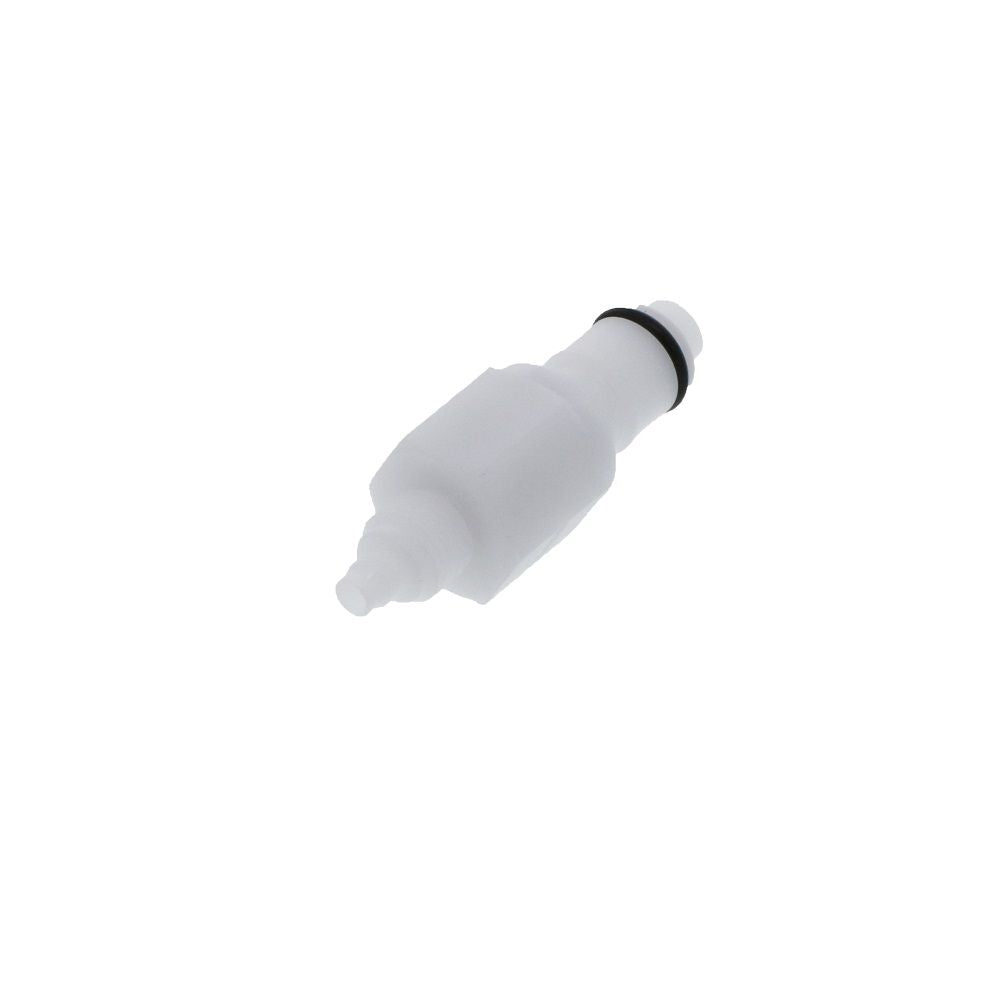

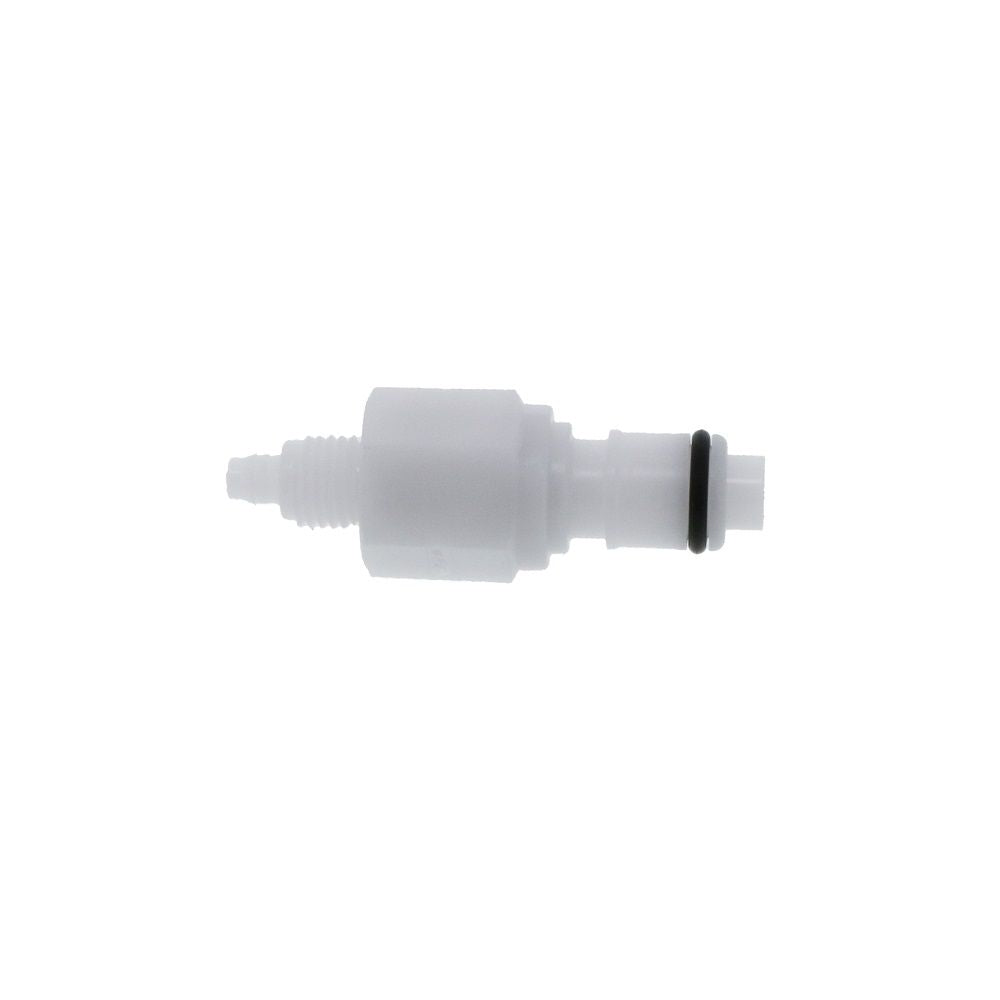

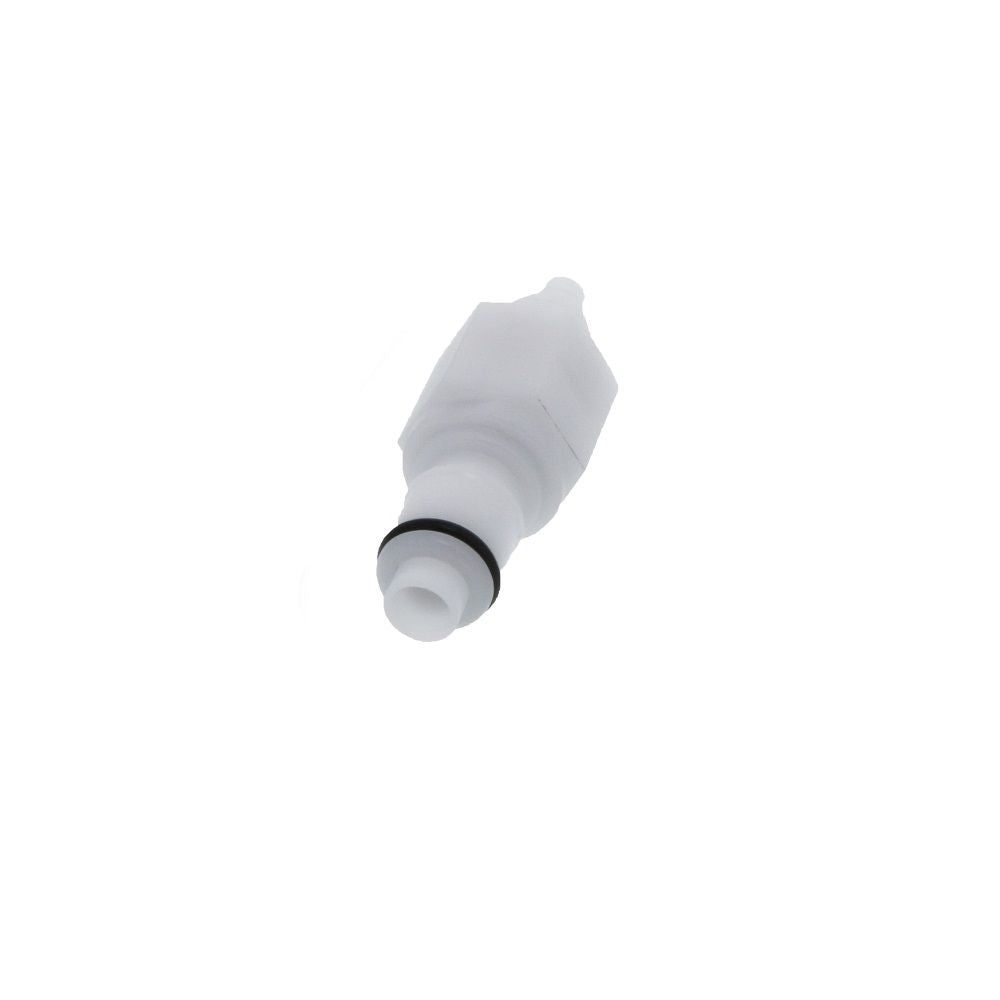

APCD20004 Valved In-Line PTF Coupling Insert 1/4 PTF

Part Number: APCD20004

In Stock

out of stock

In Stock

$5.27


1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: 0.17 ID, 0.25 OD
  • NSF Listed Version (part # 43400)


Details

Body Material

Acetal

Color / Finish

White; Natural

Mounting Options

Free Floating

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Outer Diameter

0.25 Inches

Seal Material

Buna-N

Size

1/4 Inches

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless steel

Warranty & Certifications

Certifications

NSF 51


APCD20004





1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: 0.17 ID, 0.25 OD
  • NSF Listed Version (part # 43400)

Details

Body Material

Acetal

Color / Finish

White; Natural

Mounting Options

Free Floating

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Origin

USA

Outer Diameter

0.25 Inches

Seal Material

Buna-N

Size

1/4 Inches

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless steel

Warranty & Certifications

Certifications

NSF 51
