Amtrol

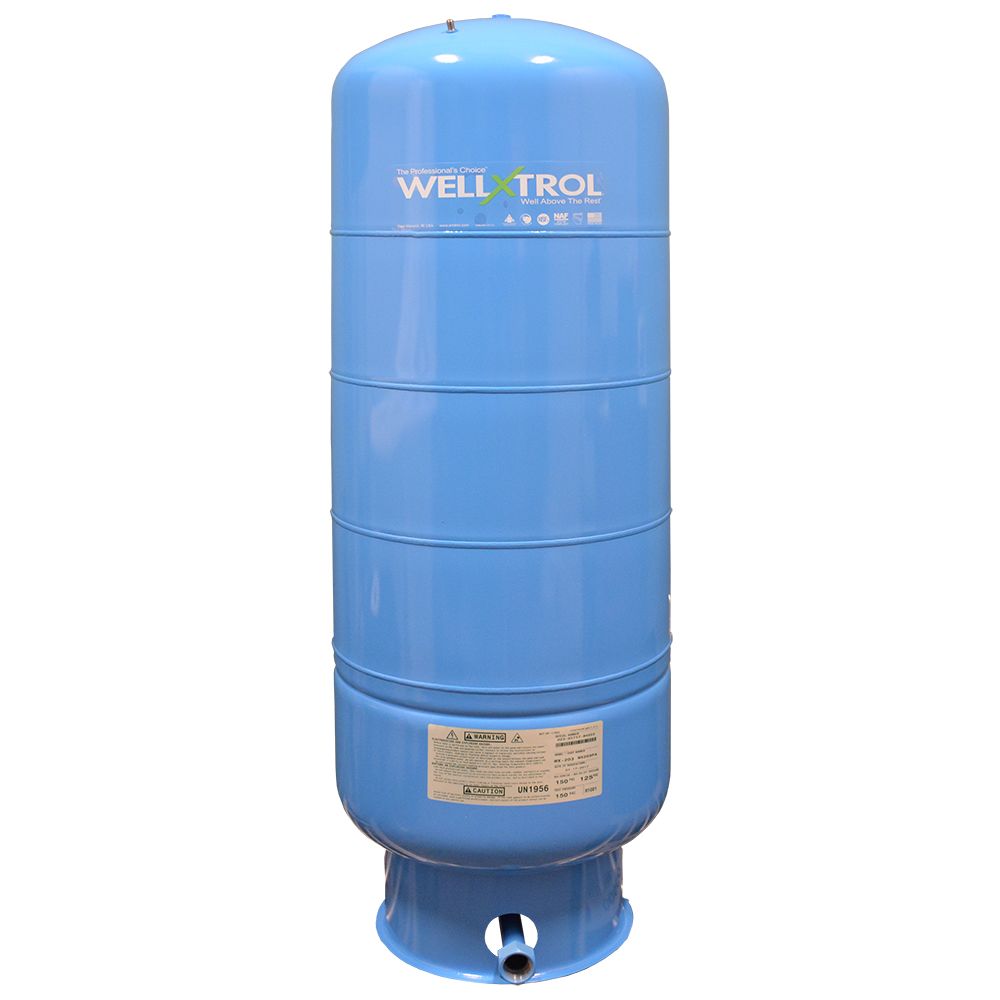

Amtrol Well-X-Trol WX-203-PRO Well Pressure Tank 32 gal w/ Pro Access

Part Number: WX-203-PRO

Alt. Part Number: WX-203PA

In Stock

out of stock

In Stock

$439.29


The Well-X-Trol WX-203-PRO well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-203-PRO now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Features:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection piped through the base of the stand
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 30/50 Setting: 10.9 gallons
  • Drawdown 40/60 Setting: 9.4 gallons
  • 7 year warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

43 Lbs

Height W/ Stand

46-1/2 Inches

Details

Drawdown Volume

10.9 Gallons @ 30/50 Setting; 9.4 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

15-3/8 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

32 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 year


Amtrol

Amtrol





The Well-X-Trol WX-203-PRO well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-203-PRO now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Features:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection piped through the base of the stand
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 30/50 Setting: 10.9 gallons
  • Drawdown 40/60 Setting: 9.4 gallons
  • 7 year warranty
  • NSF Standard 61 listed

Weight & Dimensions

Approx Weight

43 Lbs

Height W/ Stand

46-1/2 Inches

Details

Drawdown Volume

10.9 Gallons @ 30/50 Setting; 9.4 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

15-3/8 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

32 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 year
