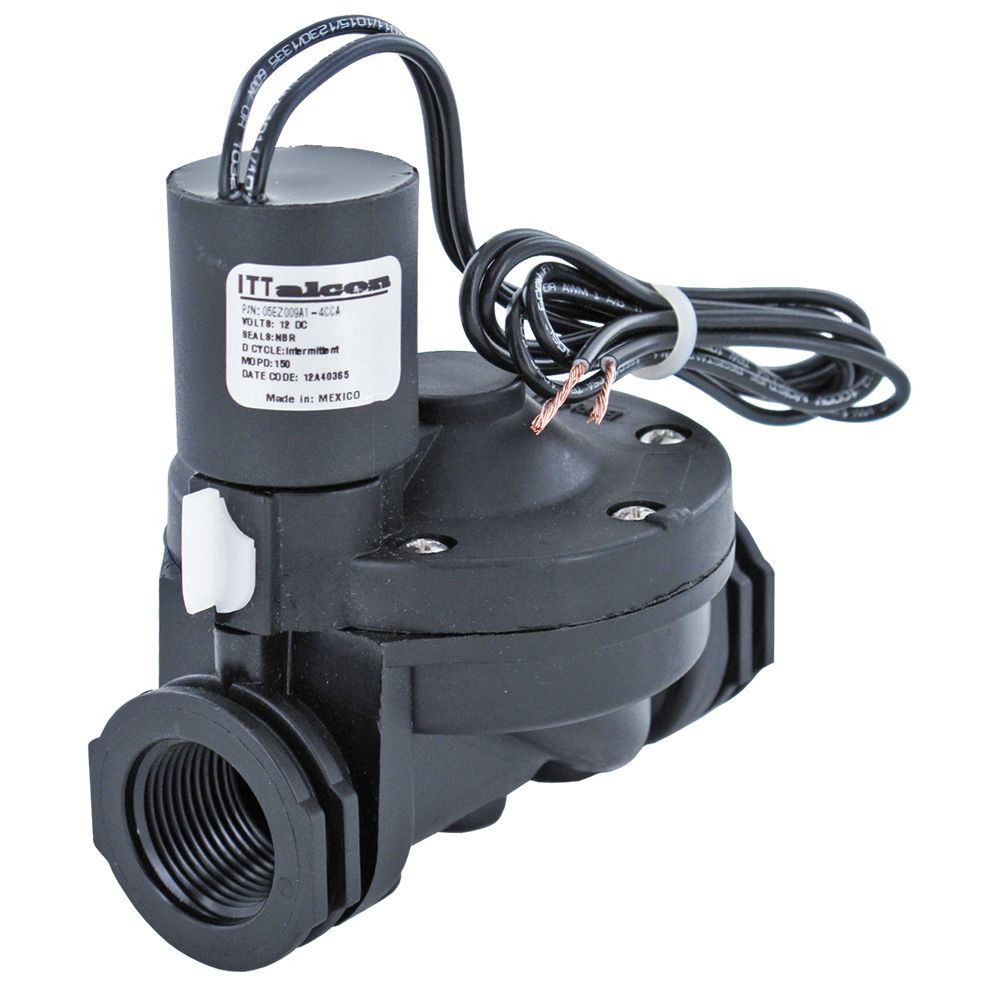

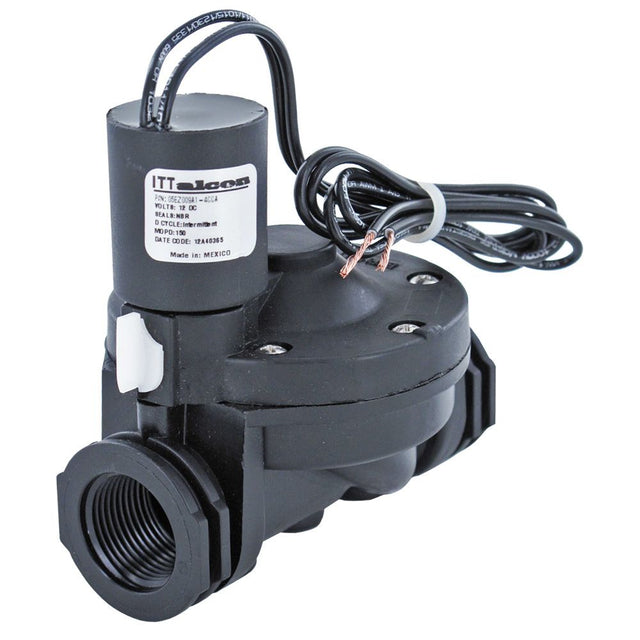

Alcon 05EZ009A1-4CCA Solenoid Valve Normally Closed 3/4 FPT 12VDC

Part Number: 05EZ009A1-4CCA

Alt. Part Number: 953A-1223, 3108N-662CN-B372CN

In Stock

out of stock

In Stock

This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.


Alcon 05EZ009A1-4CCA normally closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are  Nitrile (Buna-N).
Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC
  Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 12V DC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Certified to NSF/ANSI Standard 61




Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

6 W

Voltage

12V DC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"


Alcon





Alcon 05EZ009A1-4CCA normally closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are  Nitrile (Buna-N).
Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC
  Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 12V DC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Certified to NSF/ANSI Standard 61



NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

6 W

Voltage

12V DC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"
