Alcon

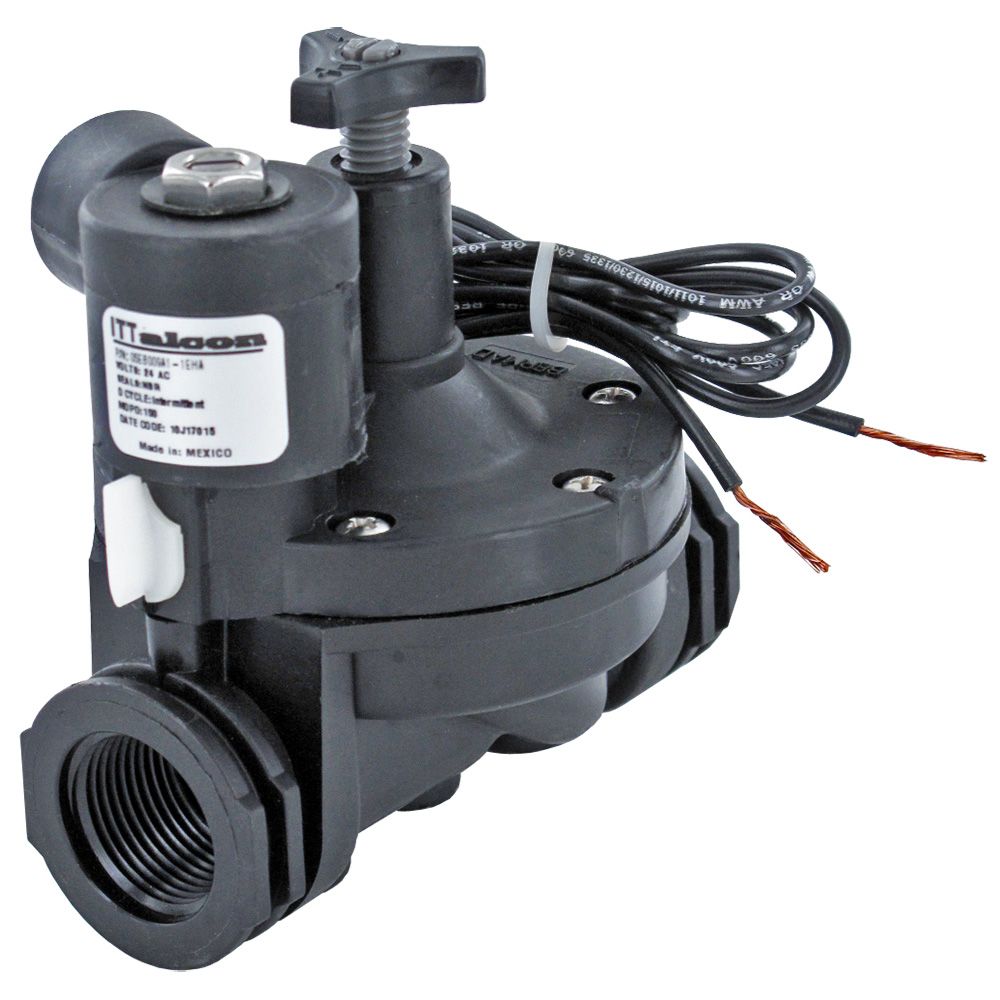

Alcon 05EB009A1-1EHA Solenoid Valve N.C. with Flow Control 3/4 FPT 24V

Part Number: 05EB009A1-1EHA

Alt. Part Number: 953B-308

In Stock

out of stock

In Stock

This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.


Alcon 05EB009A1-1EHA Normally Closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are Nitrile (Buna-N).

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 24V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires (1/2" Female Conduit)
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61



Compatible with:
Normally Closed Solenoid Valves 3/4" NPT12849

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

5 W

Voltage

24V AC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"


Alcon





Alcon 05EB009A1-1EHA Normally Closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are Nitrile (Buna-N).

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 24V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires (1/2" Female Conduit)
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61



Compatible with:
Normally Closed Solenoid Valves 3/4" NPT12849

NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

5 W

Voltage

24V AC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"
