Watts

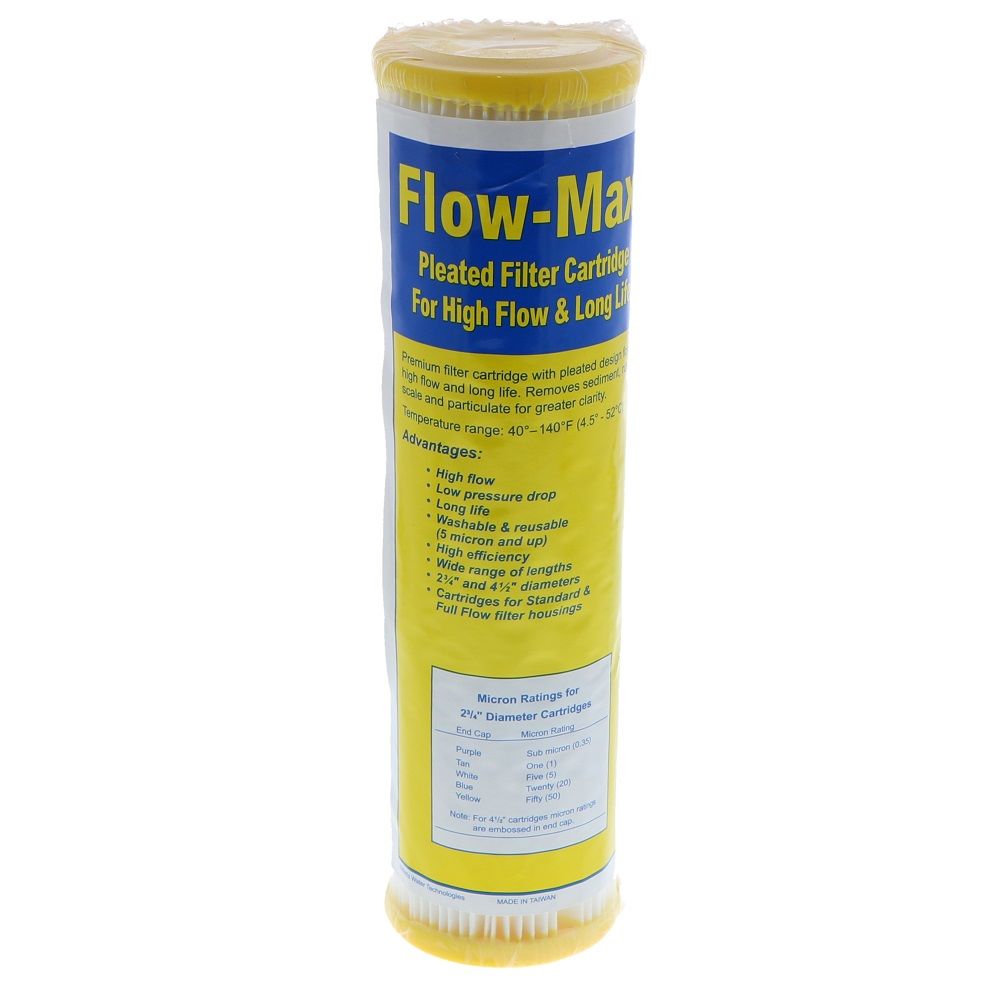

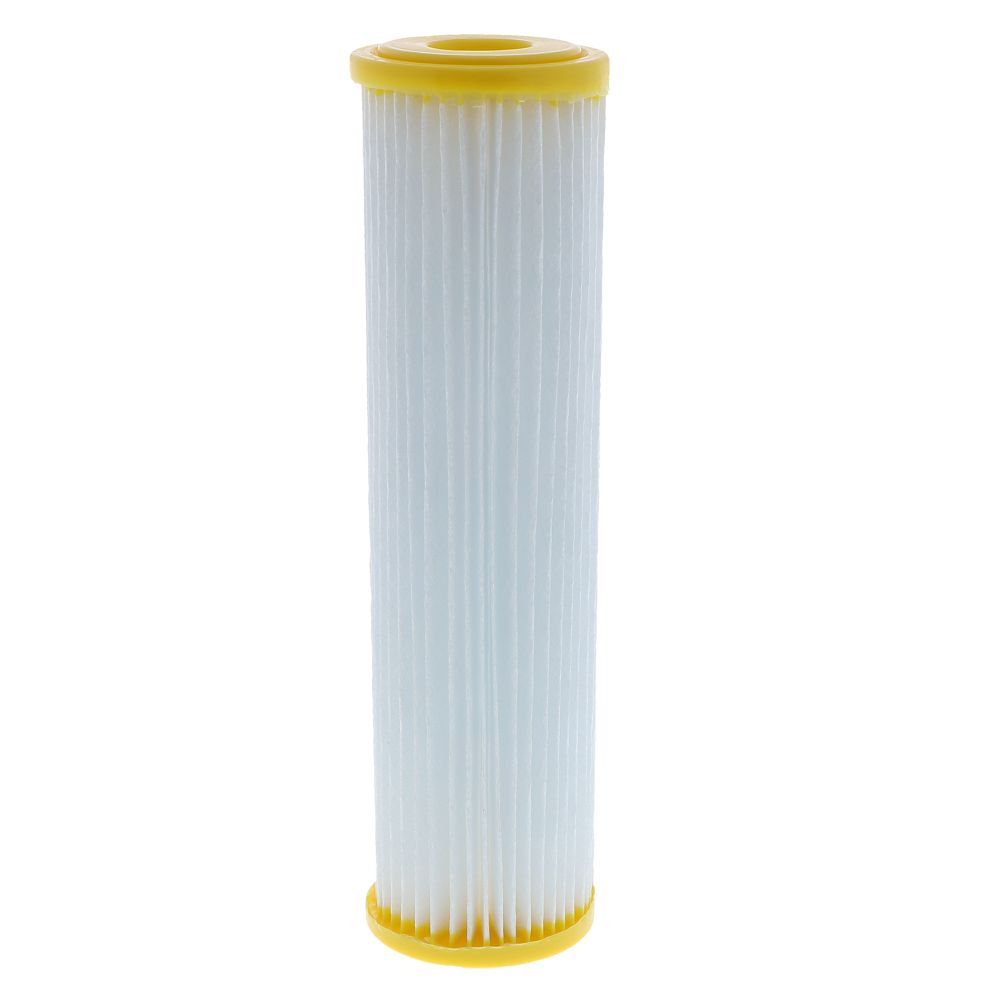

9-3/4" x 2-3/4" Flow-Max Pleated Poly - 50 mic

Part Number: FM-50-975

Alt. Part Number: WPC50-975

In Stock

out of stock

In Stock

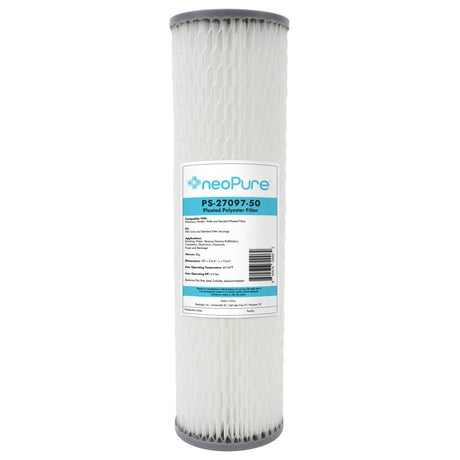

This item is discontinued. We recommend the Neo-Pure PH-27097-50 9-3/4" High Efficiency Pleated Filter 50 micron as a substitute.

The Watts Flow-Max FM-50-975 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 50 Micron Nominal
  • Flow Rate: 10 gpm
  • Chemically resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10M50

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

24

Weight (lbs)

0.5

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Recommended Flow Rate

10 GPM

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

9-3/4"


9-3/4"

9-3/4"




The Watts Flow-Max FM-50-975 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 50 Micron Nominal
  • Flow Rate: 10 gpm
  • Chemically resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10M50

NOTE: This item is discontinued. We recommend the Neo-Pure PH-27097-50 9-3/4" High Efficiency Pleated Filter 50 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

24

Weight (lbs)

0.5

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Recommended Flow Rate

10 GPM

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

50 µm

Origin

USA

Product Length

9-3/4"
