Watts

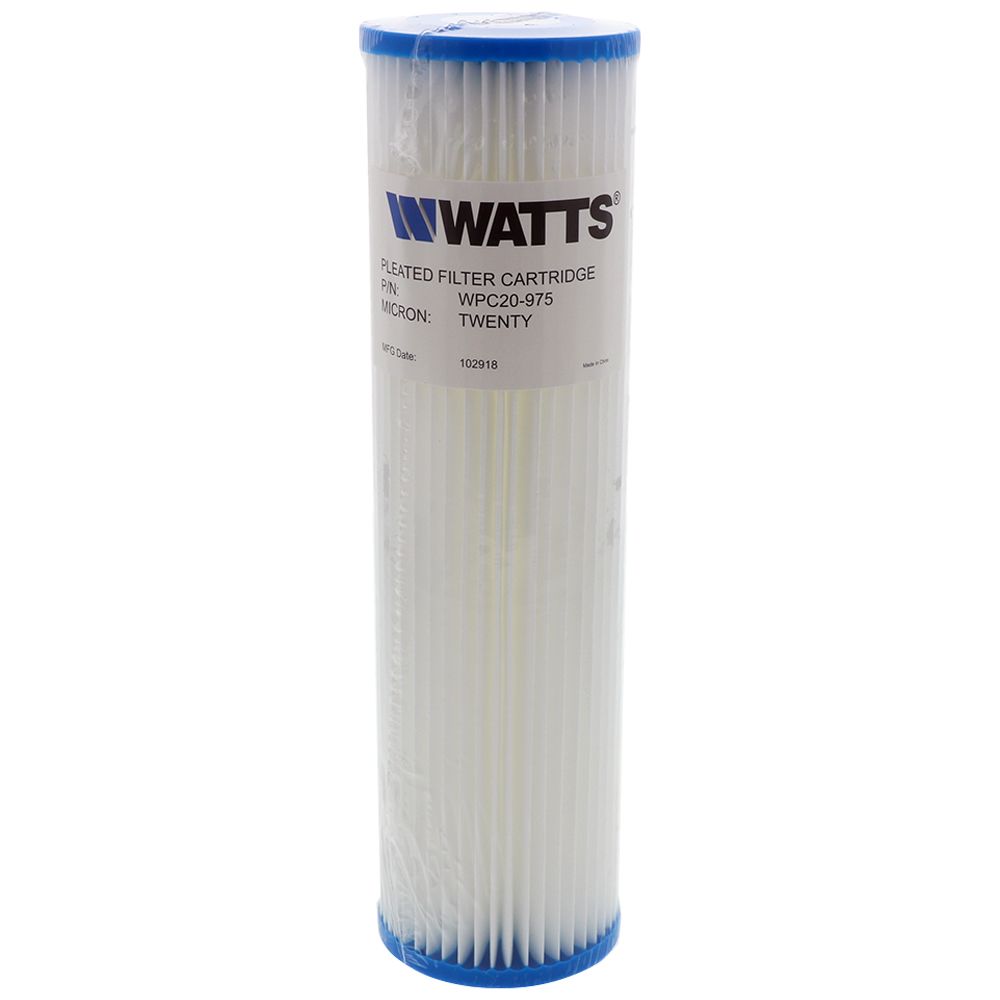

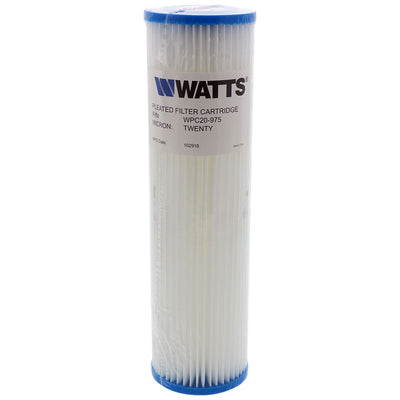

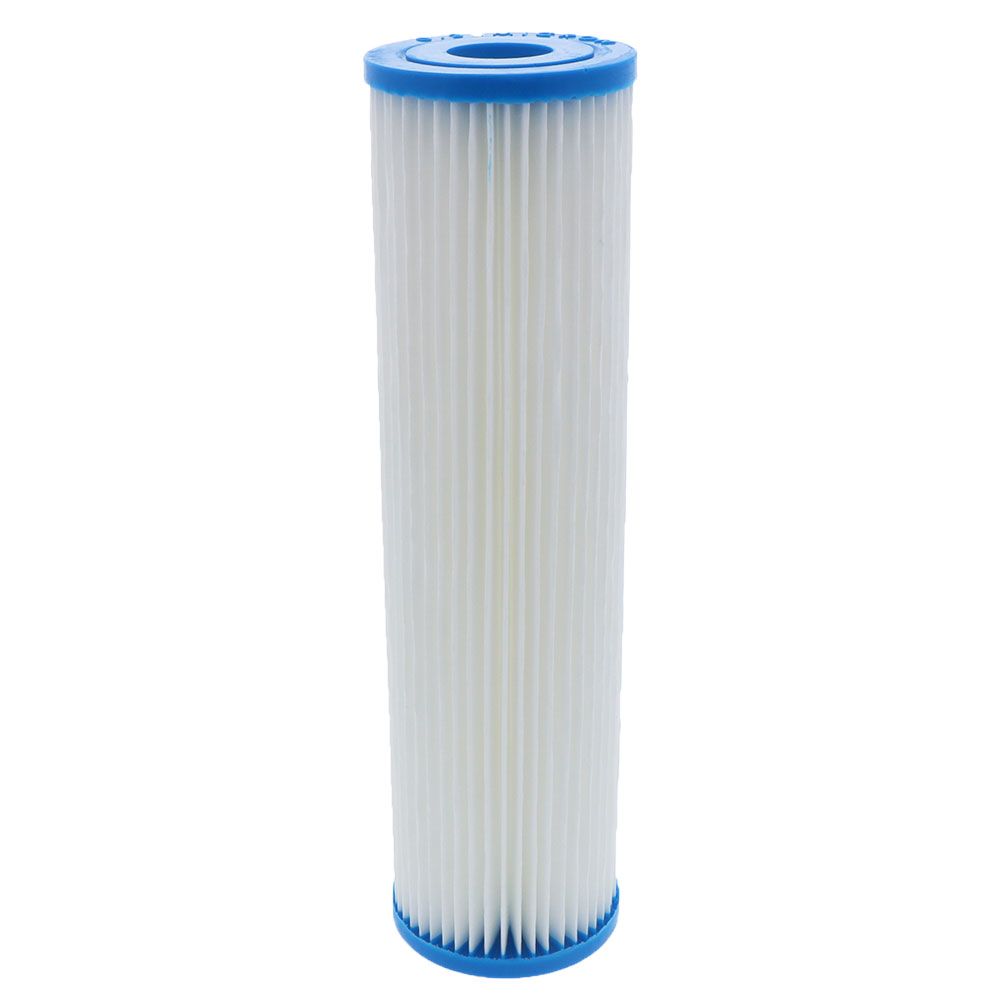

9-3/4" x 2-3/4" Flow-Max Pleated Poly - 20 mic

Part Number: FM-20-975

Alt. Part Number: WPC20-975

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PH-27097-20 9-3/4" High Efficiency Pleated Filter 20 micron as a substitute.

The Watts Flow-Max FM-20-975 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Specifications:
  • Cleanable Filter
  • Sediment Filtration
  • 20 Micron Nominal
  • Flow Rate: 8 gpm
  • Chemically resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10M20

Weight & Dimensions

Box Dimensions

12x16.5x11

Box Quantity

24

Height (inches)

2.75

Length (inches)

9.75

Weight (lbs)

0.015625

Width (inches)

2.75

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

8 GPM

Media Type

Polyester

Micron Rating

20 µm

Product Length

9-3/4"


9-3/4"

9-3/4"




The Watts Flow-Max FM-20-975 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Specifications:
  • Cleanable Filter
  • Sediment Filtration
  • 20 Micron Nominal
  • Flow Rate: 8 gpm
  • Chemically resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10M20

NOTE: This item is discontinued. We recommend the Neo-Pure PH-27097-20 9-3/4" High Efficiency Pleated Filter 20 micron as a substitute.

Weight & Dimensions

Box Dimensions

12x16.5x11

Box Quantity

24

Height (inches)

2.75

Length (inches)

9.75

Weight (lbs)

0.015625

Width (inches)

2.75

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

8 GPM

Media Type

Polyester

Micron Rating

20 µm

Product Length

9-3/4"
