Pentek

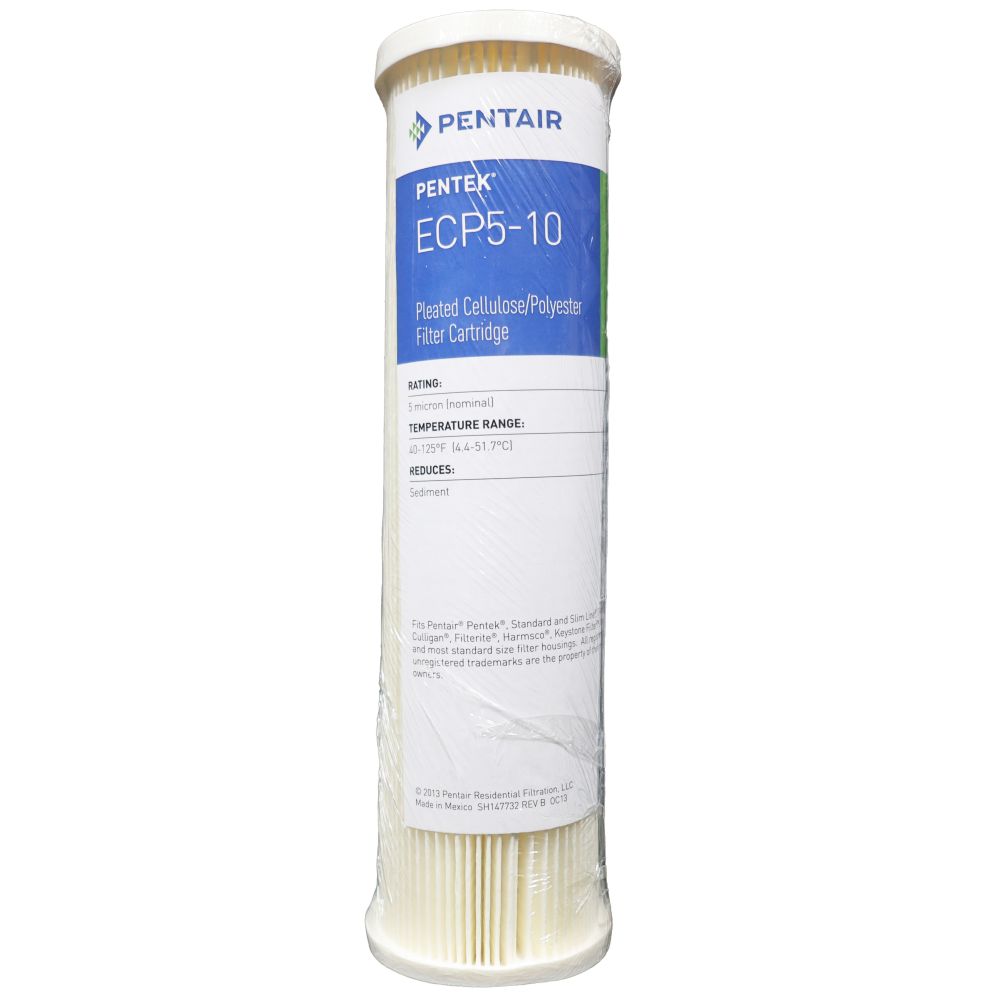

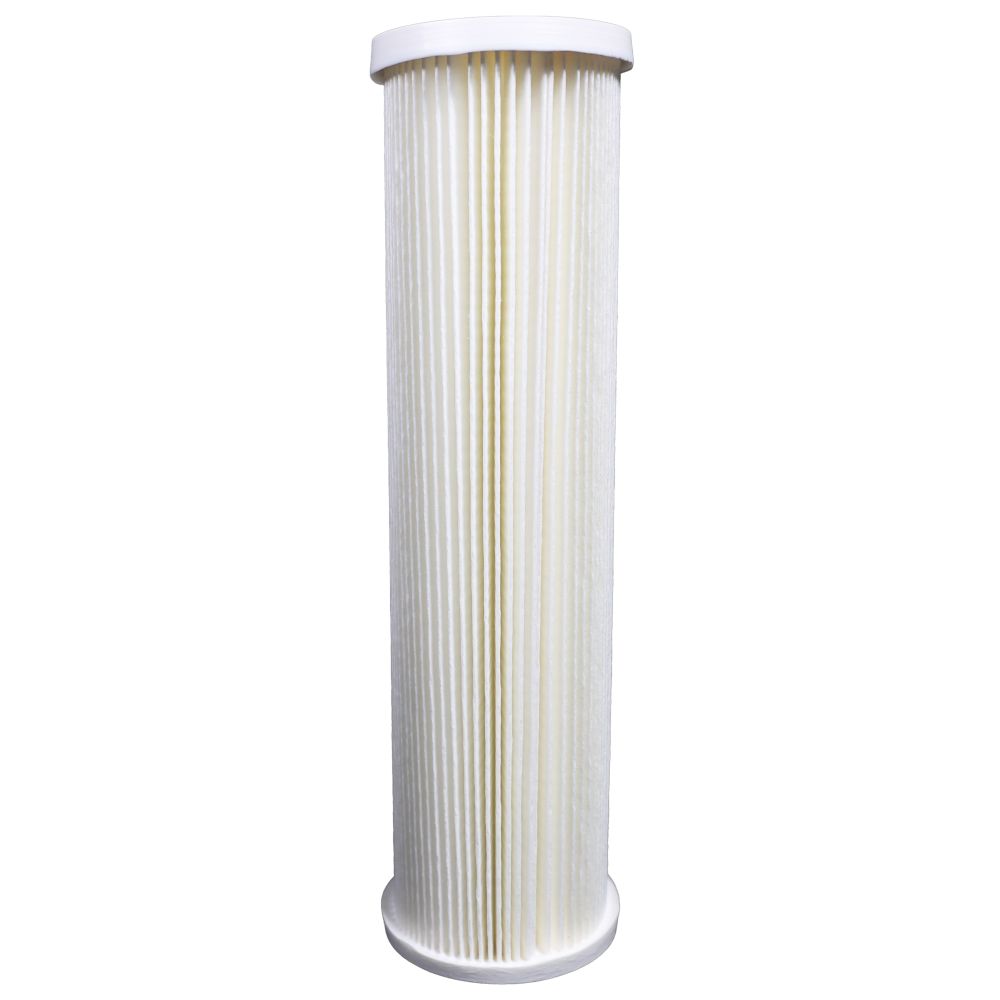

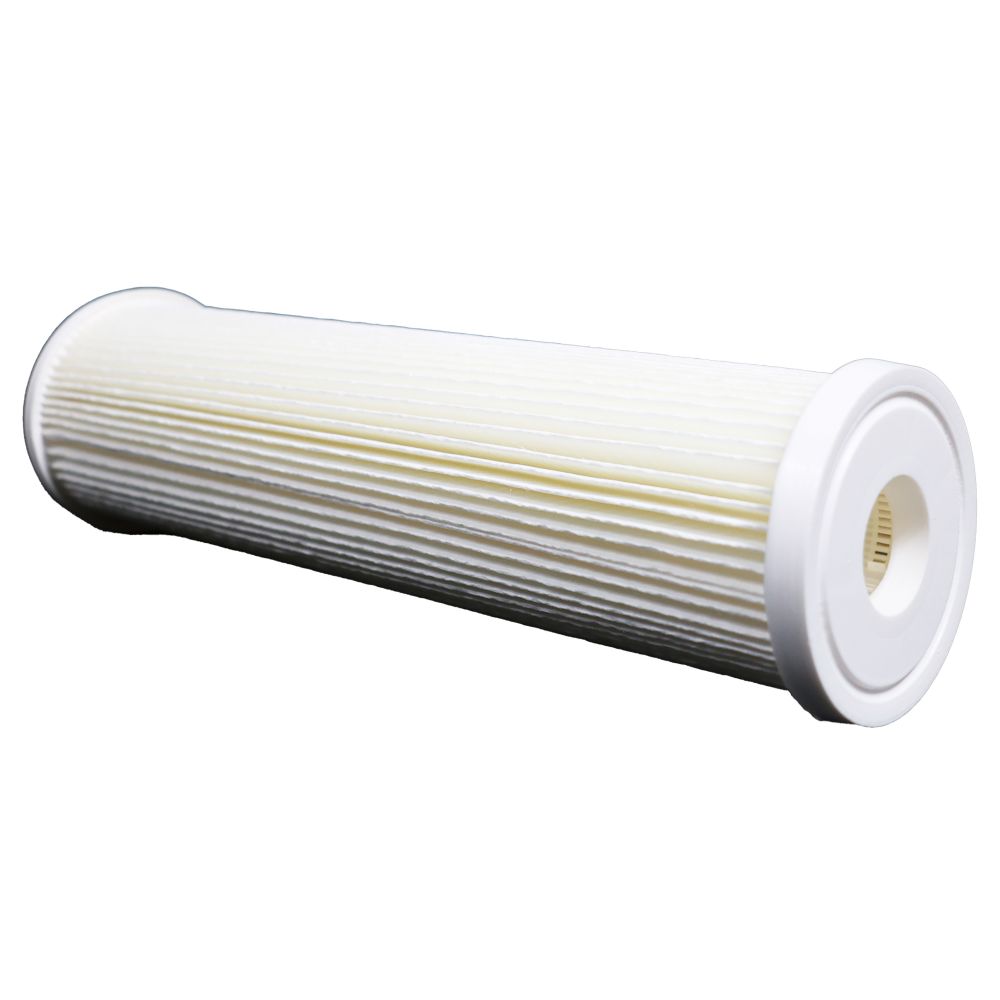

9-3/4" Pentek Pleated Cellulose-Polyester ECP5-10 5 mic Filter

Part Number: 255482-43

Alt. Part Number: CP5

In Stock

out of stock

In Stock

$5.30


The Pentek ECP Series Filters are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges

NOTE: Pentek CP replacement Filters fits Ametek, Filterite, Omni, Pollinex,Sears, Water Pik, Whirlpool, American Plumber, Campbell, Keystone andmany more.

Compatible with: Purwater | PC05-S


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

24

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.625"


9-3/4"

9-3/4"





The Pentek ECP Series Filters are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges

NOTE: Pentek CP replacement Filters fits Ametek, Filterite, Omni, Pollinex,Sears, Water Pik, Whirlpool, American Plumber, Campbell, Keystone andmany more.

Compatible with: Purwater | PC05-S

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

24

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.625"

Documentation
9-3/4"
9-3/4"
