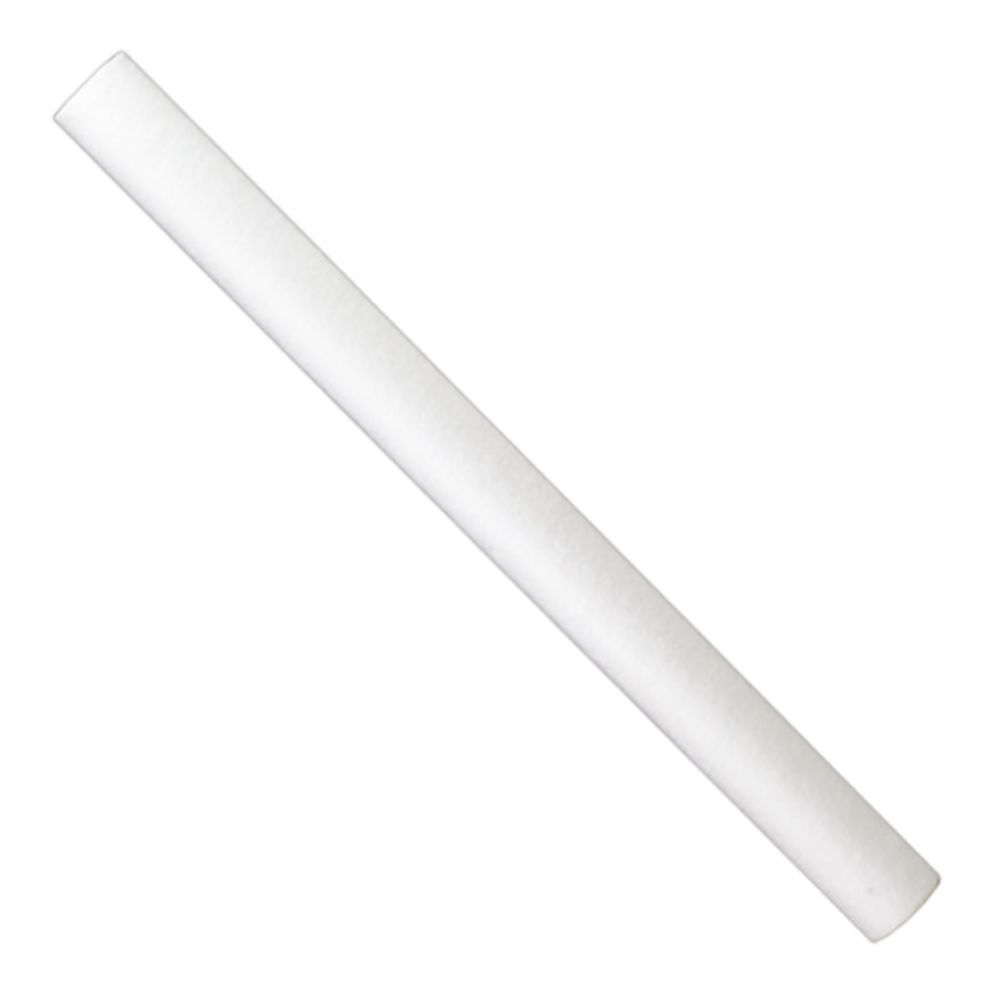

40" Polypropylene Sediment Depth Filter 10 Mic

Part Number: SD-25-4010

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure MB-25400-05 40" Polypropylene Sediment Depth Filter 5 mic as a substitute.


This 40" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 40" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only




Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Weight (lbs)

2.25

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

0.3 psi @ 20 gpm PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

10 µm

Min Temp (°F)

40

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

20 GPM GPM

Media Type

Polypropylene

Micron Rating

10 µm

Origin

China

Product Length

40"

Warranty & Certifications

Certifications

NSF/ANSI 42




This 40" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 40" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only



NOTE: This item is discontinued. We recommend the Neo-Pure MB-25400-05 40" Polypropylene Sediment Depth Filter 5 mic as a substitute.

Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Weight (lbs)

2.25

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

0.3 psi @ 20 gpm PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

10 µm

Min Temp (°F)

40

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

20 GPM GPM

Media Type

Polypropylene

Micron Rating

10 µm

Origin

China

Product Length

40"

Warranty & Certifications

Certifications

NSF/ANSI 42
