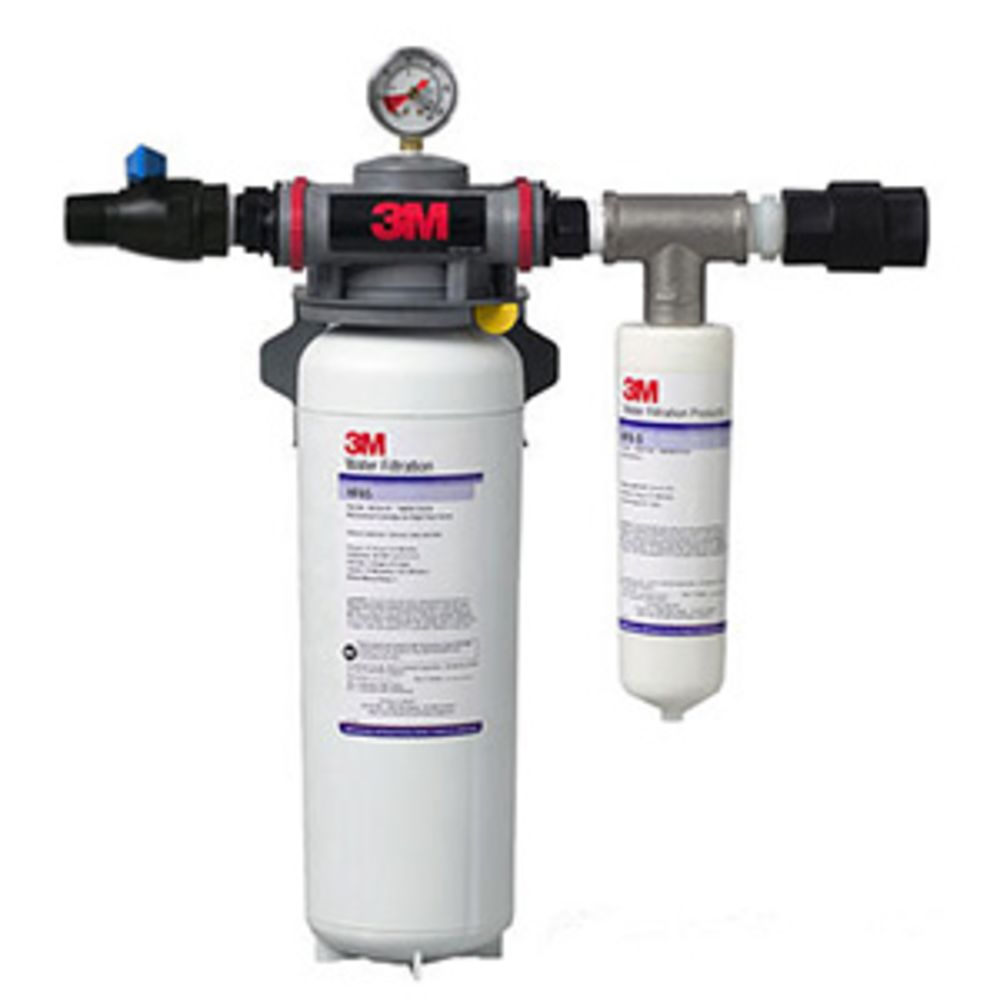

3M SF165 ScaleGARD HT Filter System 56246-01

Home / Systems & Solutions / Food & Beverage Systems / 3M SF165 ScaleGARD HT Filter System 56246-01

Features:

The SF165 Filter System was formerly labeled as Aqua-Pure SF165.
Revolutionary Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media cartridge construction combines a membrane in series with premium activated carbon to provide superior throughput and cartridge life.
Reduced sediment and chlorine taste and odor for equipment protection and great tasting hot and cold beverages and ice.
A forced-feed orifice carefully controls and meters the addition of a proprietary scale inhibitor to reduce scale build up on heating coils.
Superior scale reduction performance in equipment from ice machines to equipment heating water to temperatures over 200º F.
System includes a pressure gauge, inlet shutoff valve and outlet check valve, mounting bracket, filter cartridge and scale inhibiting system.
NSF Standard 42 and/or FDA CFR-21 compliant materials

NOTE: Solventum™ Water Filtration Products is formerly known as CUNO Incorporated. CUNO Incorporated was previously divided into CUNO Food Service, Aqua-Pure, and CUNO OCS.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	35000 Gallons
Inlet Connection	3/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	100
Micron Rating (Nominal)	3 µm
Min Temp (°F)	35
Outlet Connection	3/4" FPT
Size	3/4"
Connection Type	Female (FPT)
Contaminants Reduced	Scale Sediment/Dirt/Rust Chlorine/Taste/Odor
Flow Rate	3.34 GPM
Media Type	Carbon Block
Type	Coffee Filtration System
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	14 in.
Shipping Height	12 in.
Product Weight & Dimensions
Product Weight (lbs)	12.25

optional parts

Features:

The SF165 Filter System was formerly labeled as Aqua-Pure SF165.
Revolutionary Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media cartridge construction combines a membrane in series with premium activated carbon to provide superior throughput and cartridge life.
Reduced sediment and chlorine taste and odor for equipment protection and great tasting hot and cold beverages and ice.
A forced-feed orifice carefully controls and meters the addition of a proprietary scale inhibitor to reduce scale build up on heating coils.
Superior scale reduction performance in equipment from ice machines to equipment heating water to temperatures over 200º F.
System includes a pressure gauge, inlet shutoff valve and outlet check valve, mounting bracket, filter cartridge and scale inhibiting system.
NSF Standard 42 and/or FDA CFR-21 compliant materials

NOTE: Solventum™ Water Filtration Products is formerly known as CUNO Incorporated. CUNO Incorporated was previously divided into CUNO Food Service, Aqua-Pure, and CUNO OCS.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
