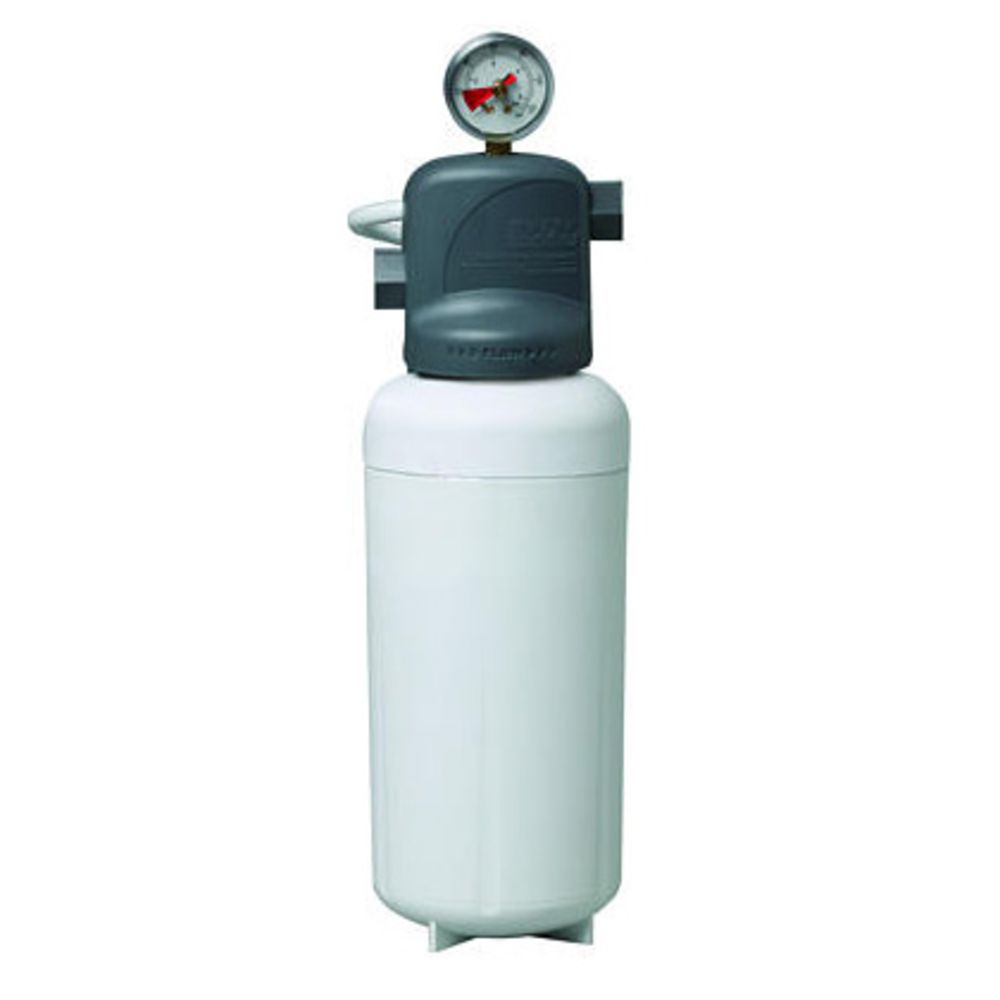

- The ICE145-S Ice Filtration System was formerly labeled as Aqua-Pure ICE145-S.
- System incorporates an internal automatic 1/4 turn shutoff valve.
- Certified by NSF Standard 42 and/or CFR-21 compliant
- Built-in scale inhibitor reduces lime scale build-up on evaporator plates.
- Effectively reduces sediment and chlorine for equipment protection and clearer, great tasting ice.
- For Low Flow Cubers to 1000 lbs, High Flow Cubers to 600 lbs, or Flakers to 1,800 lbs
Weight & Dimensions
Approx Height (Inches) | 15" |
Approx Width (Inches) | 4" |
Weight (lbs) | 20 |
Details
Application | Ice System |
Capacity | 25,000 Gallons |
Inlet/Outlet Connection | 3/8" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 3.0 µm |
Size | 3/8" |
Change Frequency | 25,000 Gallons |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Scale |
Flow Rate | 2.1 GPM |
Media Type | Carbon Block w/ Phosphate |
Origin | Made in the USA with US and Foreign Components |
Type | Ice Filtration System |
Warranty & Certifications
Certifications | NSF/ANSI 42 |
Features:
- The ICE145-S Ice Filtration System was formerly labeled as Aqua-Pure ICE145-S.
- System incorporates an internal automatic 1/4 turn shutoff valve.
- Certified by NSF Standard 42 and/or CFR-21 compliant
- Built-in scale inhibitor reduces lime scale build-up on evaporator plates.
- Effectively reduces sediment and chlorine for equipment protection and clearer, great tasting ice.
- For Low Flow Cubers to 1000 lbs, High Flow Cubers to 600 lbs, or Flakers to 1,800 lbs
Weight & Dimensions
Approx Height (Inches) | 15" |
Approx Width (Inches) | 4" |
Weight (lbs) | 20 |
Details
Application | Ice System |
Capacity | 25,000 Gallons |
Inlet/Outlet Connection | 3/8" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 3.0 µm |
Size | 3/8" |
Change Frequency | 25,000 Gallons |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Scale |
Flow Rate | 2.1 GPM |
Media Type | Carbon Block w/ Phosphate |
Origin | Made in the USA with US and Foreign Components |
Type | Ice Filtration System |
Warranty & Certifications
Certifications | NSF/ANSI 42 |
Documentation
