3M Water Filtration

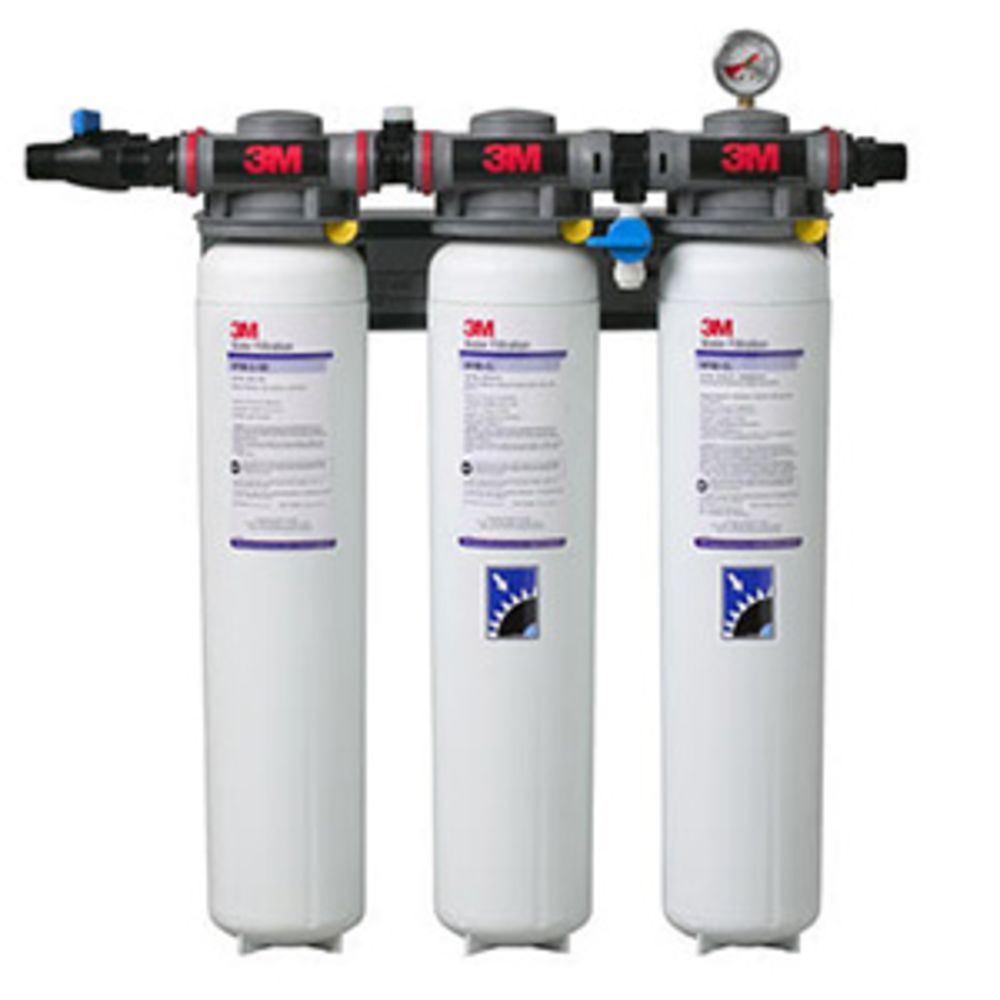

3M DF290-CL Chloramine Reduction System for Beverage & Ice 56236-01

Part Number: 56236-01

Alt. Part Number: 70020229327

In Stock

out of stock

In Stock

$917.83

Features:
  • The DF290-CL Filter System was formerly labeled as Aqua-Pure DF290-CL.
  • One system with dual outlet connections simultaneously supplies cold beverage dispensers and ice machines/coffee brewers.

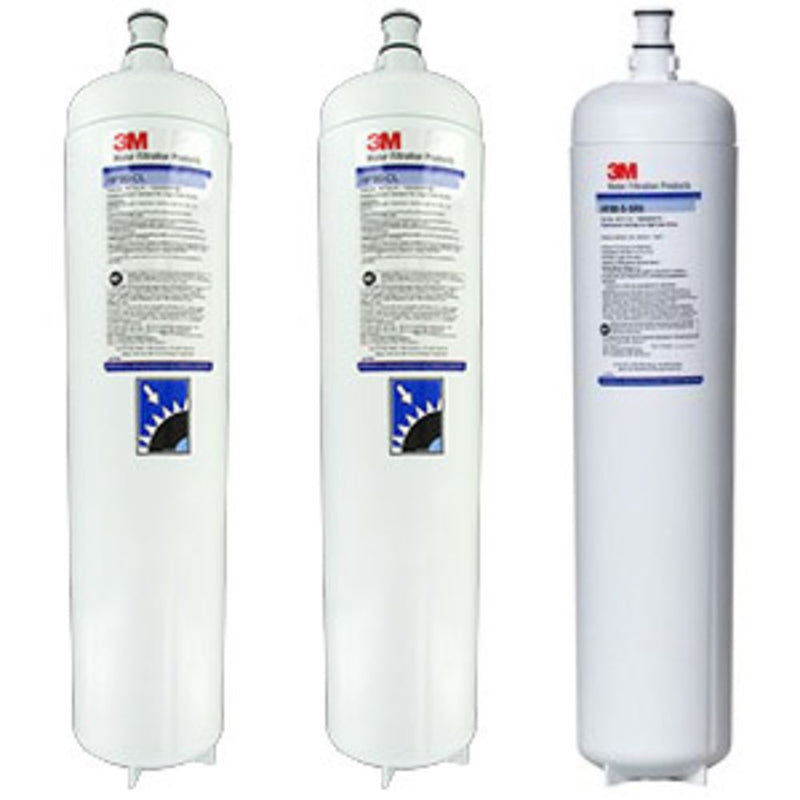

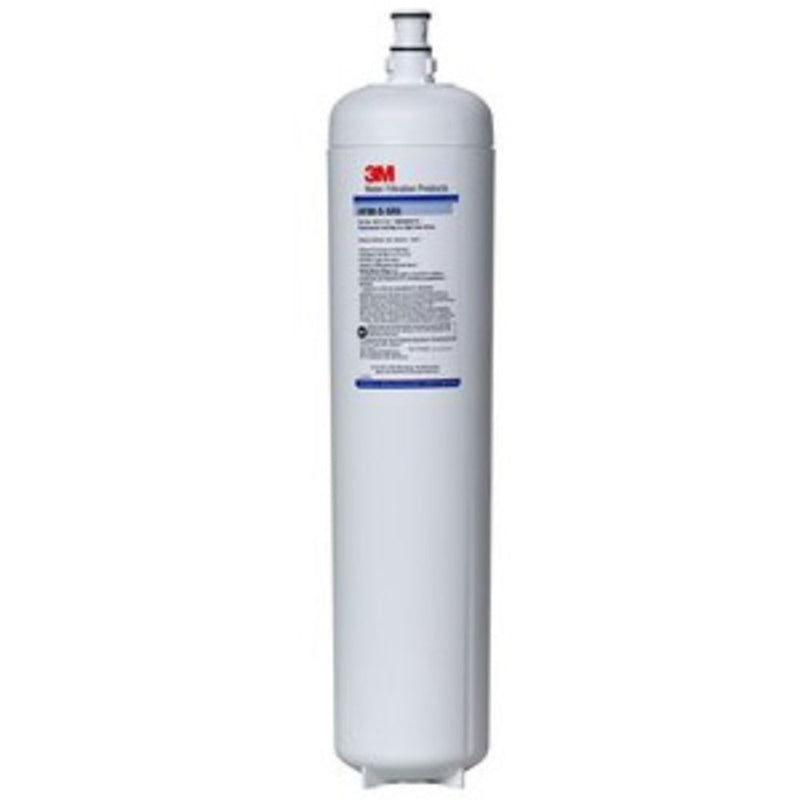

  • Includes two HF90-CL filter cartridges and one HF90-S-SR5 filter cartridge.
  • Revolutionary Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media cartridge construction combines a membrane in series with premium activated carbon to provide superior throughput and cartridge life.
  • Stream One combines cyst, bacteria, chloramine, chlorine taste and odor and sediment reduction for a total volume up to 25,000 gallons at a flow rate of 2.66 gpm.
  • Stream Two combines cyst, bacteria, and sediment reduction at a flow rate up to 5 gpm and the life of is 25,000 gallons. Chloramines, and/or chlorine are not reduced from this stream to preserve the disinfectant properties. A scale inhibition media is added to reduce the hard scale effects of calcium and magnesium ions.
  • Built-in bacteria inhibitor intended to reduce fouling of media.
  • System includes a pressure gauge and inlet shut-off valve for simple installation and operation.
  • Cartridges used in this system are NSF certified
  • NSF Standard 42 and/or FDA CFR-21 compliant materials
  • Reduction of sediment and abrasive hard particles helps prevent equipment wear and helps extend the life of pumps, valves, orings and seals.
NOTE: 3M™ Water Filtration Products is formerly known as CUNO Incorporated. CUNO Incorporated was previously divided into CUNO Food Service, Aqua-Pure, and CUNO OCS.


Weight & Dimensions

Approx Height (Inches)

24-1/16" Inches

Approx Width (Inches)

22-7/8" Inches

Details

Application

Fountain Beverage System; Ice Filtration System

Capacity

25,000 Gallons

Connections

3/4" NPT

Flow Rate

2.66 Gallons Per Minute

Media Type

Carbon Block w/Phosphate

Micron Rating (Nominal)

0.2 Micron

Operating Pressure Range

125 PSI

Operating Temperature Range

100 Degrees Fahrenheit

Origin

Made in the USA with US and Foreign Components

Contaminants Reduced

Chlorine; Bad Taste; Bad Odors; Sediment; Cysts; Chloramine; Scale Inhibitor; Bacteriostat Agent


3M

3M
