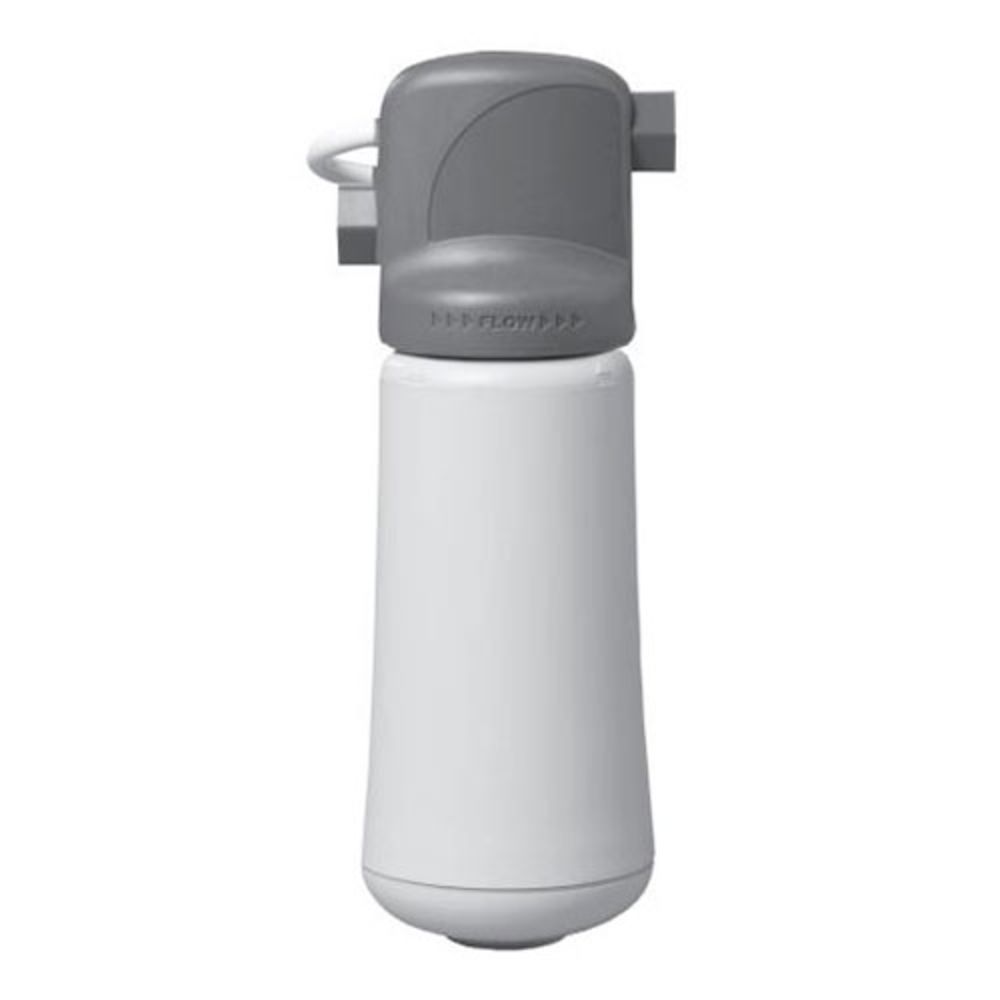

- The BREW115-MS Filter System was formerly labeled as Aqua-Pure BREW115
- Reduction of sediment, scale, chlorine taste and odor
- NSF Standard 42 and/or FDA CFR-21 compliant materials
- System includes a head assembly with integral mounting bracket and a single cartridge filter
- Better equipment protection from reduced sediment particles that can clog the spray head
- Patented valve-in-head design simultaneously shuts off and vents water, allowing for simple and virtually trouble-free cartridge change-outs without the need to shut off the upstream feed water
- Reduced scale formation by the controlled release of proprietary scale inhibitors
- Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs with a 1/4 turn
- 3/8" FNPT horizontal inlet and outlet ports allow direct or easily adaptable connections to existing plumbing lines
- Optional pressure gauge allows monitoring of downstream water pressure
Weight & Dimensions
Approx Height (Inches) | 10 15/16" |
Approx Width (Inches) | 4" |
Weight (lbs) | 2.5 |
Details
Application | Coffee System |
Capacity | 3500 Gallons |
Inlet/Outlet Connection | 3/8" FPT |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Size | 3/8" |
Change Frequency | 3500 Gallons |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Scale |
Flow Rate | 1 GPM |
Media Type | Carbon Block |
Origin | Made in the USA with US and Foreign Components |
Type | Coffee Filtration System |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
Features:
- The BREW115-MS Filter System was formerly labeled as Aqua-Pure BREW115
- Reduction of sediment, scale, chlorine taste and odor
- NSF Standard 42 and/or FDA CFR-21 compliant materials
- System includes a head assembly with integral mounting bracket and a single cartridge filter
- Better equipment protection from reduced sediment particles that can clog the spray head
- Patented valve-in-head design simultaneously shuts off and vents water, allowing for simple and virtually trouble-free cartridge change-outs without the need to shut off the upstream feed water
- Reduced scale formation by the controlled release of proprietary scale inhibitors
- Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs with a 1/4 turn
- 3/8" FNPT horizontal inlet and outlet ports allow direct or easily adaptable connections to existing plumbing lines
- Optional pressure gauge allows monitoring of downstream water pressure
Weight & Dimensions
Approx Height (Inches) | 10 15/16" |
Approx Width (Inches) | 4" |
Weight (lbs) | 2.5 |
Details
Application | Coffee System |
Capacity | 3500 Gallons |
Inlet/Outlet Connection | 3/8" FPT |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Size | 3/8" |
Change Frequency | 3500 Gallons |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor, Sediment/Dirt/Rust, Scale |
Flow Rate | 1 GPM |
Media Type | Carbon Block |
Origin | Made in the USA with US and Foreign Components |
Type | Coffee Filtration System |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 53 |
