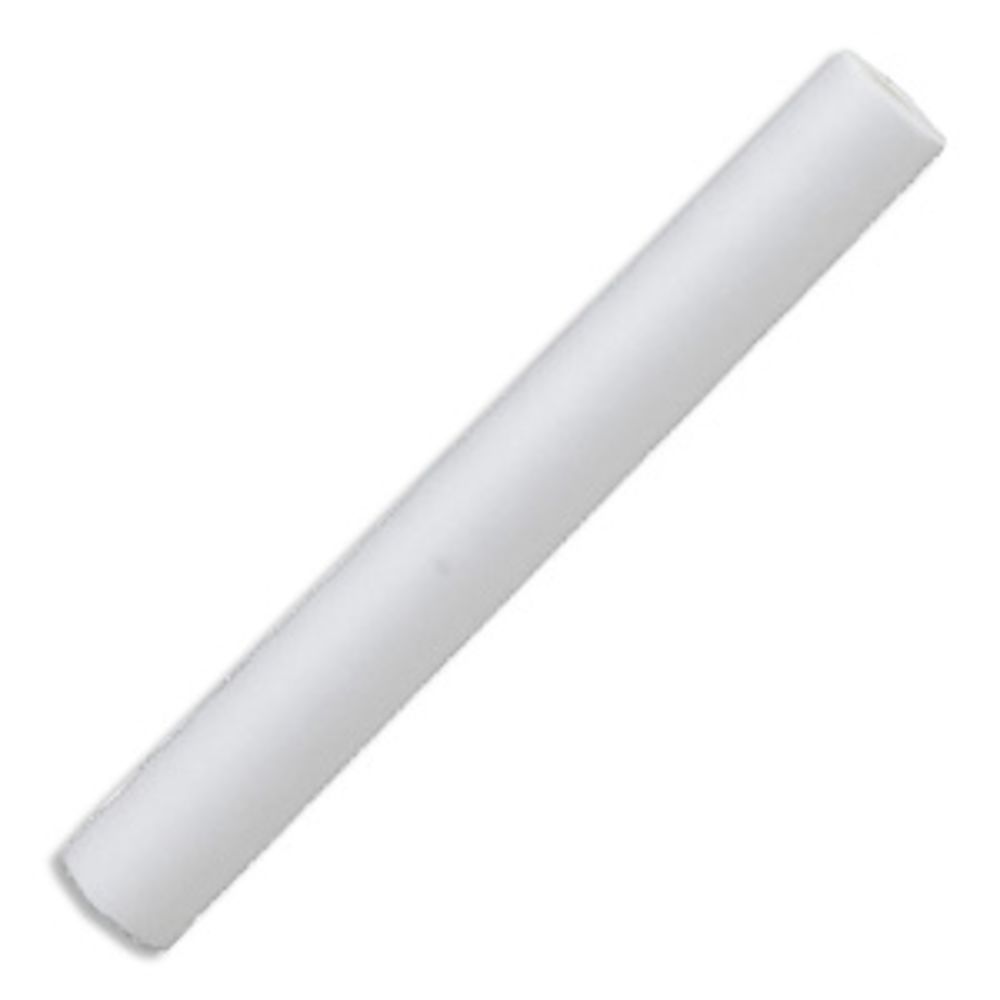

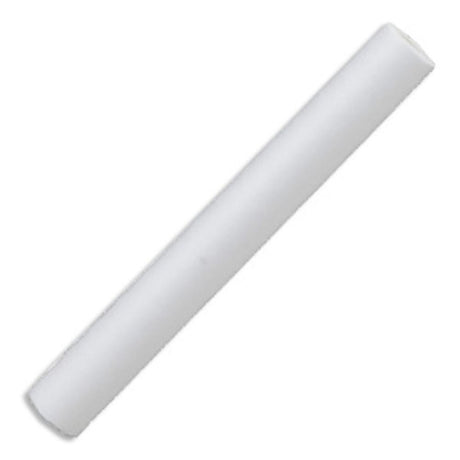

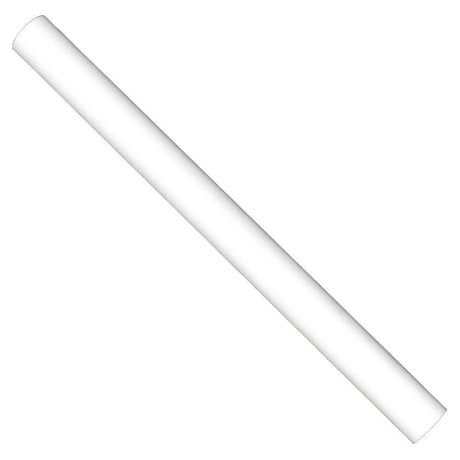

30" Polypropylene Sediment Depth Filter 5 Mic

Part Number: SD-25-3005

Alt. Part Number: FPMB5-30

In Stock

out of stock

In Stock

$8.26 Regular price

This 30" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 30" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only

Compatible with: GE Water | 93059, PX05-30, 1193059, Hydronix | SDC-25-3005, Liquatec | SDF-25-3005, Pentek | P5-30, 155228-43, Watts | FPMB5-30


Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

15 Gallons Per Minute

Initial Pressure Drop

0.3 psi @ 15 gpm PSI Differential

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42



This 30" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 30" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only

Compatible with: GE Water | 93059, PX05-30, 1193059, Hydronix | SDC-25-3005, Liquatec | SDF-25-3005, Pentek | P5-30, 155228-43, Watts | FPMB5-30

Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

15 Gallons Per Minute

Initial Pressure Drop

0.3 psi @ 15 gpm PSI Differential

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42
