Watts

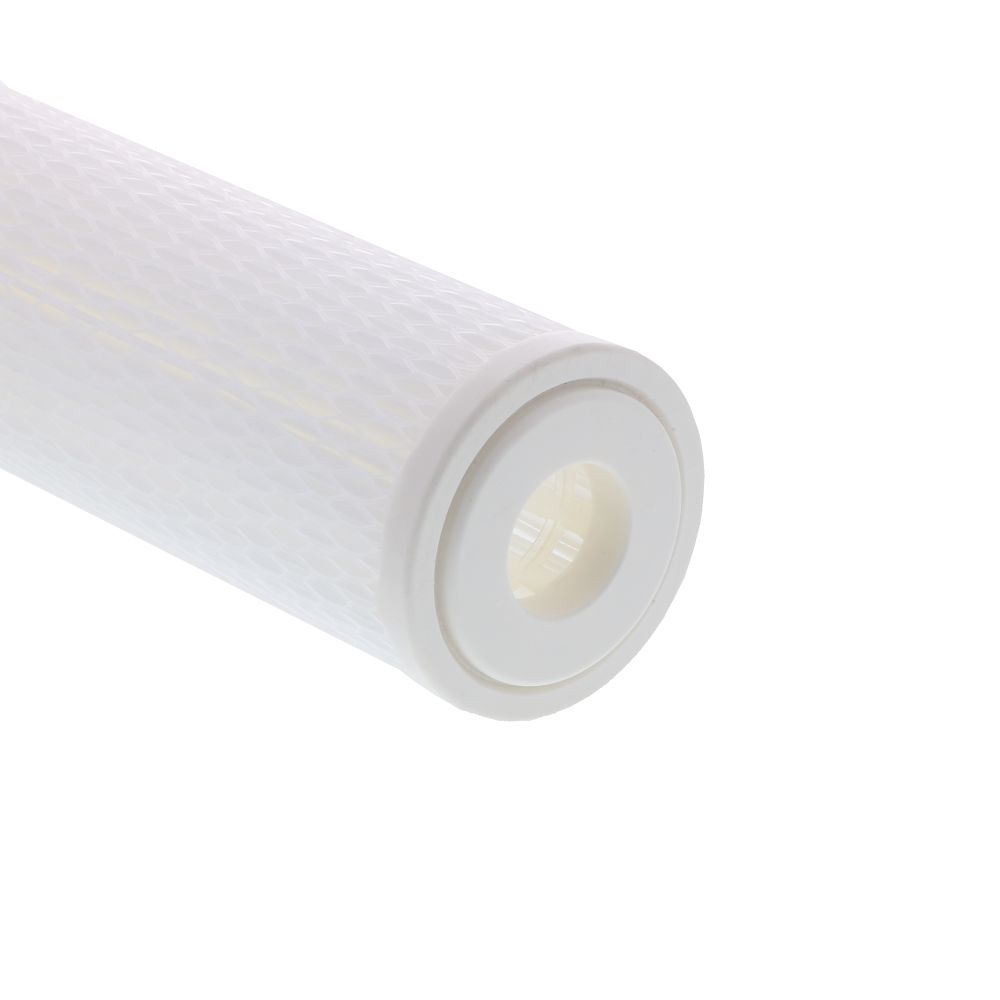

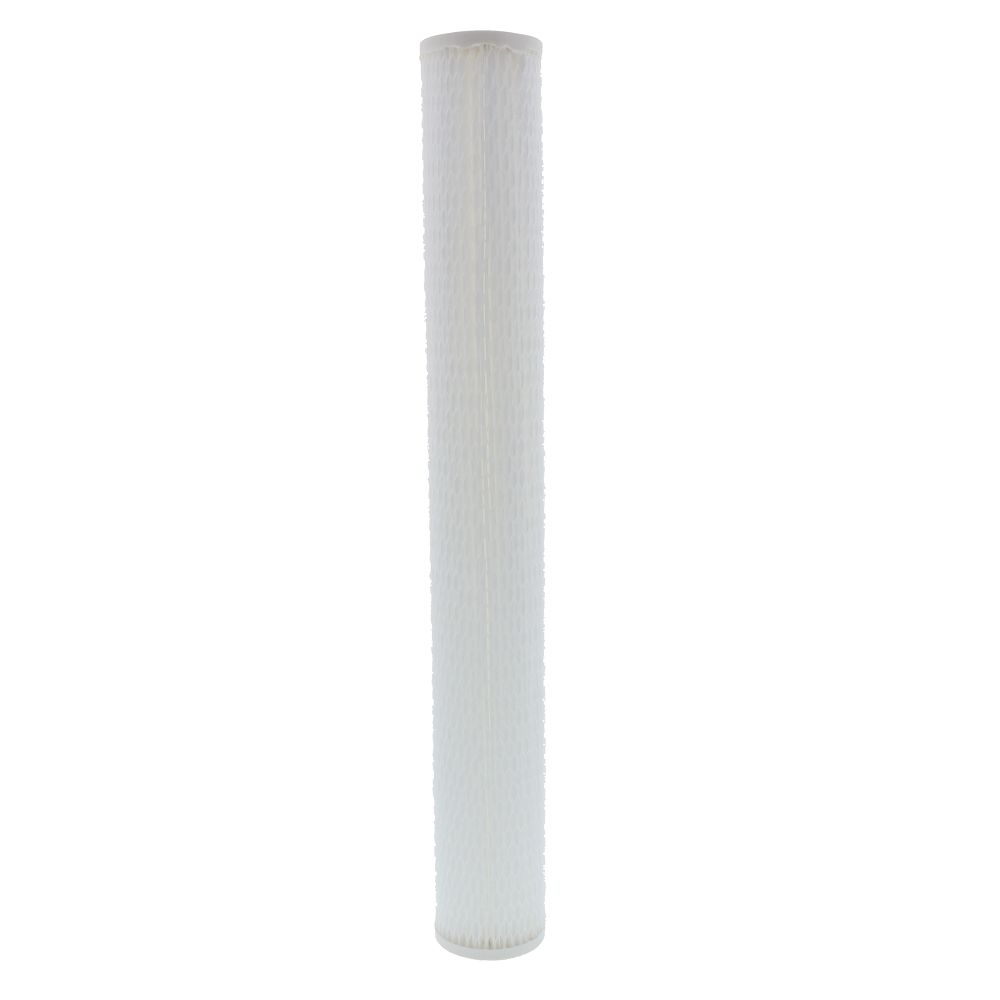

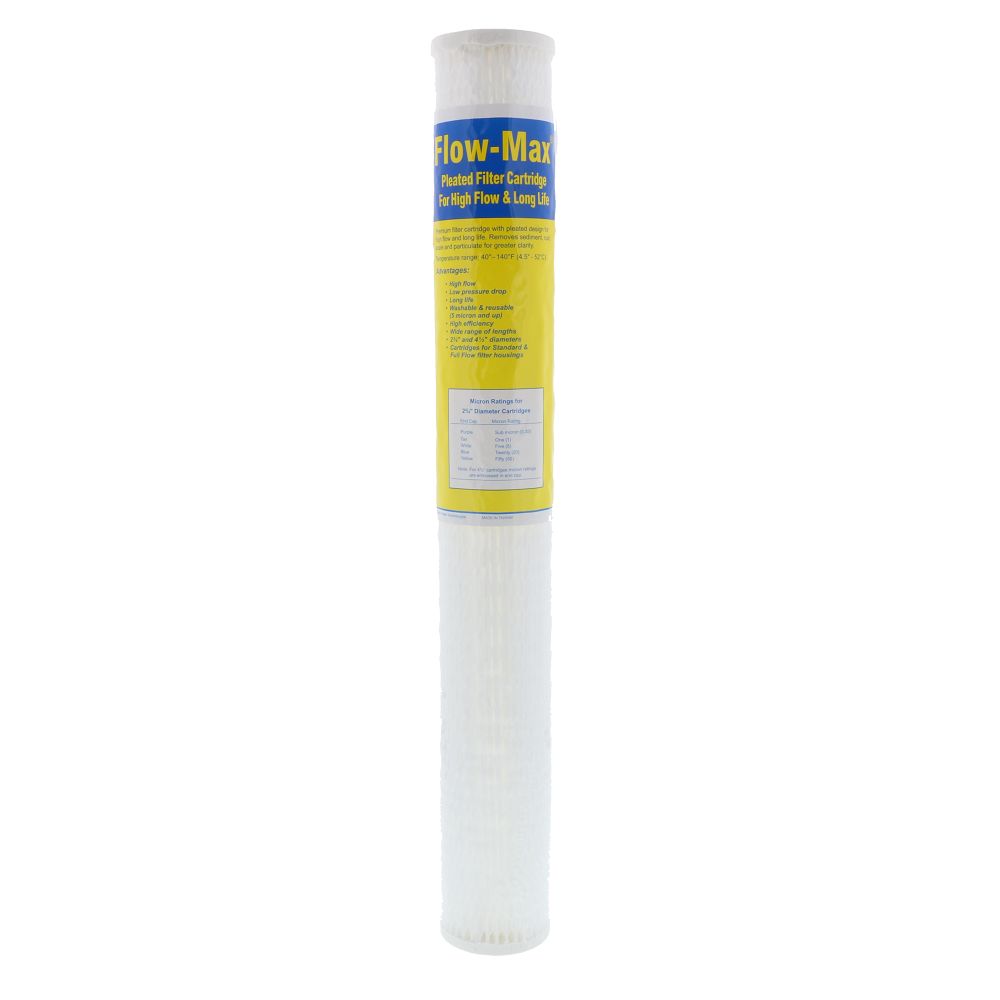

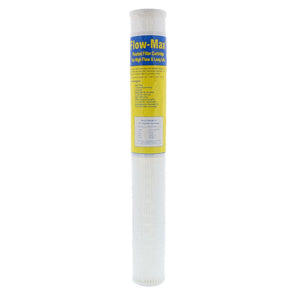

20" x 2-3/4" Flow-Max Pleated Poly - 5 mic

Part Number: FM-5-20

Alt. Part Number: WPC5-20

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PH-27200-05 20" High Efficiency Pleated Filter 5 micron as a substitute.

The Watts Flow-Max FM-5-20 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 5 Micron
  • Flow Rate: 14 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL20M5

Weight & Dimensions

Approx Length (Inches)

20"

Box Dimensions

14.5x14.5x21.125

Case Quantity

24

Weight (lbs)

0.67

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

5 µm

Min Temp (°F)

40

Outer Diameter

2-3/4"

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

Flow Rate

14 GPM

Media Type

Polyester

Micron Rating

5 µm

Product Length

20"


20"

20"




The Watts Flow-Max FM-5-20 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 5 Micron
  • Flow Rate: 14 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL20M5

NOTE: This item is discontinued. We recommend the Neo-Pure PH-27200-05 20" High Efficiency Pleated Filter 5 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

20"

Box Dimensions

14.5x14.5x21.125

Case Quantity

24

Weight (lbs)

0.67

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

5 µm

Min Temp (°F)

40

Outer Diameter

2-3/4"

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

Flow Rate

14 GPM

Media Type

Polyester

Micron Rating

5 µm

Product Length

20"

Documentation
20"
20"
