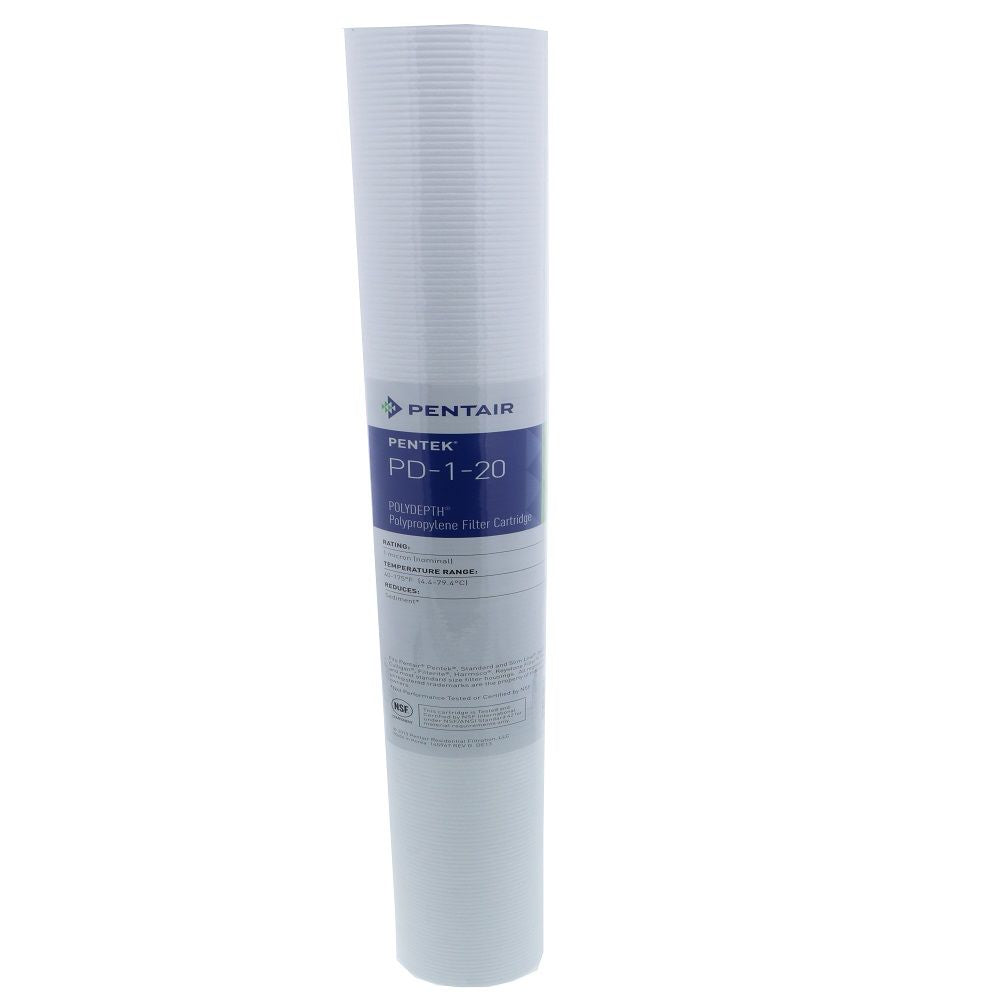

20" Pentek PD-1-20 Polydepth 1 mic Polypropylene Filter

Part Number: 155755-43

In Stock

out of stock

In Stock

$17.25

The POLYDEPTH® PD-1-20 filtration cartridge is constructed of thermally bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.
The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

Features:
  • Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
  • Provides superior chemical resistance and is not prone to bacterial attack
  • Rigid polypropylene center core for increased collapse strength and durability
  • Consistent flow rate and superior filtration performance
  • Not brittle or prone to breakage problems like resin-bonded cartridges
  • Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications

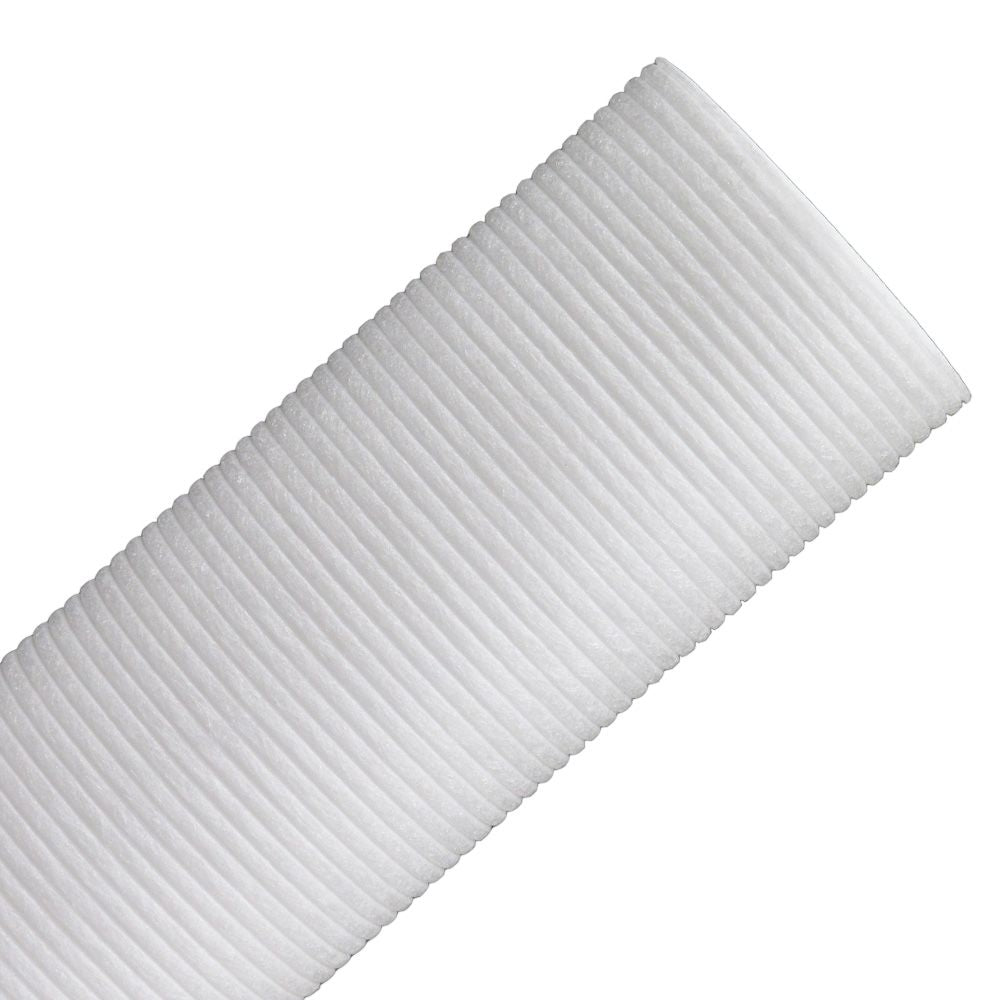

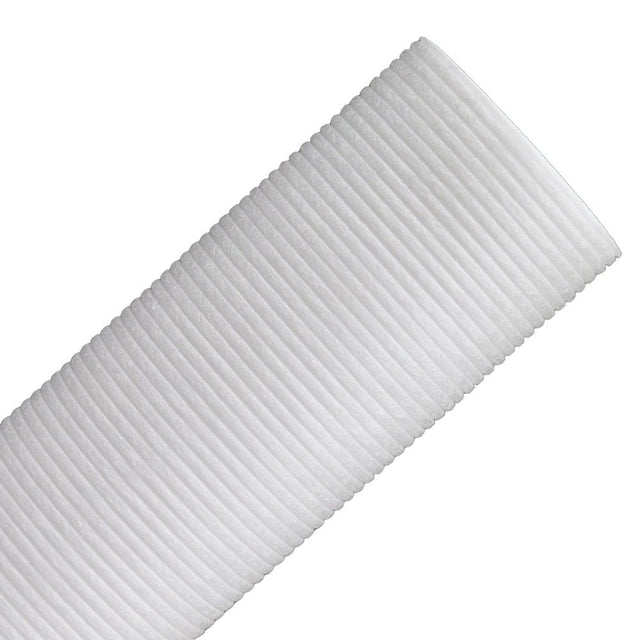

  • Unique micro-grooves provide added surface area
  • Ideal for a wide variety of industrial filtration
  • Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges




Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

20

Weight (lbs)

1.2

Details

Capacity

As Needed

Features

Micro Grooves

Initial Pressure Drop

2psi @ 5gpm PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

<2 psid @ 5 GPM

Cap Material

Thermally Bonded Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown - Grooved

Filter Type

Sediment Depth

Media Type

Thermally Bonded Polypropylene

Micron Rating

1 µm

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42


20"




The POLYDEPTH® PD-1-20 filtration cartridge is constructed of thermally bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.
The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.

Features:
  • Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
  • Provides superior chemical resistance and is not prone to bacterial attack
  • Rigid polypropylene center core for increased collapse strength and durability
  • Consistent flow rate and superior filtration performance
  • Not brittle or prone to breakage problems like resin-bonded cartridges
  • Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications
  • Unique micro-grooves provide added surface area
  • Ideal for a wide variety of industrial filtration
  • Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges



Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

20

Weight (lbs)

1.2

Details

Capacity

As Needed

Features

Micro Grooves

Initial Pressure Drop

2psi @ 5gpm PSI Differential

Max Temp (°F)

175

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Psid@Flow Rate

<2 psid @ 5 GPM

Cap Material

Thermally Bonded Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown - Grooved

Filter Type

Sediment Depth

Media Type

Thermally Bonded Polypropylene

Micron Rating

1 µm

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42
