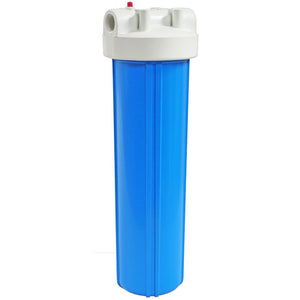

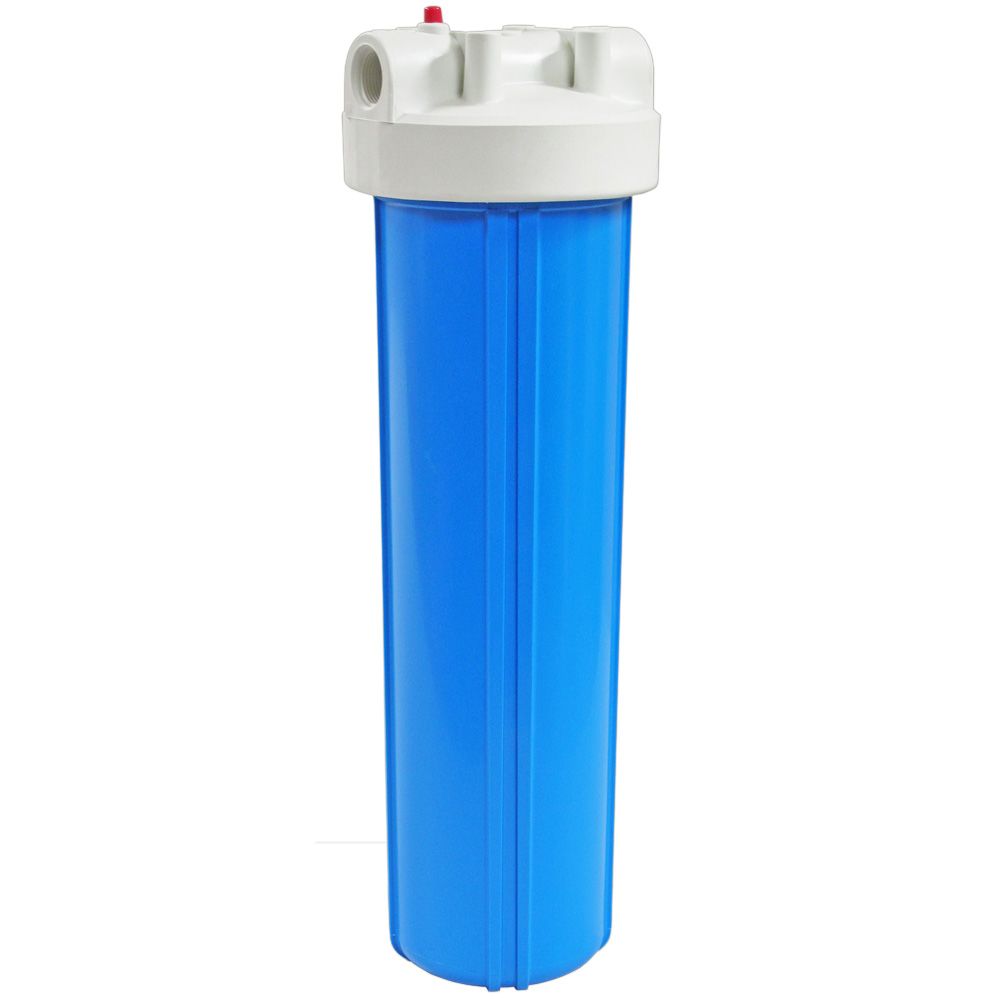

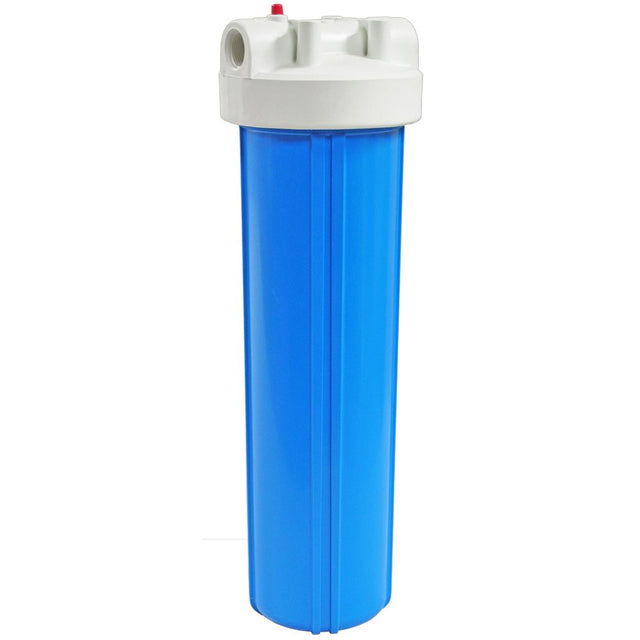

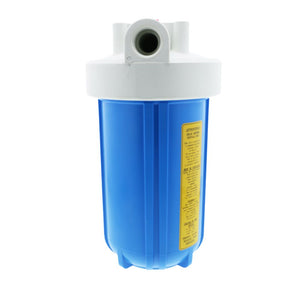

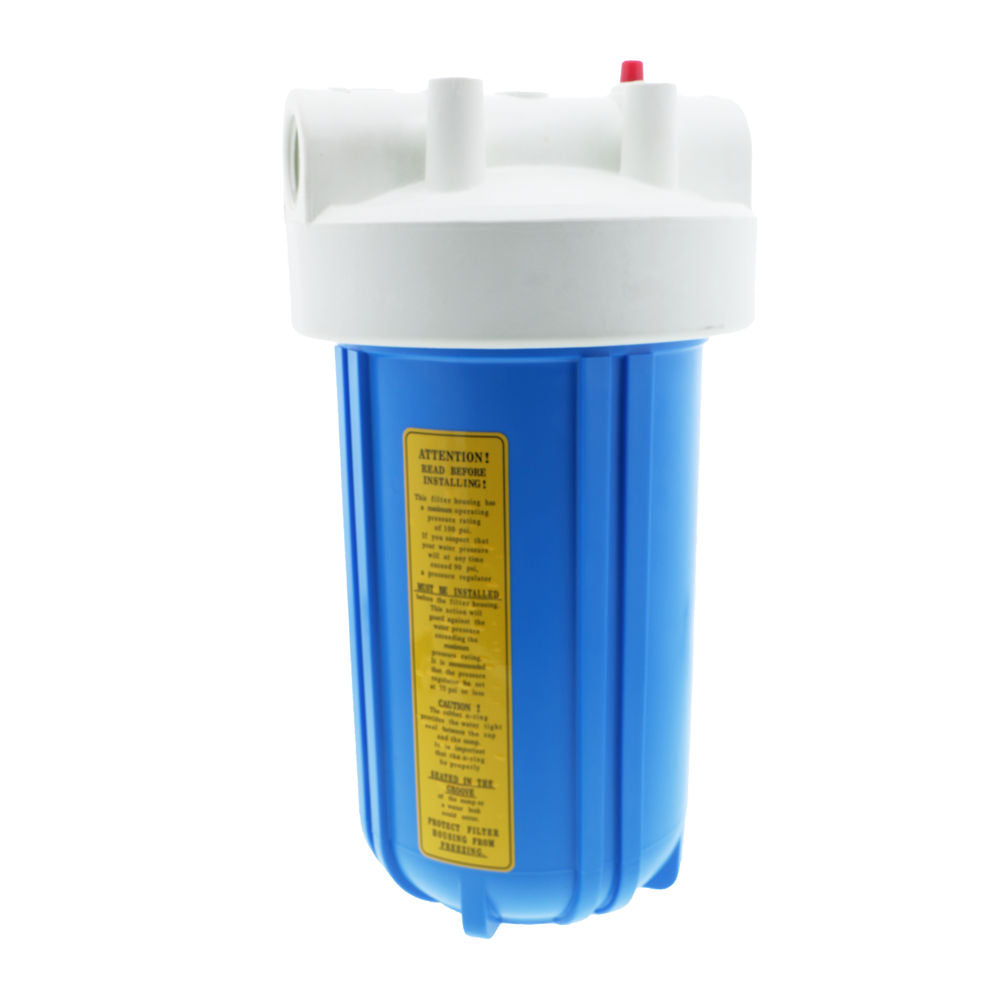

20" Full Flow Water Filter Housing Compatible to the Aqua-Pure AP802

Part Number: FHAP802-1PR

Alt. Part Number: AP802

Your price:

Choose

1" Housing Only

1" Housing w/ Neo-Pure CTOC-4520 Filter

1" Housing w/ Neo-Pure CTO1-4520 Filter

1" Housing w/ Neo-Pure MBGC-45200-05 Filter

1" Housing w/ Neo-Pure MBGC-45200-25 Filter

1" Housing w/ Neo-Pure NP-RFG20BB Filter

1-1/2" Housing Only

1-1/2" Housing w/ Neo-Pure CTOC-4520 Filter

1-1/2" Housing w/ Neo-Pure CTO1-4520 Filter

1-1/2" Housing w/ Neo-Pure MBGC-45200-05 Filter

1-1/2" Housing w/ Neo-Pure MBGC-45200-25 Filter

1-1/2" Housing w/ Neo-Pure NP-RFG20BB Filter

Quantity

similar items

The White/Blue FHAP802 20" Full Flow Housing offers the same performance as the Aqua-Pure™ AP802 housing at a more economical price. Use a sediment filter to reduce sediment, dirt and rust. Use a carbon filter cartridge to reduce chlorine taste and odor.

Specifications:

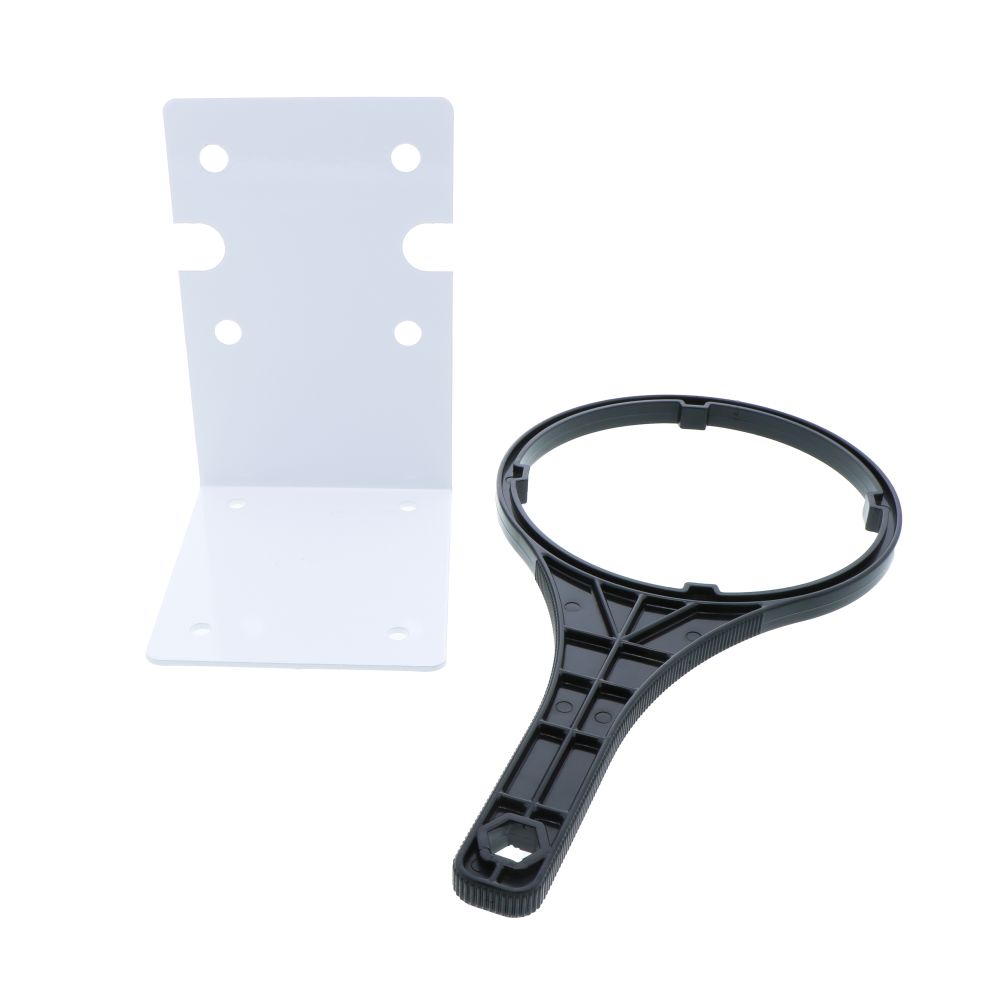

Compatible with the same filters, o-ring and wrench as the Aqua-Pure™ AP802
High Flow Rates up to 35 gpm*
1" or 1.5" inlet/outlet connections
Pressure Relief Button
For use with industry standard size cartridges: 4.5" x 20"
Housings can be purchased alone or with a variety of filter options:

Filter	Description
Neo-Pure CTOC-4520	0.5 micron cyst and CTO reduction carbon block filter

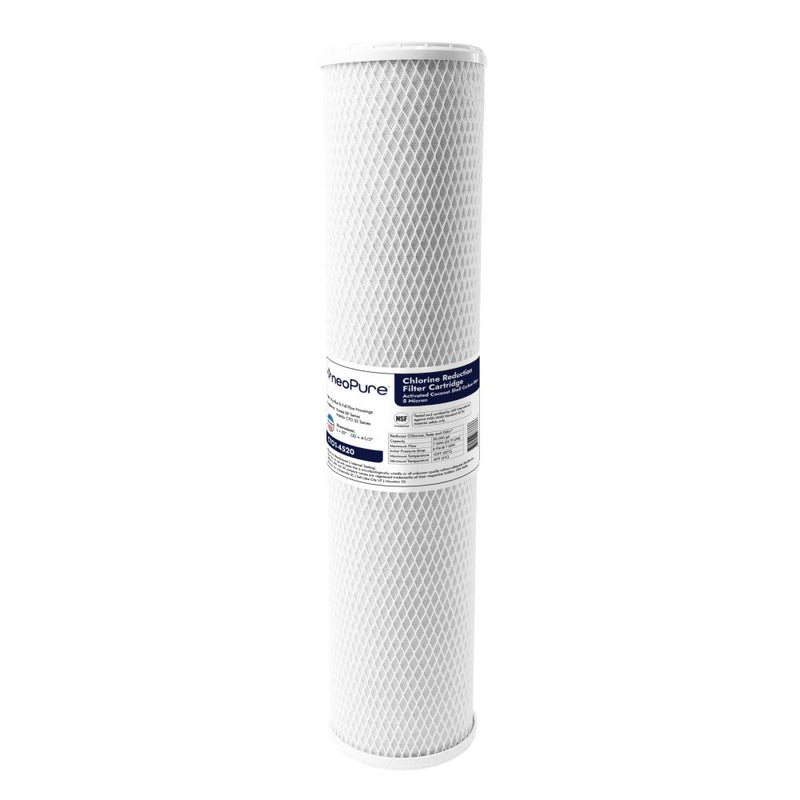

Neo-Pure CTO1-4520	5 micron CTO reduction carbon block filter
Neo-Pure MBGC-45200-05	5 micron grooved sediment reduction filter with polypropylene end caps and gasket
Neo-Pure MBGC-45200-25	25 micron grooved sediment reduction filter with polypropylene end caps and gasket
Neo-Pure NP-RFG20BB	25 micron radial flow coconut shell GAC filter

Compatible with:

Aqua-Pure™/3M Purification

AP802, 5585704, 55857-04, AP802-1.5, AP802-1.5-C

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cap Color	White
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	1" FPT 1-1/2" FPT
Material Of Construction	Polypropylene
Max Pressure (Psi)	90
Max Temp (°F)	115
Mounting Options	Mounting Bosses
O-Rings	EPDM
Outlet Connection	1" FPT 1-1/2" FPT
Size	1" 1-1/2"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Flow Rate	Up to 35 GPM at 60 psi GPM
Product Weight & Dimensions
Product Height	23-3/8"
Product Width	7-1/4"
Product Weight (lbs)	17

Product Details
Cap Color	White
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	1" FPT 1-1/2" FPT
Material Of Construction	Polypropylene
Max Pressure (Psi)	90
Max Temp (°F)	115
Mounting Options	Mounting Bosses
O-Rings	EPDM
Outlet Connection	1" FPT 1-1/2" FPT
Size	1" 1-1/2"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Flow Rate	Up to 35 GPM at 60 psi GPM
Product Weight & Dimensions
Product Height	23-3/8"
Product Width	7-1/4"
Product Weight (lbs)	20
