Pentek

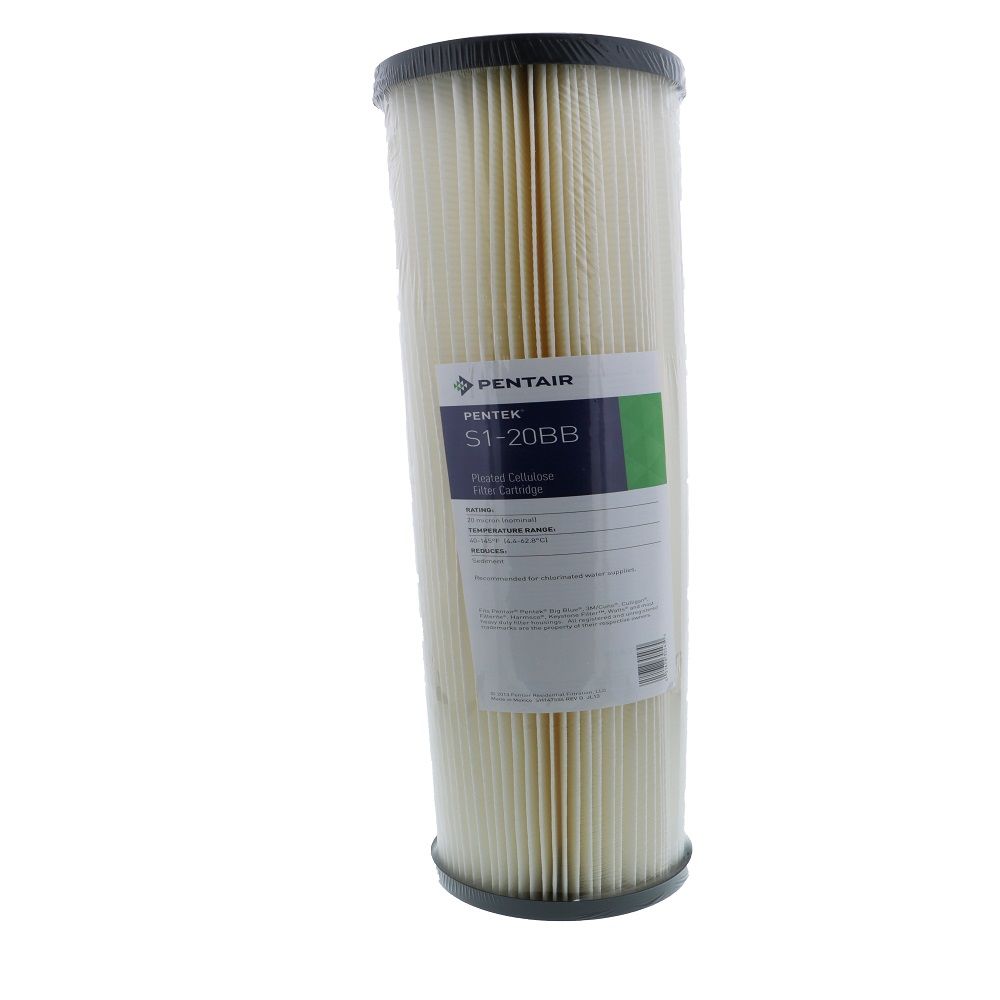

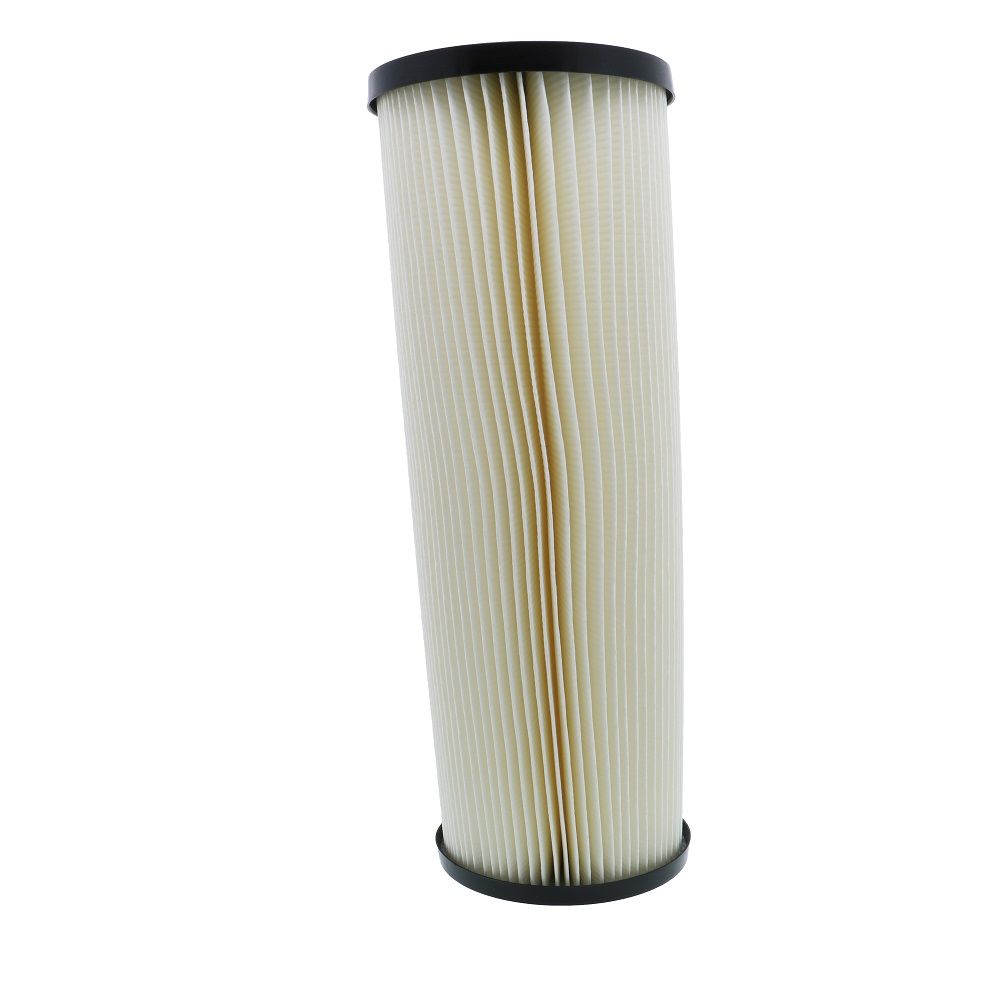

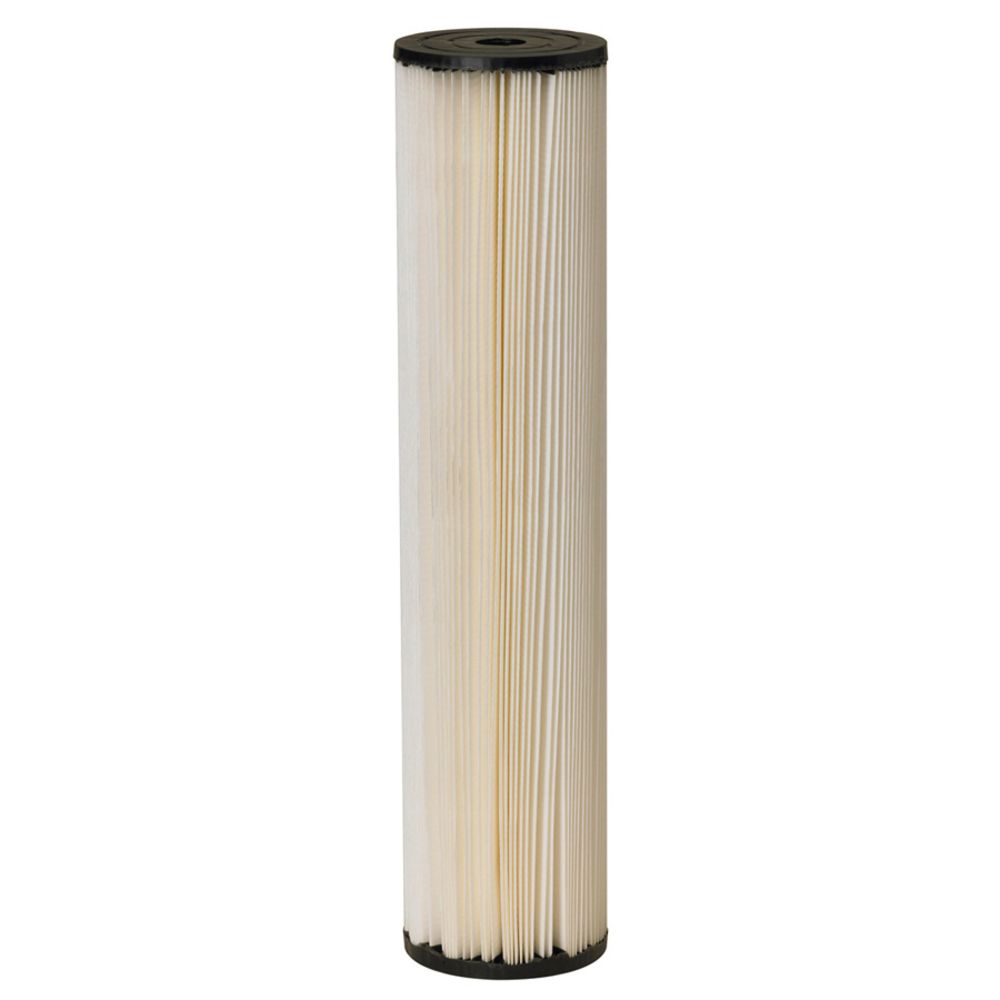

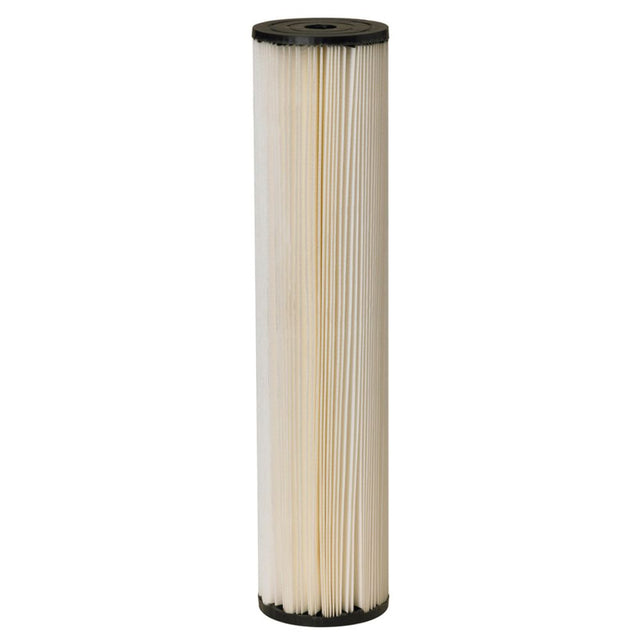

20" BB Pentek S1-20BB Pleated Cellulose 20 mic Filter

Part Number: 155305-43

In Stock

out of stock

In Stock

$16.96


S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.
Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
The Pentek S1-20BB filter media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.
Not Recommended for use with well water or other non-chlorinated sources.   Also known as American Plumber® W20CLHD20, the Pentek S1-20BB is private labled for many other brands including:  Ametek S1-20BB, Bruner S1-20BB, Keystone GC20-20, Kleen Plus S1-20BB, USFilter S1-20BB, Plymouth Products S1-20BB

Compatible with: Cartridges for Heavy Duty Housings | W20CLHD20, 155305-51, Keystone | GPC20-20


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1.2 PSI Differential

Media Type

Resin Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Surface Area

4280 Square Inches


20"

20"





S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.
Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
The Pentek S1-20BB filter media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.
Not Recommended for use with well water or other non-chlorinated sources.   Also known as American Plumber® W20CLHD20, the Pentek S1-20BB is private labled for many other brands including:  Ametek S1-20BB, Bruner S1-20BB, Keystone GC20-20, Kleen Plus S1-20BB, USFilter S1-20BB, Plymouth Products S1-20BB

Compatible with: Cartridges for Heavy Duty Housings | W20CLHD20, 155305-51, Keystone | GPC20-20

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1.2 PSI Differential

Media Type

Resin Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Surface Area

4280 Square Inches
