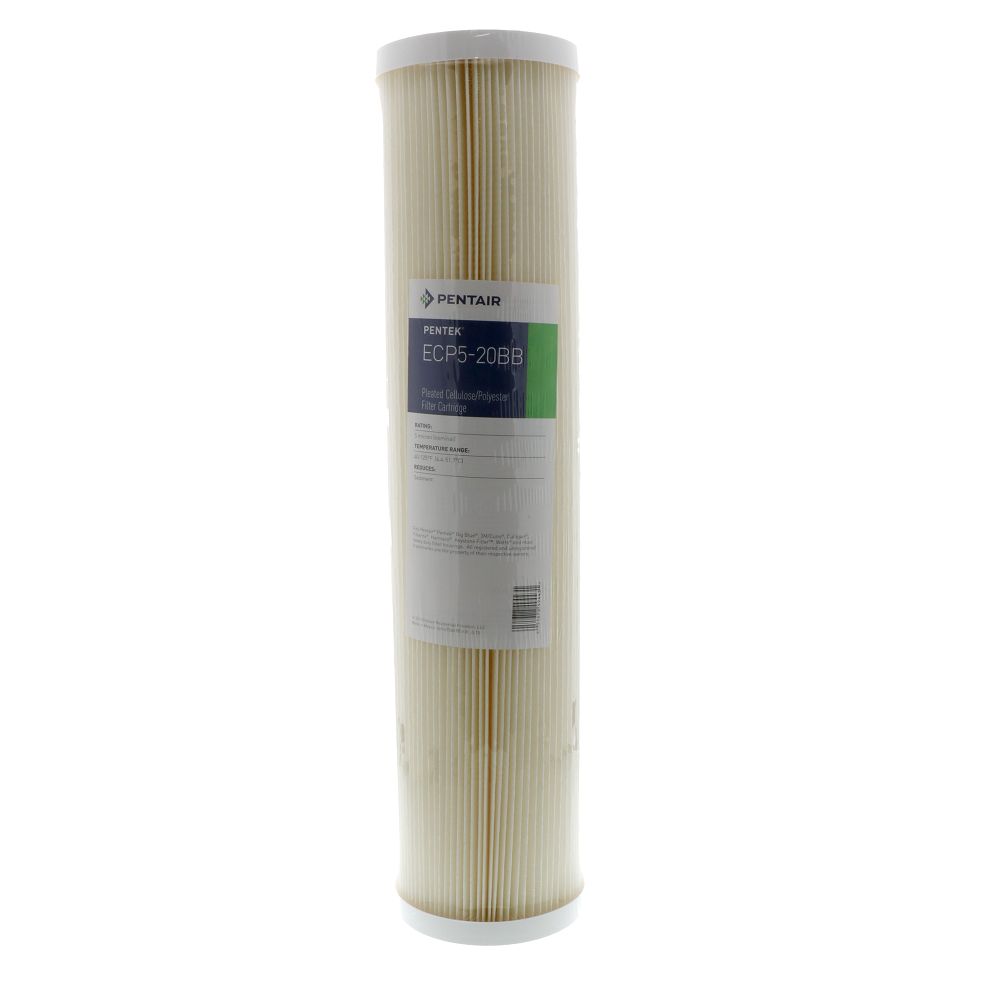

20" BB Pentek Pleated Cellulose-Polyester ECP5-20BB 5 mic Filter
Part Number: 255494-43
Alt. Part Number: ECP5-20BB
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Special formulation of resin-impregnated cellulose and polyester fibers
- Provides higher wet strength than regular cellulose cartridges
- Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
- Minimal unloading and media migration
- Contains more media surface area than most competitive cartridges. The 20" Big Blue ECP cartridges contain 36 square feet of media.
Compatible with:
3M Fluid Purification | CFS210-2 |
Aqua-Pure™/3M Purification | AP810-2 |
Everpure | DEV9108-41 |
Shurflo | 15-054-02 |
Product Details | |
---|---|
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 1 psid @ 20 GPM |
Recommended Flow Rate | 20 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 20 GPM |
Media Type | Cellulose Polyester |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Height | 4.625 |
Product Length | 20 |
Product Width | 4.625 |
Product Weight (lbs) | 2 |
Product Details | |
---|---|
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 1 psid @ 20 GPM |
Recommended Flow Rate | 20 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 20 GPM |
Media Type | Cellulose Polyester |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 21.5 in. |
Shipping Width | 10.5 in. |
Shipping Height | 15.5 in. |
Product Weight & Dimensions | |
Product Height | 15.5 |
Product Length | 21.5 |
Product Width | 10.5 |
Product Weight (lbs) | 10.928 |
Features:
- Special formulation of resin-impregnated cellulose and polyester fibers
- Provides higher wet strength than regular cellulose cartridges
- Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
- Minimal unloading and media migration
- Contains more media surface area than most competitive cartridges. The 20" Big Blue ECP cartridges contain 36 square feet of media.
Compatible with:
3M Fluid Purification | CFS210-2 |
Aqua-Pure™/3M Purification | AP810-2 |
Everpure | DEV9108-41 |
Shurflo | 15-054-02 |
Product Details | |
---|---|
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 1 psid @ 20 GPM |
Recommended Flow Rate | 20 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 20 GPM |
Media Type | Cellulose Polyester |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Height | 4.625 |
Product Length | 20 |
Product Width | 4.625 |
Product Weight (lbs) | 2 |
Product Details | |
---|---|
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 1 psid @ 20 GPM |
Recommended Flow Rate | 20 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 20 GPM |
Media Type | Cellulose Polyester |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 21.5 in. |
Shipping Width | 10.5 in. |
Shipping Height | 15.5 in. |
Product Weight & Dimensions | |
Product Height | 15.5 |
Product Length | 21.5 |
Product Width | 10.5 |
Product Weight (lbs) | 10.928 |
