Pentek

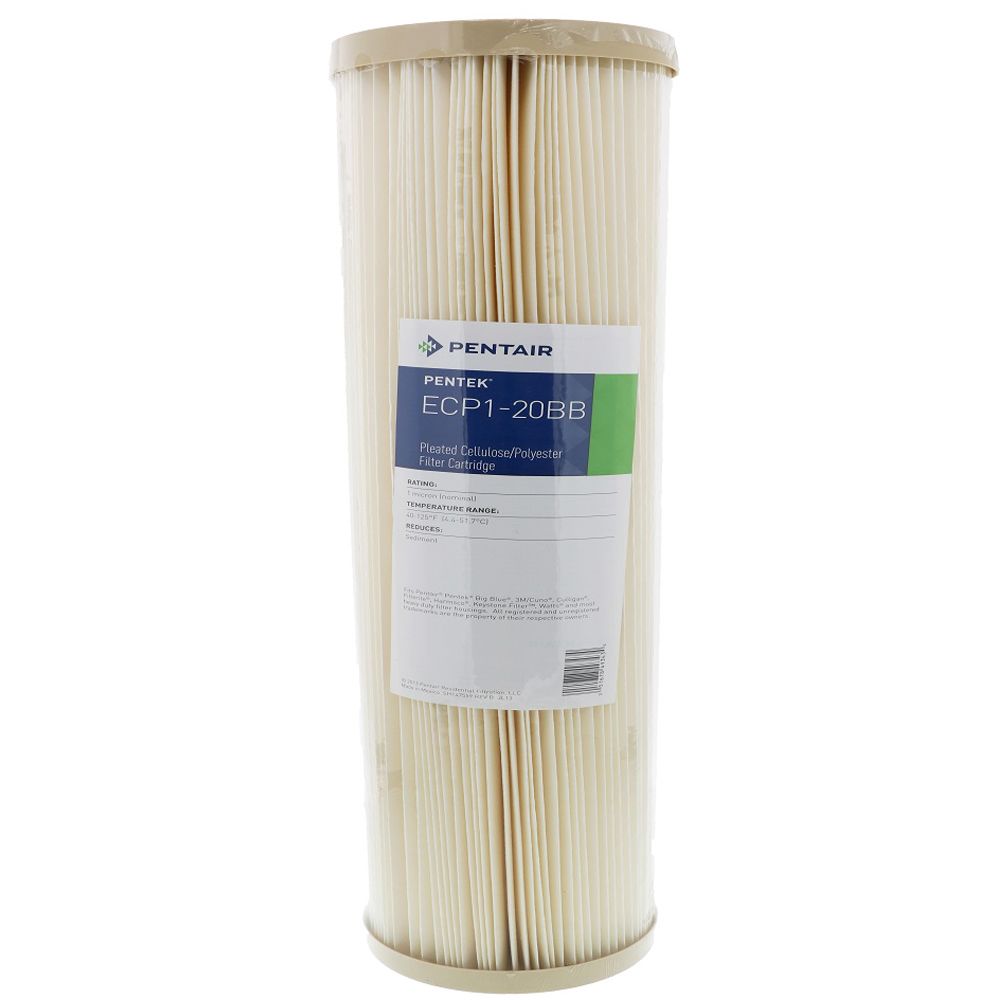

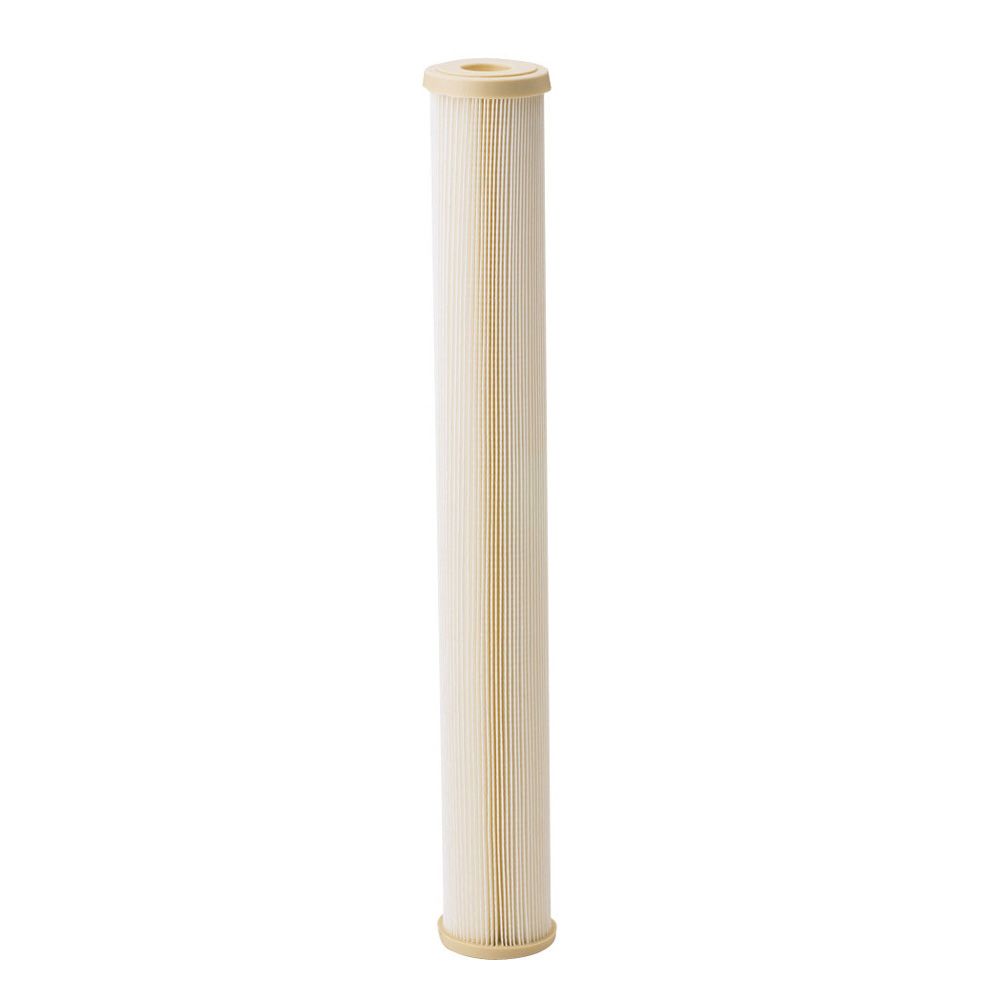

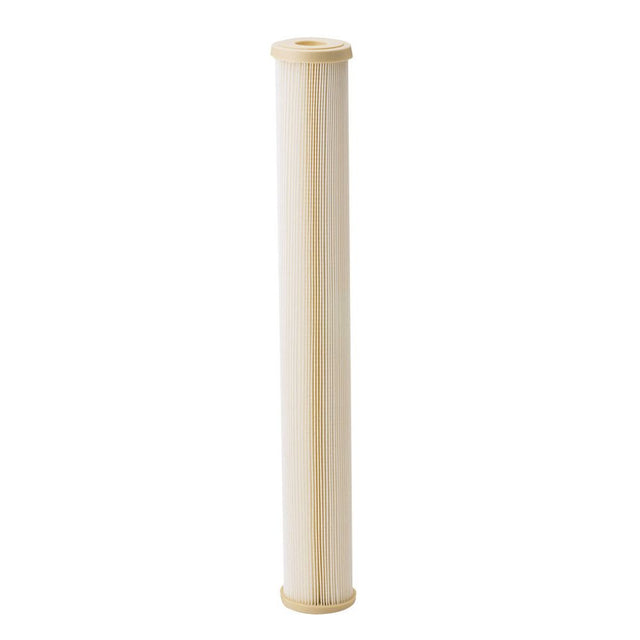

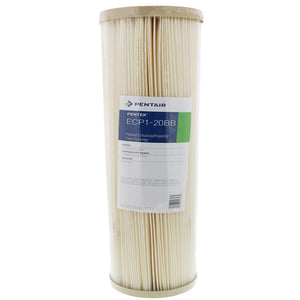

20" BB Pentek Pleated Cellulose-Polyester ECP1-20BB 1 mic Filter

Part Number: 255493-43

Alt. Part Number: ECP1-20BB, 255493-67

In Stock

out of stock

In Stock

$24.87


ECP1-20BB cartridge is manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.
Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges. The 20" Big Blue ECP cartridges contain 36 square feet of media.
Replaces CP and HFCP Series Cartridges


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

8

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

1 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)


20"

20"





ECP1-20BB cartridge is manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.
Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges. The 20" Big Blue ECP cartridges contain 36 square feet of media.
Replaces CP and HFCP Series Cartridges

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

8

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

1 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Documentation
20"
20"

Reviews
