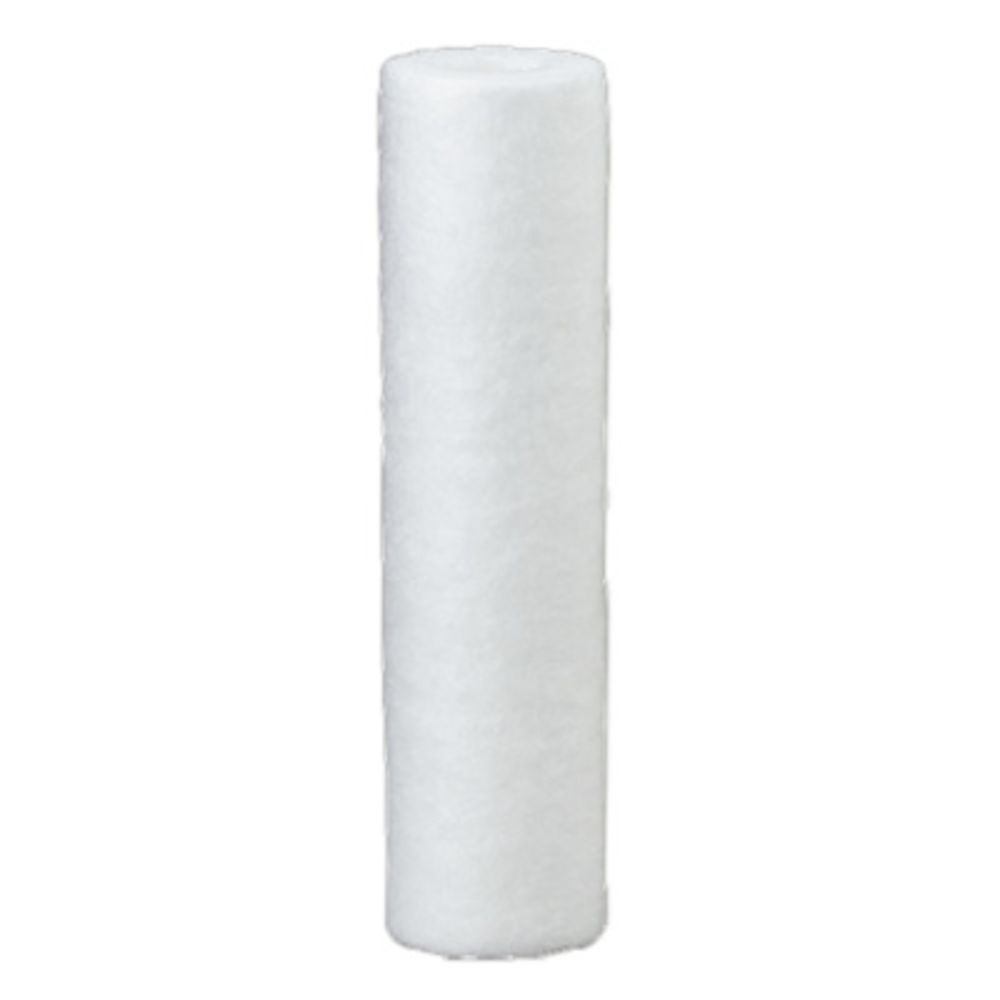

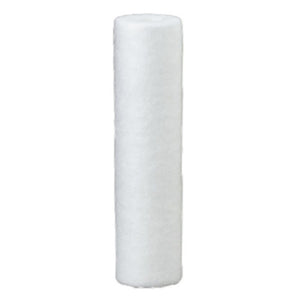

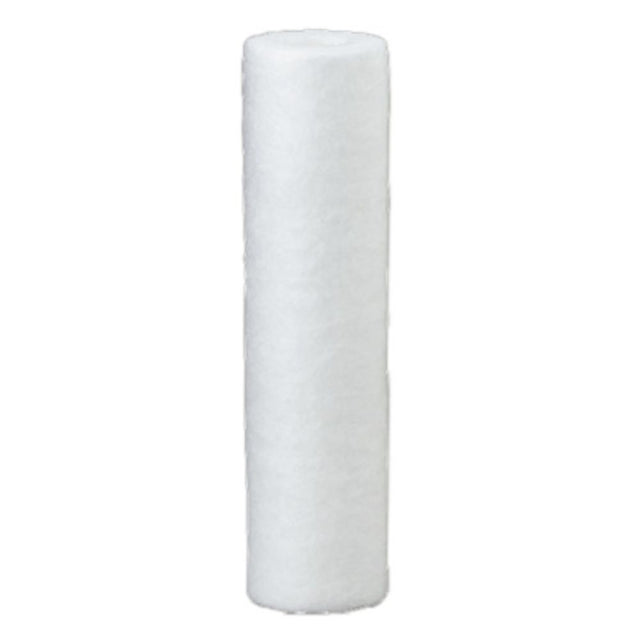

20" BB Dual Gradient Polypropylene Sediment Filter 75/25 mic

Part Number: SGD-45-2025

Alt. Part Number: 1227872-V-BB, DGD-7525-20, CMMF2520-45W1

In Stock

out of stock

In Stock

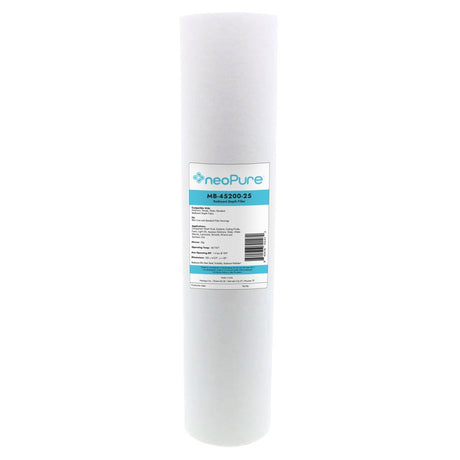

This item is discontinued. We recommend the Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic as a substitute.


Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 75 micron pre-filter that takes out larger sediment, thus reducing the load on the 25 micron inner-layer post filter allowing it to operate more efficiently and consistently.
Also known as DGD-7525-20, the pure polypropylene construction makes it resistant to chemicals and corrosion.
Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications
Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.




Weight & Dimensions

Weight (lbs)

2.25

Approx Length (Inches)

20" (50.8 cm)

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

75/25 µm

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42, FDA CFR-21




Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 75 micron pre-filter that takes out larger sediment, thus reducing the load on the 25 micron inner-layer post filter allowing it to operate more efficiently and consistently.
Also known as DGD-7525-20, the pure polypropylene construction makes it resistant to chemicals and corrosion.
Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications
Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.



NOTE: This item is discontinued. We recommend the Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic as a substitute.

Weight & Dimensions

Weight (lbs)

2.25

Approx Length (Inches)

20" (50.8 cm)

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

6

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

75/25 µm

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42, FDA CFR-21
