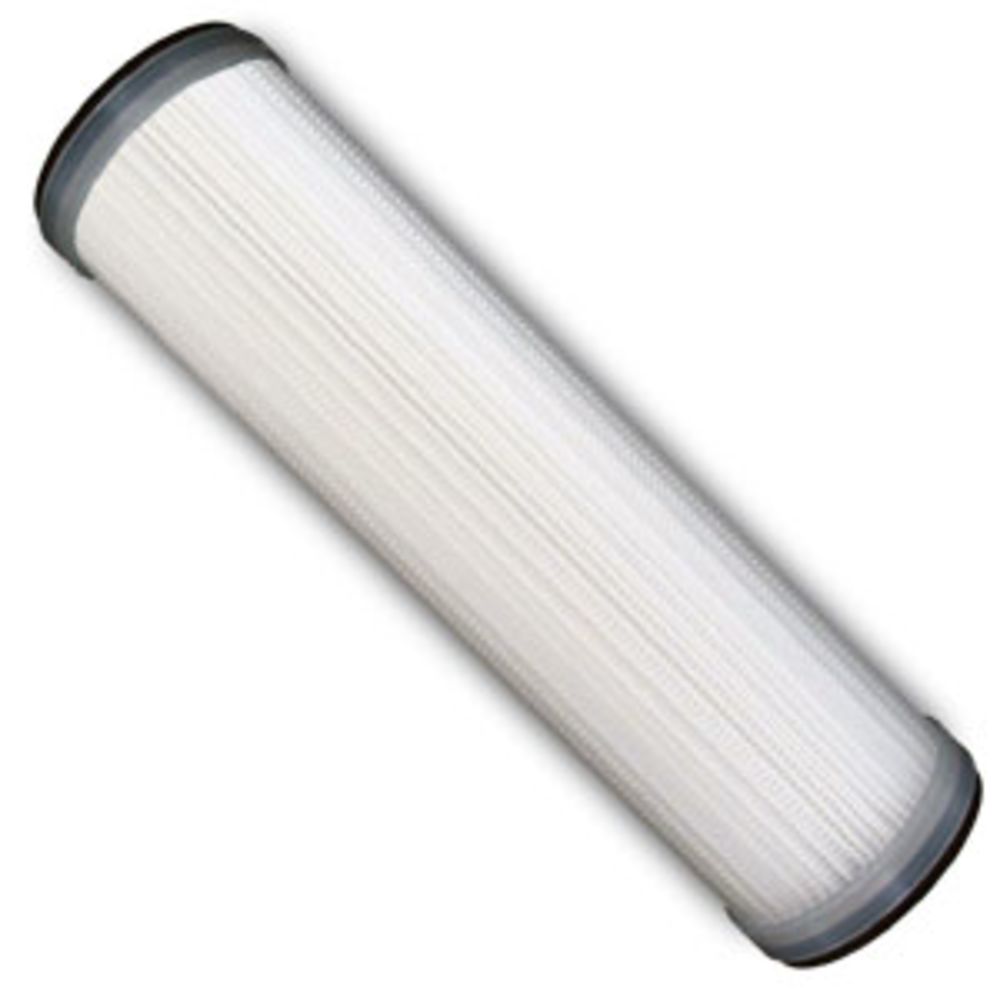

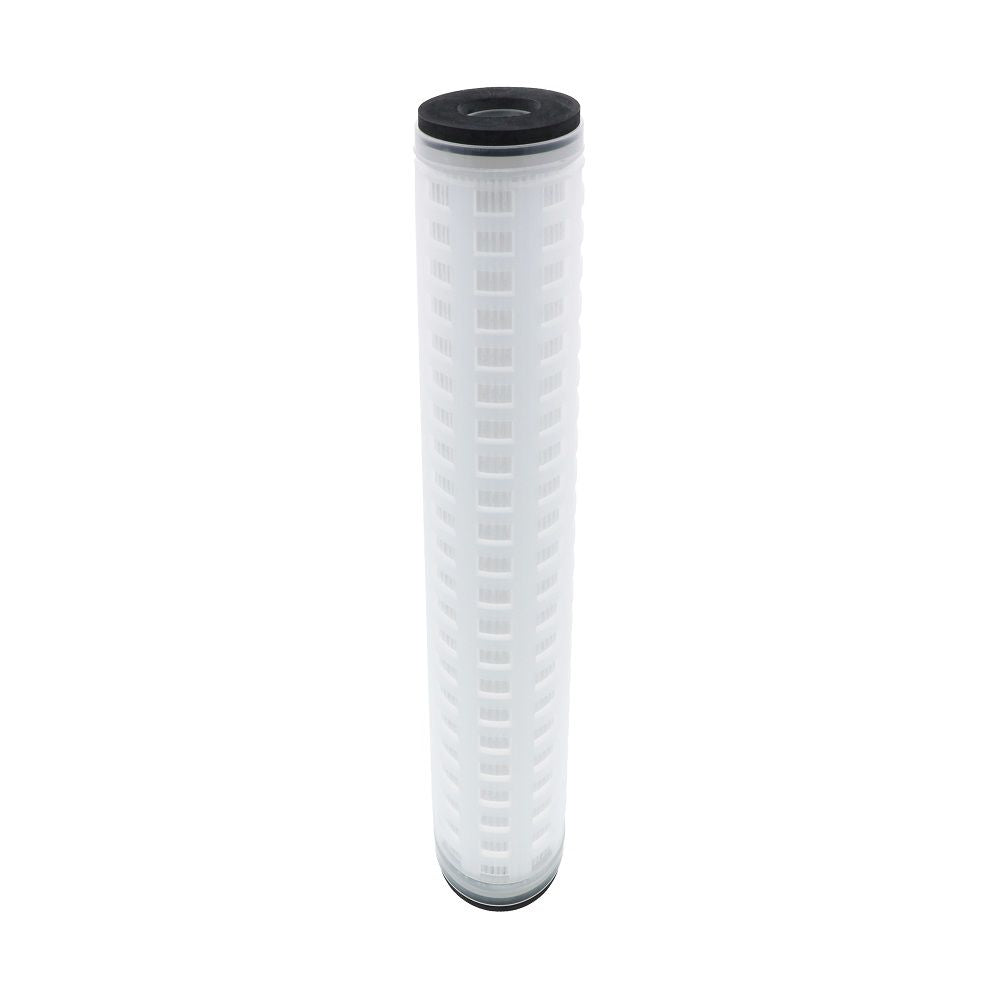

2.5" x 9.75" FlowMax HP with DOE End Cap - 5 Micron

Part Number: FPP-5-975-DOE

In Stock

out of stock

In Stock

$35.10


The Flow-Max HP Series Filter cartridges are cost effective, disposable, filter elements for a wide range of applications. Flow-Max HP cartridges are constructed of highly efficient pleated polypropylene filter media with extended filter area to provide high flow rates, low pressure drop and increased dirt holding capacity.

Specifications:
  • 100% polypropylene
  • Ratings from 0.2 to 50 micron
  • FDA listed polypropylene components
  • Removal efficiencies to 99.98%
  • High surface area
  • Long service life & reduced maintenance costs
  • Fixed pore construction for reliability
  • Change Out at 35 PSI Differential
Applications:

High purity water, Chemicals, Traps for DI resin, Cosmetics, Electronics, Inks, Pre filtration for RO, Food & beverage, Magnetic tape coatings, Bottled water, Aqueous solutions, Edible oils, Plating solutions, Waste water.


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Polypropylene

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

24

End Cap Type

DOE

Gaskets

EPDM

Initial Pressure Drop

2.7 PSI Differential

Media Type

Polypropylene

Micron Rating (Absolute)

5 Micron

O Rings

EPDM

Operating Pressure Range

MAX 120 PSI

Operating Temperature Range

MAX 175 Degrees Fahrenheit

Outer Diameter

2.5"

Inner Diameter

1.0 Inches

Warranty & Certifications

Certifications

FDA CFR-21


2.5"
