Watts

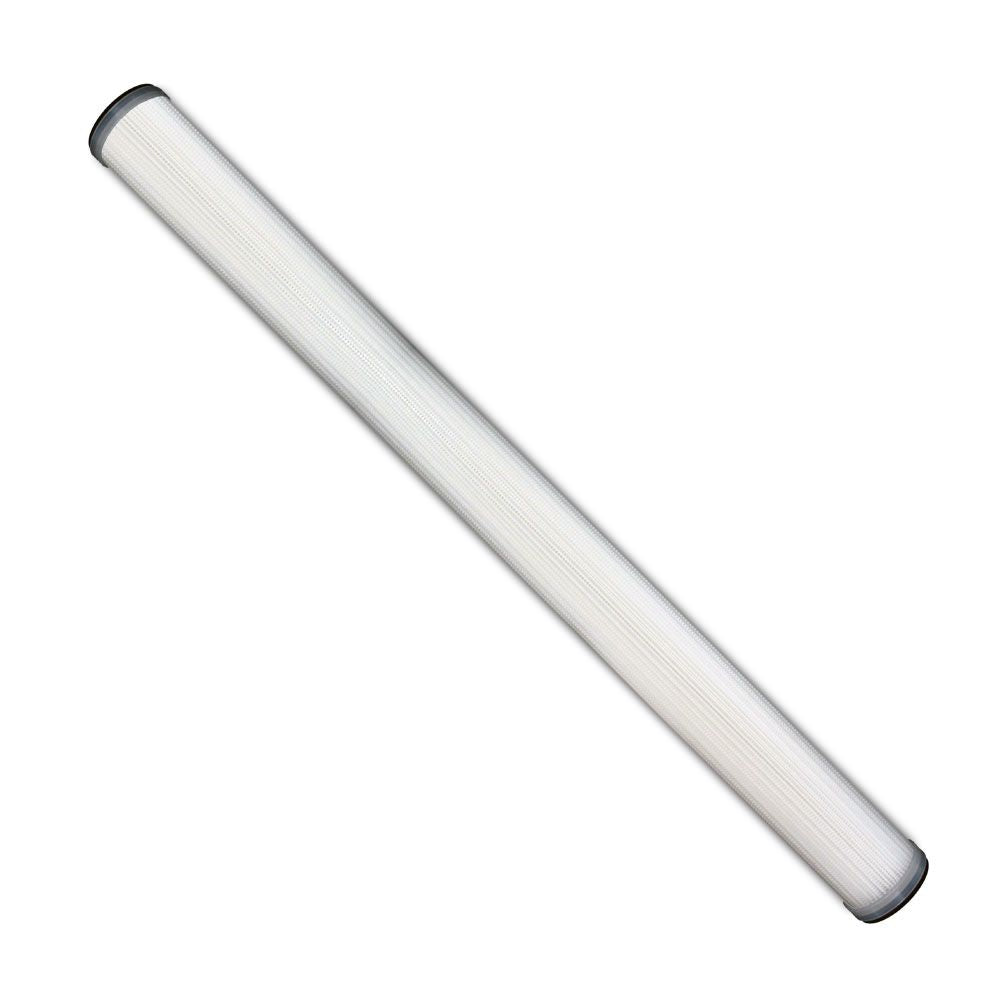

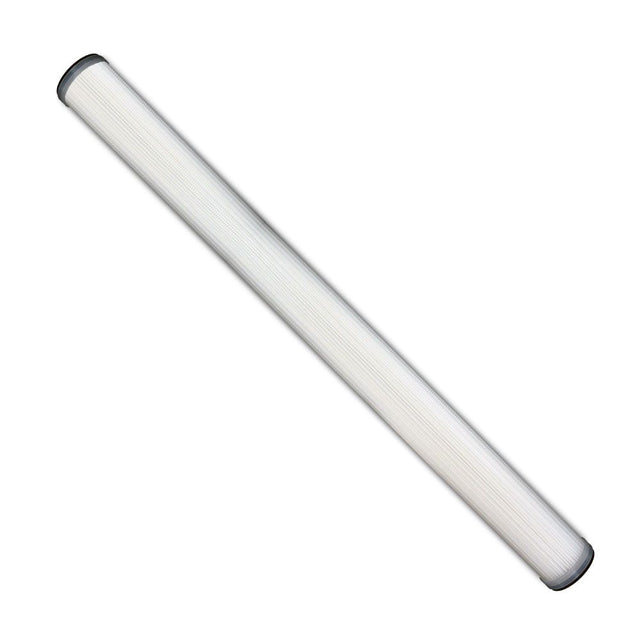

2.5" x 30" FlowMax HP with DOE End Cap - 5 Micron

Part Number: FPP-5-30-DOE

In Stock

out of stock

In Stock

$78.44


The Flow-Max HP Series Filter cartridges are cost effective and disposable filter elements designed for a wide range of applications. Flow-Max HP cartridges are constructed of highly efficient pleated polypropylene filter media with extended filter area to provide high flow rates, low pressure drop and increased dirt holding capacity.

Features:
  • 100% polypropylene
  • Ratings from 0.2 to 50 micron
  • FDA listed polypropylene components
  • Removal efficiencies to 99.98%
  • High surface area
  • Long service life and reduced maintenance costs
  • Fixed pore construction for reliability
  • Change out at 35 PSI differential
Applications:

High purity water, chemicals, traps for DI resin, cosmetics, electronics, inks, prefiltration for RO, food and beverages, magnetic tape coatings, bottled water, aqueous solutions, edible oils, plating solutions, and wastewater.


Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Details

Cap Material

Polypropylene

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

DOE

Gaskets

Buna-N, EPDM

Inner/Outer Wraps

Polypropylene

Media Type

Polypropylene

Micron Rating (Absolute)

5 Micron

Netting

Polypropylene

O Rings

EPDM

Operating Pressure Range

MAX 130 PSI

Operating Temperature Range

MAX 175 Degrees Fahrenheit

Outer Diameter

2.5"

Inner Diameter

1.0 Inches

Warranty & Certifications

Certifications

FDA CFR-21


2.5"
