Pentek

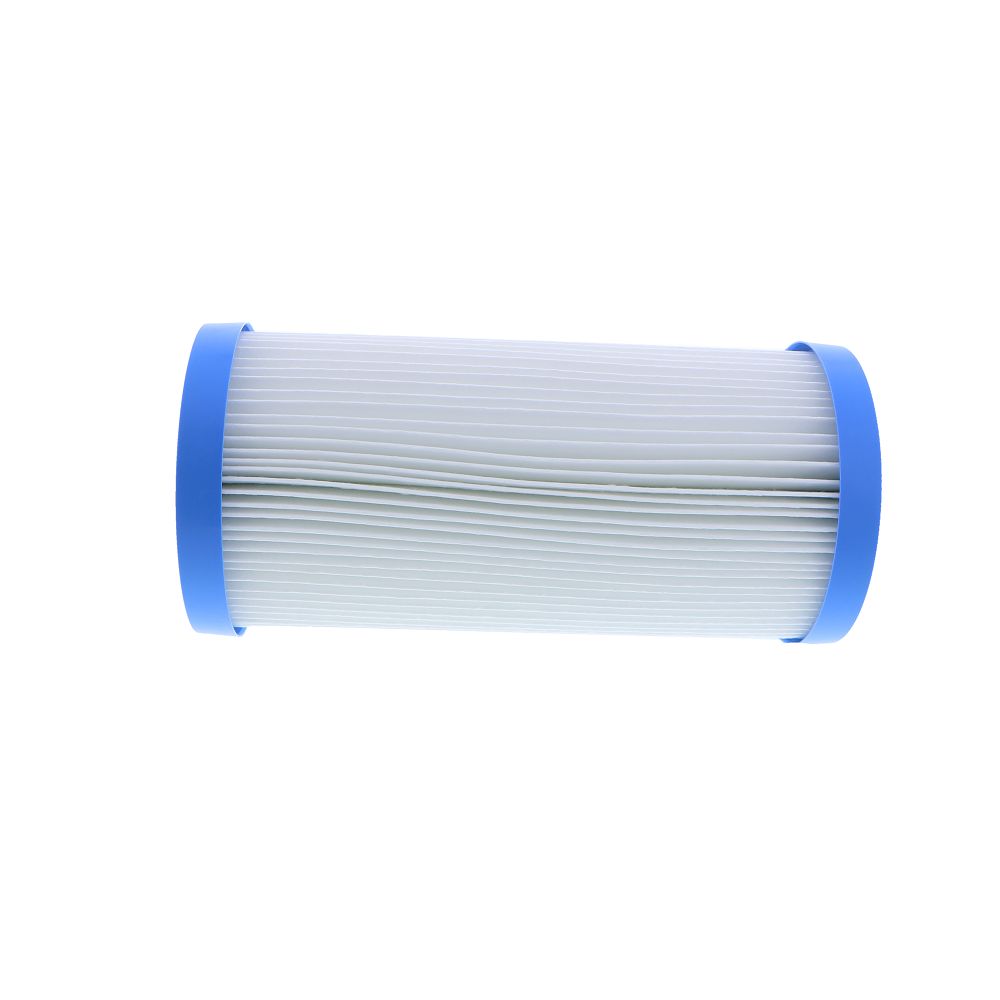

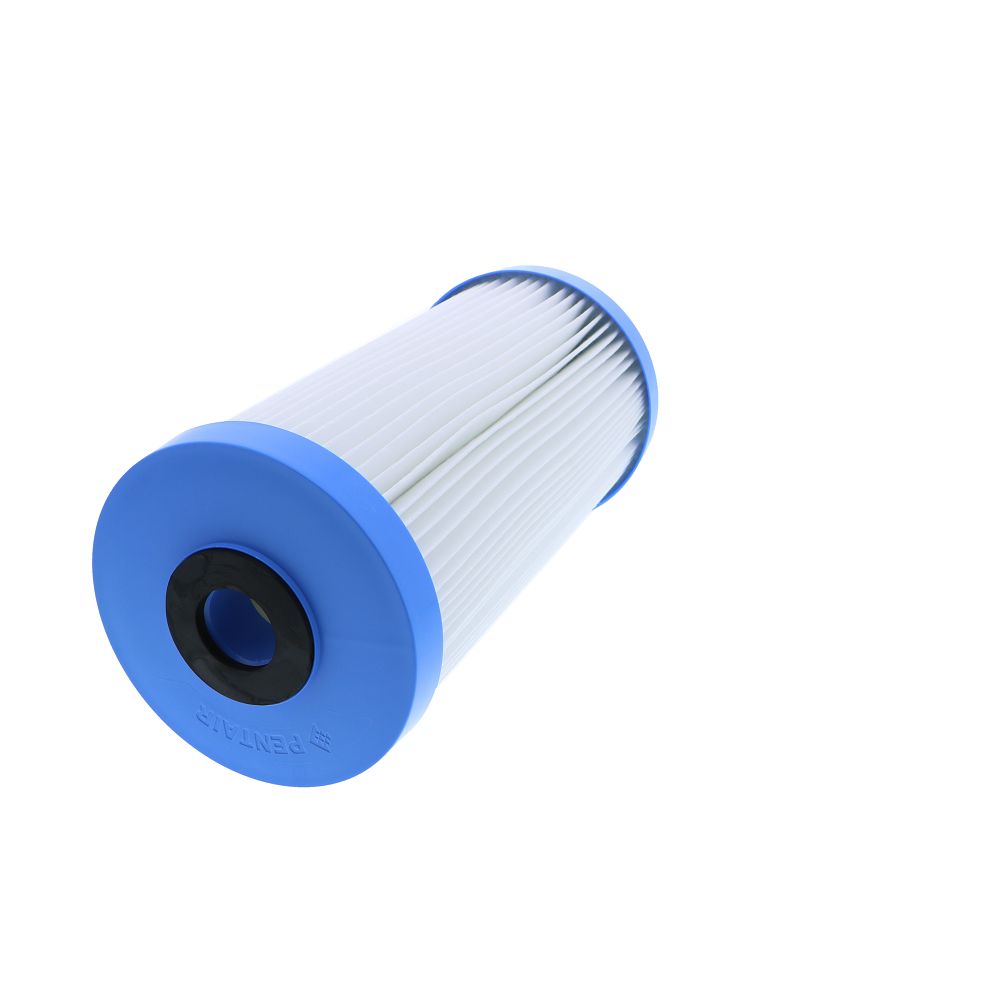

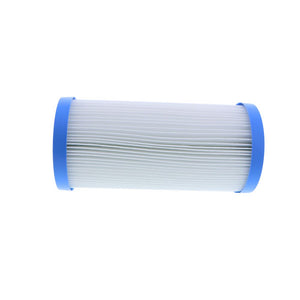

10" BB Pentek R30-BB Pleated Polyester 30 Mic Filter

Part Number: 155101-43

Alt. Part Number: FXHSC, RS6

In Stock

out of stock

In Stock

$13.29


Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. The R30-BB is the replacement filter for most 10" Big Blue housings.

Used in Residential and Commercial Applications. The high durability and resistance to bacteria and chemicals of the Pentek R Series filters is ideal for potable water, light industrial applications, swimming pool and spa, and well water applications. The pleated filter design maximizes the dirt-holding capacity and extends the life of the filter.
Improved Filtration Efficiency. The core, filter media, and endcaps are embedded and sealed at each end of the pleat, forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

Additional Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 30 micron
  • Surface Area: 16 sq. ft.

Compatible with: GE Water | GNWH38F, GXWH40L, GXWH35F, GNWH38S, GXWH30C, GXWH38F, General Electric | FXHSC, GE FXHSC, OmniFilter, Flotec | RS6


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

8

End Cap Type

DOE

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

Mexico

Outer Diameter

4.5" (11.4 cm)


10"

10"





Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. The R30-BB is the replacement filter for most 10" Big Blue housings.

Used in Residential and Commercial Applications. The high durability and resistance to bacteria and chemicals of the Pentek R Series filters is ideal for potable water, light industrial applications, swimming pool and spa, and well water applications. The pleated filter design maximizes the dirt-holding capacity and extends the life of the filter.
Improved Filtration Efficiency. The core, filter media, and endcaps are embedded and sealed at each end of the pleat, forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

Additional Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 30 micron
  • Surface Area: 16 sq. ft.

Compatible with: GE Water | GNWH38F, GXWH40L, GXWH35F, GNWH38S, GXWH30C, GXWH38F, General Electric | FXHSC, GE FXHSC, OmniFilter, Flotec | RS6

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

8

End Cap Type

DOE

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

Mexico

Outer Diameter

4.5" (11.4 cm)

Documentation
10"
10"

Reviews
